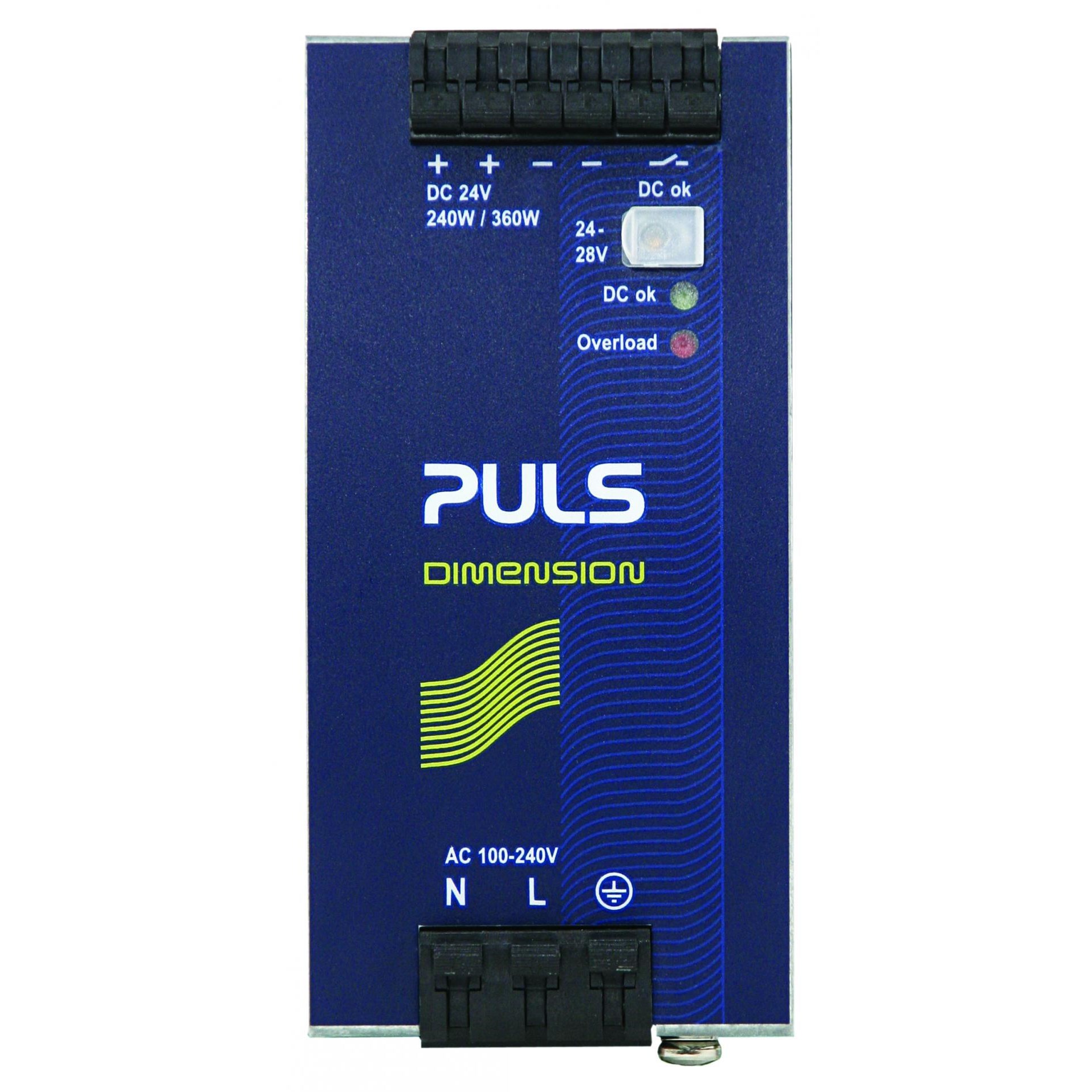

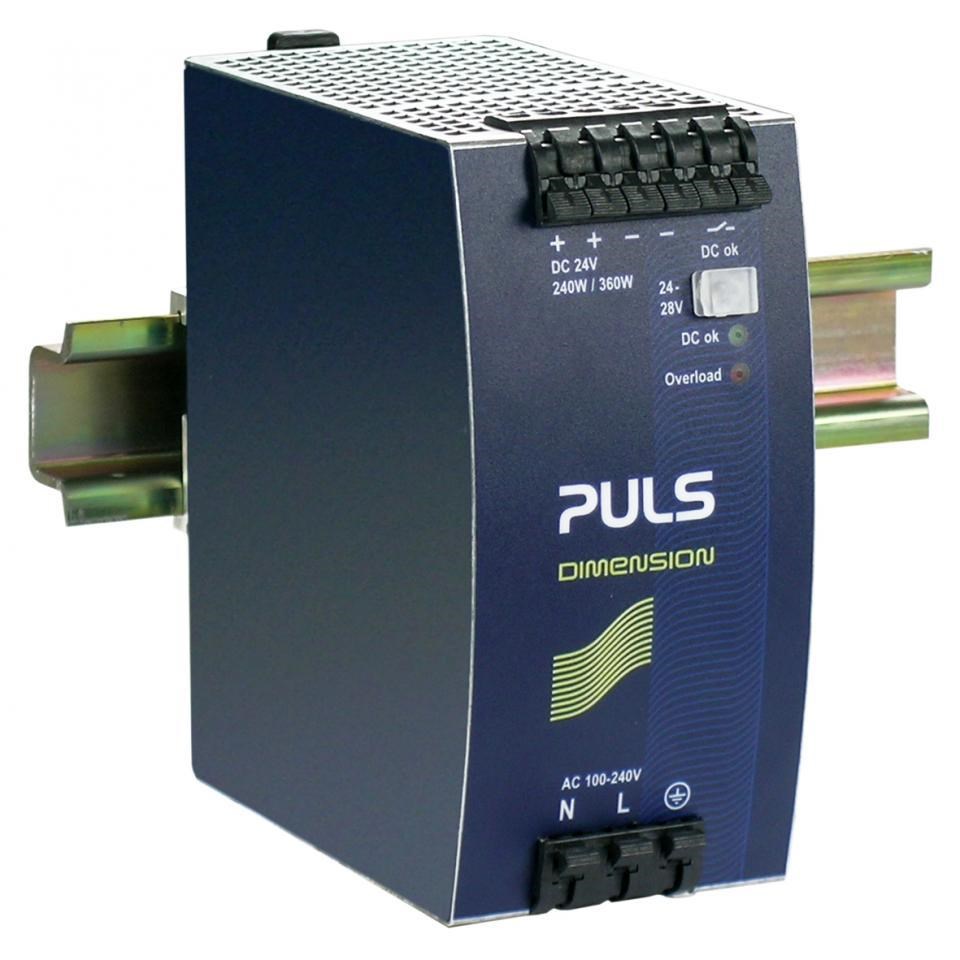

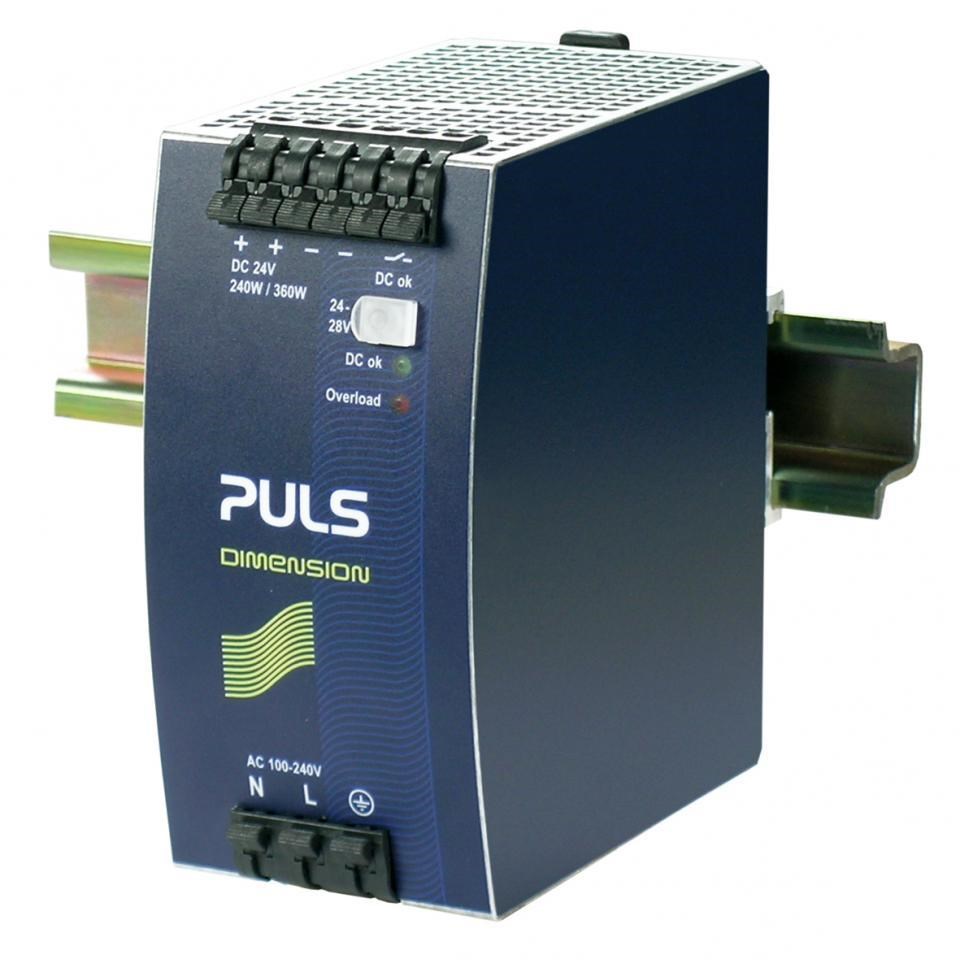

Puls QS10.241-C1 Power Supply 1PH 110-150VDC 24VDC 10A 240 Watt 16.7 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS10.241-C1

  • Single-phase with 10 A rated current
  • Compact size: 60x124x117 mm
  • Wide input voltage: 110-150 VDC, 24 VDC
  • High efficiency at 93.5%
  • Spring clamp connection for easy setup
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
100-240V AC / 110 V - 150 V DC
Output Current - Nominal
10A
Output Current - Range
10A to 9A
Output Power
240W
Output Voltage - Nominal
24V
Output Voltage - Range
24V to 28V DC
Efficiency
92.6 / 93.5%
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.9kg
Width
60mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, ISA-71.04-1985, VDMA 24364, SEMI F47, Railroad, CE, REACH, WEEE, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20
