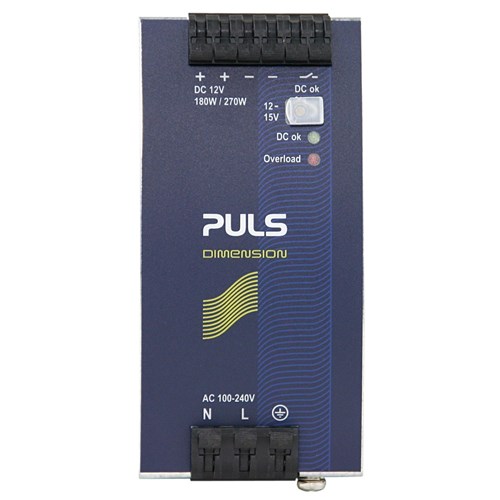

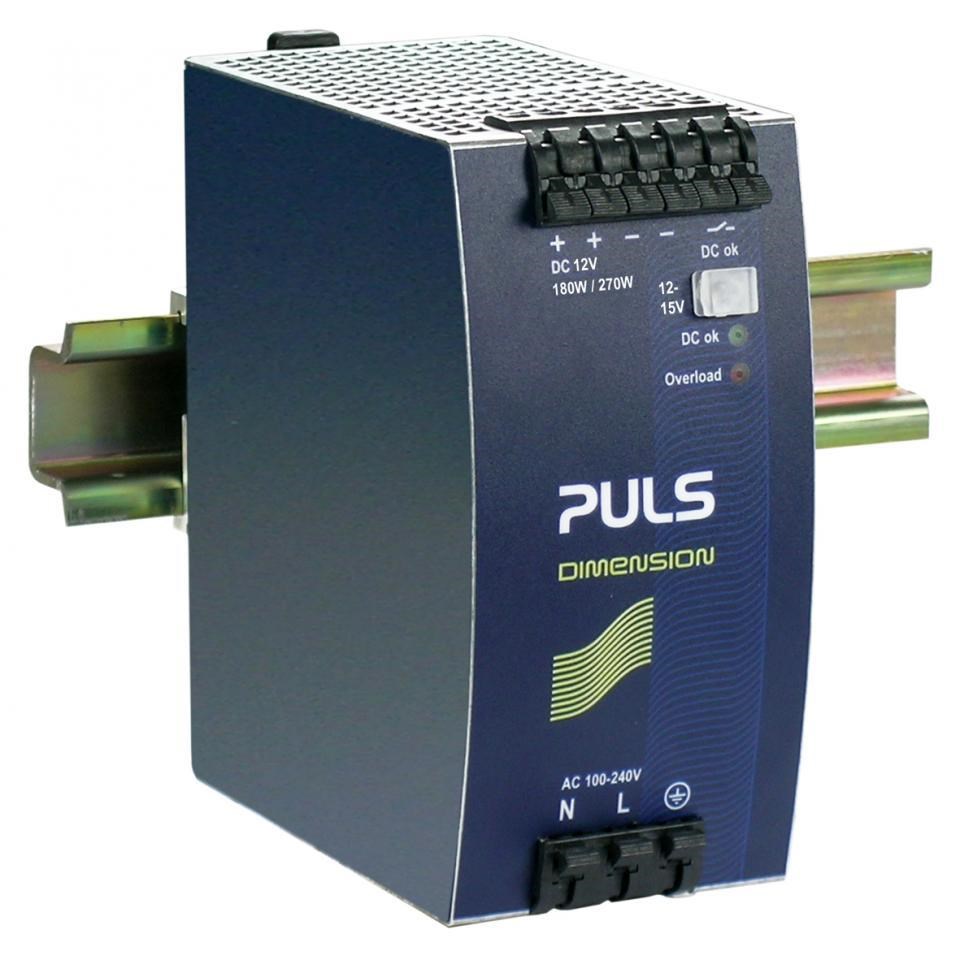

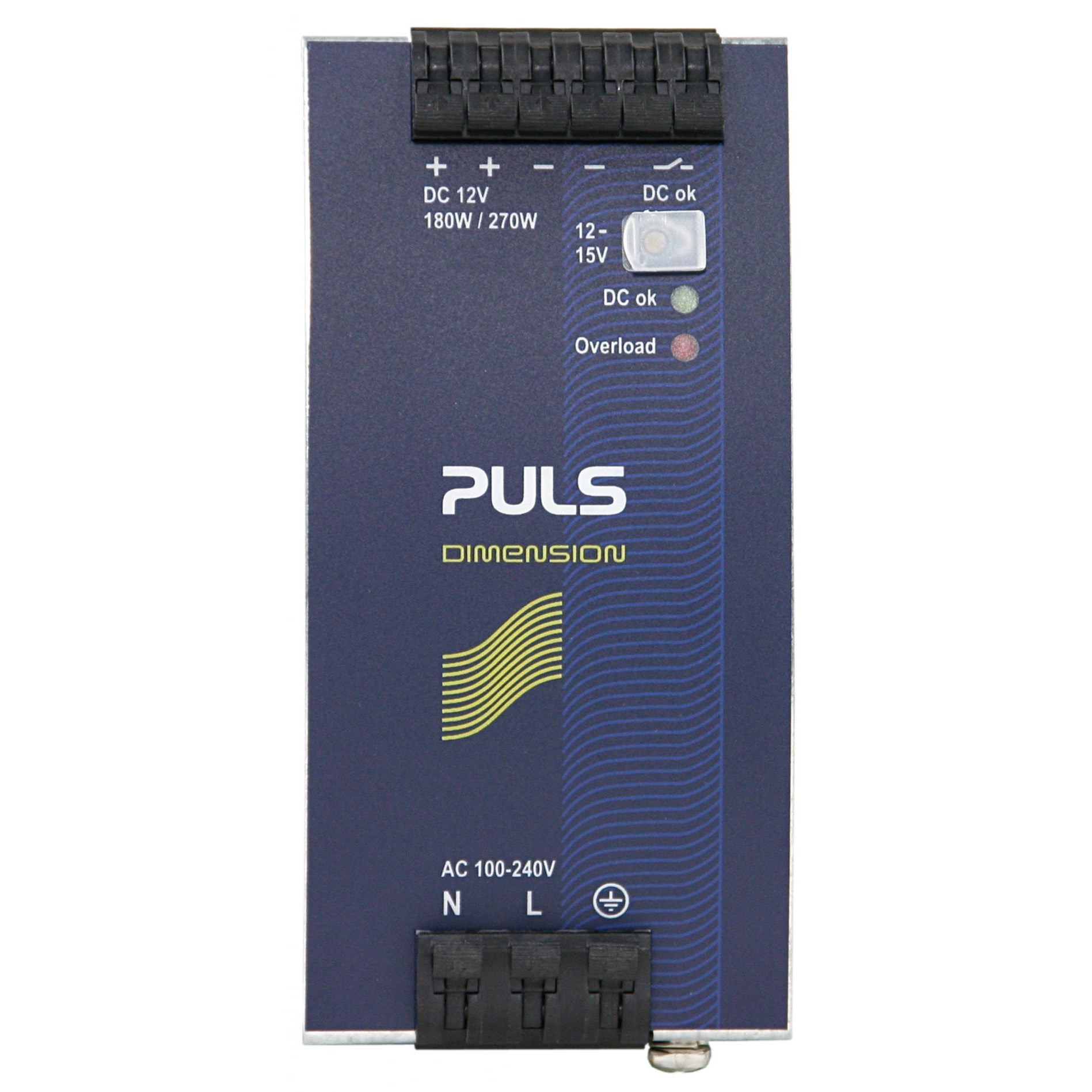

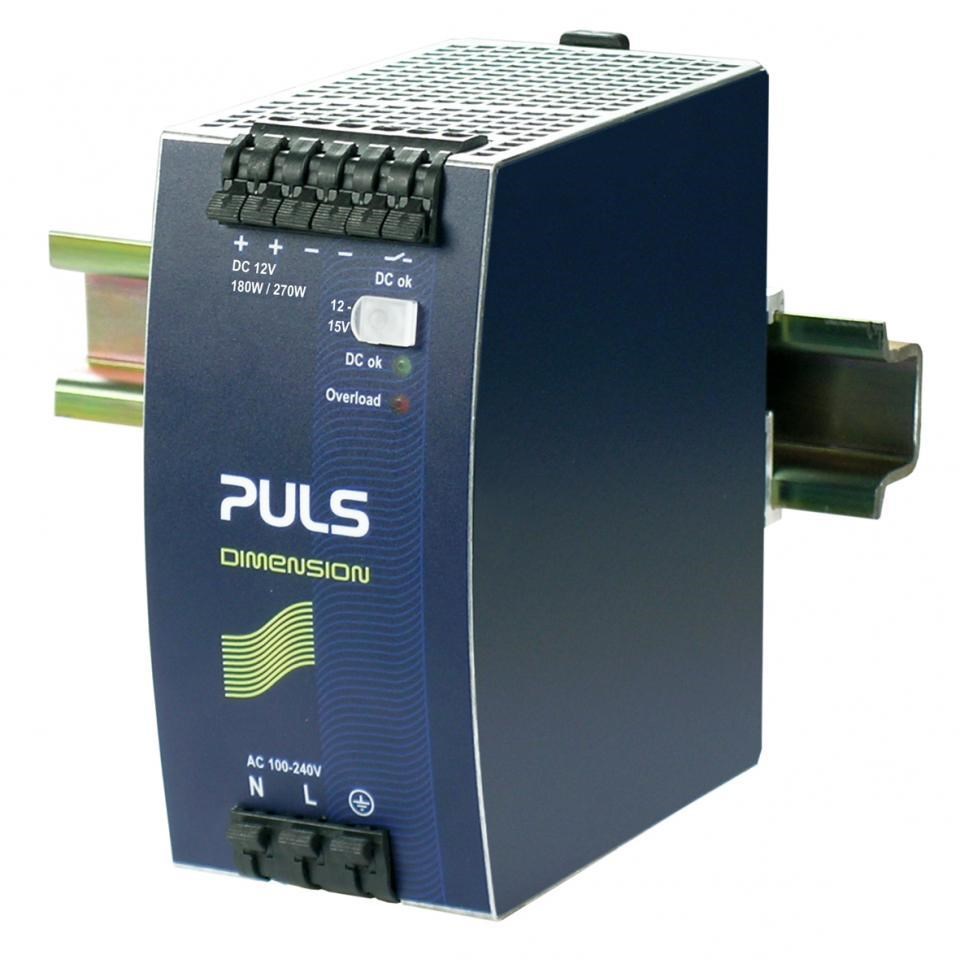

Puls QS10.121 Power Supply 1PH 110-150VDC 12VDC 15A 180 Watt 16.1 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS10.121

  • Single-phase, 15 A rated current
  • Compact size: 60x124x117 mm
  • High efficiency at 91.8%
  • DIN rail mounting for easy installation
  • Active inrush current limitation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
Q-Series

Electrical

Input Voltage
100-240V AC / 110 V - 150 V DC
Output Current - Nominal
15A
Output Current - Range
15A to 13.5A
Output Power
180W
Output Voltage - Nominal
12V
Output Voltage - Range
12V to 15V DC
Efficiency
91.5 / 91.8%
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.93kg
Width
60mm

Environmental

Approvals / Conformity
UL 508, IEC 61010, IEC 60950-1, UL 60950-1, Class I Div 2Marine (DNV GL), Marine (ABS), SEMI F47, VDMA 24364, IEC 60068-2-60, ISA-71.04-1985, CE, REACH, EAC TR
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
