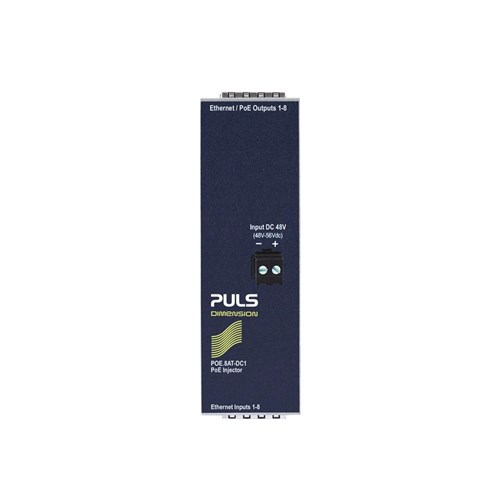

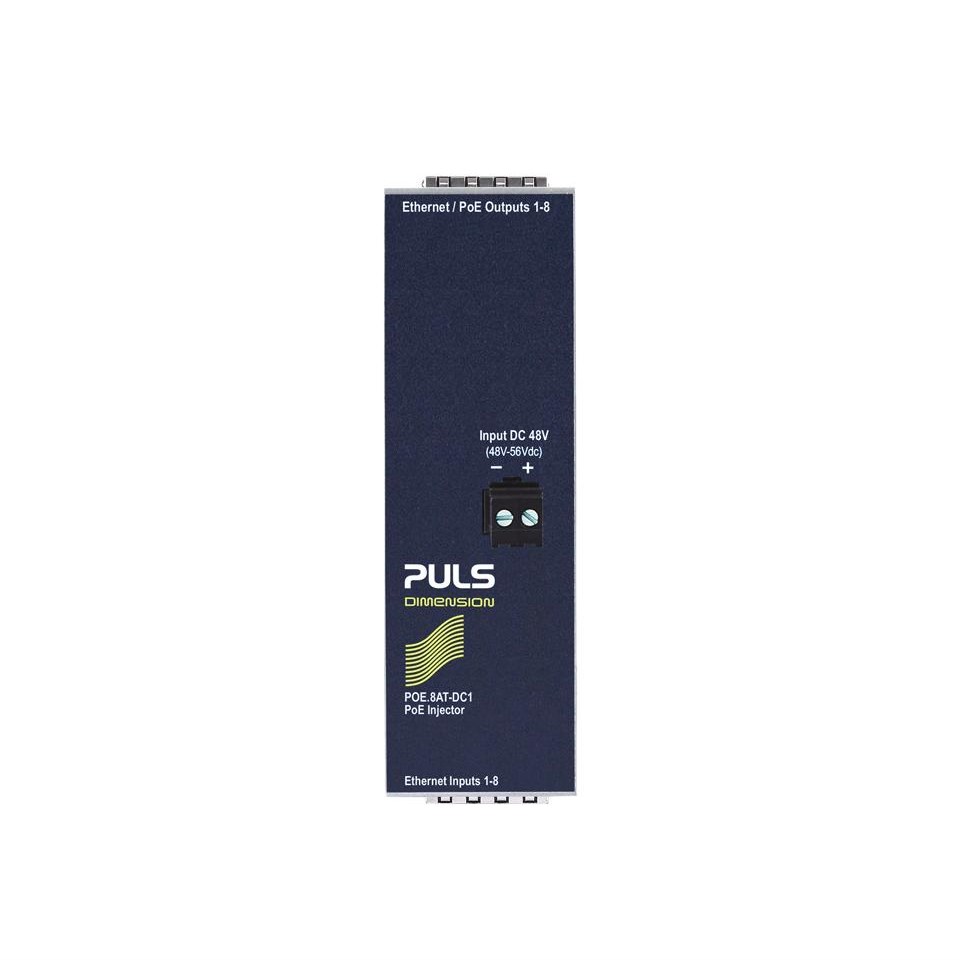

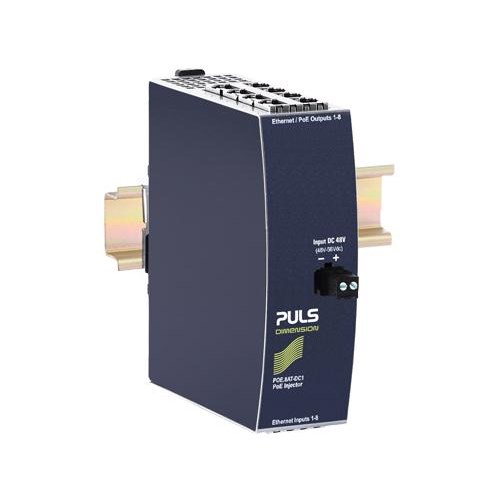

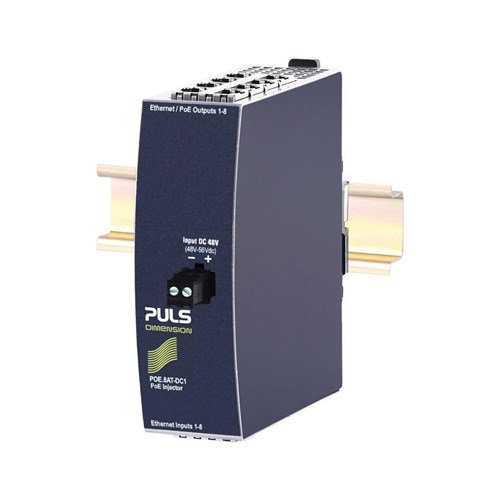

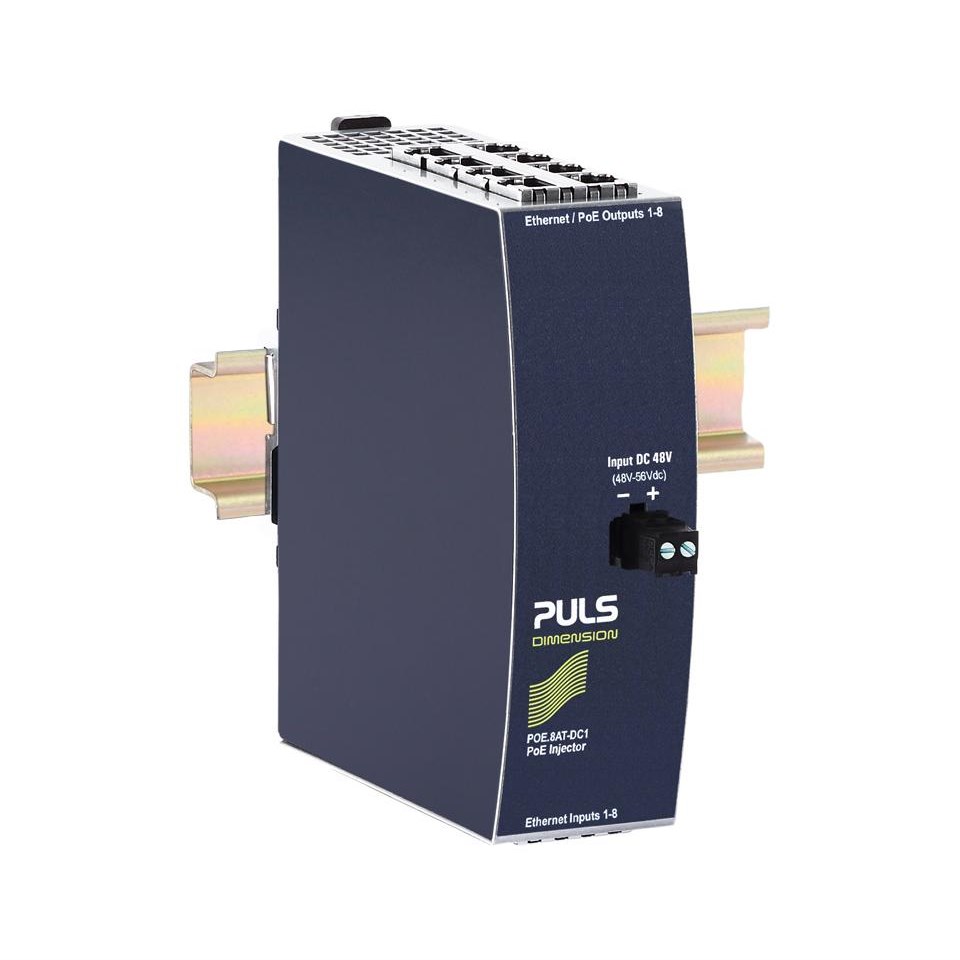

Puls POE.8AT-DC1 PoE Injector 48VDC 56VDC 48VDC 0.63A 240 Watt 6.4 Watt DIN Rail Mount RJ45 Ethernet IP20

Product Code: POE.8AT-DC1

  • High efficiency of 97.3%
  • Supports voltages of 48 VDC and 56 VDC
  • Compact size: 39mm wide, 128mm high
  • IP20 protection rating for safety
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PoE+

Electrical

Input Voltage
53 V DC
Output Current - Nominal
0.33A
Output Power
8 x 30W
Output Voltage - Range
48V to 56V DC
Efficiency
97.30%
Terminal Type
Hot swap connector

Dimensions & Physical Data

Depth
117mm
Height
128mm
Weight
0.38kg
Width
39mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
