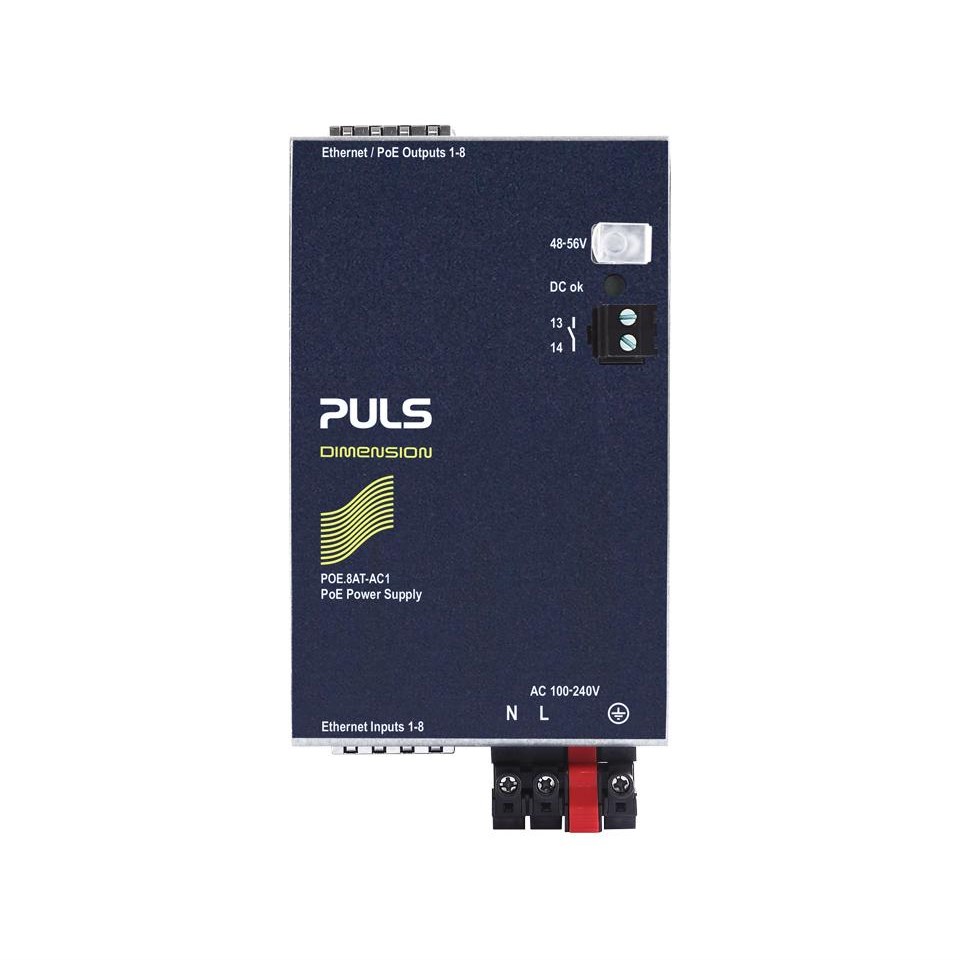

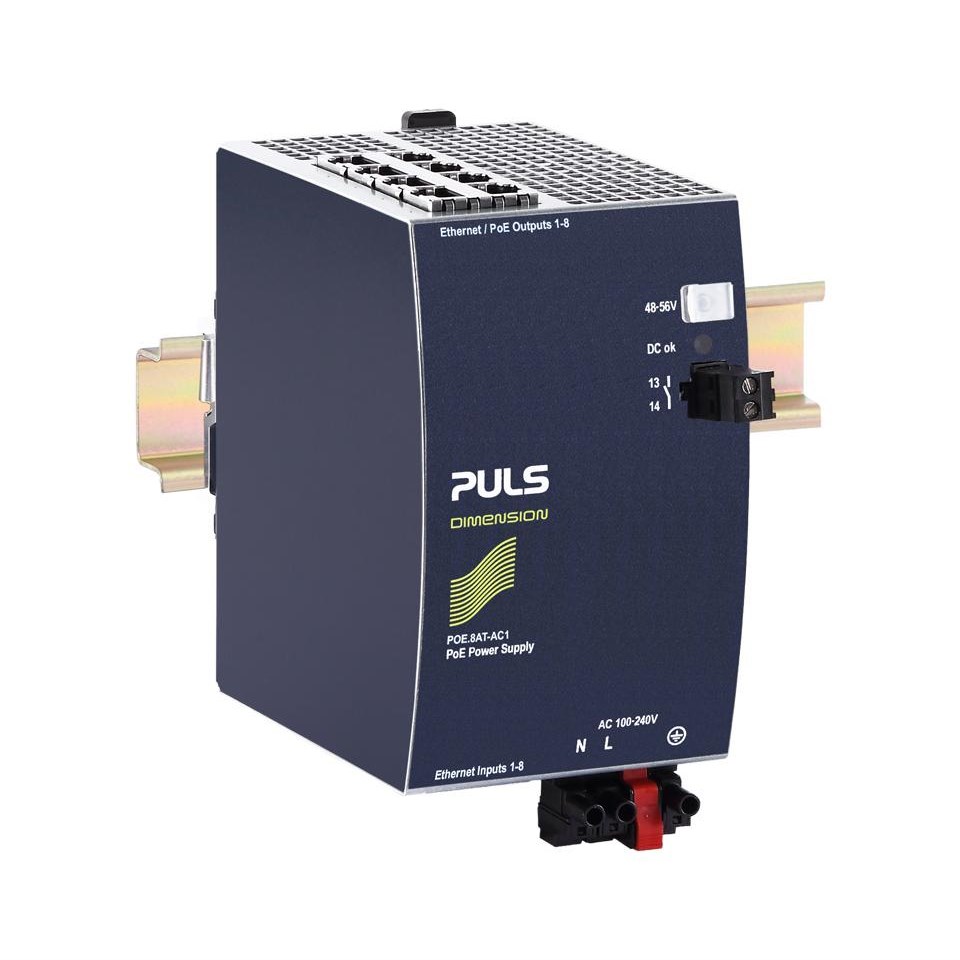

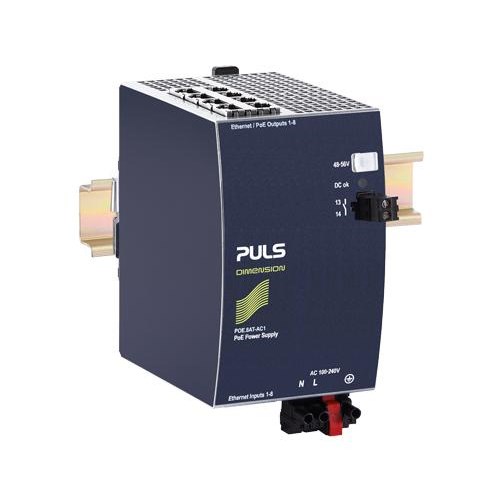

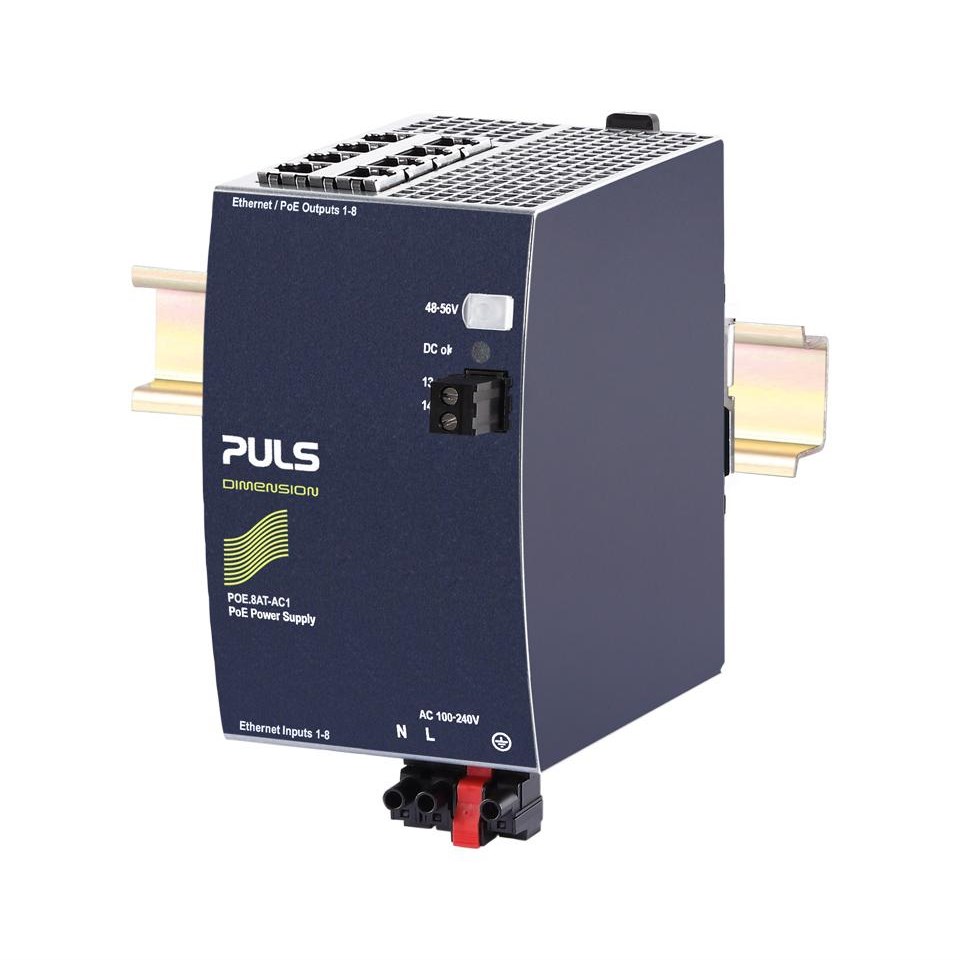

Puls POE.8AT-AC1 PoE Power Supply 110-150VDC 48VDC 0.6A 240 Watt 17.8 Watt DIN Rail Mount RJ45 Ethernet IP20

Product Code: POE.8AT-AC1

  • High efficiency at 93.1%
  • Active inrush current limitation
  • Wide-range input for flexibility
  • IP20 rated for protection
  • DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Poe Power Supply
Brand
Puls
Series
PoE+

Electrical

Output Current - Nominal
0.33 A
Output Power
8 x 30 W
Output Voltage - Nominal
53 Vdc
Output Voltage - Range
48-56 Vdc
Efficiency
93.1%
Terminal Type
Plug connector with screw terminals

Dimensions & Physical Data

Depth
117 mm
Height
128 mm
Weight
940 g
Width
77 mm

Environmental

Operating Temperature
-25 °C to 70 °C

Documents

IPD Product Catalogue V17
