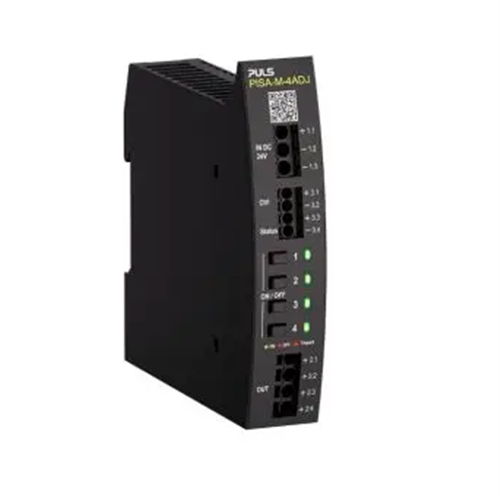

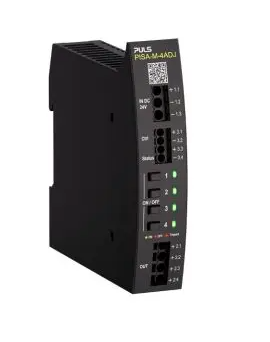

Puls PISA-M-4ADJ Electronic Circuit Breaker 19.2-30VDC 20A 3.5 Watt DIN Rail Mount Plug-In

Product Code: PISA-M-4ADJ

  • Rated for 20 A current
  • Compact size: 22.5 mm width
  • Operates at 19.2-30 VDC
  • DIN Rail mountable
  • RoHS and REACH compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Circuit Breaker
Brand
Puls
Series
PISA-M

Electrical

Input Voltage
19.2 – 30 V DC
Output Channels
4
Output Current - Nominal
20 A (Sum of all outputs)
DC Input Current at No Load
30 mA
Terminal Type
Push-in terminals

Mechanical

Housing Material
Plastic
Mounting Style
DIN Rail

Dimensions & Physical Data

Depth
98 mm
Height
104 mm
Weight
0.100 kg
Width
22.5 mm

Environmental

Approvals / Conformity
cULus, UL61010-2-201
Operating Temperature
-25 °C to +70 °C
