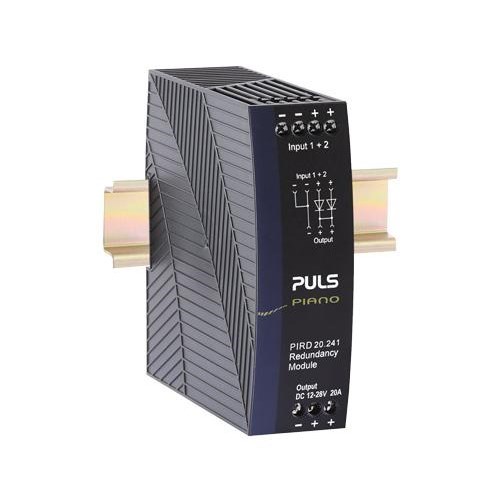

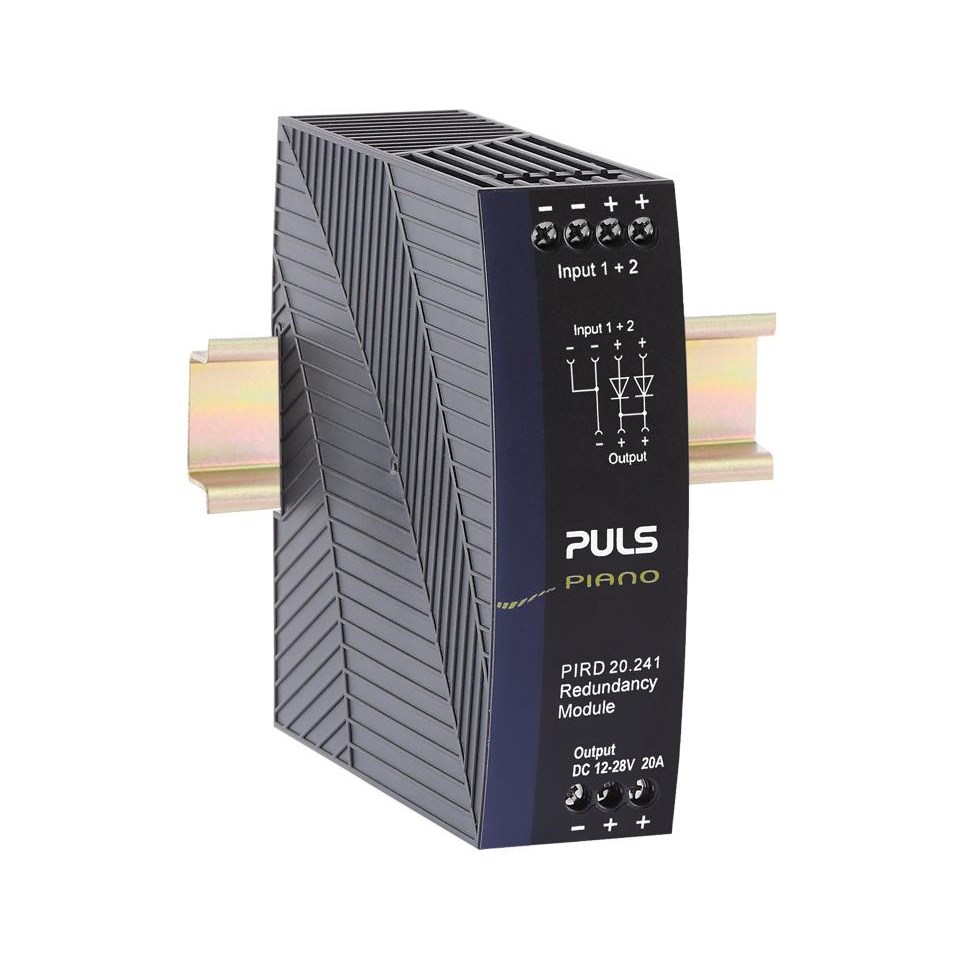

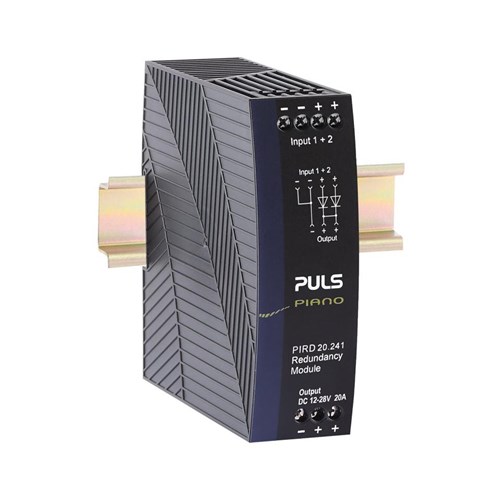

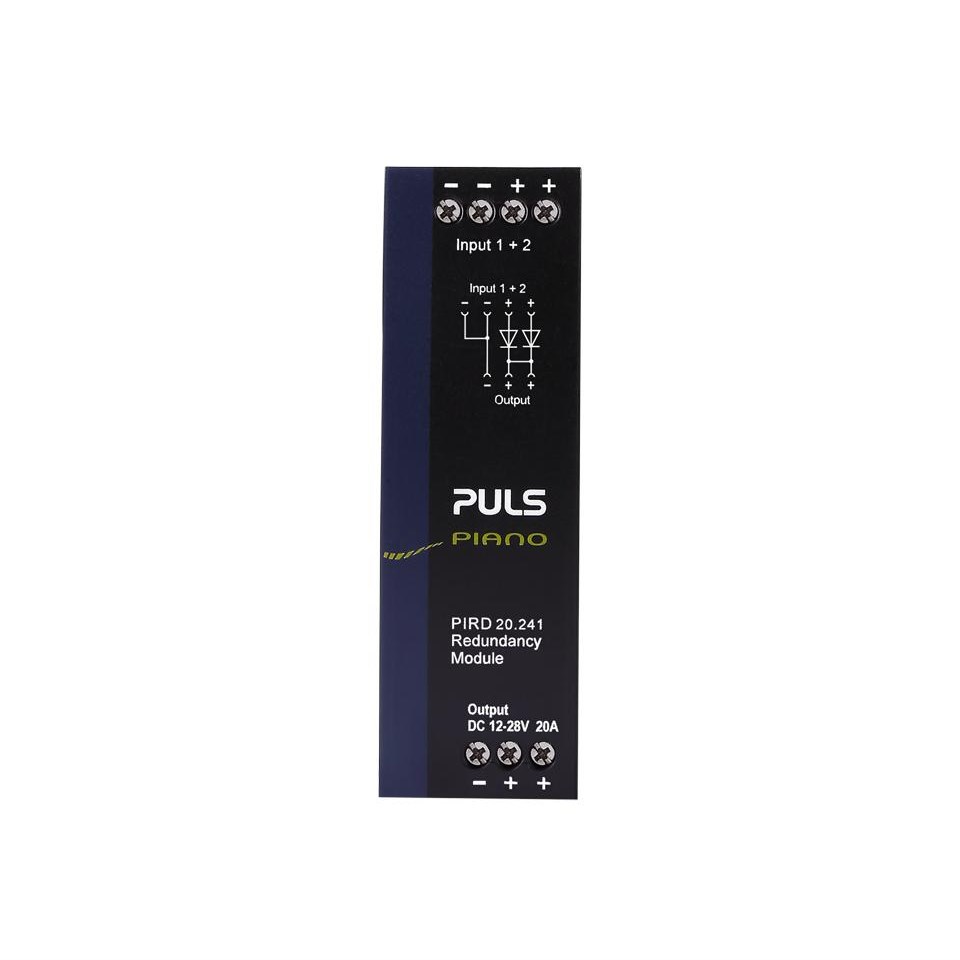

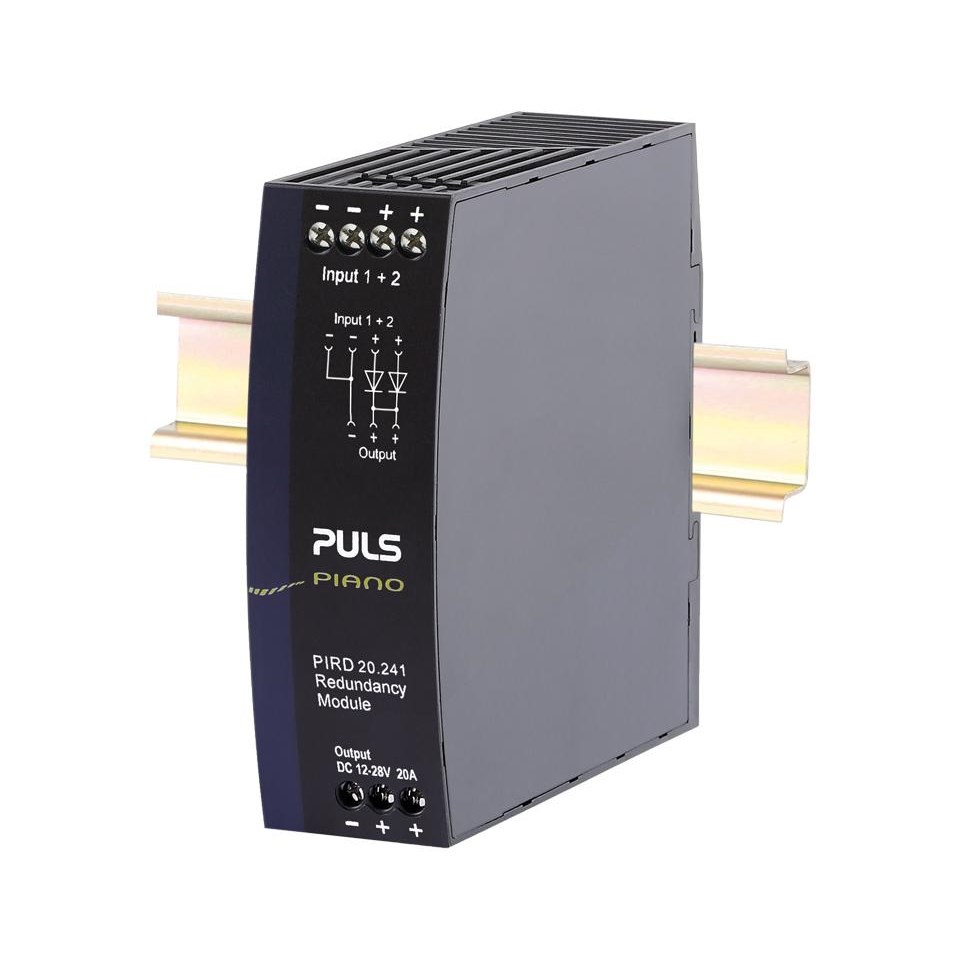

Puls PIRD20.241 Diode Redundancy Module 12VDC 24VDC 20A

Product Code: PIRD20.241

  • Rated for 20 A current, ideal for robust applications
  • Supports 12 VDC and 24 VDC voltage levels
  • IP20 protection with secure screw terminal connections
  • Compact design: 39mm wide, fits on DIN Rail
  • Certified to various international safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Diode Redundancy Module
Brand
Puls
Series
PIANO

Electrical

Input Voltage
DC 12-28V
Output Current
20A
Output Current - Range
20A to 32A
Short Circuit Output Current
0.026kA
Input Current
nom. 2x 0-10A continuous nom. 2x 10-16A for 5 seconds
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
124mm
Height
124mm
Weight
0.28kg
Width
39mm

Environmental

Approvals / Conformity
UL 508, IEC 60950-1, Class I Div 2, ATEX, IECEx, Marine (DNV GL), Marine (ABS), IEC 60068-2-60, ISA-71.04 G3, VDMA 24364, CE, REACH, WEEE, EAC TR
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
