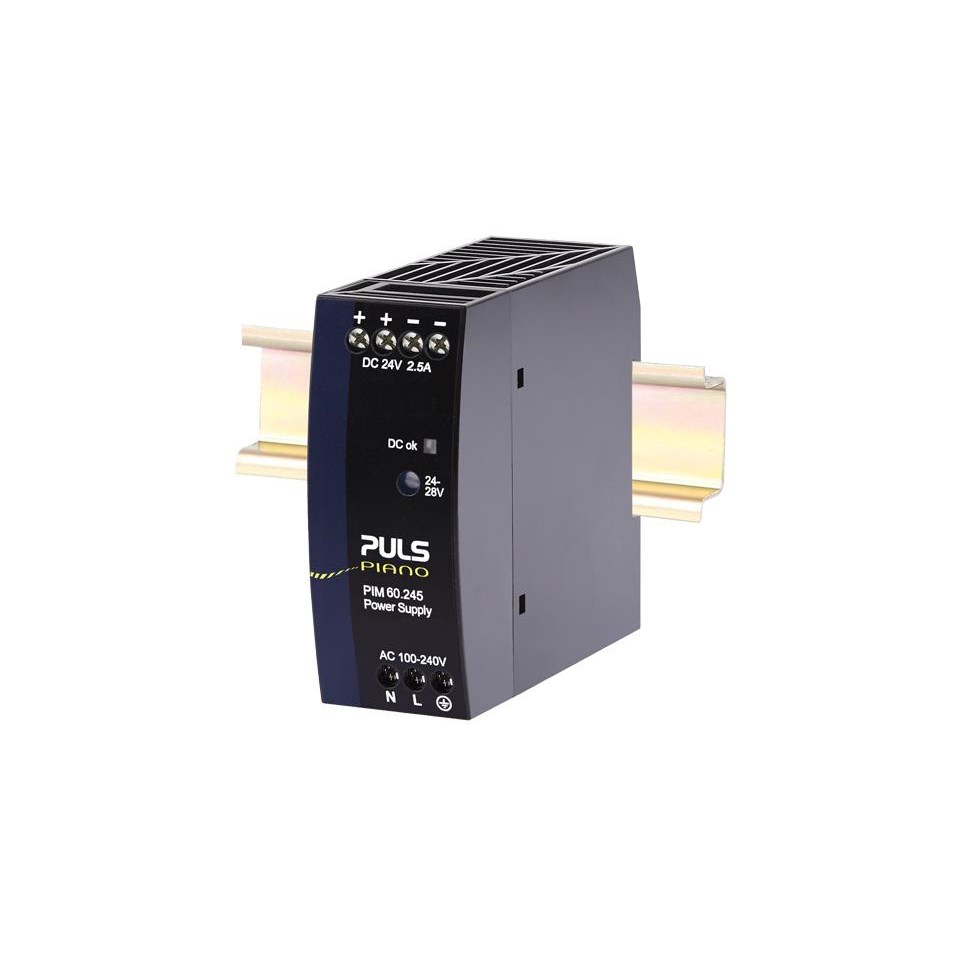

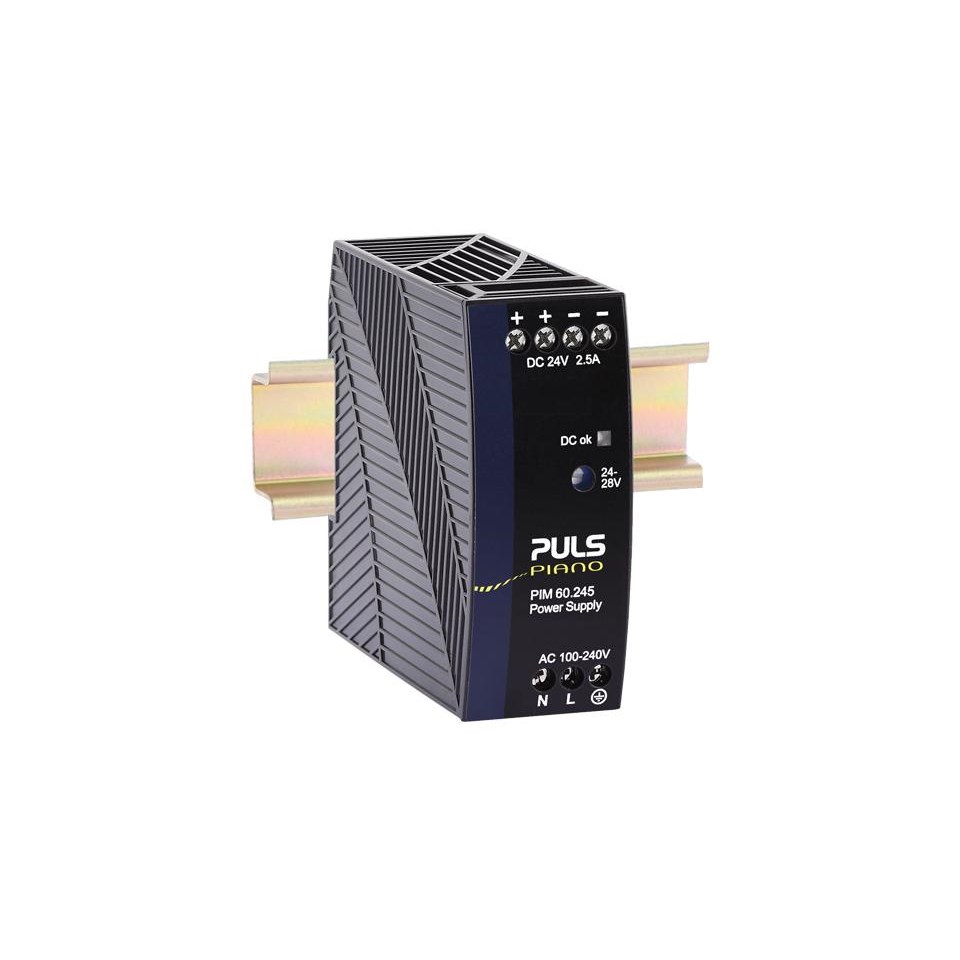

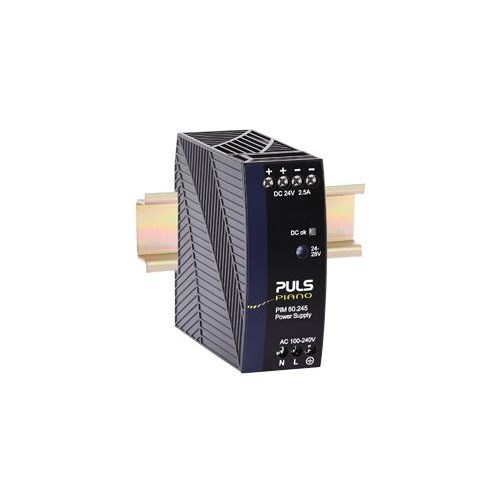

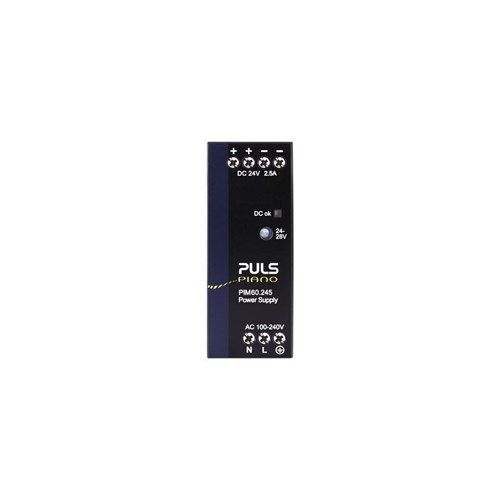

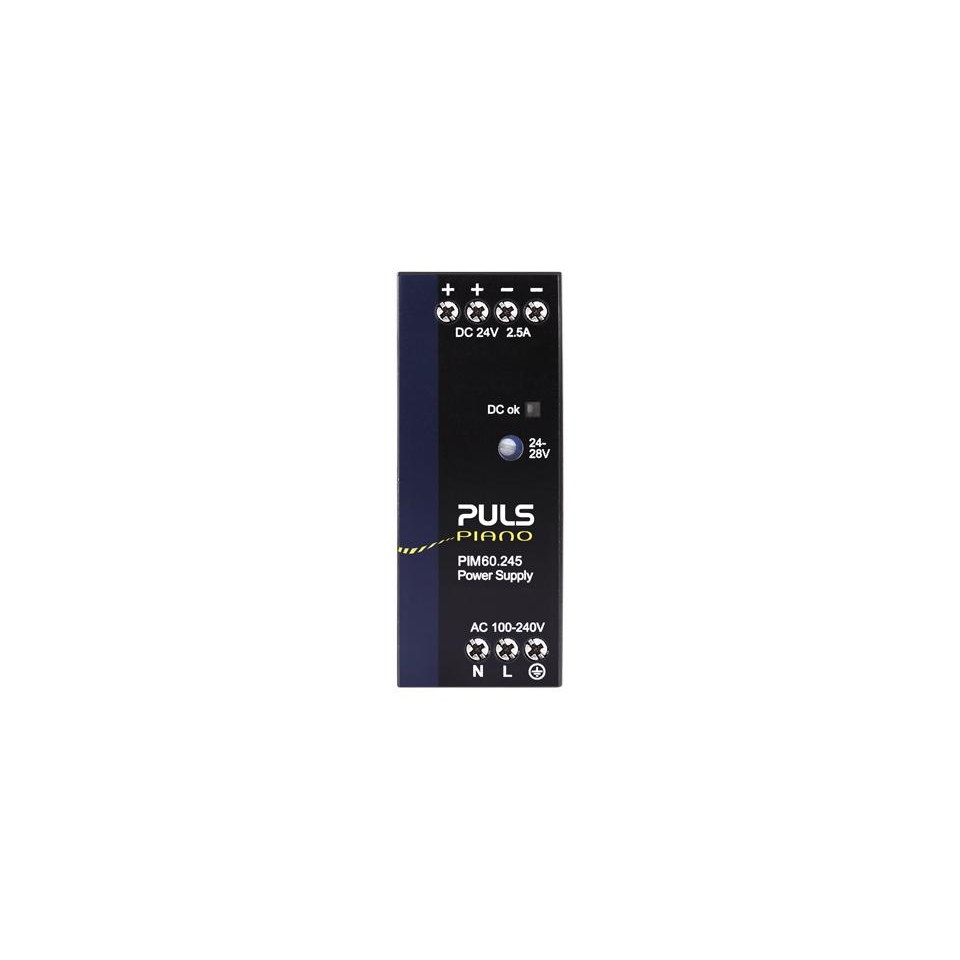

Puls PIM60.245 Power Supply 1PH 100-240VAC 24VDC 2.5A 60 Watt 5.4 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIM60.245

  • Single-phase, 2.5 A rated current
  • Wide-range input: 100-240 VAC, 24 VDC
  • Compact size: 36x90x91 mm
  • High efficiency at 91.8%
  • DIN rail mountable with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
nom. 2.5A At 24V and an ambient temperature below 60°C nom. 1.9A At 24V and 70°C ambient temperature nom. 2.1A At 28V and an ambient temperature below 60°C nom. 1.6A At 28V and 70°C ambient temperature
Output Power
60W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
90.7 / 91.8% At 120 / 230Vac
Terminal Type
Screw terminals

Mechanical

Housing Material
High-grade polycarbonate / ABS blend material

Dimensions & Physical Data

Depth
91mm
Height
90mm
Weight
0.235kg
Width
36mm

Environmental

Operating Temperature
-10°C to 70°C
