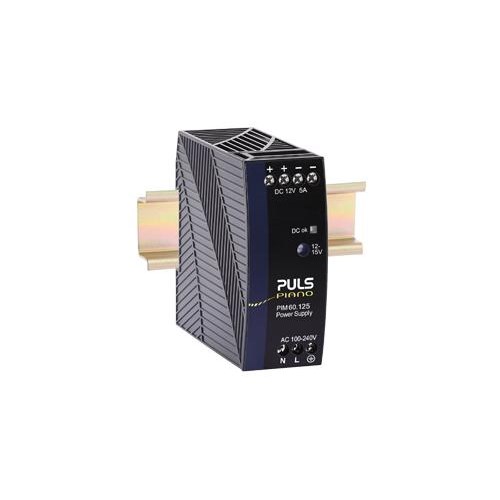

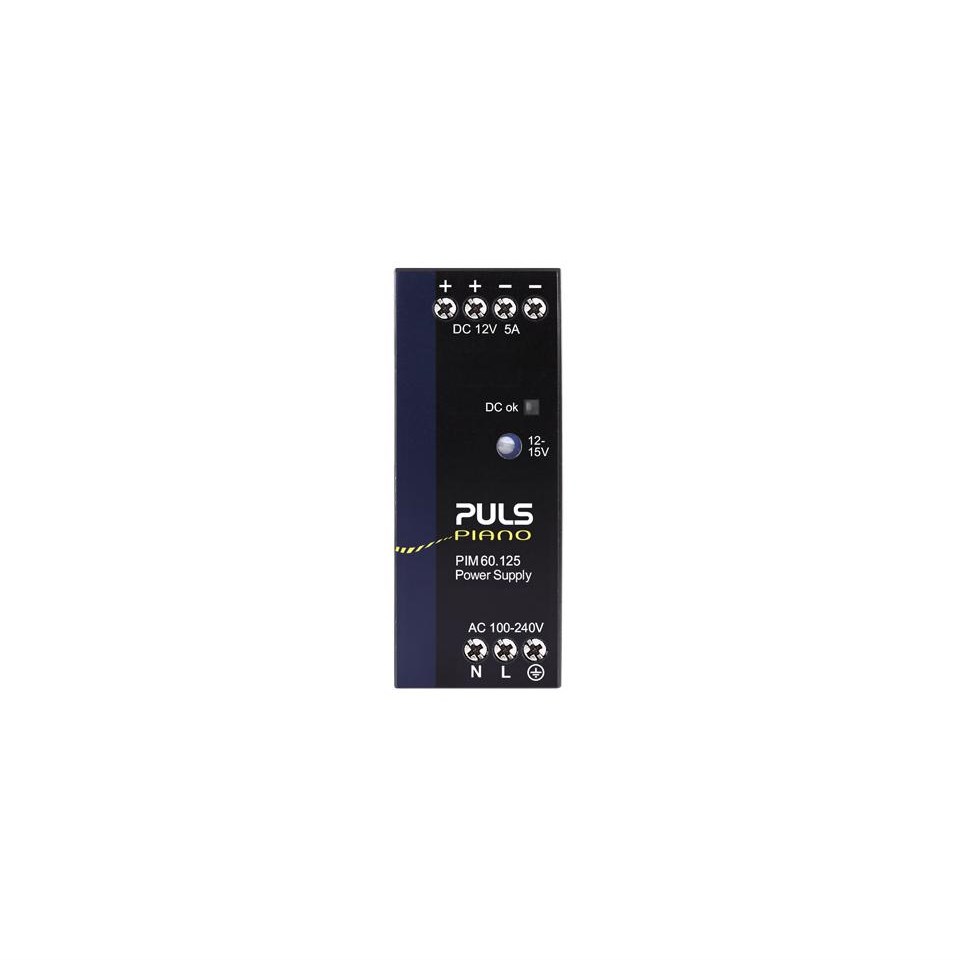

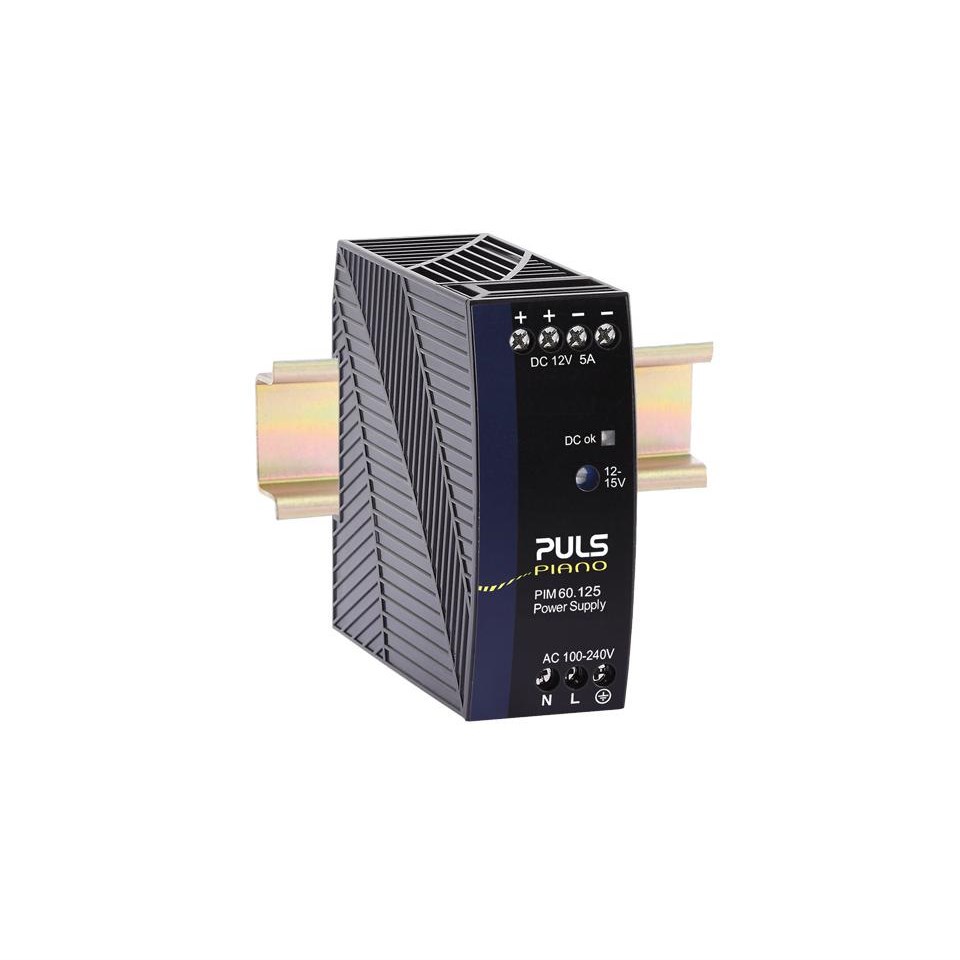

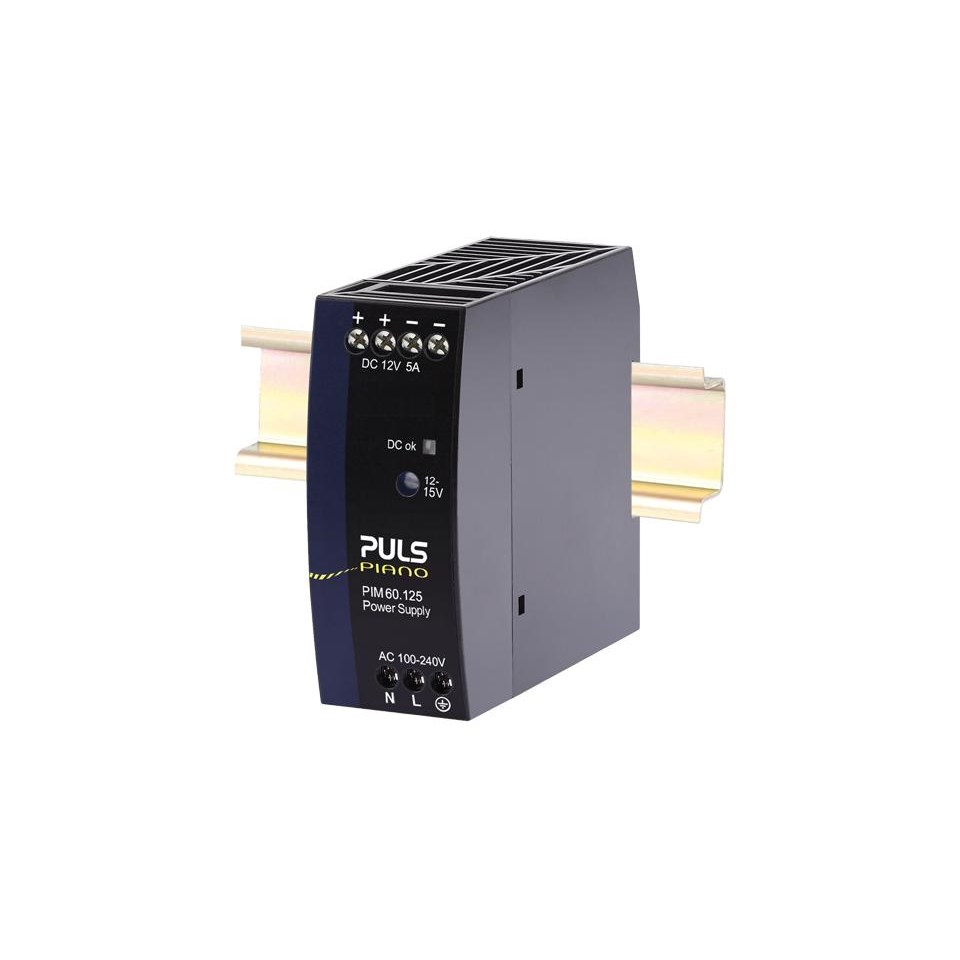

Puls PIM60.125 Power Supply 1PH 100-240VAC 12VDC 5A 60 Watt 6.2 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIM60.125

  • Single-phase, 5A rated current
  • Wide input voltage: 100-240 VAC, 12 VDC
  • Compact size: 36mm W x 90mm H x 91mm D
  • High efficiency at 90.7%
  • DIN rail mountable with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
nom. 5A At 12V and an ambient temperature below 60°C nom. 3.8A At 12V and 70°C ambient temperature nom. 4A At 15V and an ambient temperature below 60°C nom. 3A At 15V and 70°C ambient temperature
Output Power
60W
Output Voltage - Nominal
12V DC
Output Voltage - Range
24V to 28V
Efficiency
90.2 / 90.7% At 120 / 230Vac
Terminal Type
Screw terminals

Mechanical

Housing Material
High-grade polycarbonate / ABS blend material

Dimensions & Physical Data

Depth
91mm
Height
90mm
Weight
0.235kg
Width
36mm

Environmental

Operating Temperature
-10°C to 70°C
