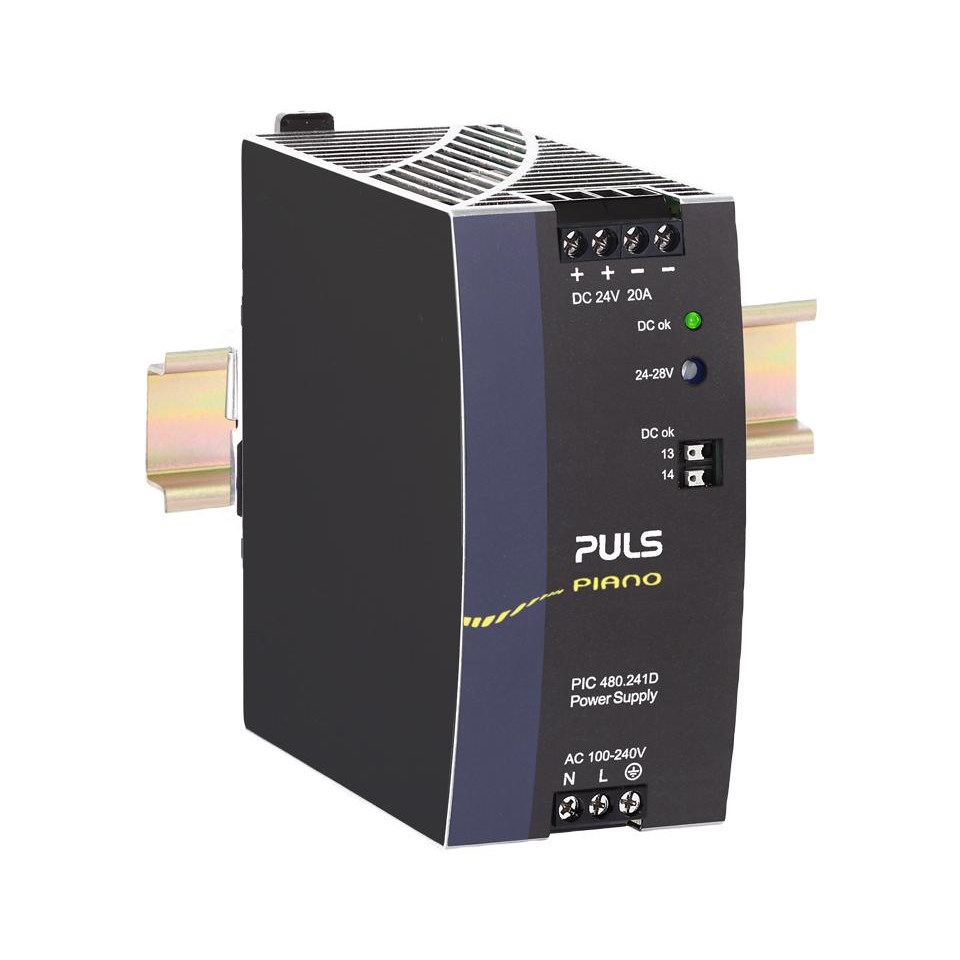

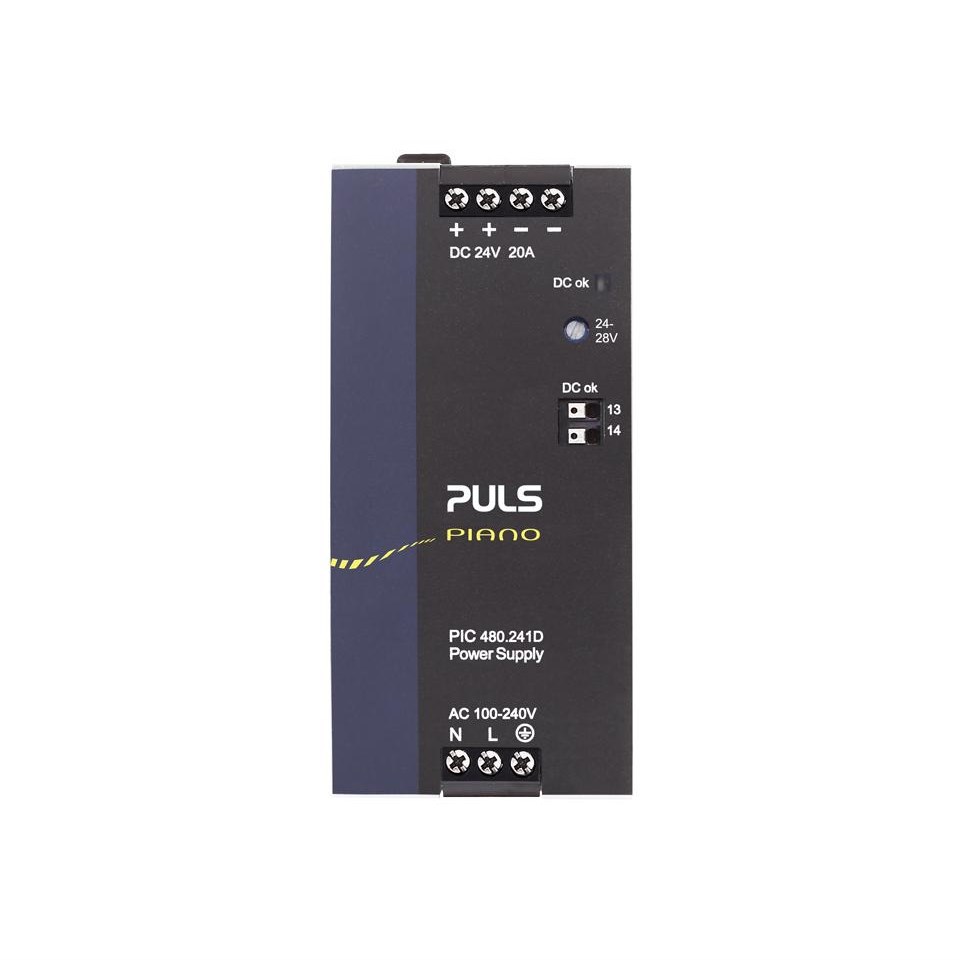

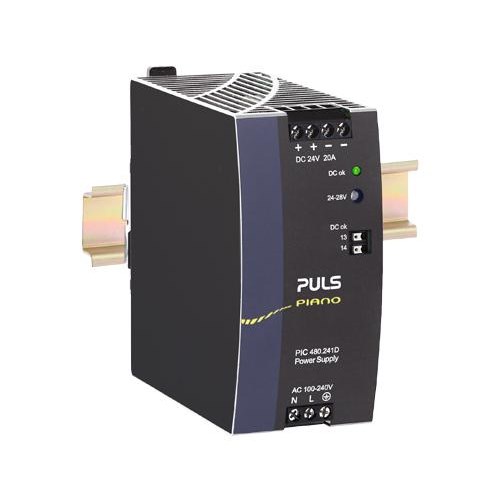

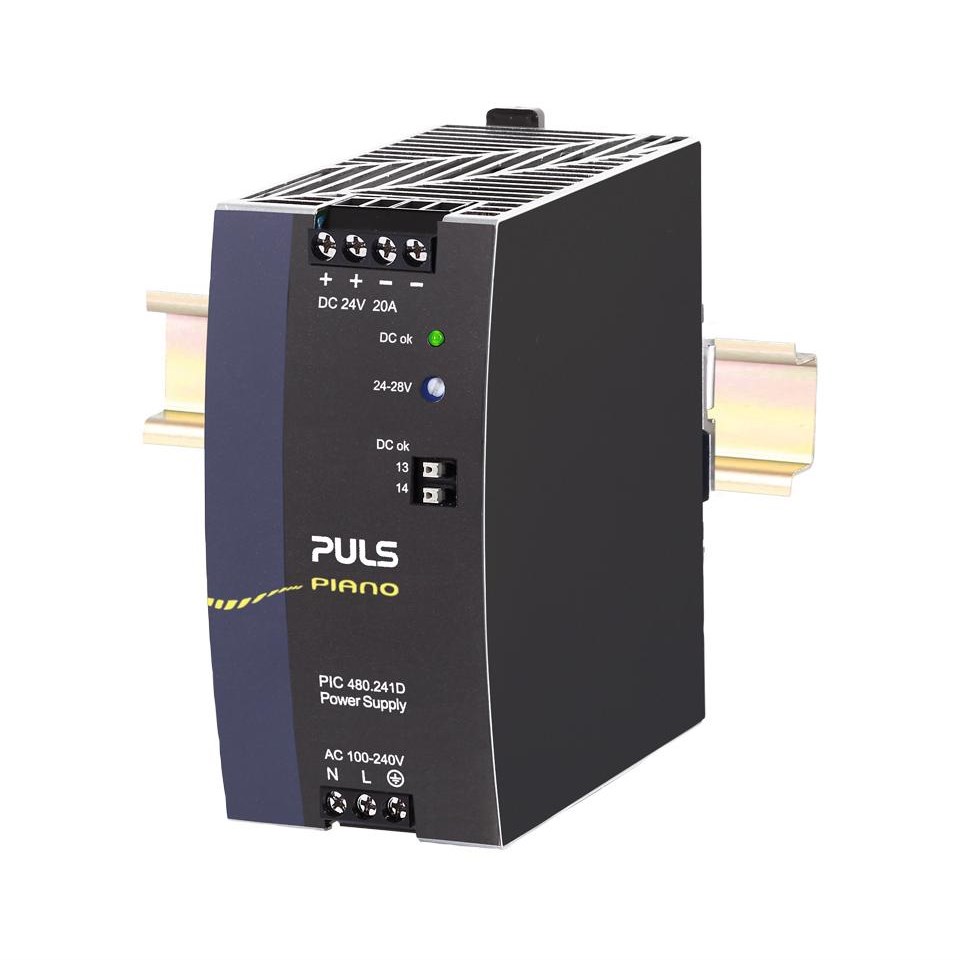

Puls PIC480.241D Power Supply 1PH 100-240VAC 24VDC 20A 480 Watt 25.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIC480.241D

  • Compact DIN rail mount design
  • High efficiency at 95%
  • Wide input voltage range: 100-240 VAC, 24 VDC
  • Rated power output of 480 W
  • Robust IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
Nom. 20.0A At 24V and an ambient temperature below 55°C Nom. 12.5A At 24V and 70°C ambient temperature Nom. 17.1A At 28V and an ambient temperature below 55°C Nom. 10.7A At 28V and 70°C ambient temperature
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
48V to 56V
Efficiency
94.2 / 95.3% At 120 / 230Vac
Terminal Type
Screw Terminal

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.81kg
Width
22.5mm

Environmental

Operating Temperature
-25°C to 70°C
