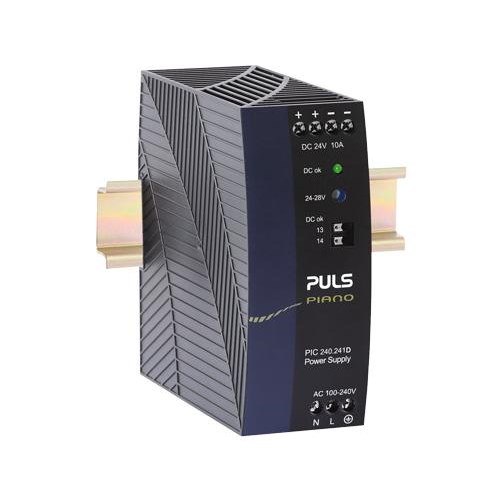

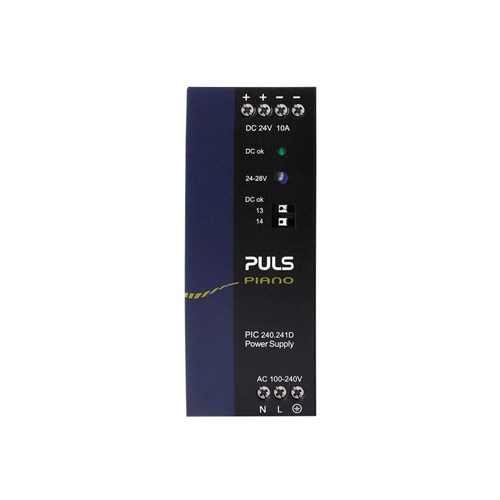

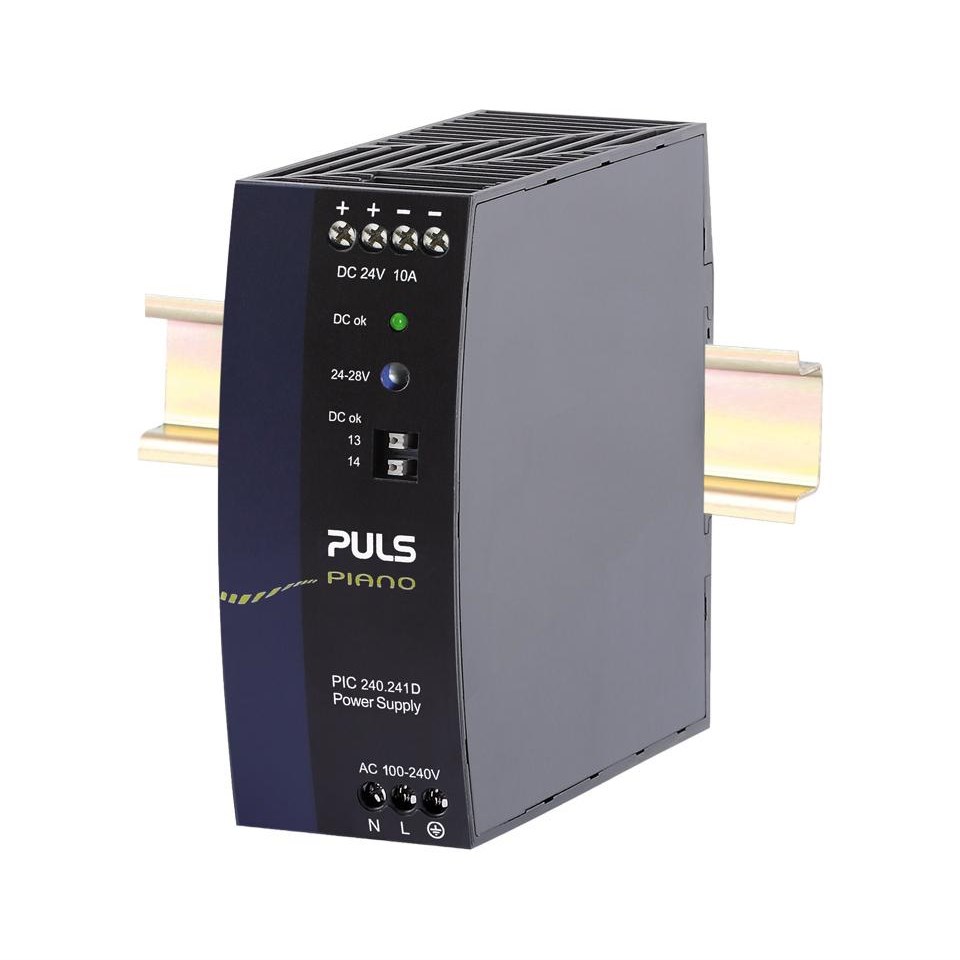

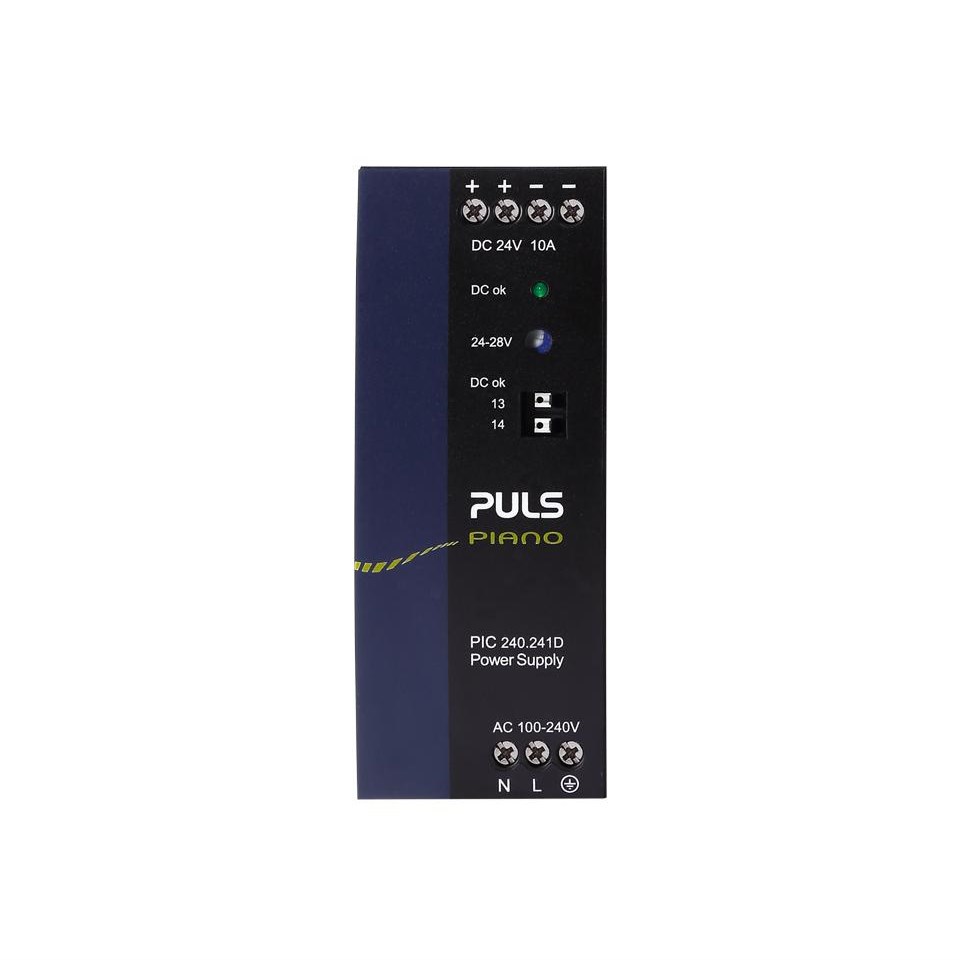

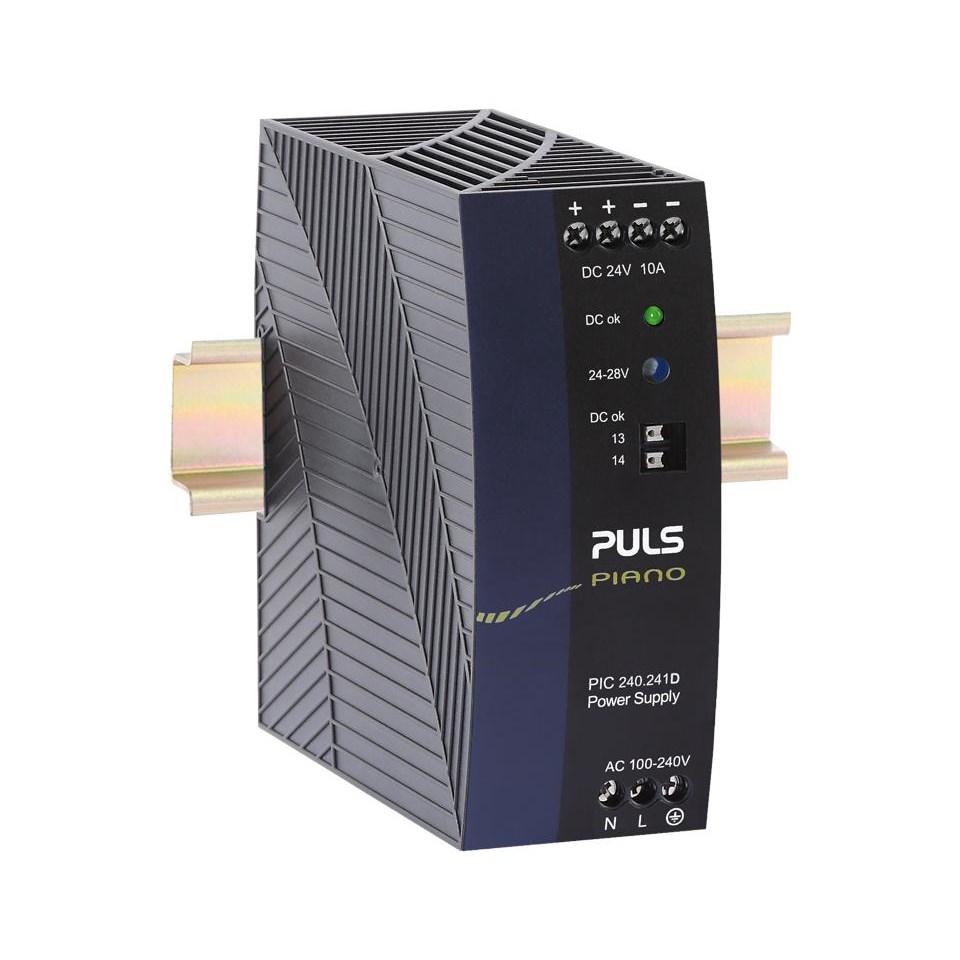

Puls PIC240.241D Power Supply 1PH 100-240VAC 24VDC 10A 240 Watt 12.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIC240.241D

  • Single-phase, 10 A rated current
  • Wide input voltage: 100-240 VAC, 24 VDC
  • High efficiency at 95.2%
  • DIN rail mounting with IP20 protection
  • Active inrush current limitation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
Nom. 10.0 A At 24V and up to +55°C ambient temperature Nom. 6.25 A At 24V and up to +70°C ambient temperature Nom. 8.6 A At 28V and up to +55°C ambient temperature Nom. 5.4 A At 28V and up to +70°C ambient temperature
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
94.2 / 95.3% At 120 / 230Vac
Terminal Type
Screw Terminal

Mechanical

Housing Material
Flame retardant Polycarbonate (PC) - UL94-V0 Vicat softening temperature specified with 149°C according to ASTM D1525

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.81kg
Width
59mm

Environmental

Operating Temperature
-25°C to 70°C
