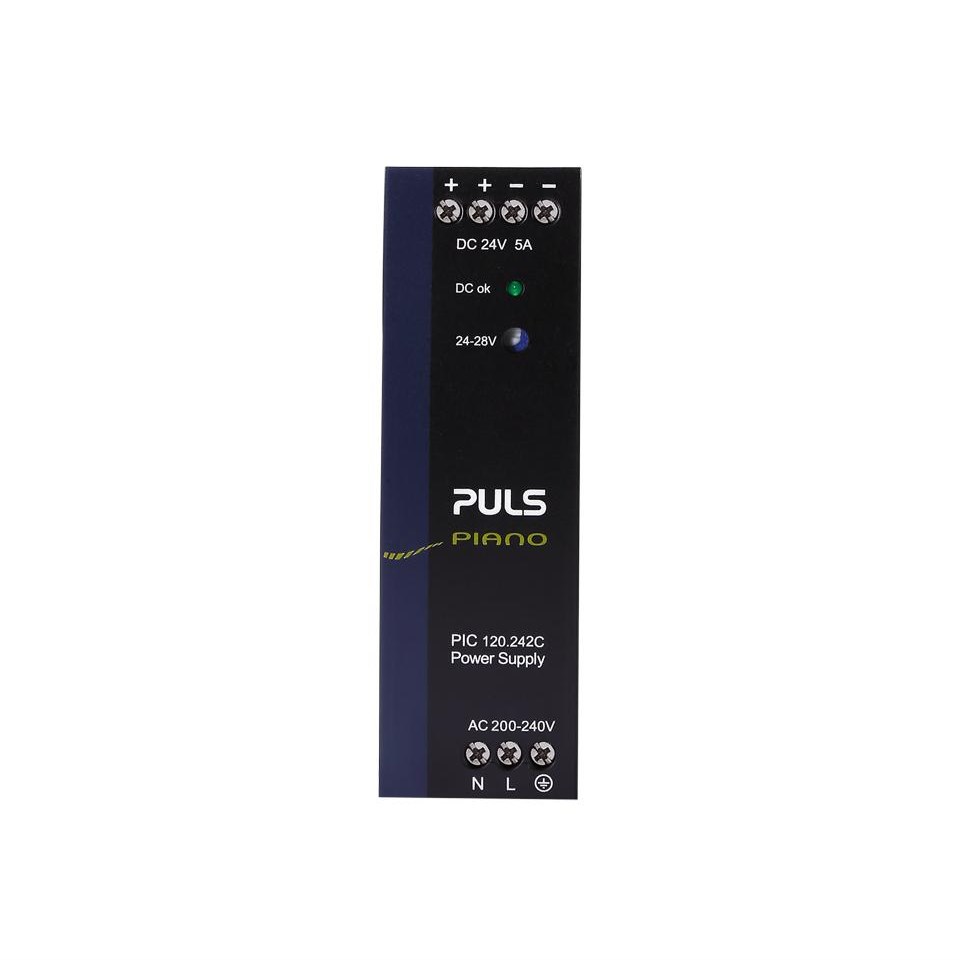

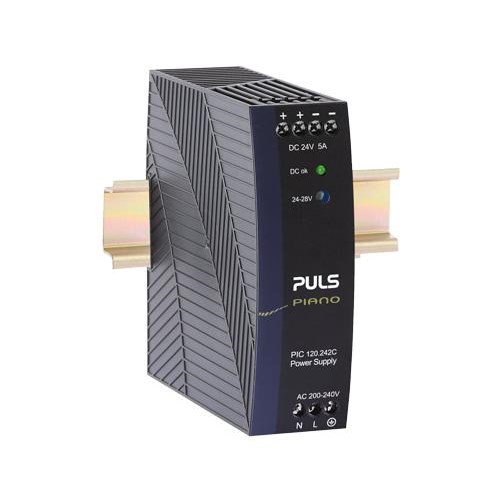

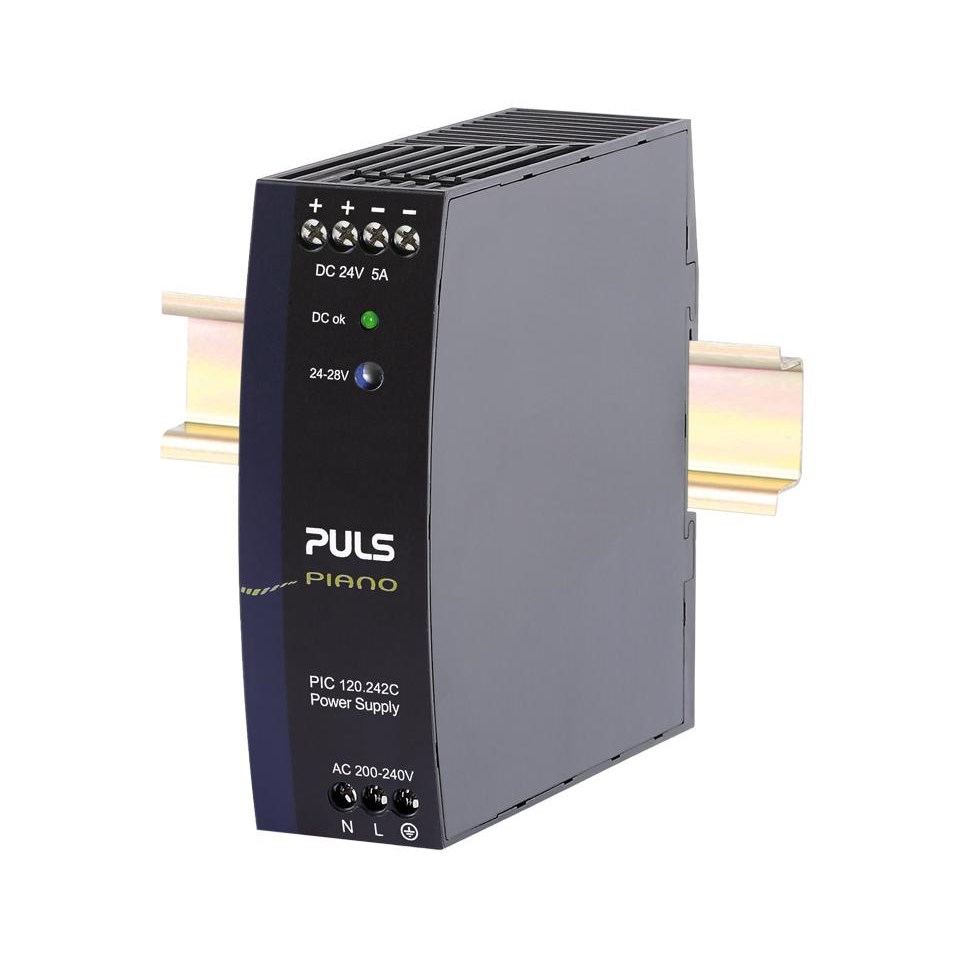

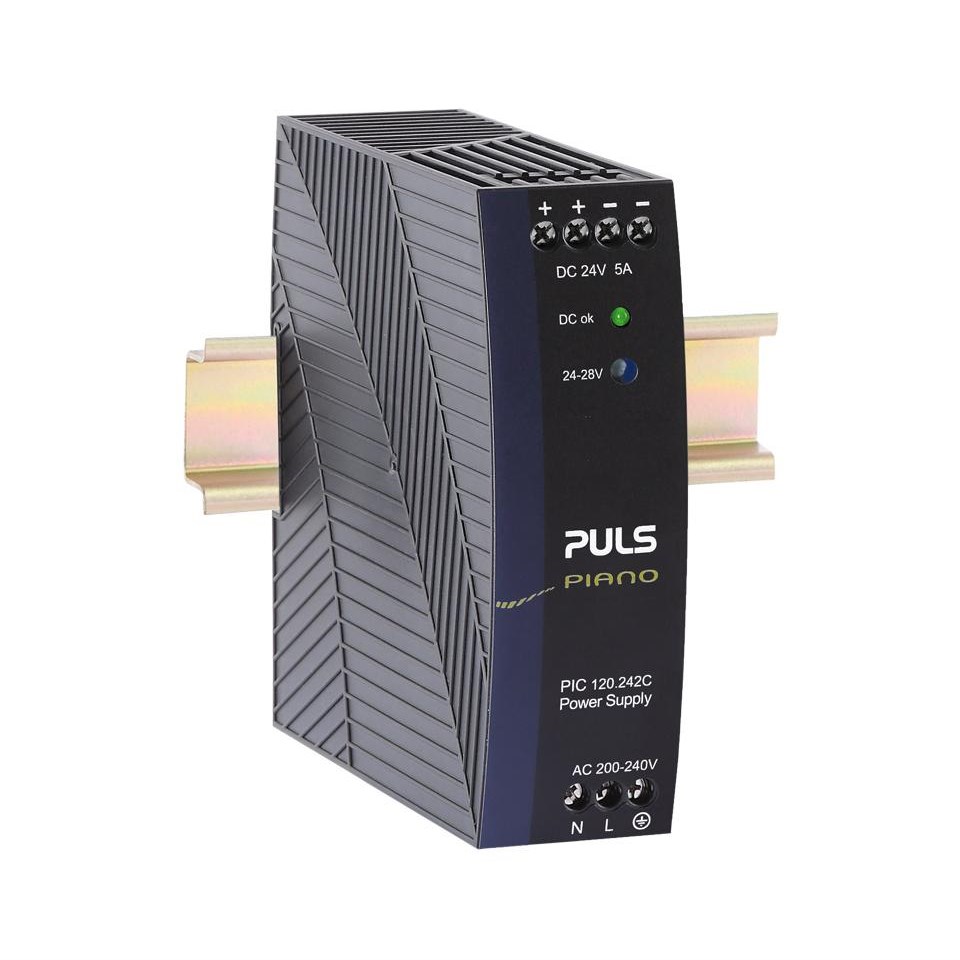

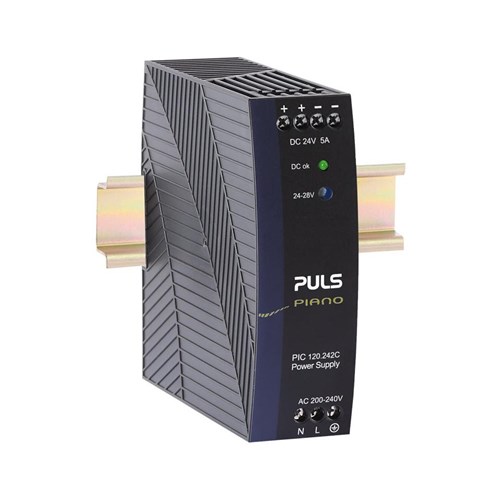

Puls PIC120.242C Power Supply 1PH 200-240VAC 24VDC 5A 120 Watt 12.6 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIC120.242C

  • Compact design with 39 mm width
  • Supports 200-240 VAC, 24 VDC input
  • Efficient at 90.5% with low power loss
  • DIN rail mounting for easy installation
  • IP20 protection rating for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
200-240 V AC
Output Current - Nominal
nom. 5A at 24V, ambient temperature <55°C nom. 3.1A at 24V, ambient temperature <70°C nom. 4.3A at 28V, ambient temperature <55°C nom. 2.7A at 28V, ambient temperature <70°C
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
90.50%
Terminal Type
Screw Terminal

Mechanical

Housing Material
Flame retardant Polycarbonate (PC) - UL94-V0 Vicat softening temperature specified with 149°C according to ASTM D1525

Dimensions & Physical Data

Depth
124mm
Height
124mm
Weight
0.54kg
Width
49mm

Environmental

Operating Temperature
-25°C to 70°C
