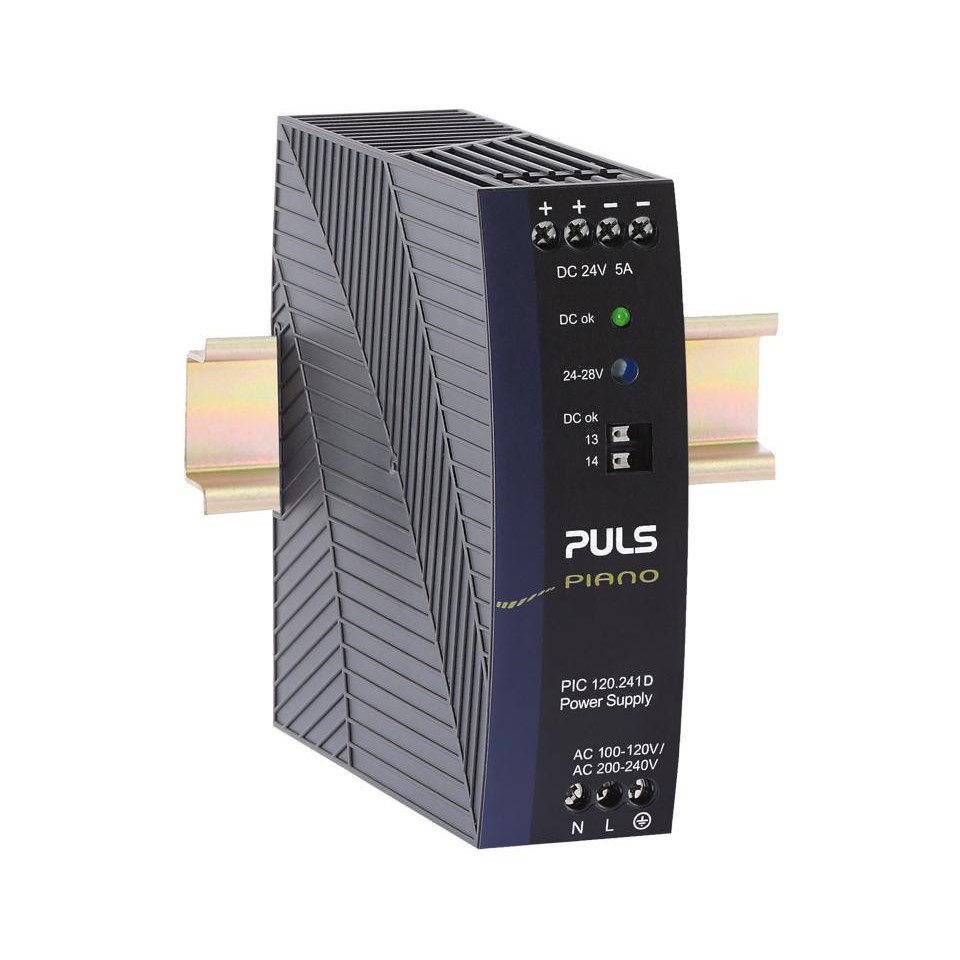

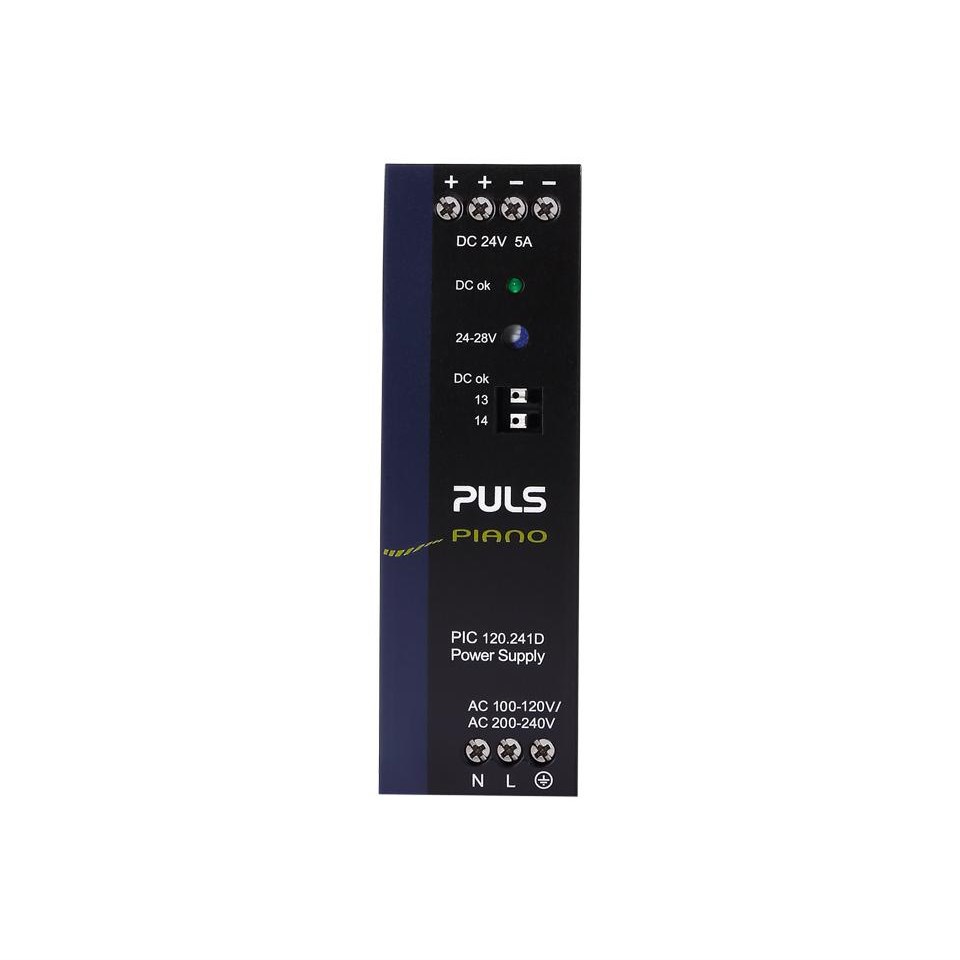

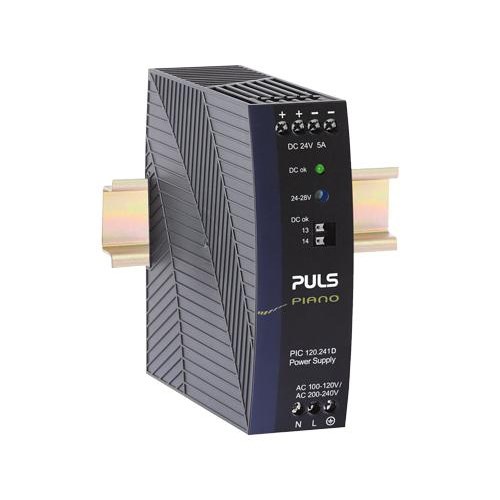

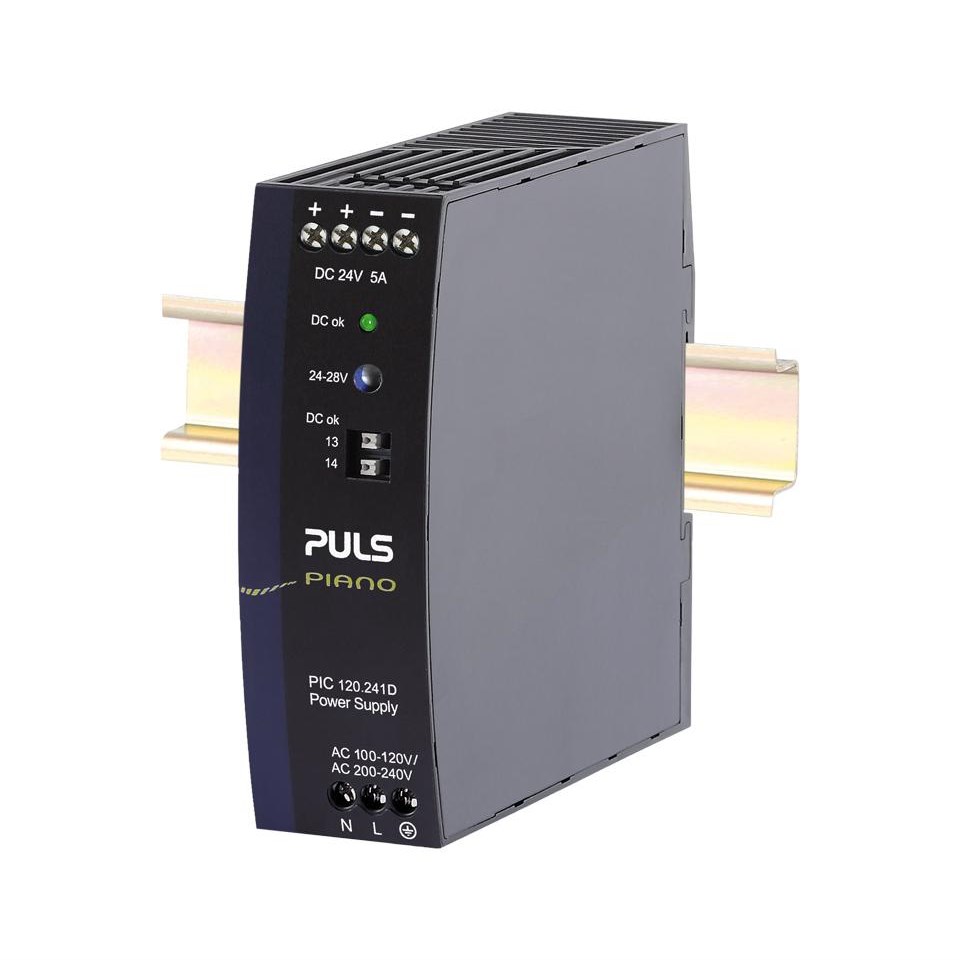

Puls PIC120.241D Power Supply 1PH 100-120VAC 200-240VAC 24VDC 5A 120 Watt 10 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIC120.241D

  • Compact size: 39mm width, 124mm height & depth
  • Wide voltage range: 100-240 VAC, 24 VDC
  • High efficiency at 92.3%
  • Secure screw terminal connections
  • DIN rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
PIANO

Electrical

Input Voltage
100-120 V AC / 200-240 V AC
Output Current - Nominal
Nom. 5.0A At 24V and an ambient temperature below 55°C Nom. 3.1A At 24V and 70°C ambient temperature Nom. 4.3A At 28V and an ambient temperature below 55°C Nom. 2.7A At 28V and 70°C ambient temperature
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
91.2 / 92.3% At 120 / 230Vac
Terminal Type
Screw Terminal

Mechanical

Housing Material
Flame retardant Polycarbonate (PC) - UL94-V0 Vicat softening temperature specified with 149°C according to ASTM D1525

Dimensions & Physical Data

Depth
124mm
Height
124mm
Weight
0.37kg
Width
39mm

Environmental

Operating Temperature
-10°C to 70°C
