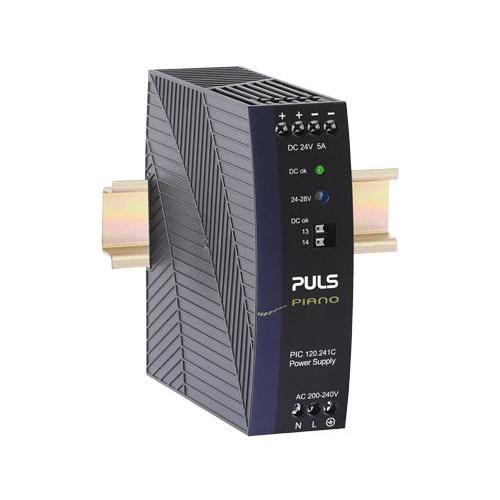

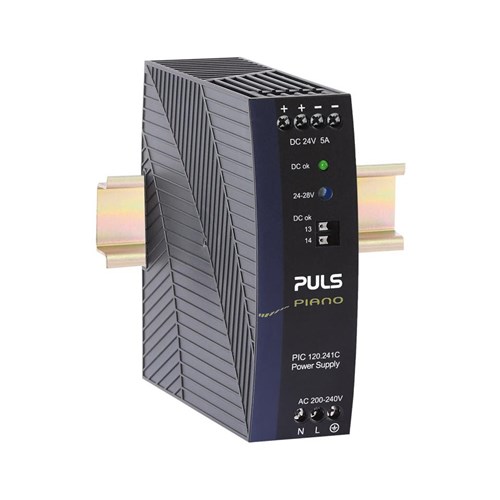

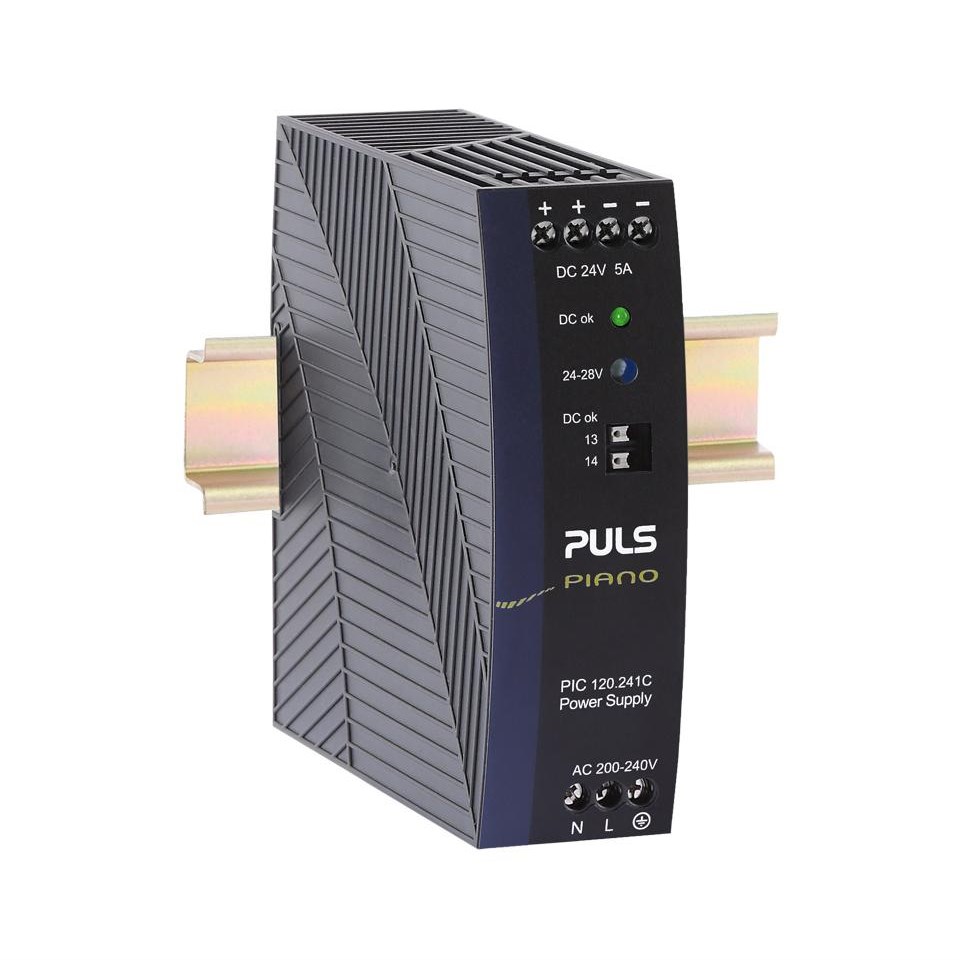

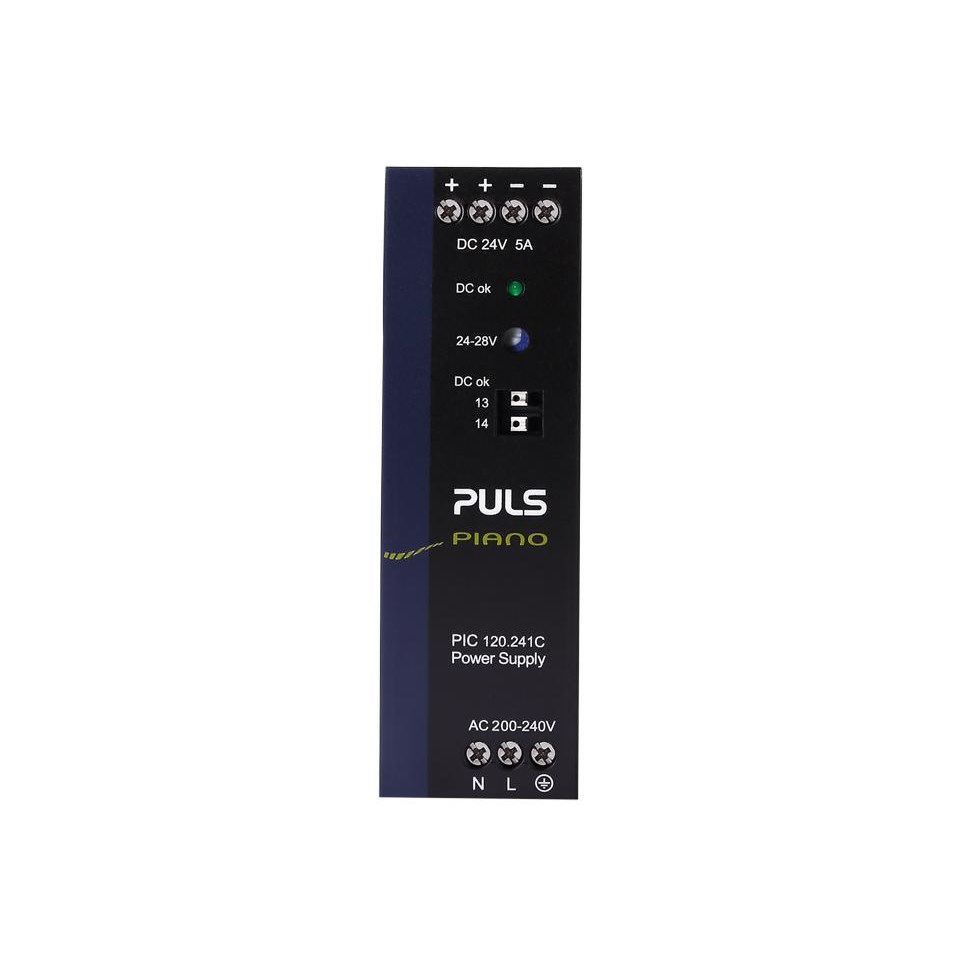

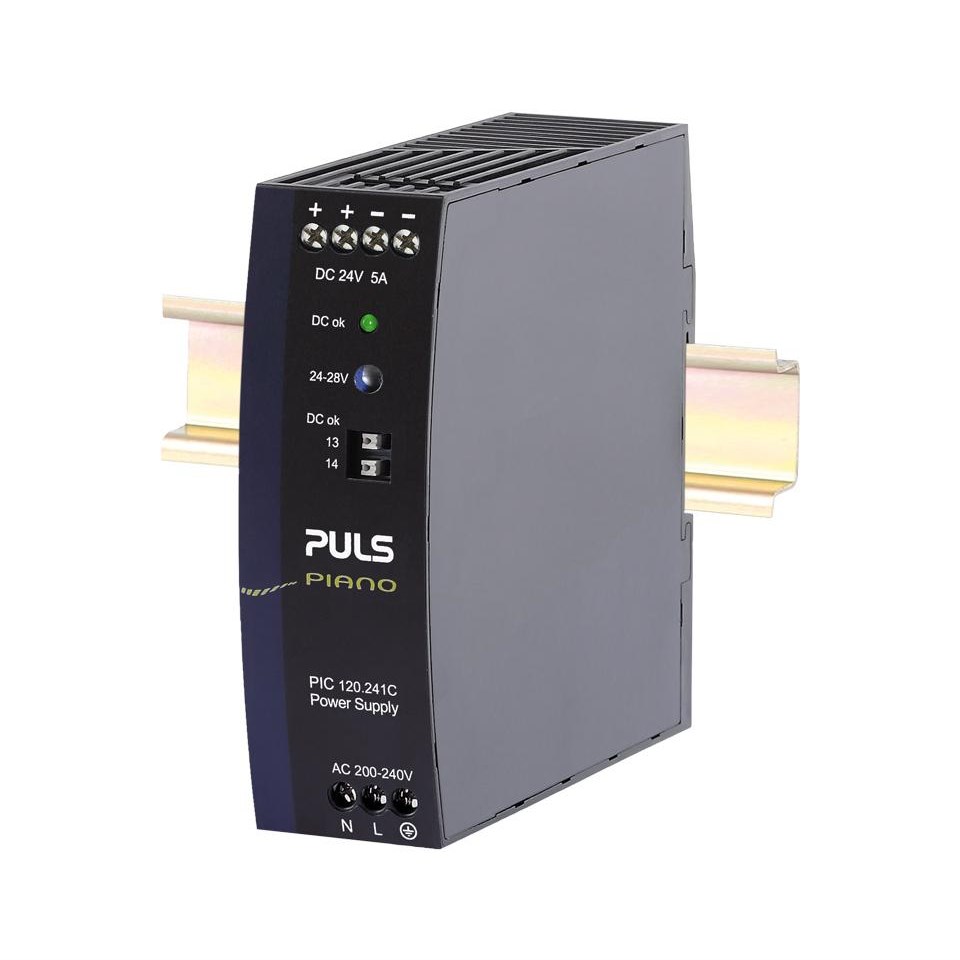

Puls PIC120.241C Power Supply 1PH 200-240VAC 24VDC 5A 120 Watt 12.6 Watt DIN Rail Mount Screw Terminal IP20

Product Code: PIC120.241C

  • Single-phase, 120W power supply
  • Rated voltage: 200-240 VAC, 24 VDC
  • High efficiency at 90.5%
  • Compact size: 39x124x124 mm
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
MiniLine

Electrical

Input Voltage
100-240 V AC / 110-300 V DC
Output Current - Nominal
3 A
Output Current - Range
3 - 2.5 A
Output Power
30 W
Output Voltage - Nominal
10 V DC
Output Voltage - Range
10 - 12 V
Efficiency
84 %
Terminal Type
Spring-clamps

Mechanical

Housing Material
Robust plastic housing
Mounting Style
DIN Rail

Dimensions & Physical Data

Depth
91 mm
Height
75 mm
Weight
0.250 kg
Width
45 mm

Environmental

Approvals / Conformity
IEC 61010-2-201, IEC 60950-1, Marine DNV
Operating Temperature
-10 to 70°C
IP Rating
IP20
