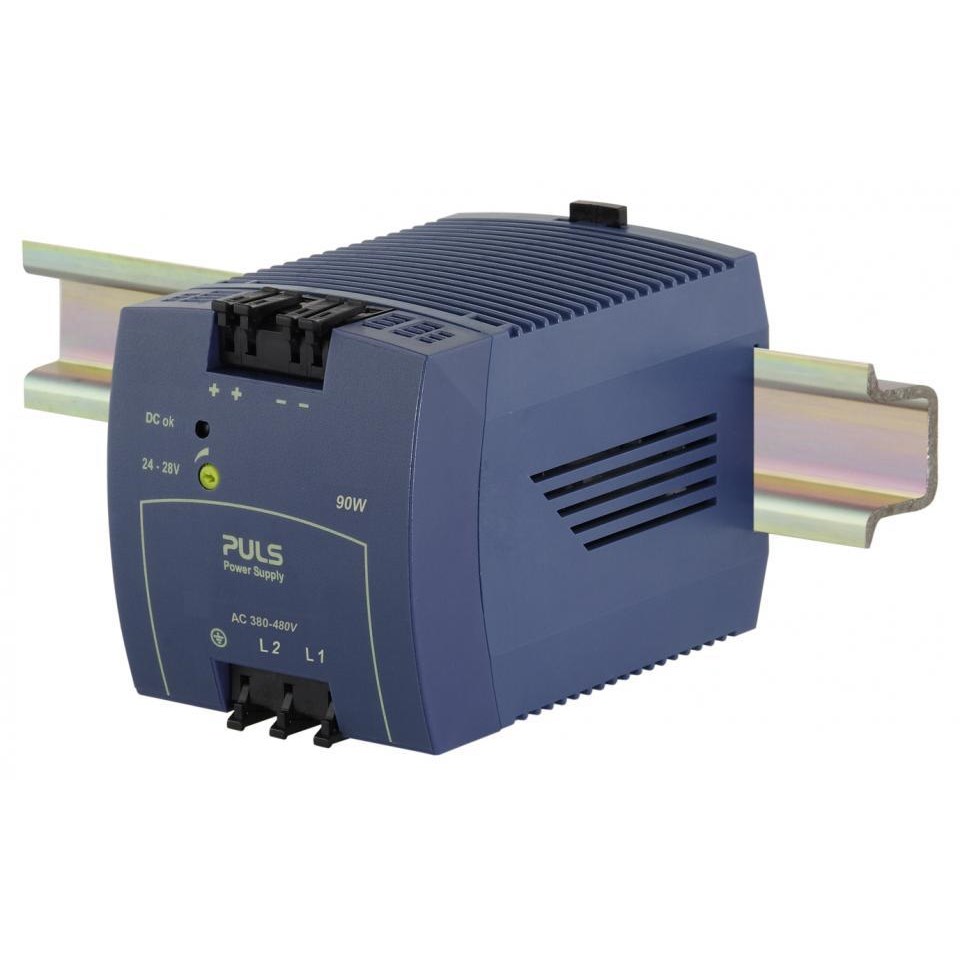

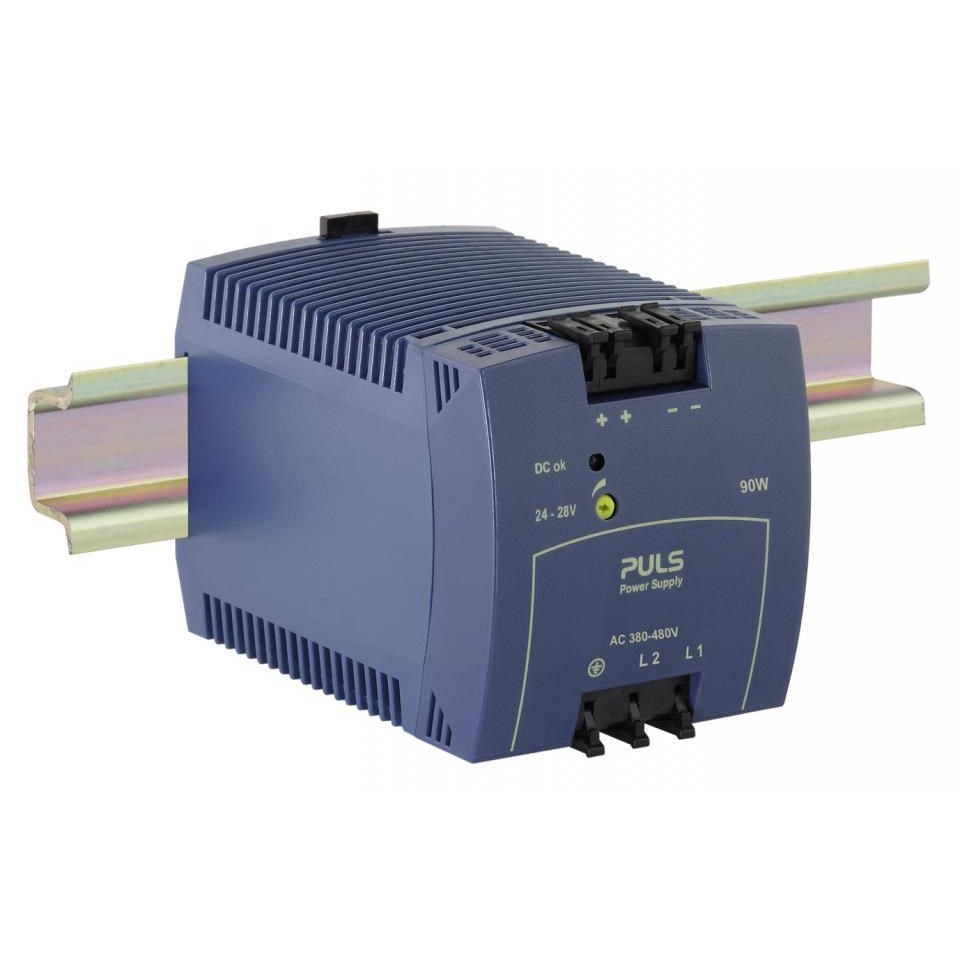

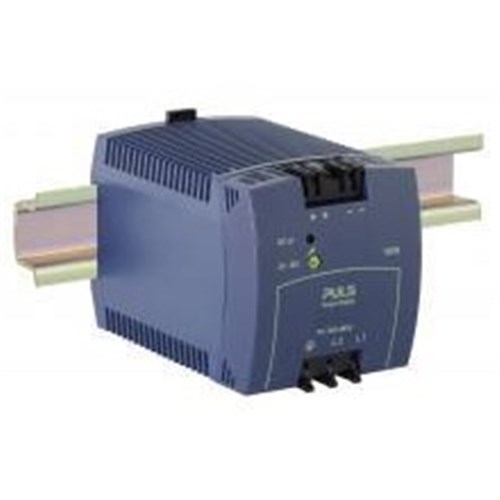

Puls ML90.200 Power Supply 3PH 380-480VAC 24VDC 3.75A 90 Watt 10.5 Watt DIN Rail Mount Spring Clamp IP20

Product Code: ML90.200

  • Three-phase, 90W power supply
  • Wide-range input: 380-480 VAC, 24 VDC
  • Compact size: 73x75x103 mm
  • Spring clamp connections for easy install
  • High efficiency at 89.5%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
380-480 V AC
Output Current - Nominal
3.75A
Output Current - Range
3.75A to 3.2A
Output Power
90W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
89.5 / 89.0% at 400 / 480Vac
Terminal Type
Quick-connect spring-clamp terminals

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
103mm
Height
75mm
Weight
0.36kg
Width
72.5mm

Environmental

Operating Temperature
-10°C to 70°C
