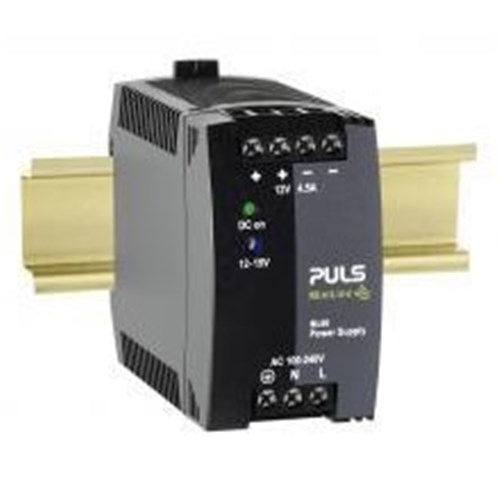

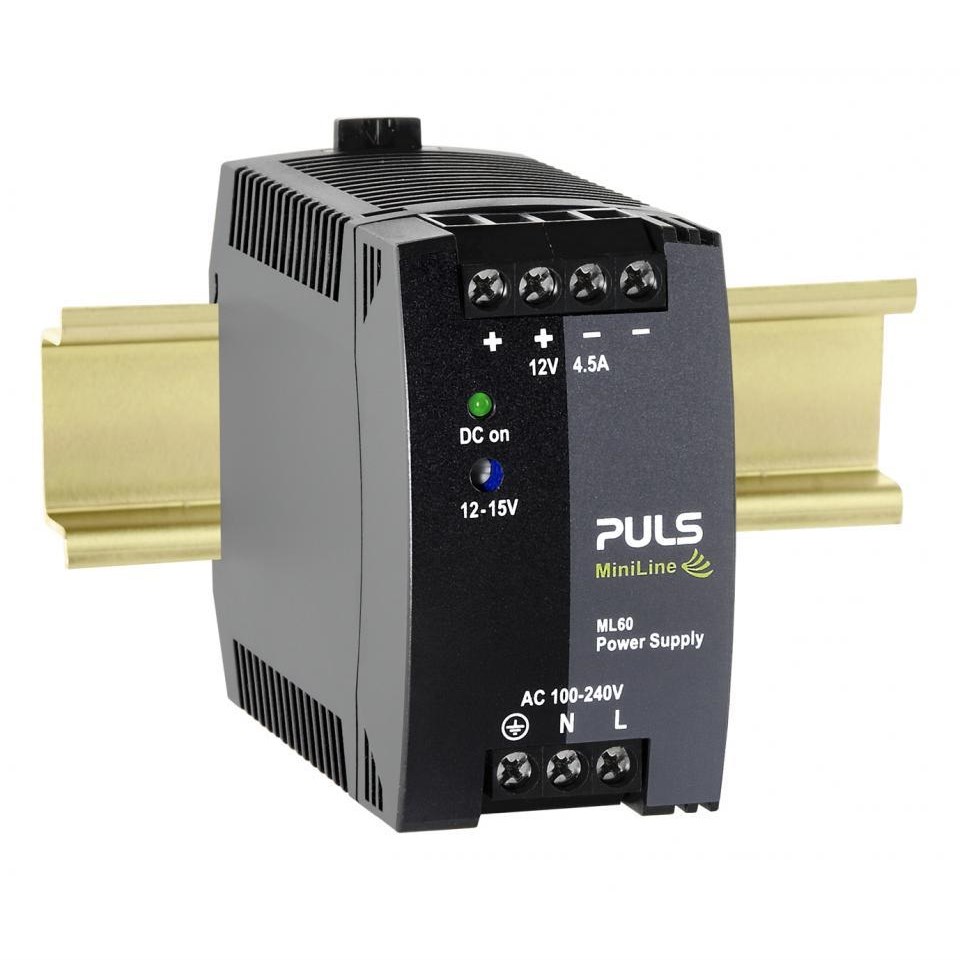

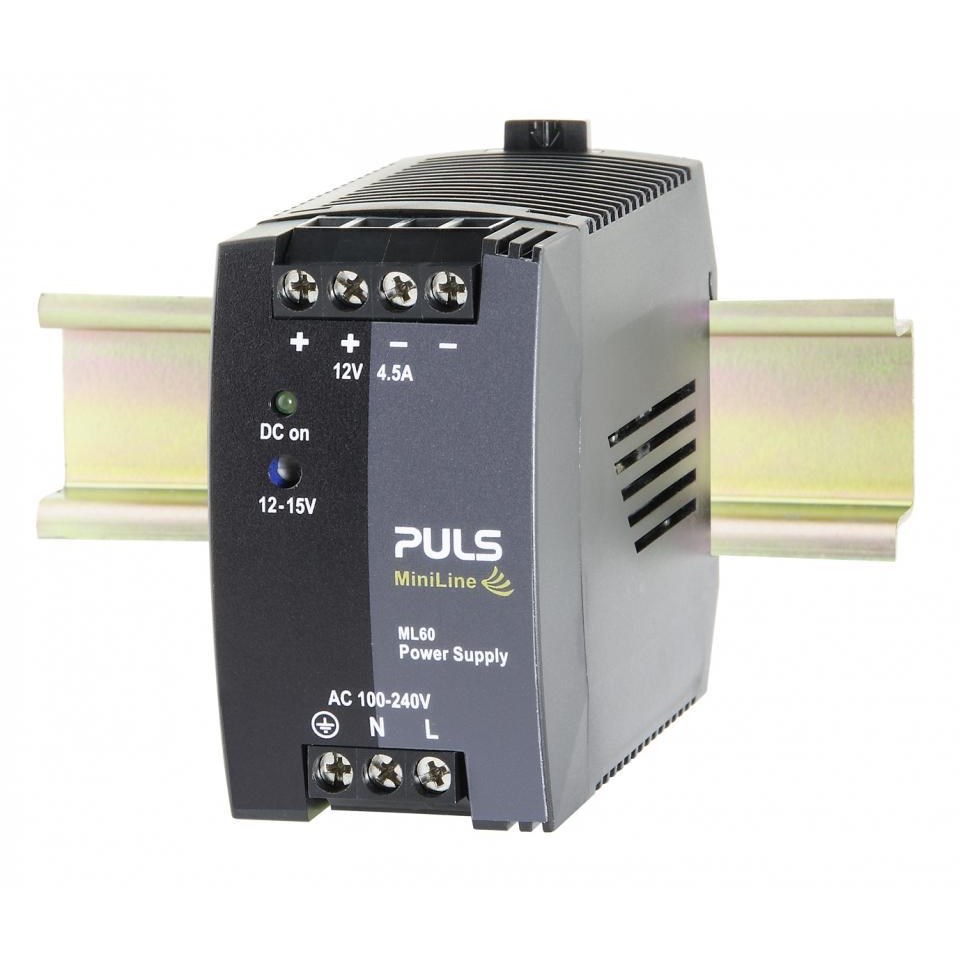

Puls ML60.121 Power Supply 1PH 110-300VDC 12VDC 4.5A 54 Watt 7.9 Watt DIN Rail Mount Screw Terminal IP20

Product Code: ML60.121

  • Single-phase, 4.5 A rated current
  • Wide input voltage: 110-300 VDC
  • Compact size: 45x75x91 mm
  • DIN rail mountable for easy installation
  • High efficiency at 87.2%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-240 V AC / 88-375 V DC
Output Current - Nominal
4.5A at 12V 3.6A at 15V
Output Power
54W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
85.3 / 87.2% at 120 / 230Vac
Terminal Type
Screw terminals

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
91mm
Height
75mm
Weight
0.25kg
Width
45mm

Environmental

Operating Temperature
-10°C to 70°C
