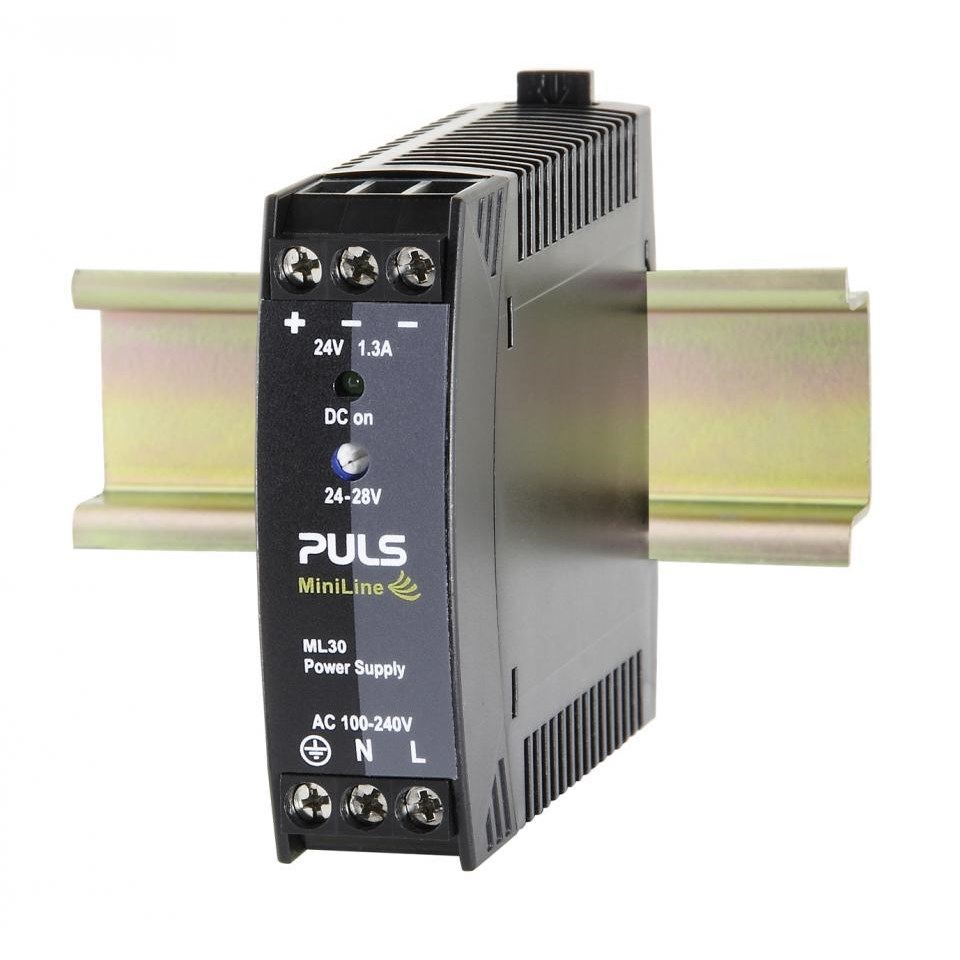

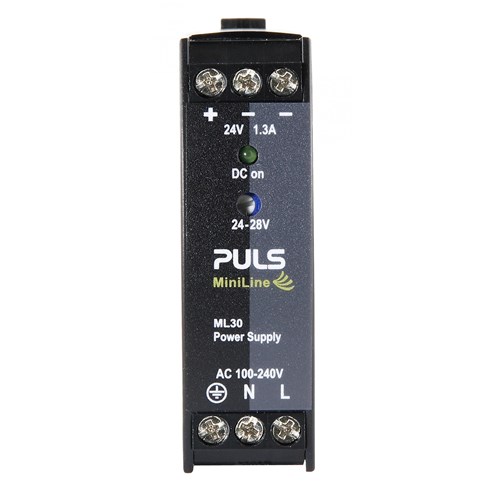

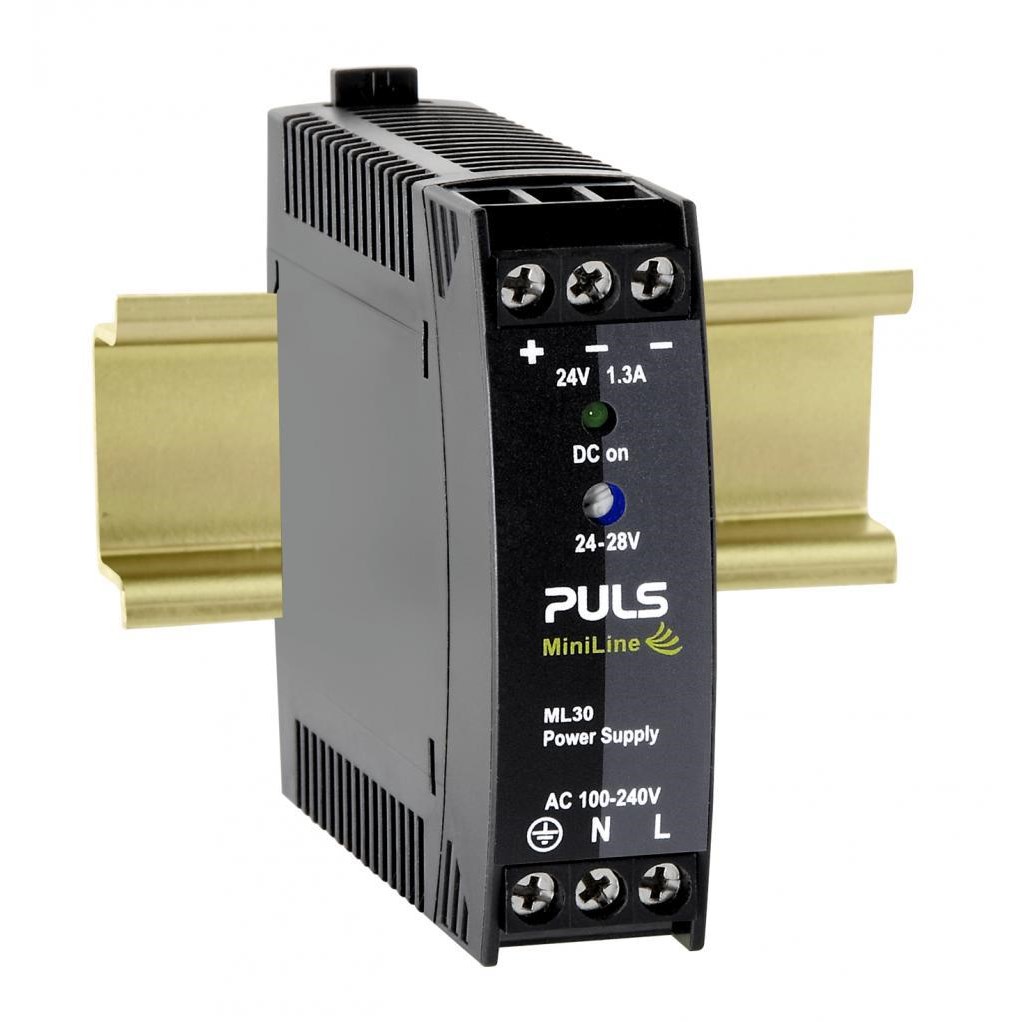

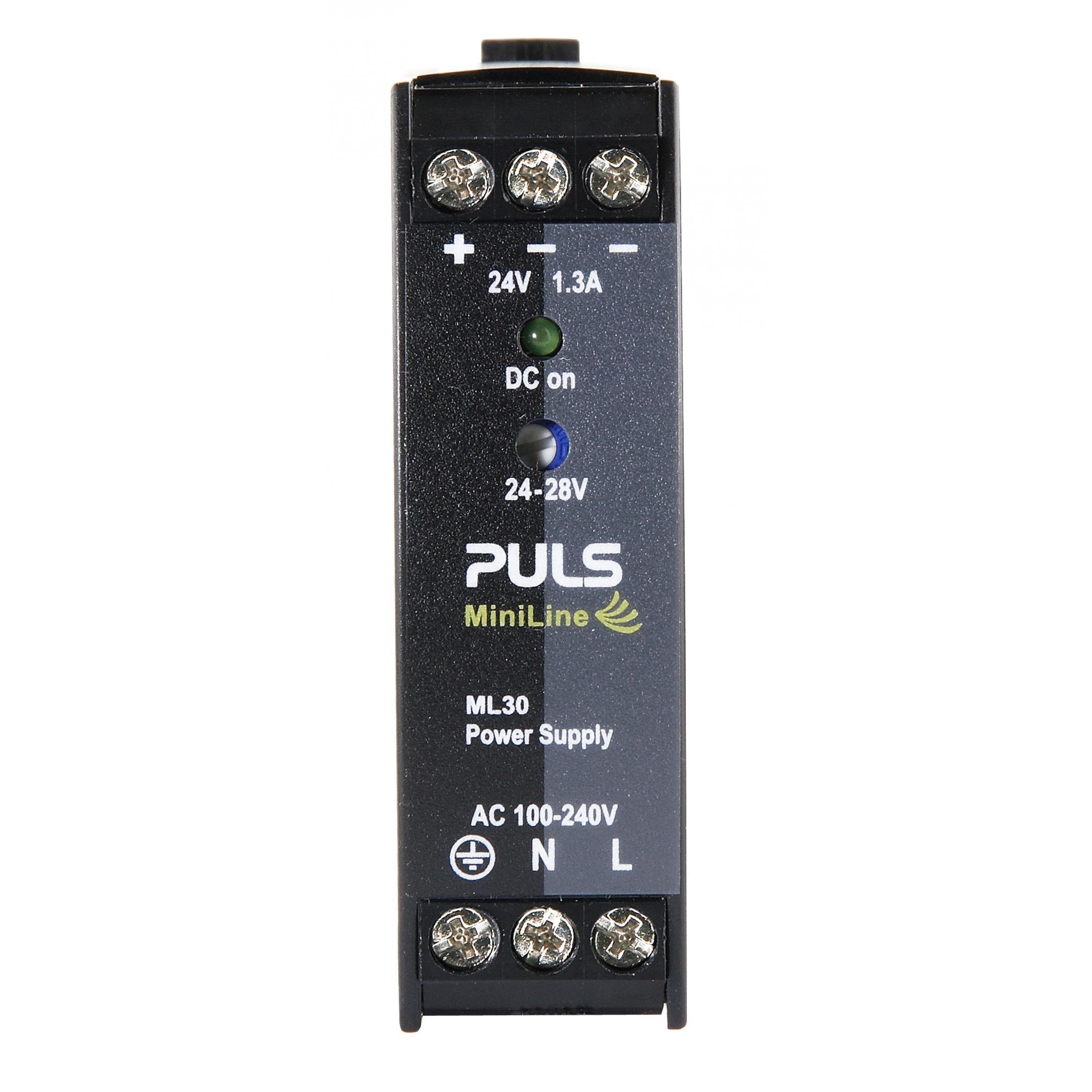

Puls ML30.241 Power Supply 1PH 110-300VDC 24VDC 1.3A 30 Watt 3.7 Watt DIN Rail Mount Screw Terminal IP20

Product Code: ML30.241

  • Compact 23 mm width for space-saving installation
  • Wide input voltage range: 110-300 VDC, 24 VDC
  • High efficiency at 89.4%
  • IP20 protection with screw terminal connection
  • DIN rail mounting for easy setup
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
MiniLine

Electrical

Input Voltage
100-240V AC / 110-300V DC
Output Current - Nominal
0.63A
Output Current - Range
0.6A to 0.5A
Output Power
15W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
85.10%
Terminal Type
Screw terminals

Mechanical

Housing Material
Robust plastic housing

Dimensions & Physical Data

Depth
91mm
Height
75mm
Weight
0.13kg
Width
23mm

Environmental

Approvals / Conformity
IEC 61010-2-201, IEC 60950-1, Marine DNV
Operating Temperature
-10°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
