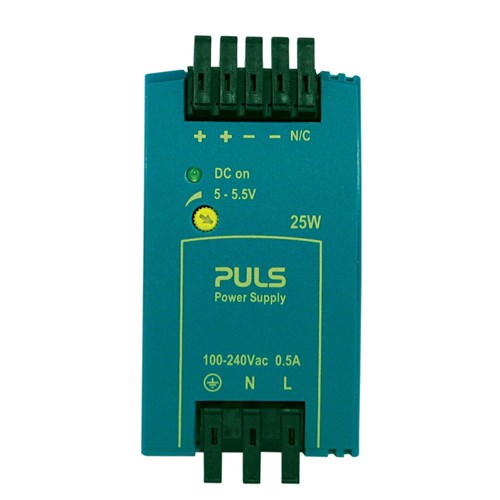

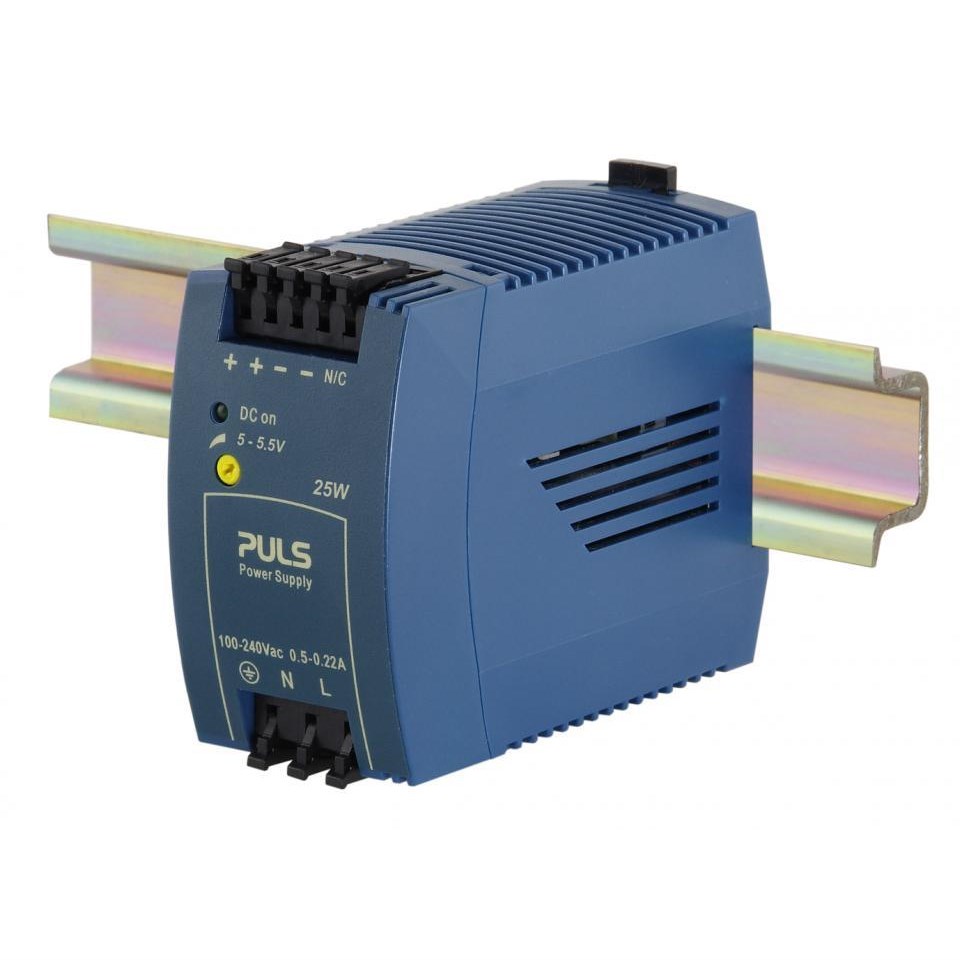

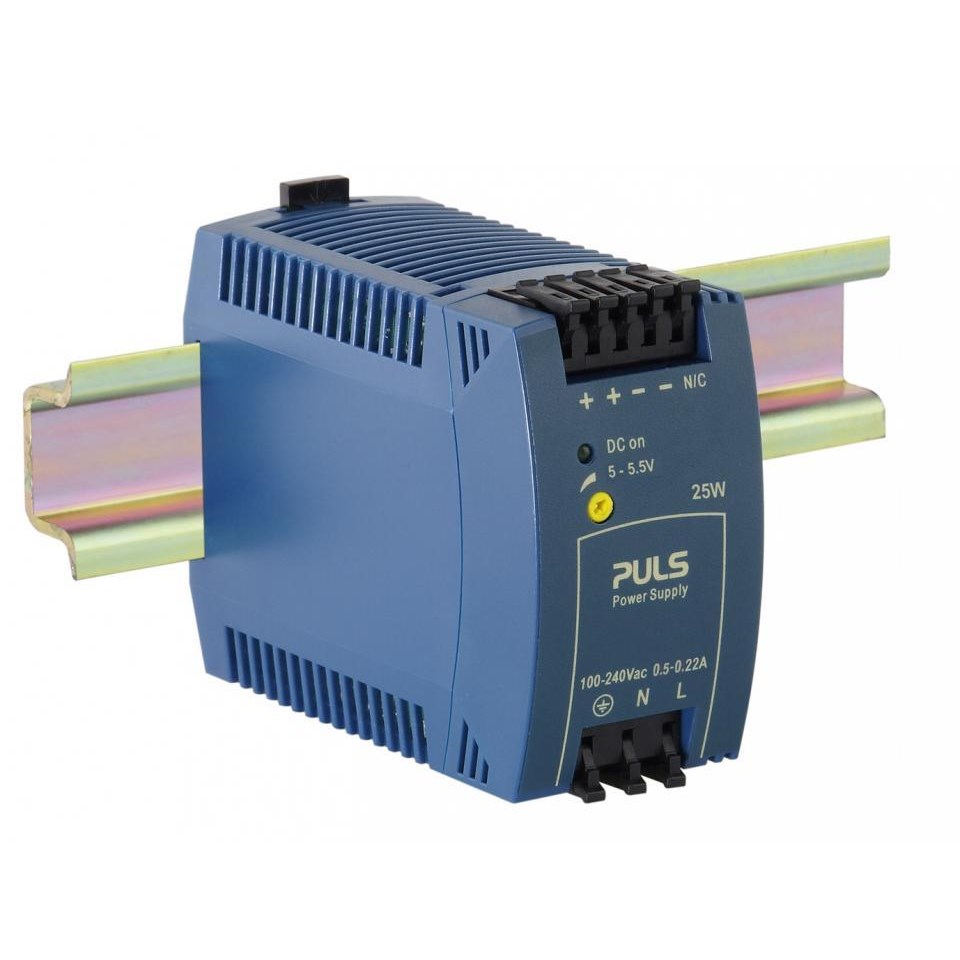

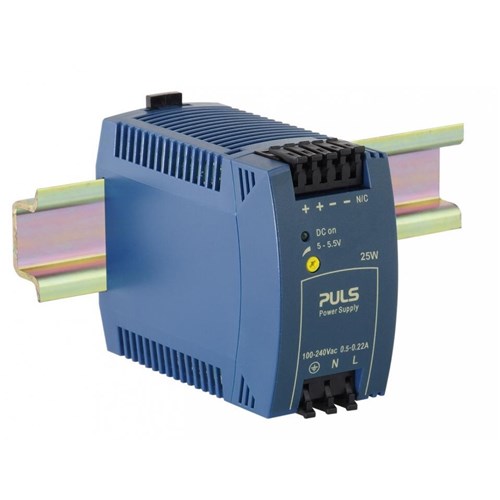

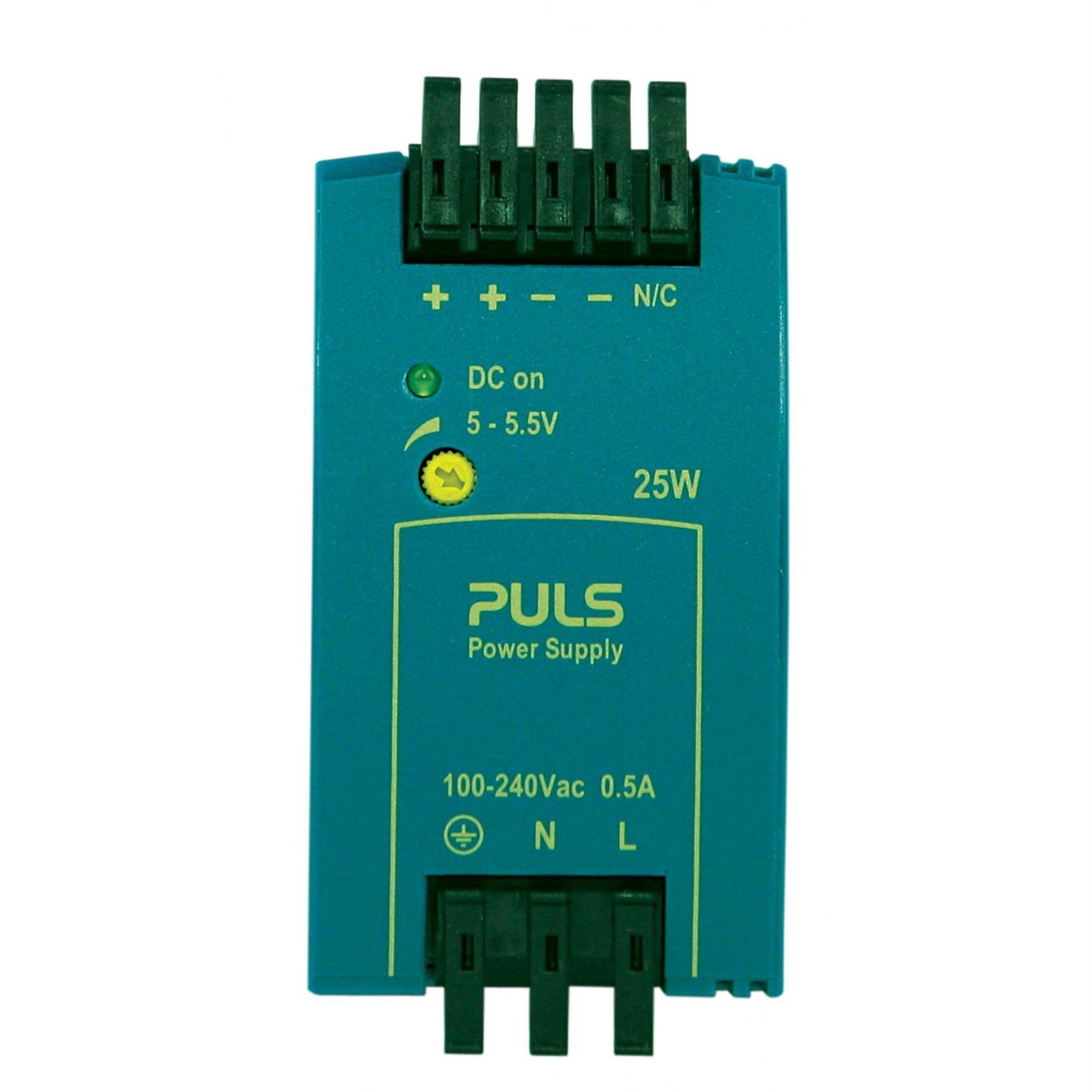

Puls ML30.101 Power Supply 1PH 110-300VDC 5VDC 5A 25 Watt 6.3 Watt DIN Rail Mount Spring Clamp IP20

Product Code: ML30.101

  • Compact size: 45x75x91 mm, easy DIN rail mount
  • Wide input voltage: 110-300 VDC, 5 VDC
  • High efficiency at 80%
  • Spring clamp connections for secure wiring
  • Certified for multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-240 V AC
Output Current - Nominal
5:00 AM
Output Power
30 W
Output Voltage - Nominal
5.1 Vdc
Output Voltage - Range
5-5.5 V
Efficiency
>80%
Terminal Type
Spring Clamp terminals

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
91 mm
Height
75 mm
Weight
240 g
Width
45 mm

Environmental

Operating Temperature
-10°C to +70°C
