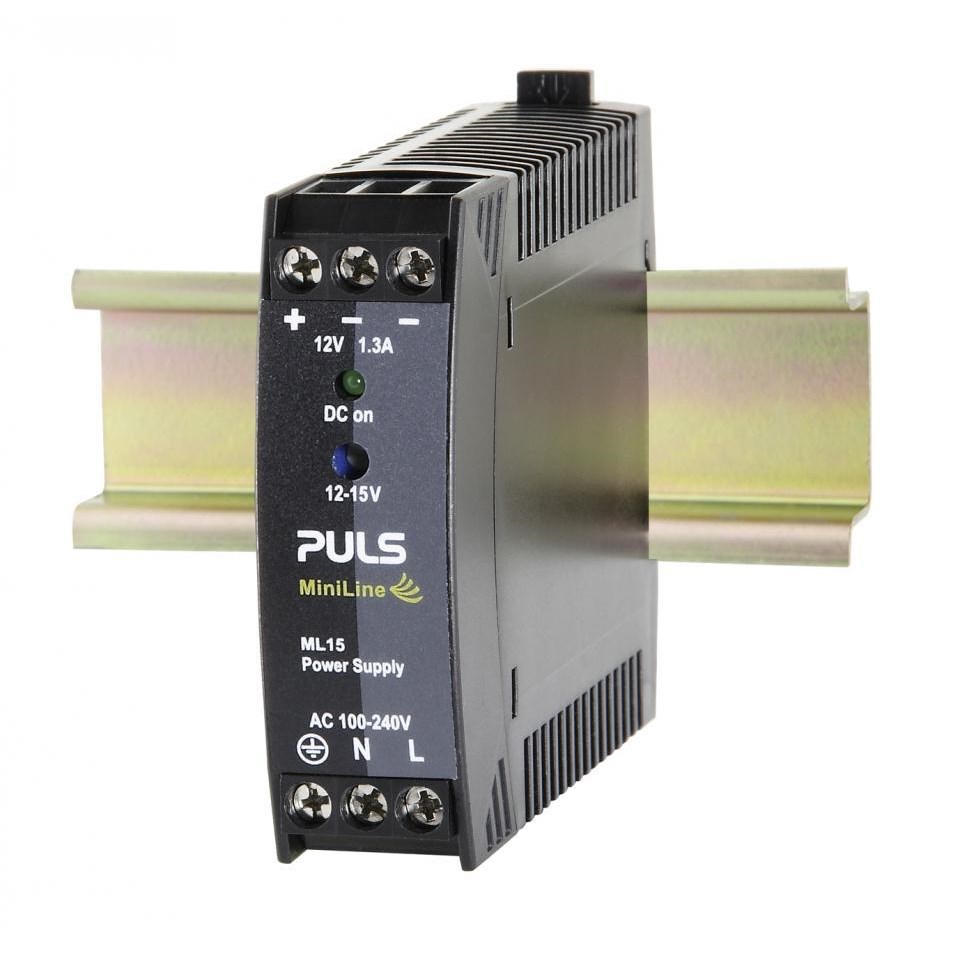

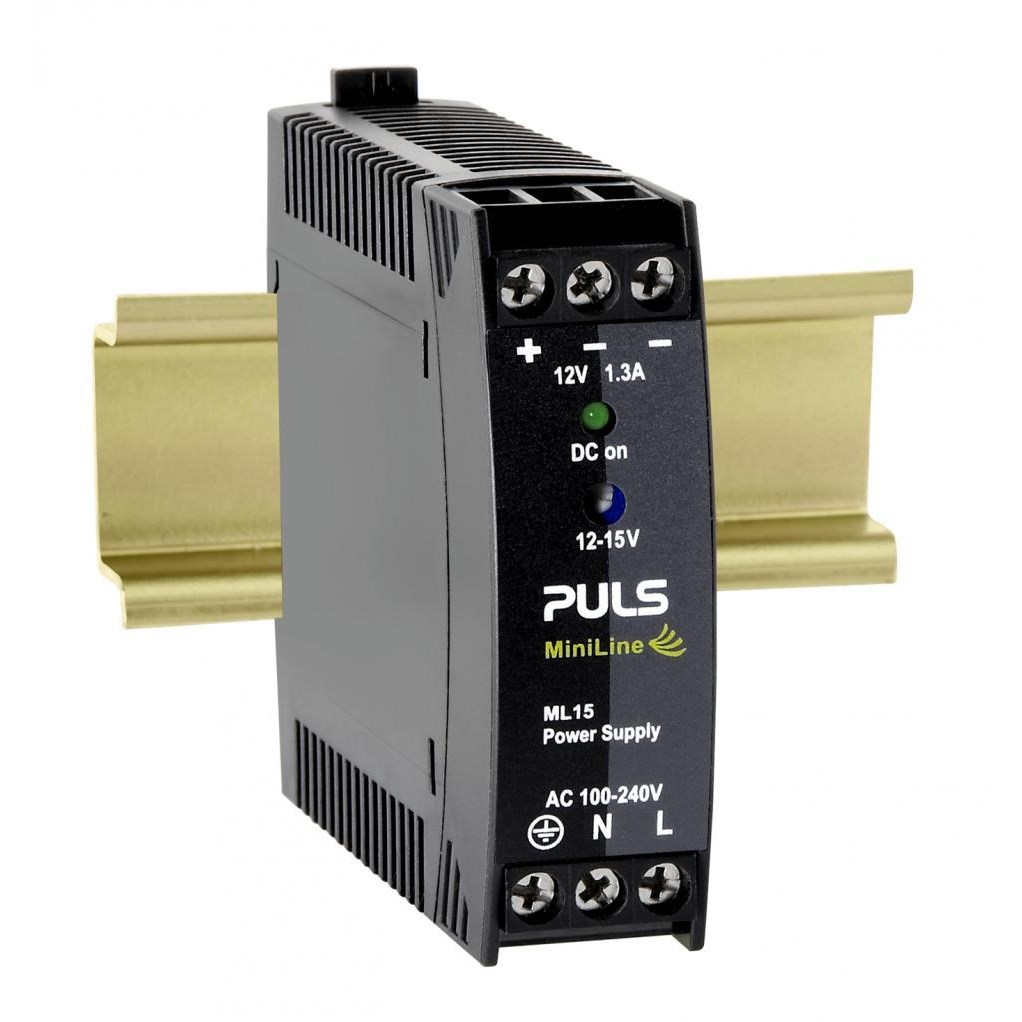

Puls ML15.121 Power Supply 1PH 110-300VDC 12VDC 1.3A 15 Watt 3.2 Watt DIN Rail Mount Screw Terminal IP20

Product Code: ML15.121

  • Compact 23mm width, ideal for tight spaces
  • Wide-range input voltage: 110-300 VDC
  • Efficient DIN rail mounting system
  • Robust IP20 protection rating
  • Complies with multiple global standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-240 V AC / 110-300 V DC
Output Current - Nominal
1.3A
Output Current - Range
1.3 A – 1.0 A 0.94 – 0.75 A up to +60°C at +70°C ambient
Output Power
15W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
83.0 / 82.5% at 120 / 230Vac
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
91mm
Height
75mm
Weight
0.13kg
Width
22.5mm

Environmental

Operating Temperature
-10°C to 70°C
