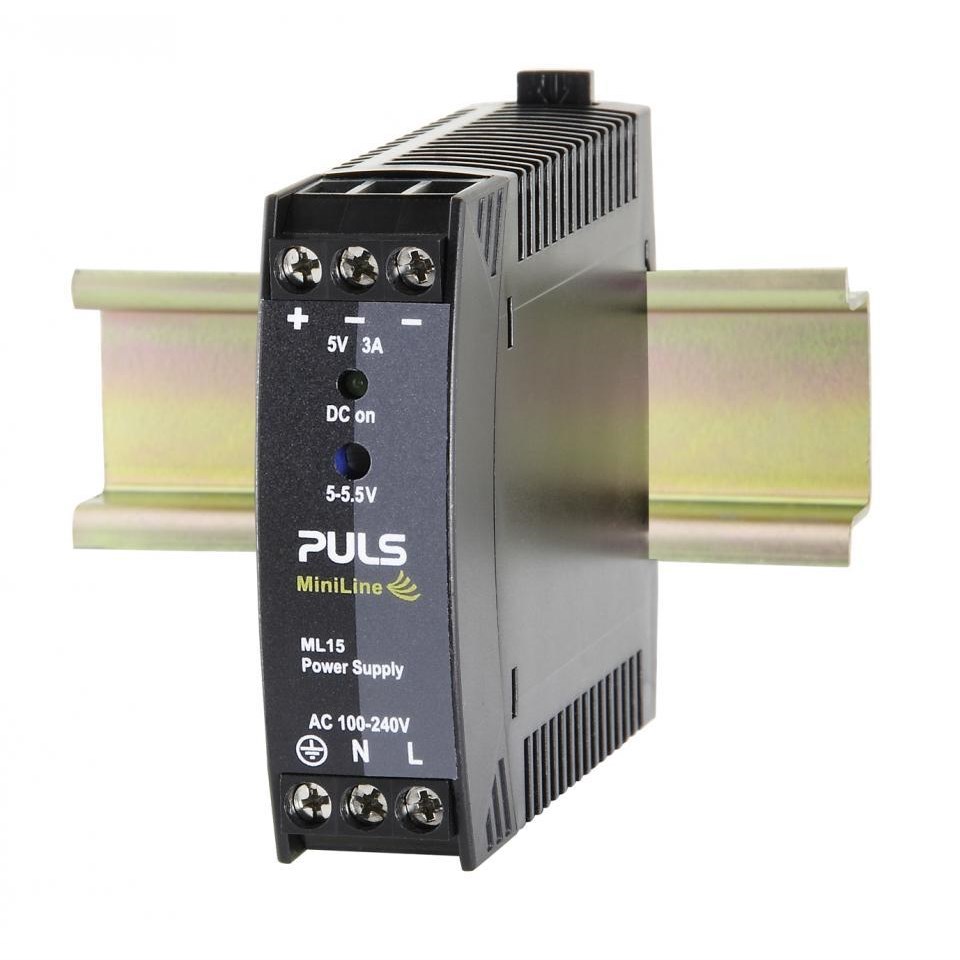

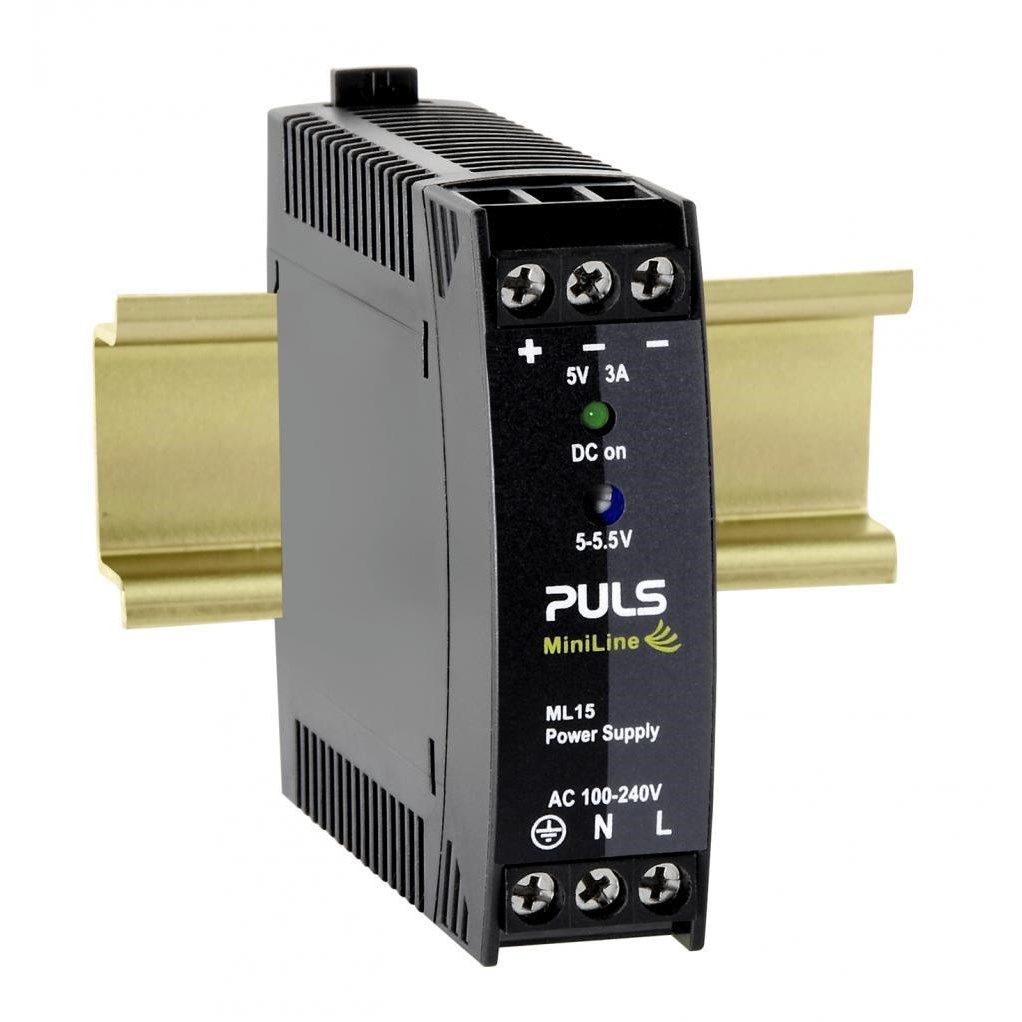

Puls ML15.051 Power Supply 1PH 110-300VDC 5VDC 3A 15 Watt 4.5 Watt DIN Rail Mount Screw Terminal IP20

Product Code: ML15.051

  • Compact size: 23mm width, 75mm height
  • Rated power of 15W with IP20 protection
  • Wide voltage range: 110-300 VDC, 5 VDC
  • Screw terminal connections for easy wiring
  • DIN rail mounting for quick installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-240 V AC / 110-300 V DC
Output Current - Nominal
3 A up to +60°C 2.25 A at +70°C ambient
Output Power
15W
Output Voltage - Nominal
5V DC
Output Voltage - Range
5V to 5.5V
Efficiency
76.8 / 77.2% at 120 / 230Vac
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
91mm
Height
75mm
Weight
0.13kg
Width
22.5mm

Environmental

Operating Temperature
-10°C to 70°C
