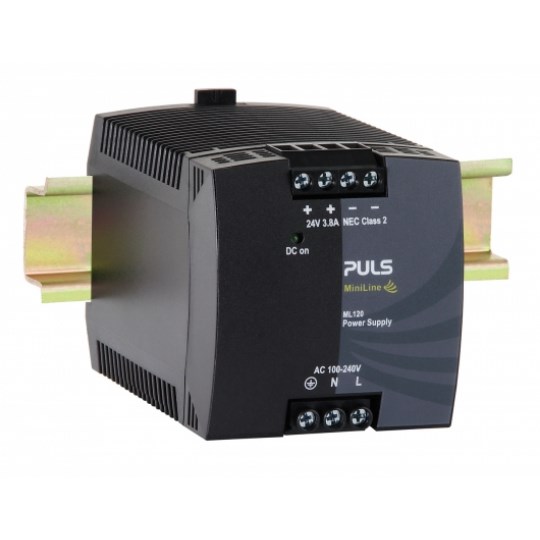

Puls ML120.241 Power Supply 1PH 100-240VAC 24VDC 5A 120 Watt DIN Rail Mount

Product Code: ML120.241

  • Single-phase with 5A rated current
  • Supports 100-240VAC, 24VDC input
  • DIN Rail mounting for easy installation
  • Delivers 120W power output
  • Complies with UL, cUL, and CE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-240 V AC / 290 V DC
Output Current - Nominal
5A at 24V 4.3A at 28V
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
88.8 / 90.4% at 120 / 230Vac
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
103mm
Height
75mm
Weight
0.36kg
Width
72.5mm

Environmental

Operating Temperature
-10°C to 70°C
