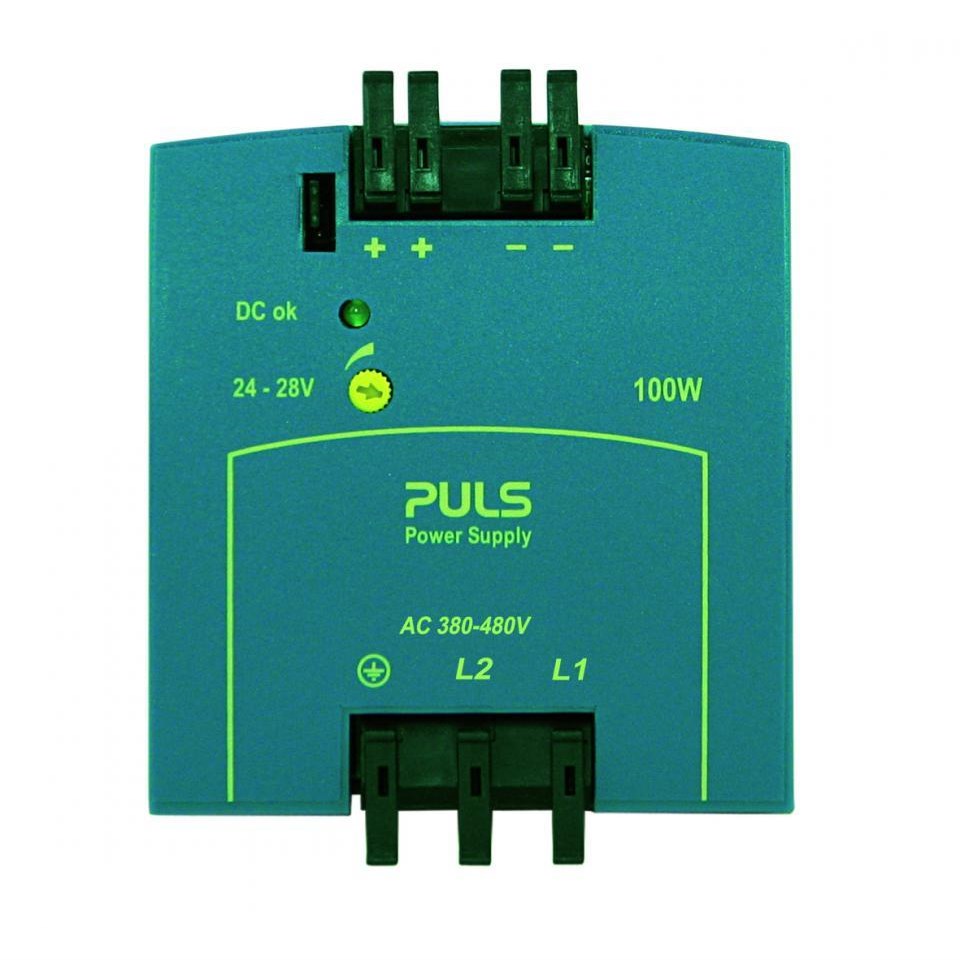

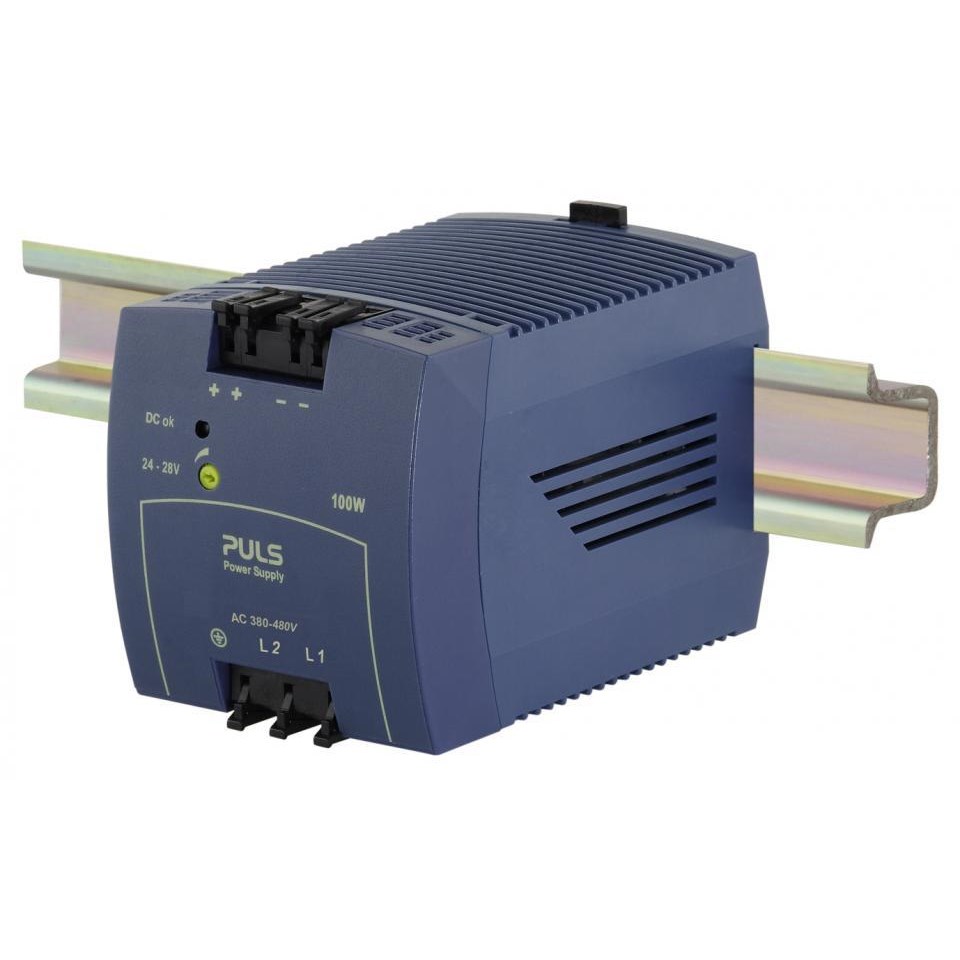

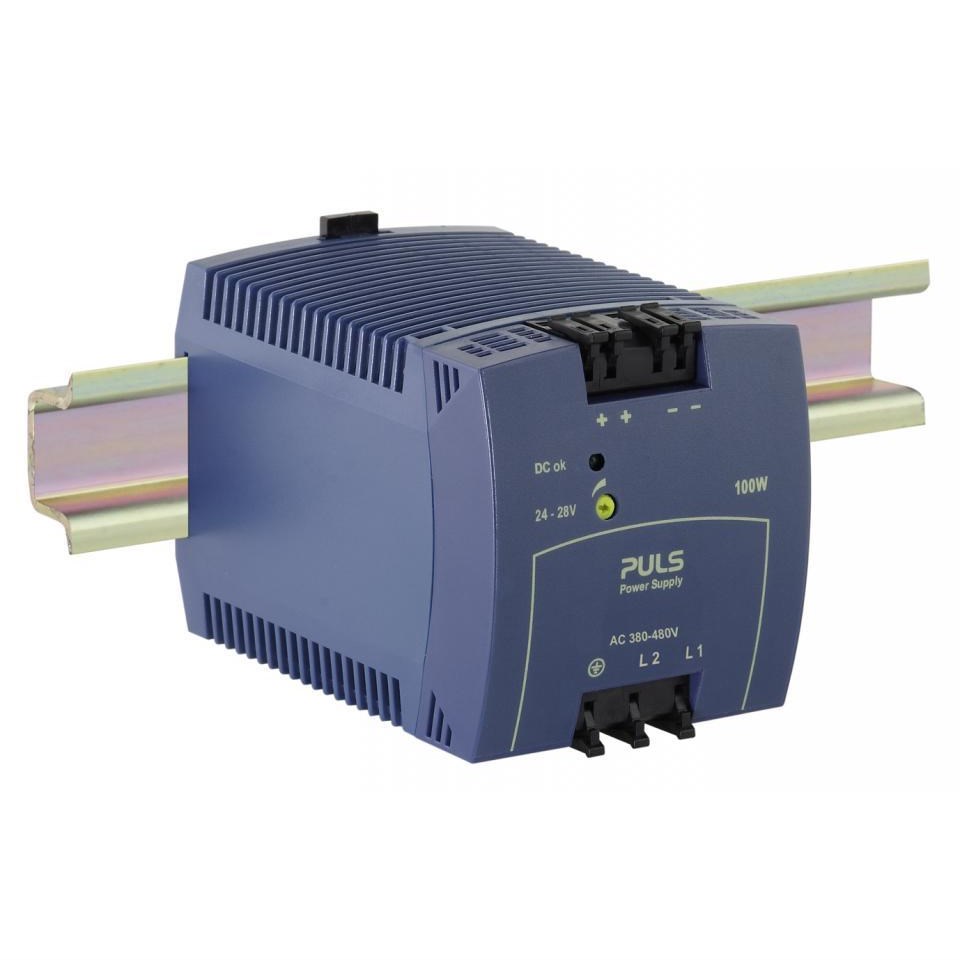

Puls ML100.200 Power Supply 3PH 380-480VAC 24VDC 4.2A 100 Watt 11.7 Watt DIN Rail Mount Spring Clamp IP20

Product Code: ML100.200

  • Three-phase power supply with 100 W rating
  • Wide-range input: 380-480 VAC, 24 VDC
  • Compact size: 73x75x103 mm for DIN rail mount
  • High efficiency at 89.5%
  • Spring clamp connections for secure wiring
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
MiniLine

Electrical

Input Voltage
380V to 480V AC
Output Current - Nominal
4.2A
Output Current - Range
4.2A to 3.6A
Output Power
100W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
89.50%
Terminal Type
Spring-clamps

Mechanical

Housing Material
Robust plastic housing

Dimensions & Physical Data

Depth
103mm
Height
75mm
Weight
0.36kg
Width
73mm

Environmental

Approvals / Conformity
IEC 61010-2-201, IEC 60950-1, Marine DNV
Operating Temperature
-10°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
