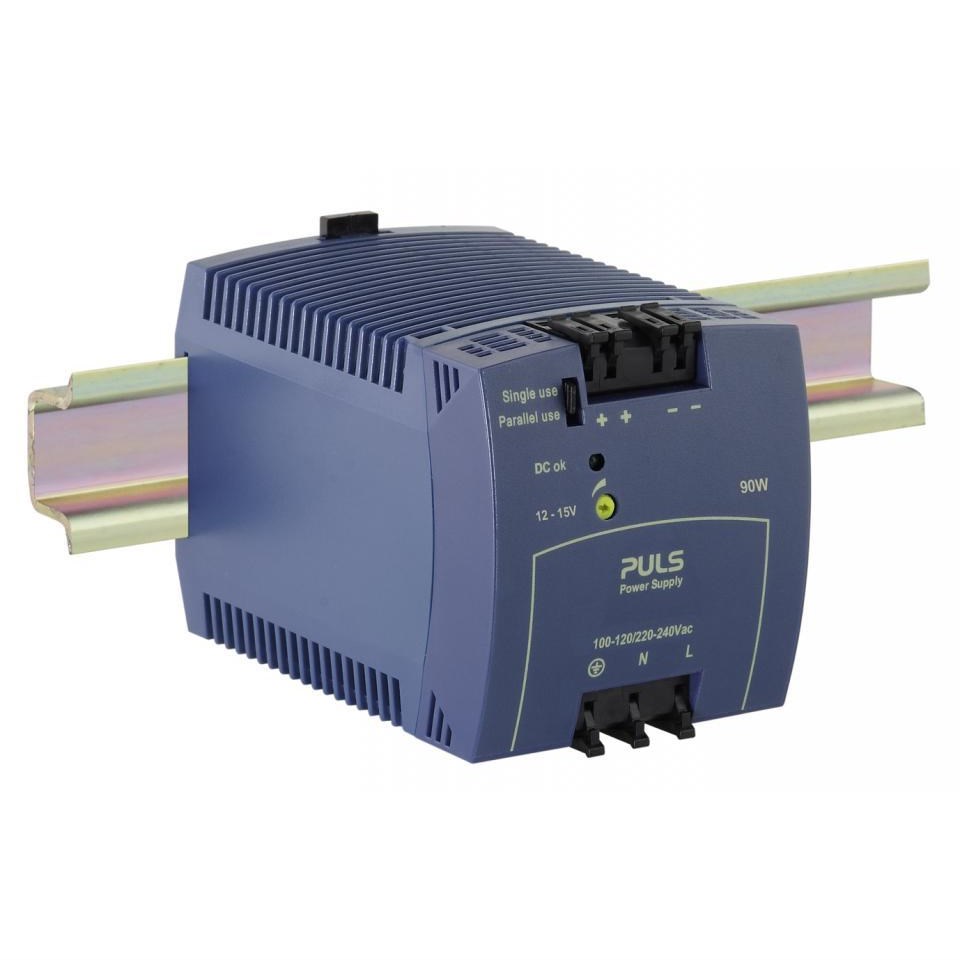

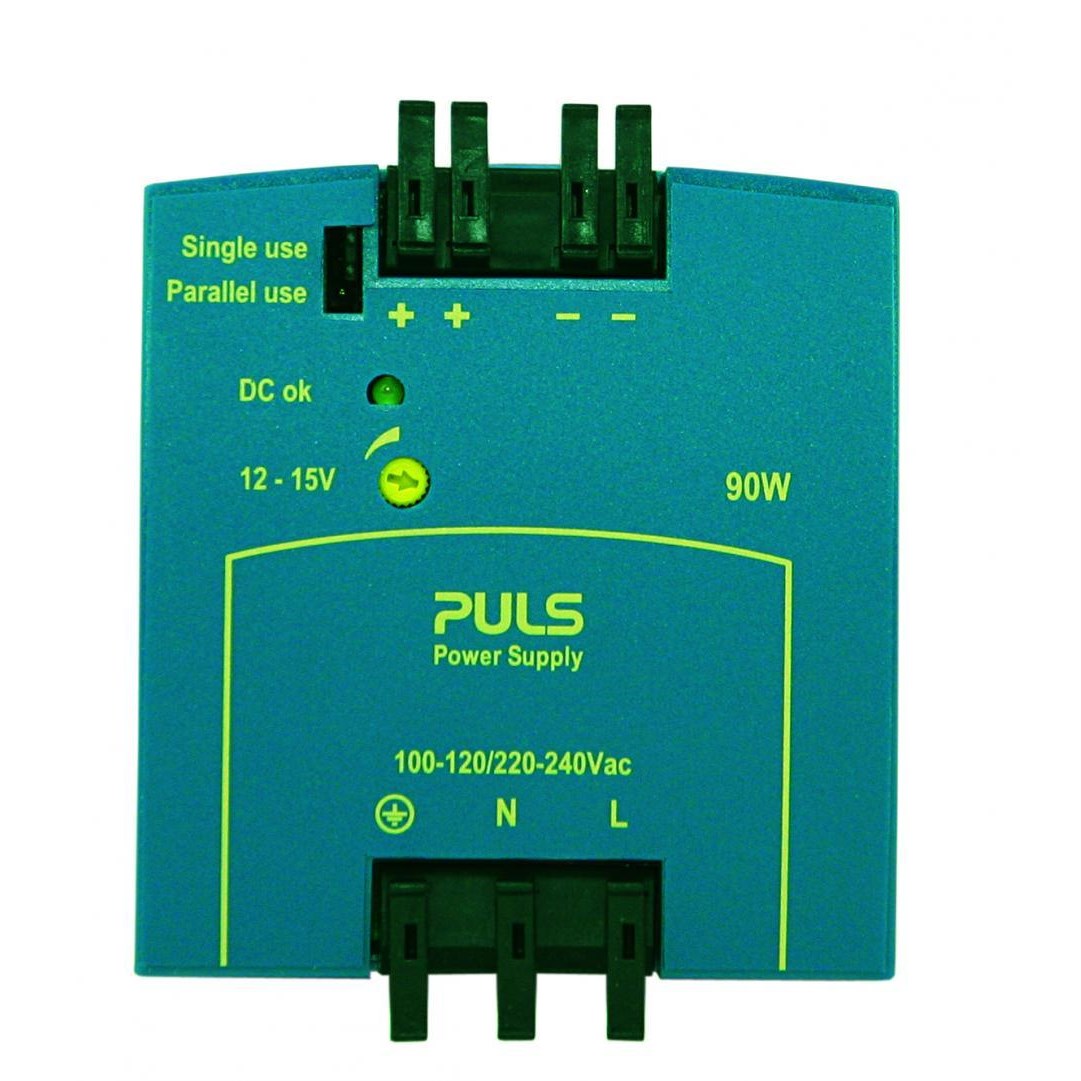

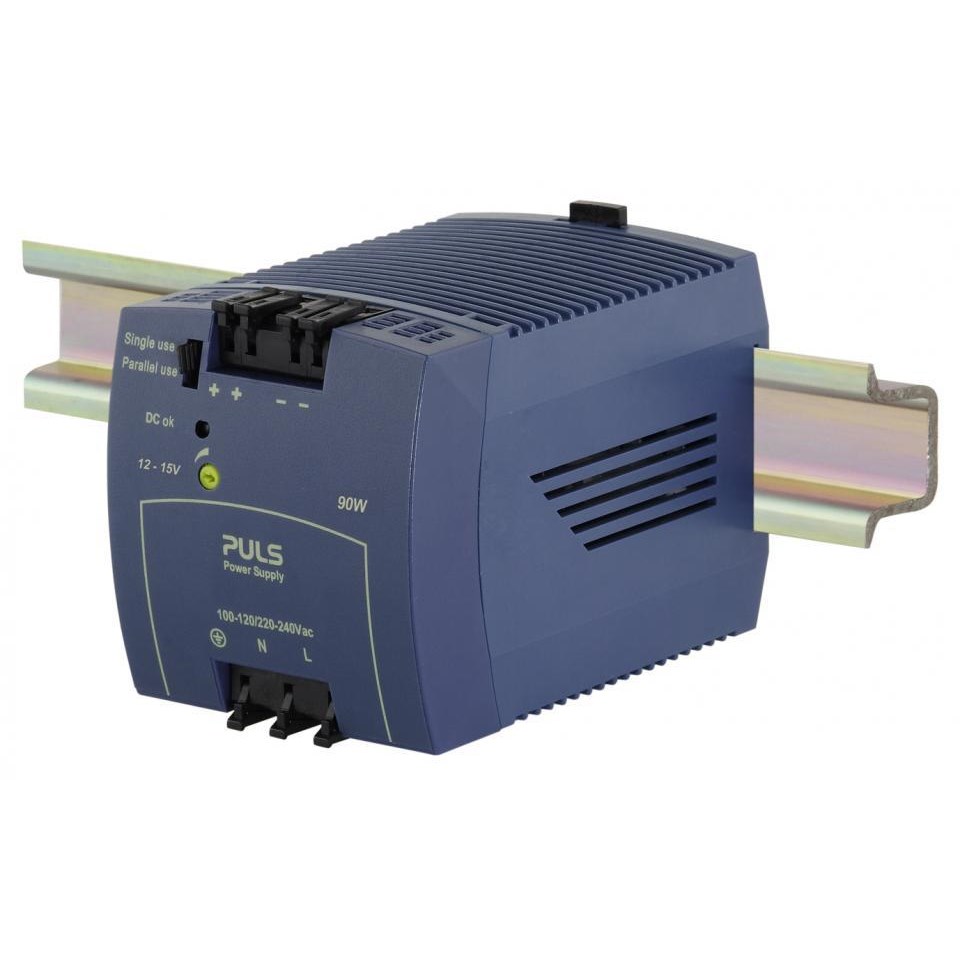

Puls ML100.102 Power Supply 1PH 110-300VDC 12VDC 7.5A 90 Watt 11.7 Watt DIN Rail Mount Spring Clamp IP20

Product Code: ML100.102

  • Compact size: 73x75x103 mm
  • Efficient 88.5% performance
  • Auto-select input for flexibility
  • DIN rail mountable design
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Mini Line

Electrical

Input Voltage
100-120/220-240 V AC (Auto Select) / 220...375 V DC
Output Current - Nominal
7.5A
Output Power
90W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
>88.5%
Terminal Type
Spring Clamp terminals

Dimensions & Physical Data

Depth
103mm
Height
75mm
Weight
0.36kg
Width
73mm

Environmental

Operating Temperature
-10°C to 70°C

Documents

IPD Product Catalogue V17
