Products

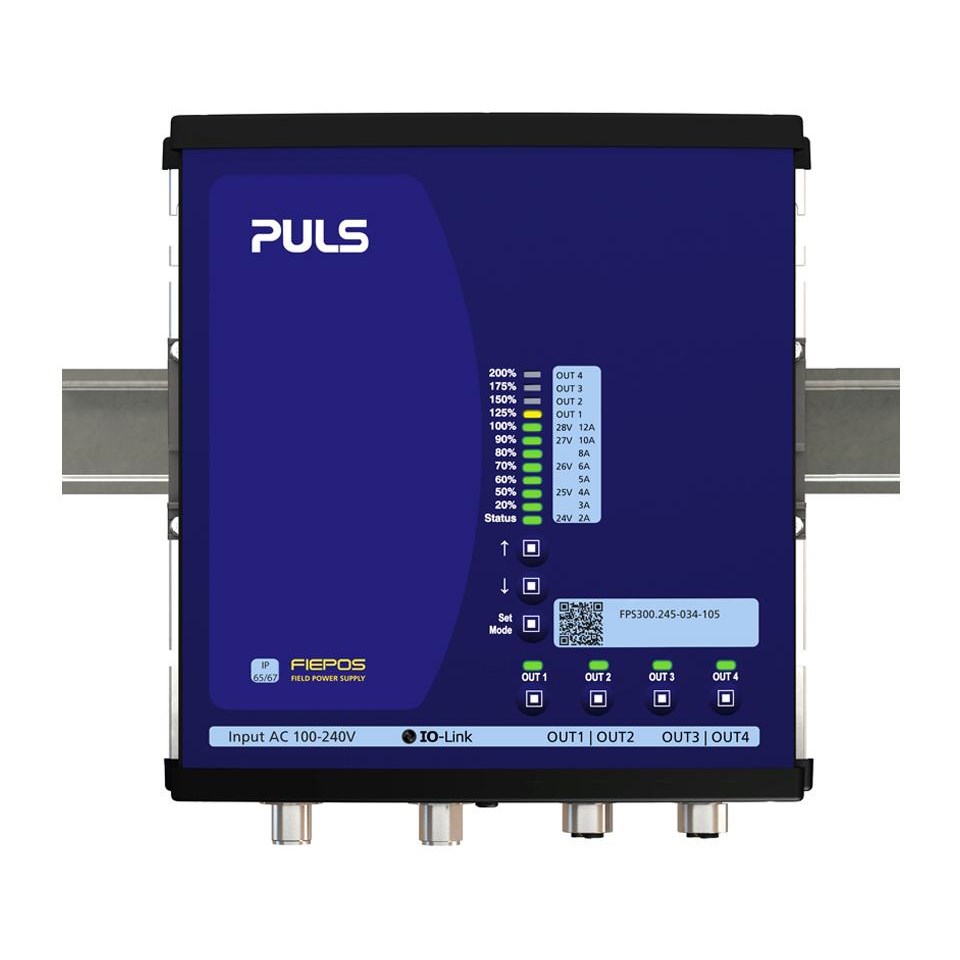

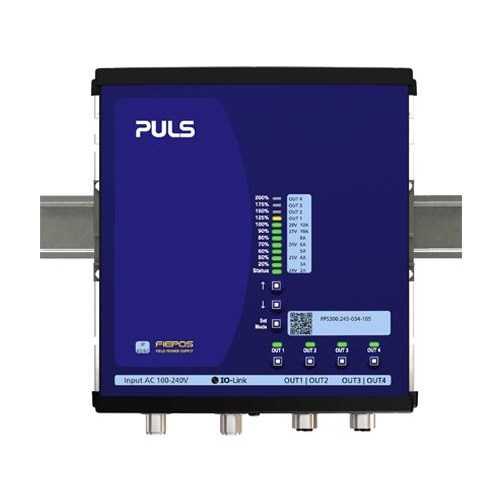

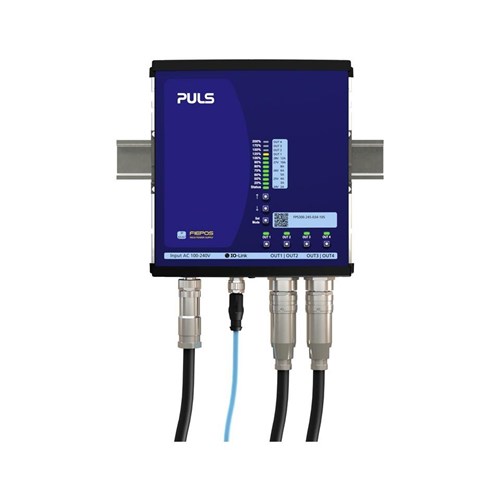

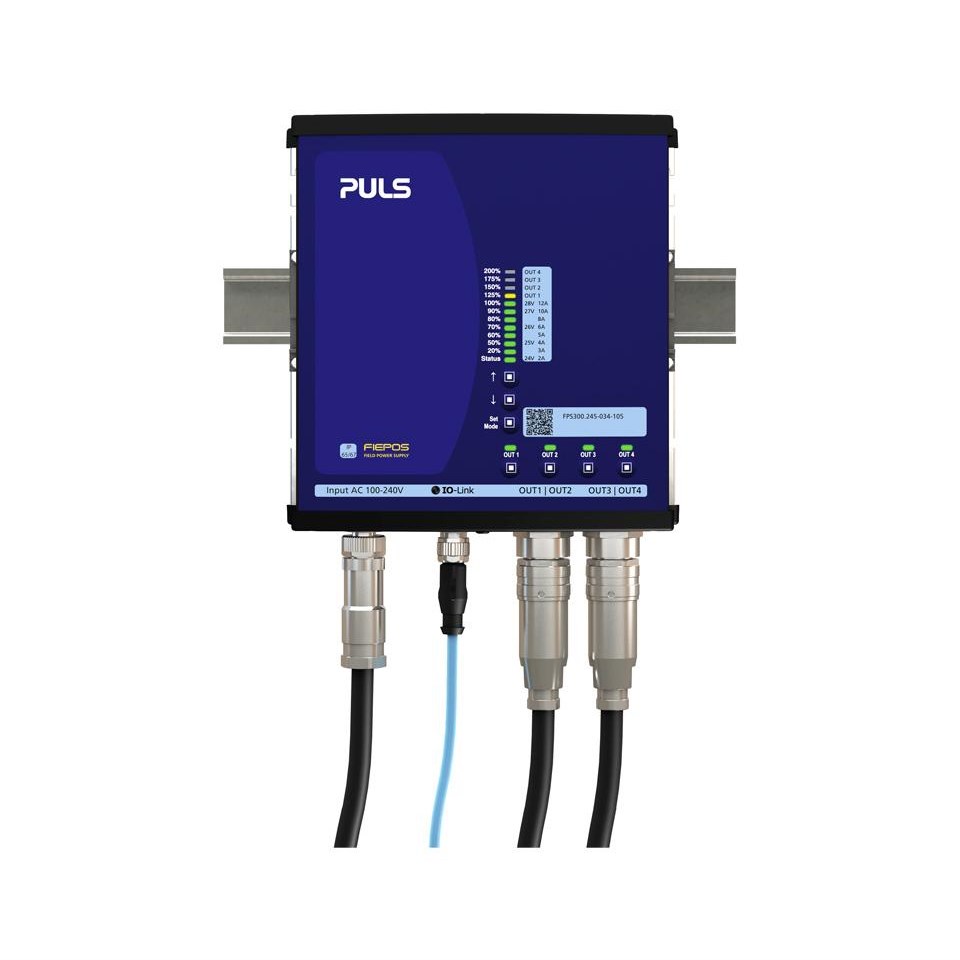

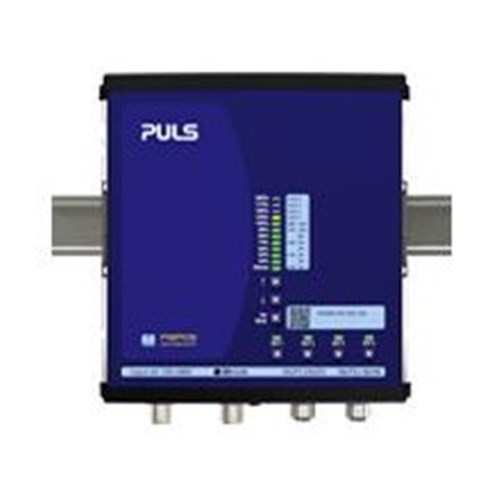

Puls FPS300.245-034-105 Power Supply 1PH 110-300VDC 24VDC 15A 360 Watt 13.5 Watt IP65/IP67

Product Code: FPS300.245-034-105

  • High efficiency of 95.7%
  • Rated power of 360 W with power reserve up to 600 W
  • Wide operational temp range: -25 to 70°C
  • Robust IP65/IP67 protection rating
  • Compact dimensions: 181x183x59 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Power Supply
Brand
Puls
Series
FIEPOS

Electrical

Output Current - Nominal
4x up to 12 A
Output Power
300 W up to +55 °C ambient 150 W up to +70 °C ambient
Output Voltage - Nominal
24 Vdc
Output Voltage - Range
24-28 V
Efficiency
94.3 / 95.7 % at 120 / 230 Vac

Mechanical

Housing Material
Aluminium alloy

Dimensions & Physical Data

Depth
59 mm
Height
183 mm
Weight
1200 g
Width
181 mm

Environmental

Operating Temperature
-30 °C to +70 °C
IP Rating
IP65 and IP67

Documents

IPD Product Catalogue V17
