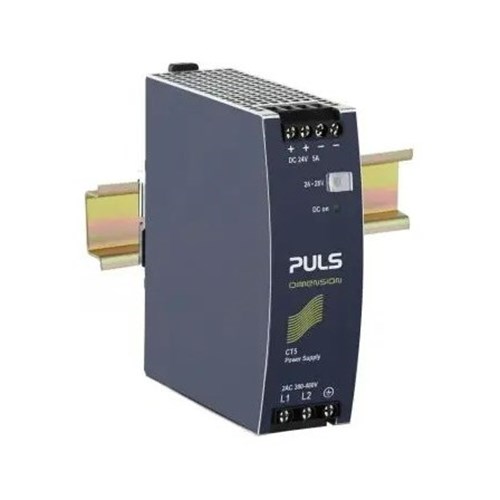

PULS DC POWER SUPPLY INPUT 2X380-480VAC OUTPUT 24-28VDC 5ADC POWER SUPPLY INPUT 2X380-48 CT5.241-SA

Product Code: CT5.241-SA

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
380 - 480 V AC (-15 %/+20 %)
Output Current - Nominal
4.3A at 28V 5A at 24V
Output Current - Range
5A to 4.3A
Output Power
96W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.904
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
