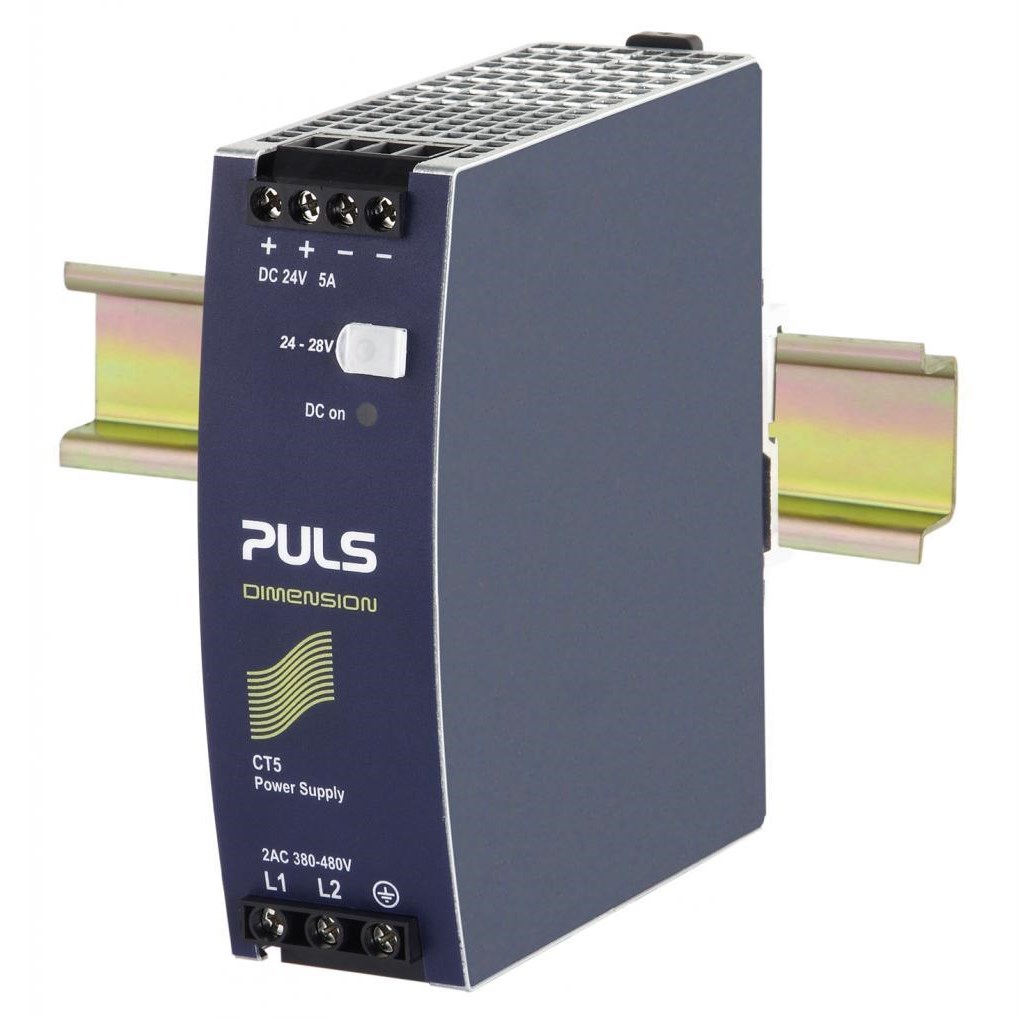

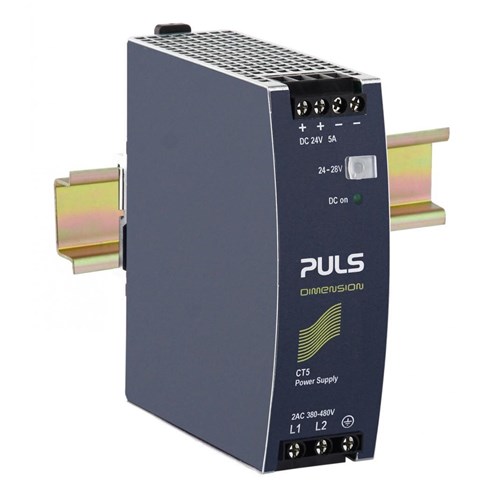

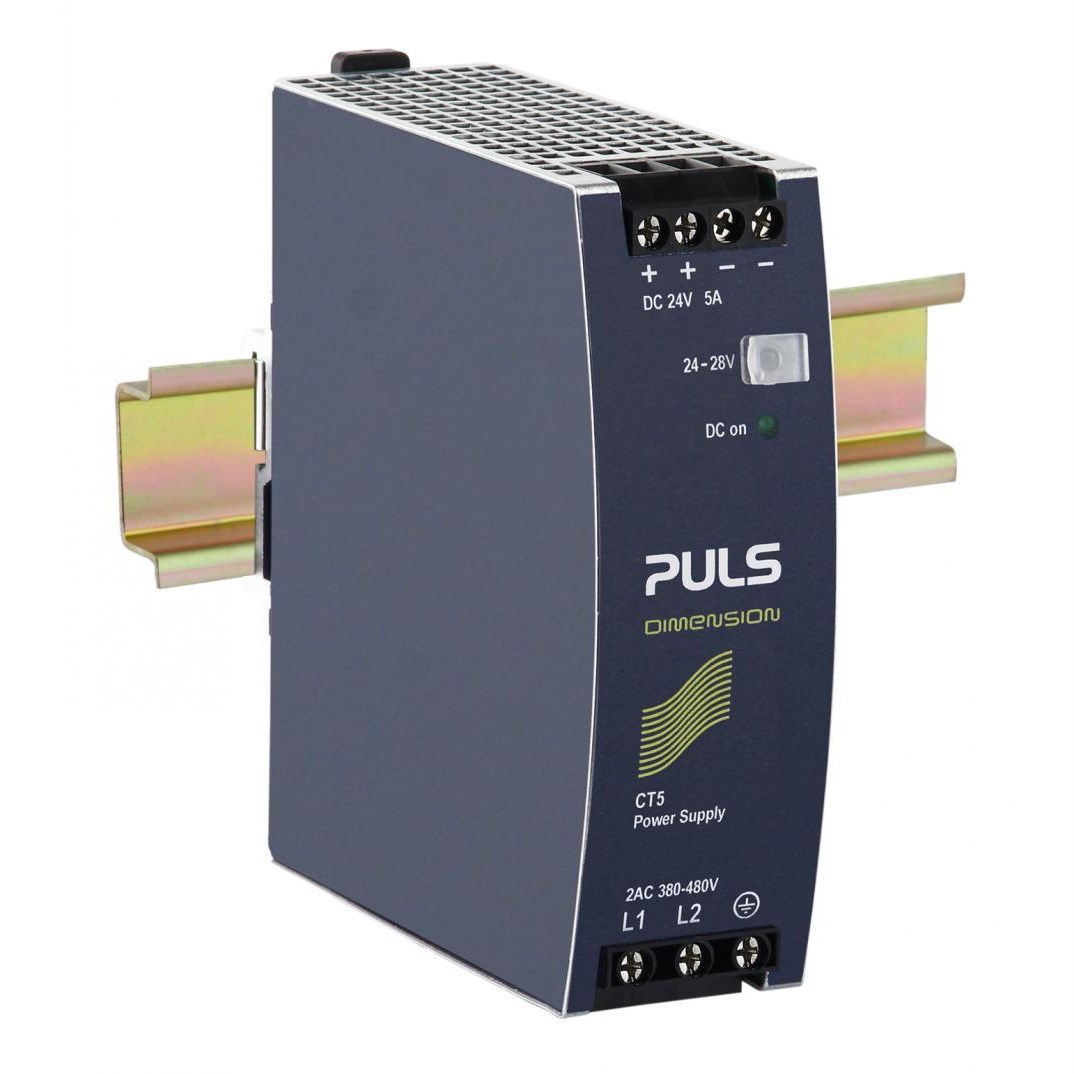

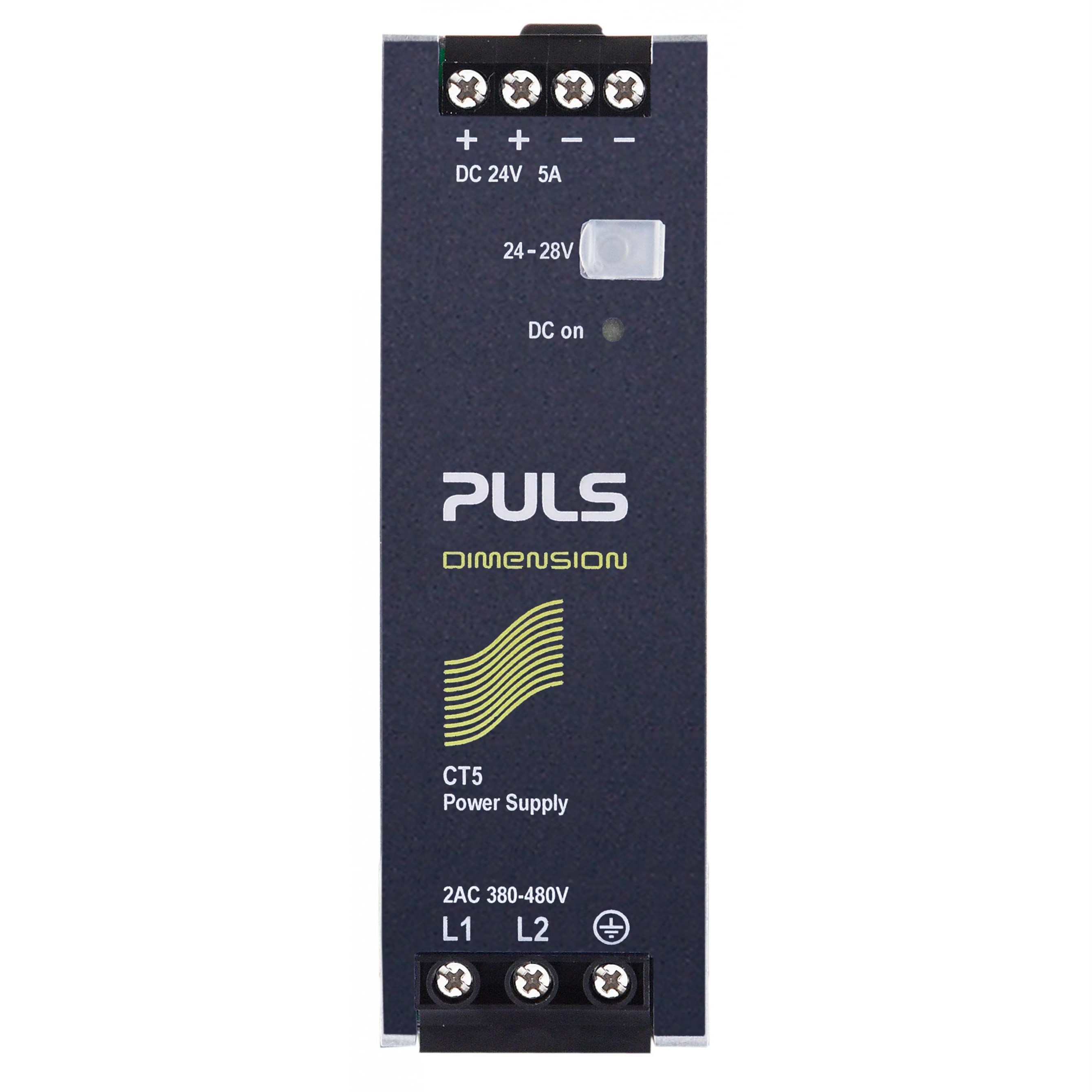

Puls CT5.241 Power Supply 3PH 380-480VAC 24VDC 5A 120 Watt 12.7 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CT5.241

  • Three-phase, 5 A rated current
  • Compact size: 40x124x117 mm
  • Wide voltage range: 380-480 VAC, 24 VDC
  • High efficiency at 90.4%
  • IP20 protection with DIN rail mount
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CT-Series

Electrical

Input Voltage
380 - 480 V AC
Output Current - Nominal
5A
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V
Output Voltage - Range
24V to 28V DC
Efficiency
90.4 / 90.0%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
40mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Marine (DNV), VDMA 24364, Marine (ABS), CE, REACH, WEEE, KC Korean Certificate
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
