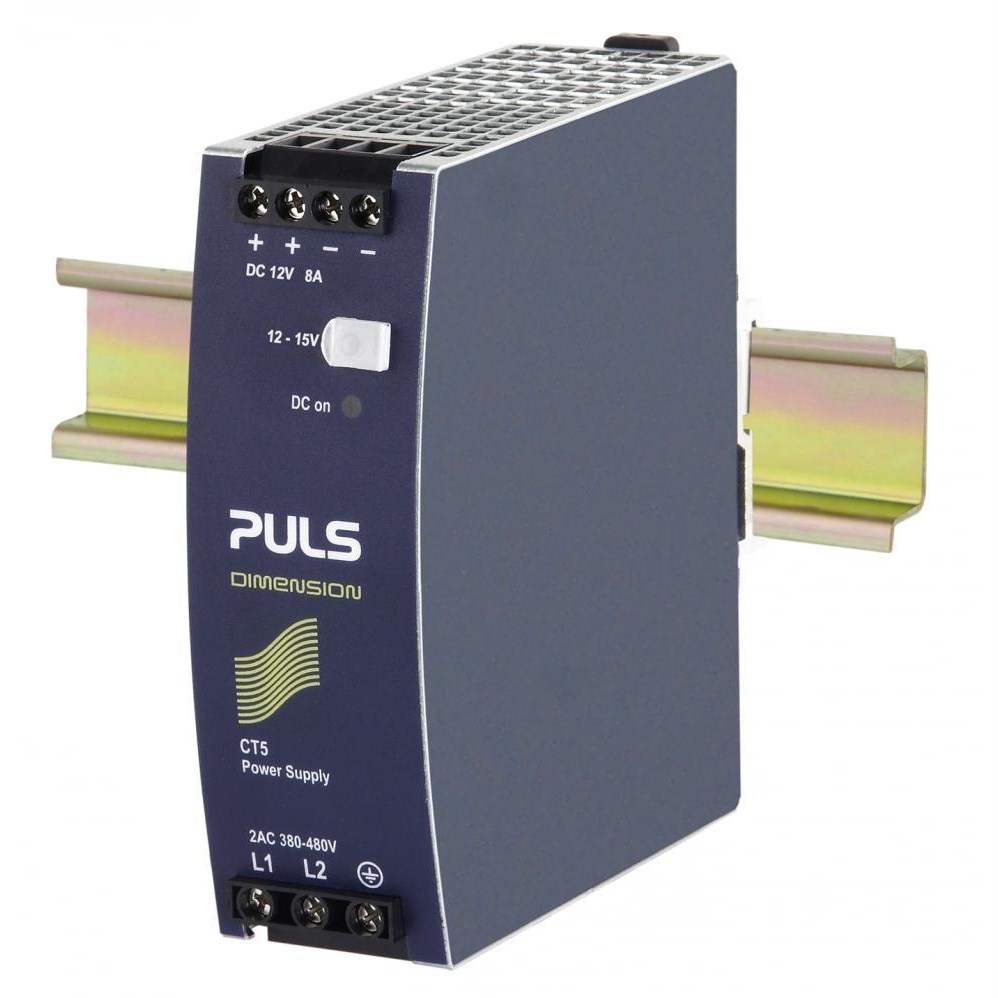

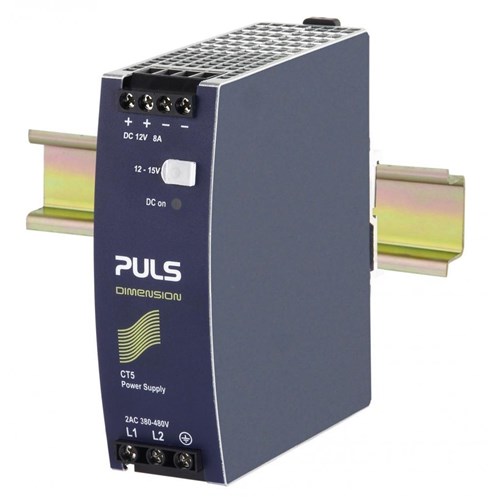

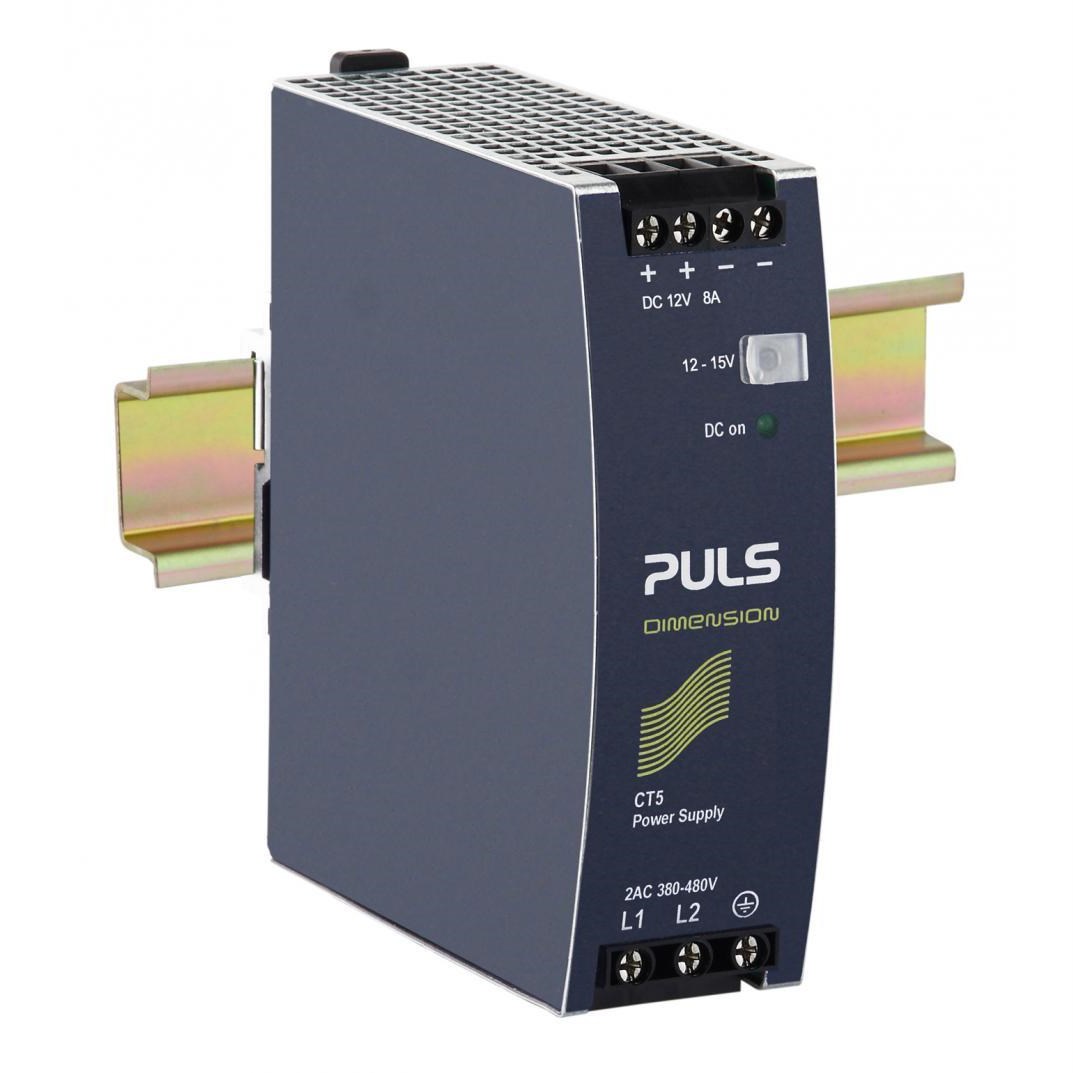

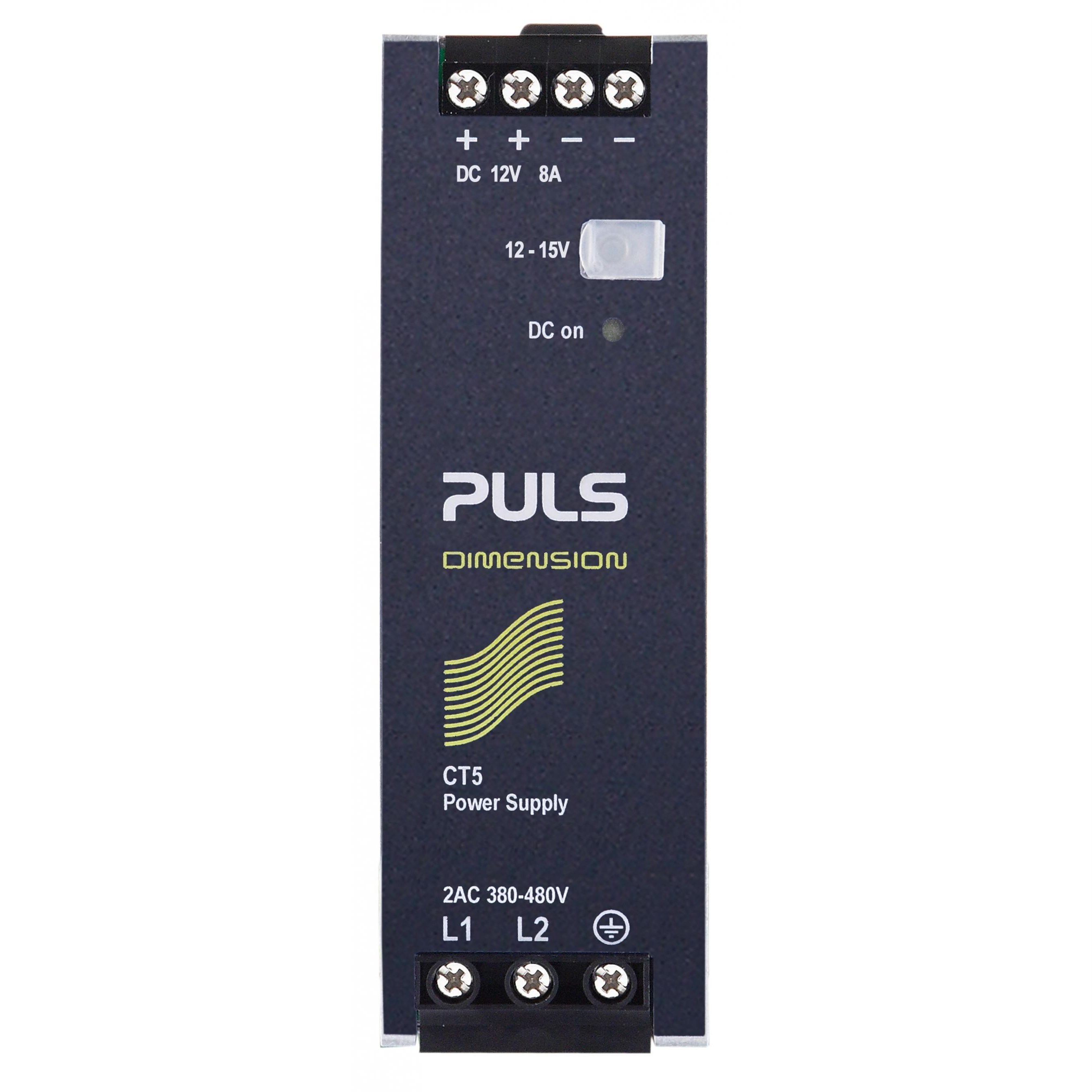

Puls CT5.121 Power Supply 3PH 380-480VAC 12VDC 8A 96 Watt 16.4 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CT5.121

  • Three-phase, 8 A rated current
  • Compact size: 40x124x117 mm
  • Wide voltage range: 380-480 VAC, 12 VDC
  • DIN rail mounting with IP20 protection
  • High efficiency at 85.4%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
380 - 480 V AC (-15 %/+20 %)
Output Current - Nominal
6.4A at 15V 8A at 12V
Output Current - Range
8A to 6.4A
Output Power
96W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
0.854
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
