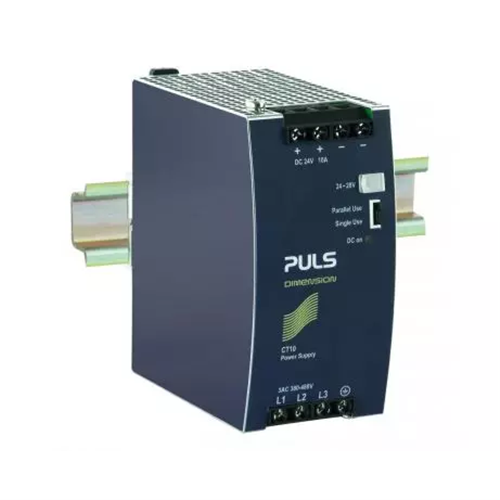

Puls CT10.241-C1 Power Supply 380-480VAC 24-28VDC 4A 240 Watt 18.6 Watt DIN Rail Mount Screw Terminal

Product Code: CT10.241-C1

  • Delivers 240 W power with 92.8% efficiency
  • Supports 380-480 VAC, 24-28 VDC input
  • Suitable for 3-phase systems; DIN rail mountable
  • Active inrush current limitation ensures stability
  • CE, IEC, CSA & Marine certified for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
380 - 480 V AC (-15 %/+20 %)
Output Current - Nominal
8.6A at 28V 10A at 24V
Output Current - Range
10A to 8.6A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.928
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.75kg
Width
62mm

Environmental

Operating Temperature
-25°C to 70°C
Conformal Coated
Yes
