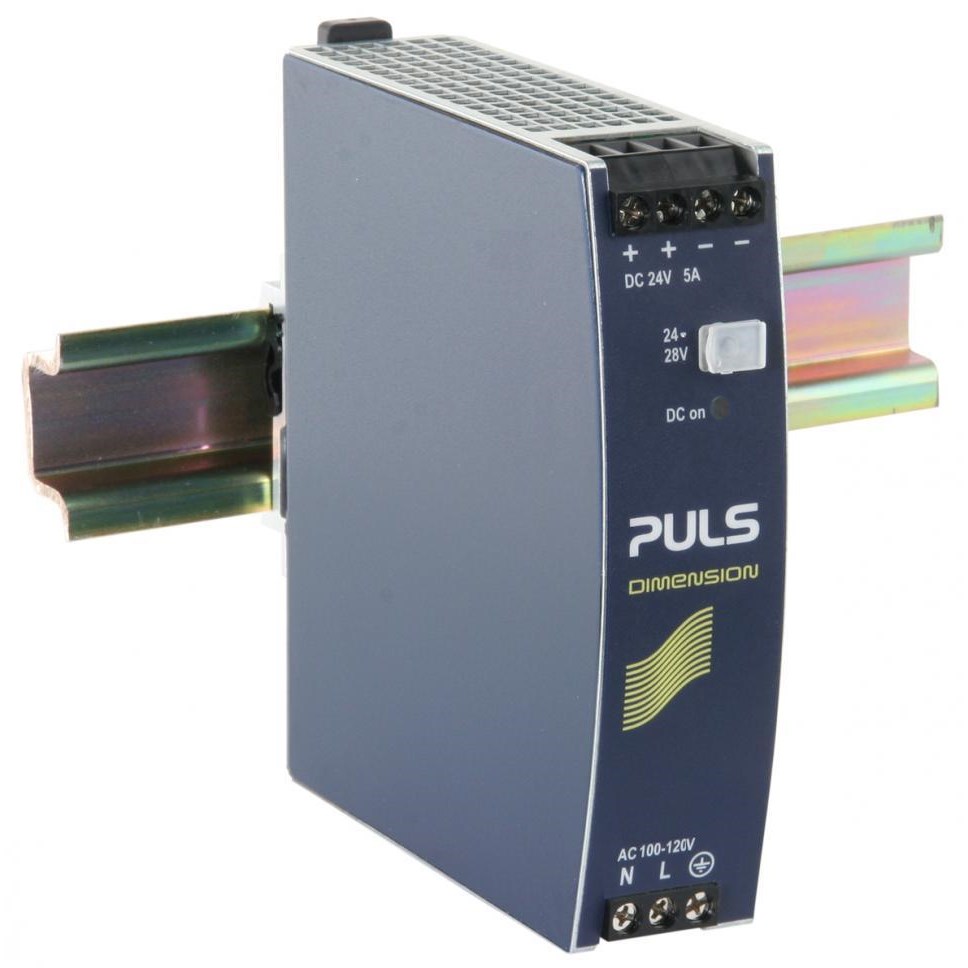

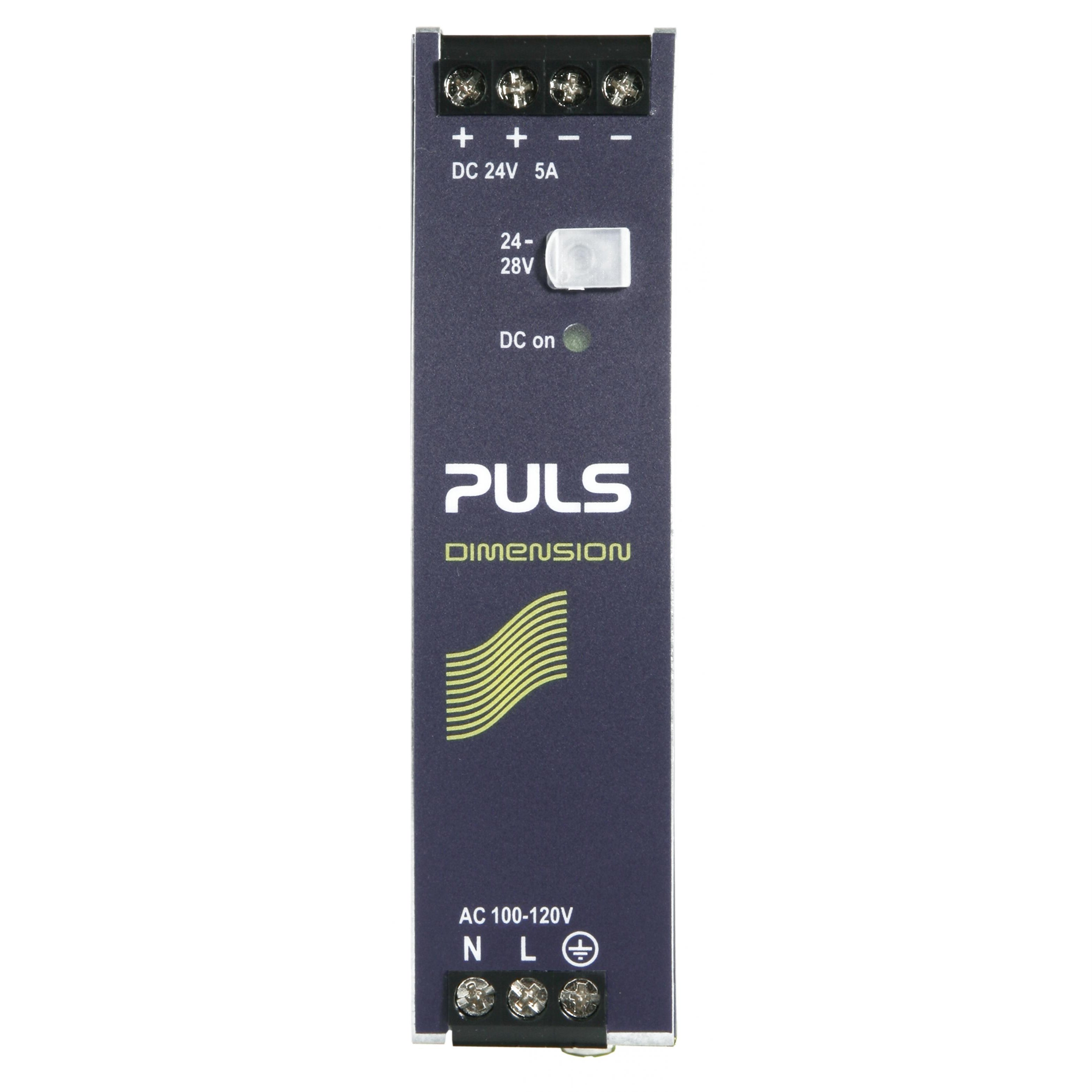

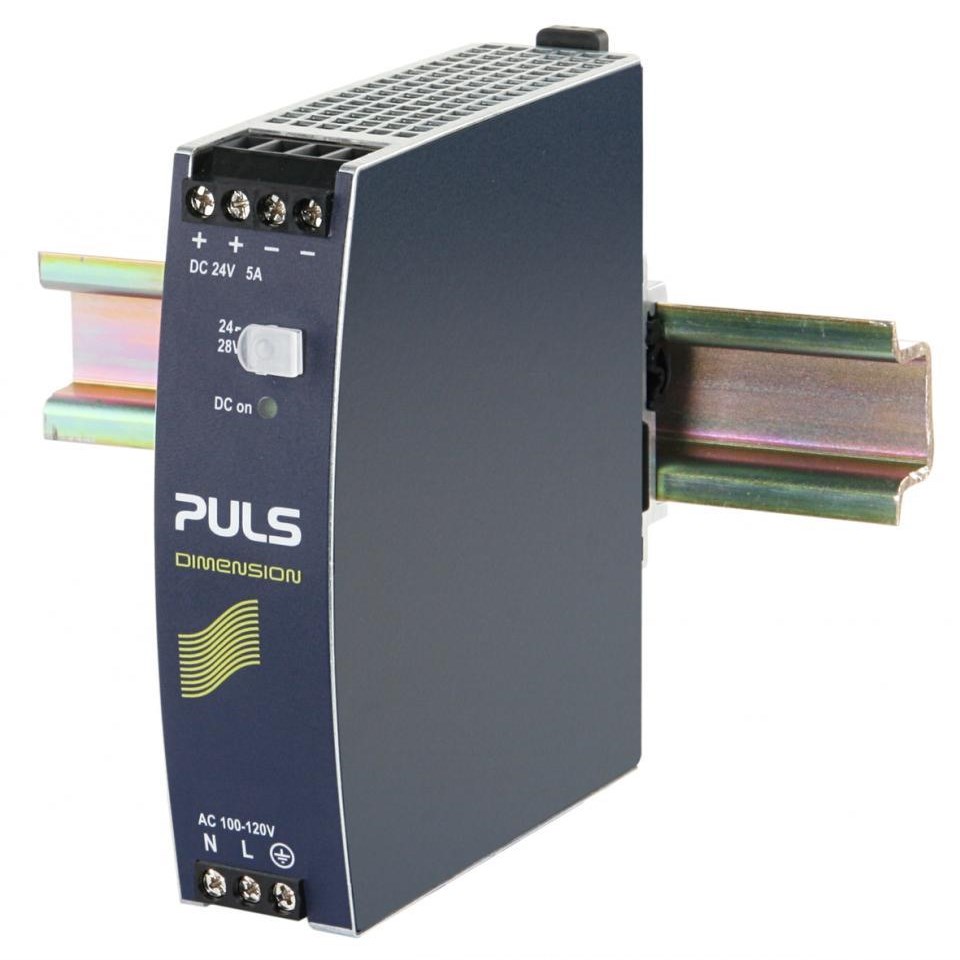

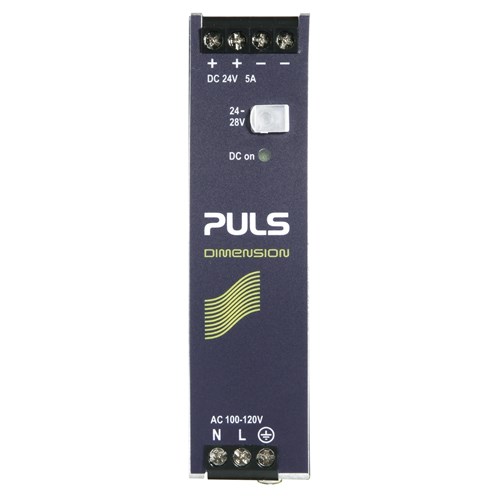

Puls CS5.243 Power Supply 1PH 100-120VAC 24VDC 5A 120 Watt 13.5 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CS5.243

  • Single-phase, 5 A rated current
  • Compact size: 32x124x117 mm
  • Wide voltage range: 100-120 VAC, 24 VDC
  • High efficiency at 90%
  • DIN rail mount with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
C-Line

Electrical

Input Voltage
100 - 120 V AC
Output Current - Nominal
5A
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
90% (typical)
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Marine (DNV), VDMA 24364, ISA-71.04-1985, CE, REACH, WEEE
Operating Temperature
-10°C to 70°C
IP Rating
IP20
