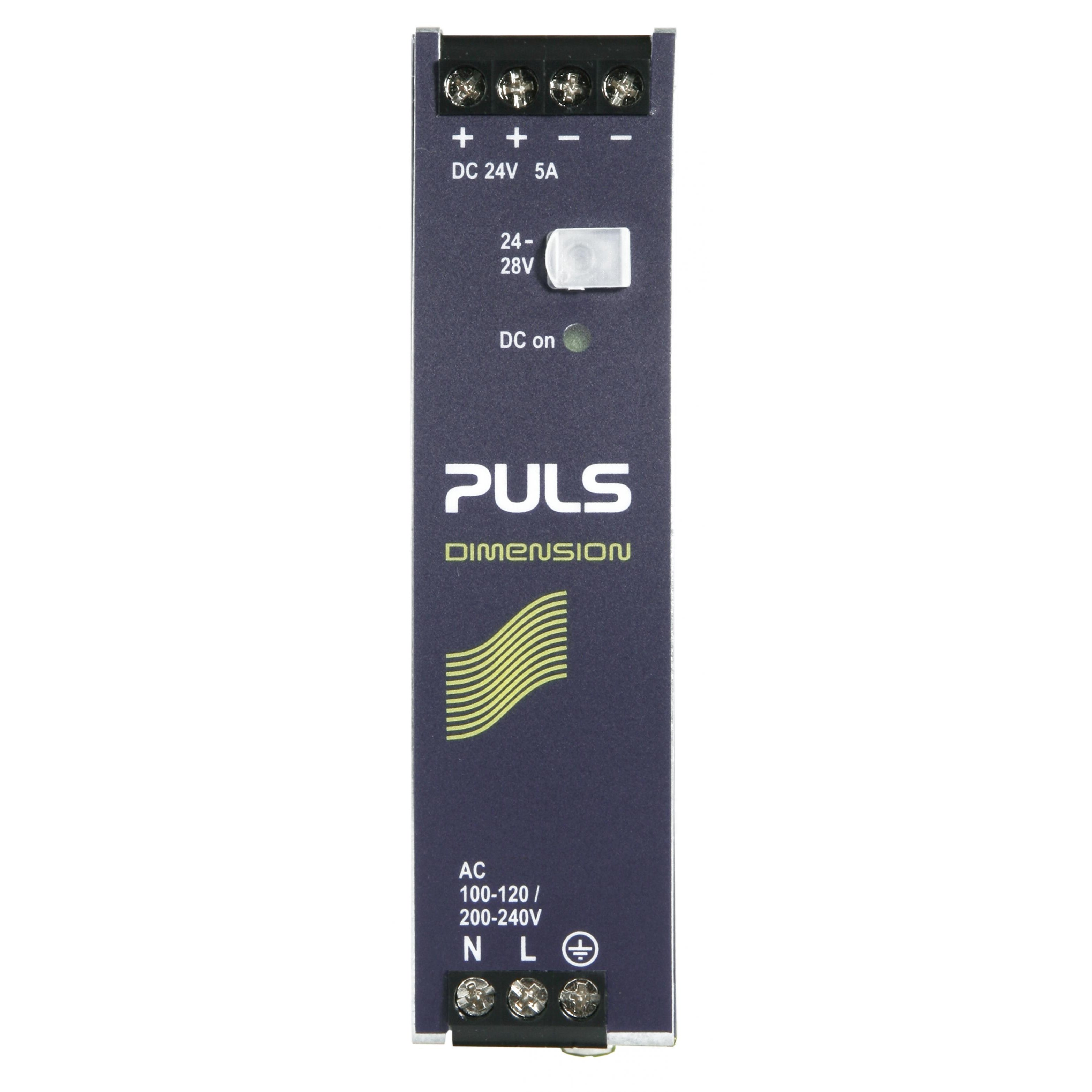

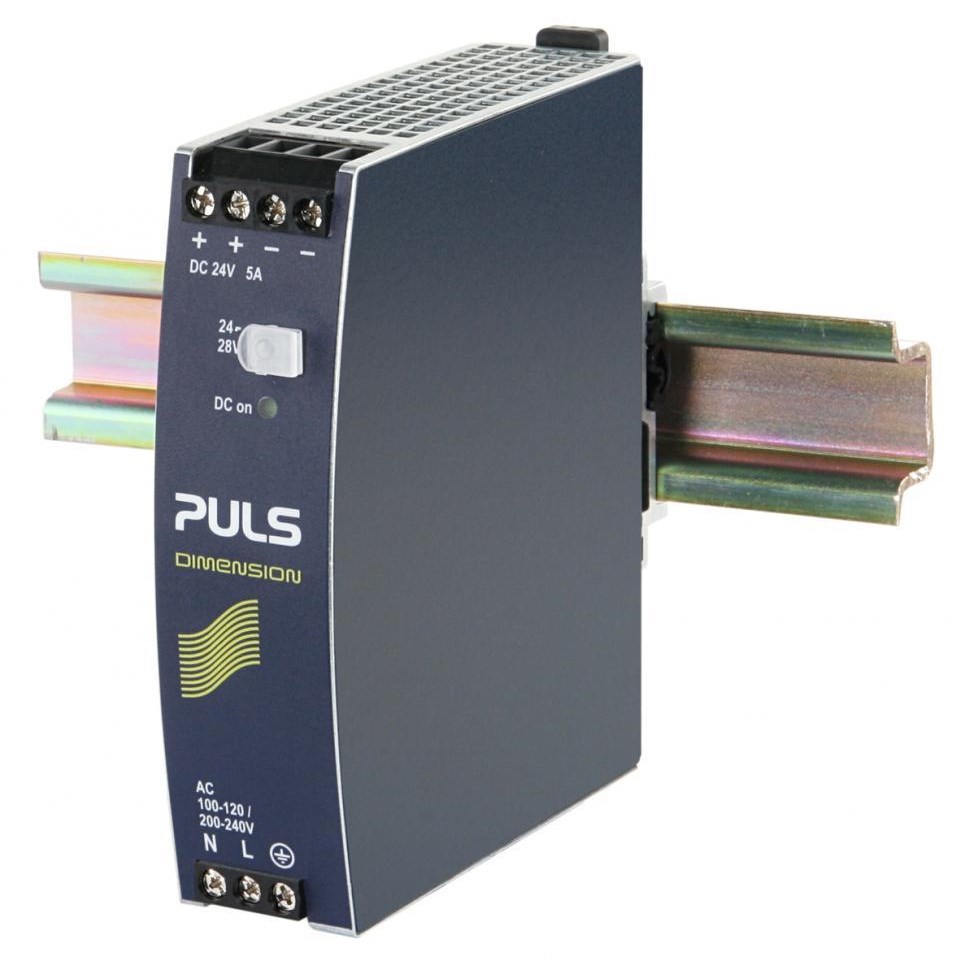

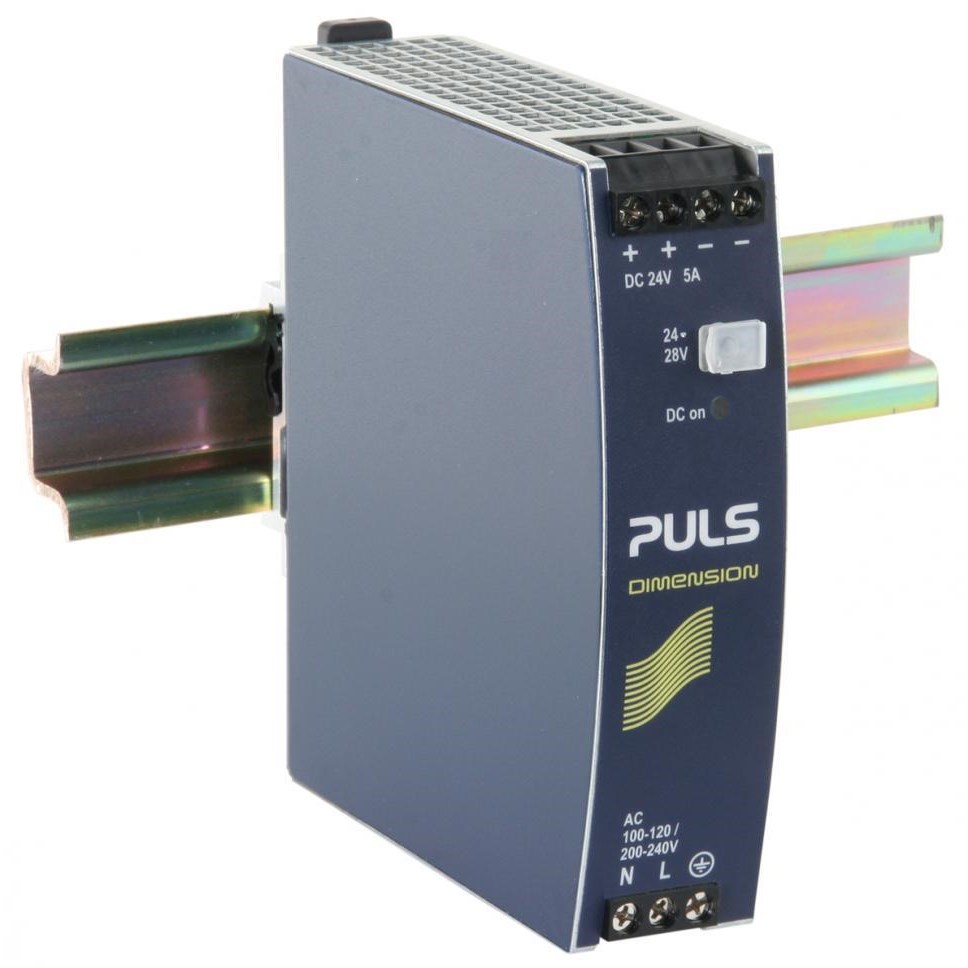

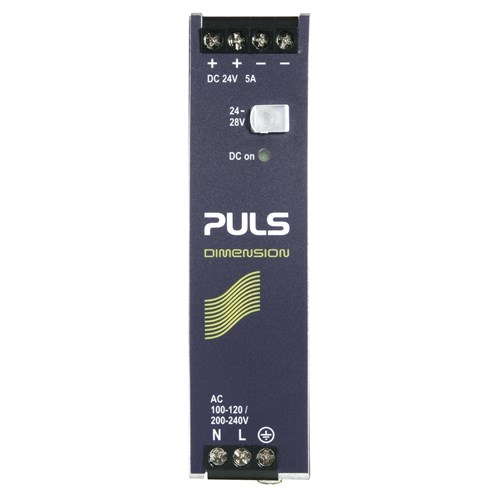

STAGEIPD STAGE DEV (25 Mar 2026)Puls CS5.241 Power Supply 1PH 100-120VAC 200-240VAC 24VDC 5A 120 Watt 13.2 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CS5.241

Compact design: 32mm width, ideal for DIN rail mount.
Wide voltage range: 100-240 VAC, 24 VDC input.
High efficiency at 90.2% reduces energy loss.
IP20 protection ensures safe operation.
Meets global standards including UL and IEC.

1

Specifications

General

Product Type

DIN Rail Power Supplies

Brand

Puls

Series

C-Line

Electrical

Input Voltage 100-120V AC / 200-240V AC	Output Current - Nominal 5A	Output Current - Range 5A to 4.3A
Output Power 120W	Output Voltage - Nominal 24V DC	Output Voltage - Range 24V to 28V DC
Efficiency 89.4 / 90.2%	Terminal Type screw

Mechanical

Housing Material

Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth 117mm	Height 124mm	Weight 0.5kg
Width 32mm

Environmental

Approvals / Conformity

UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Marine (DNV), VDMA 24364, ISA-71.04 G3, CE, REACH, WEEE

Operating Temperature

-25°C to 70°C

IP Rating

IP20

Documents

IPD Product Catalogue V17
