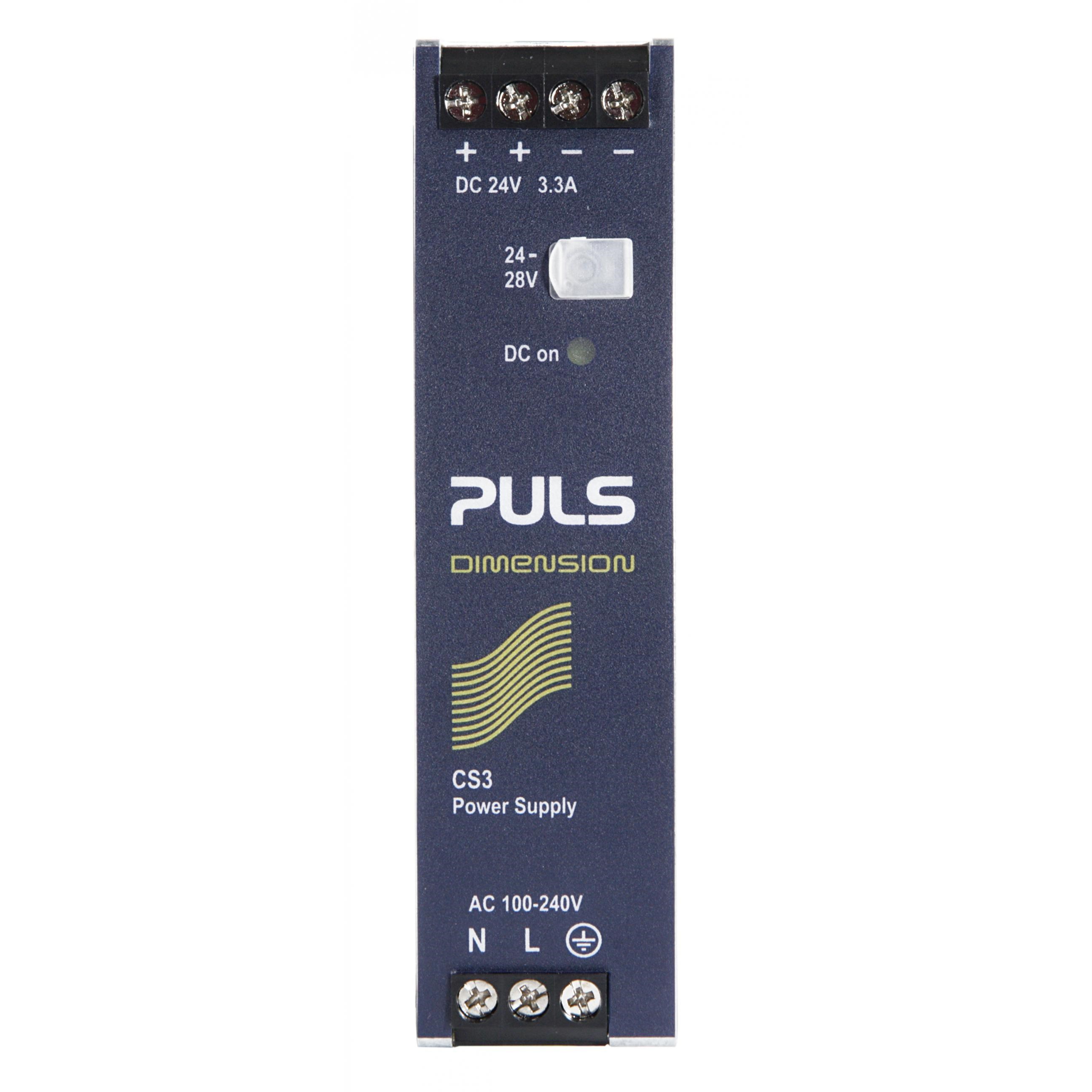

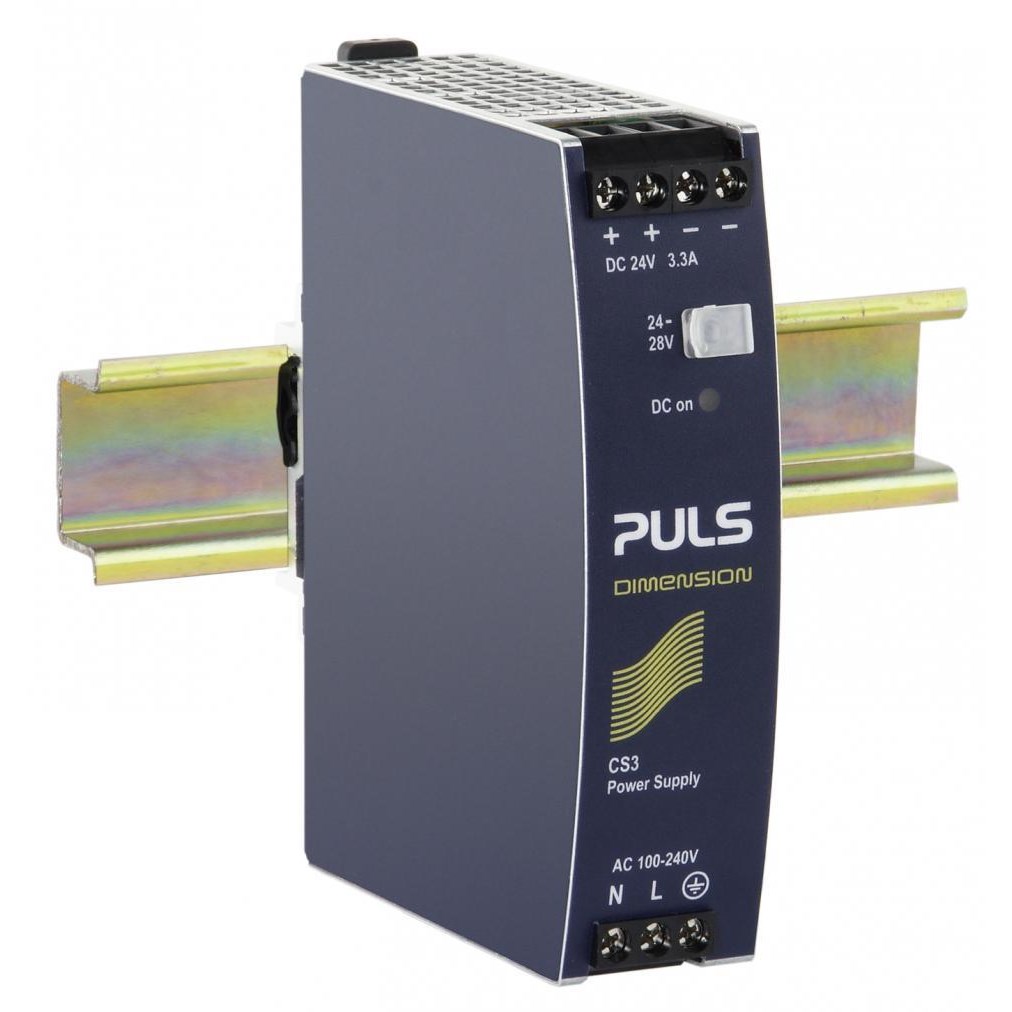

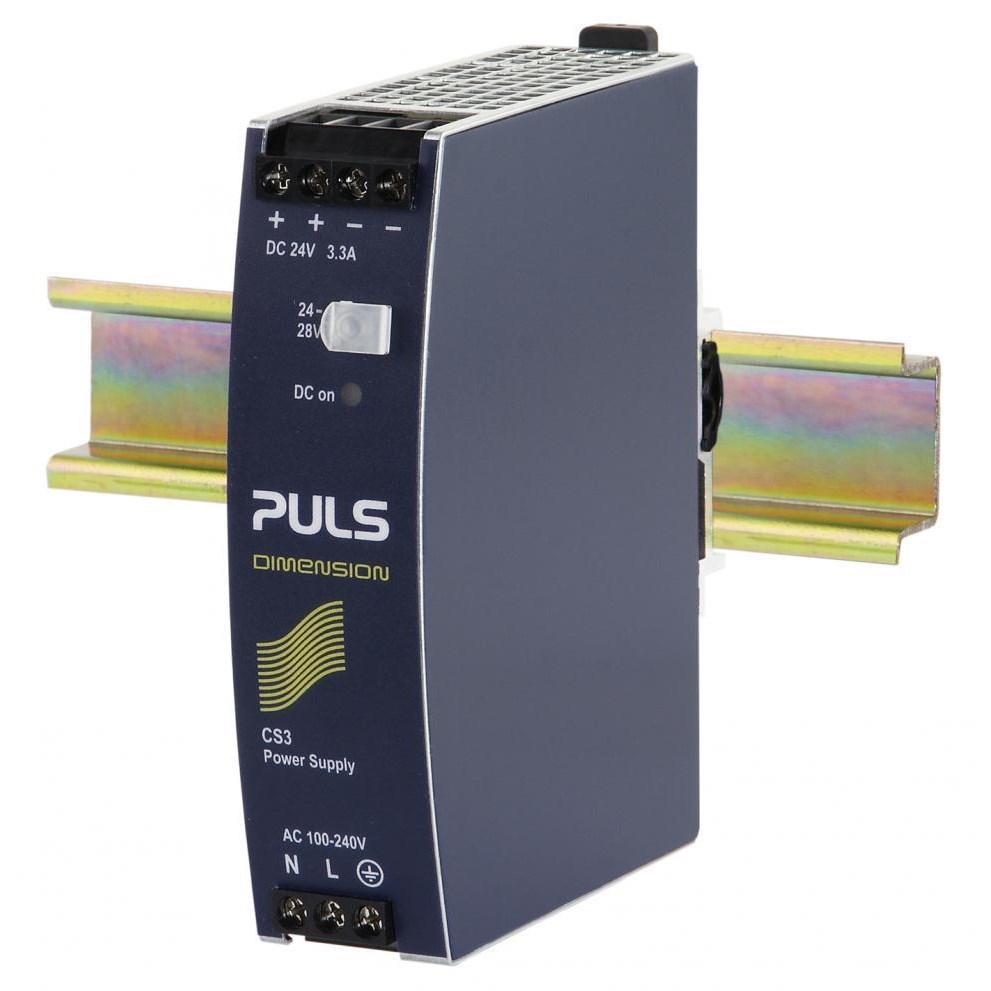

Puls CS3.241 Power Supply 1PH 110-300VDC 24VDC 3.3A 80 Watt 9.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CS3.241

  • Single-phase, 80W power supply
  • Wide voltage range: 110-300 VDC, 24 VDC
  • Efficient operation at 89.8%
  • Compact size: 32x124x102 mm
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
C-Line

Electrical

Input Voltage
100-240V AC / 110-300V DC
Output Current - Nominal
3.3A
Output Current - Range
3.3A to 2.7A
Output Power
80W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
88.0 / 89.8%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.43kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Class 1 Div 2, Marine (DNV), NEC Class 2, VDMA 24364, ISA-71.04 G3, CE, REACH, WEEE, UKCA
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
