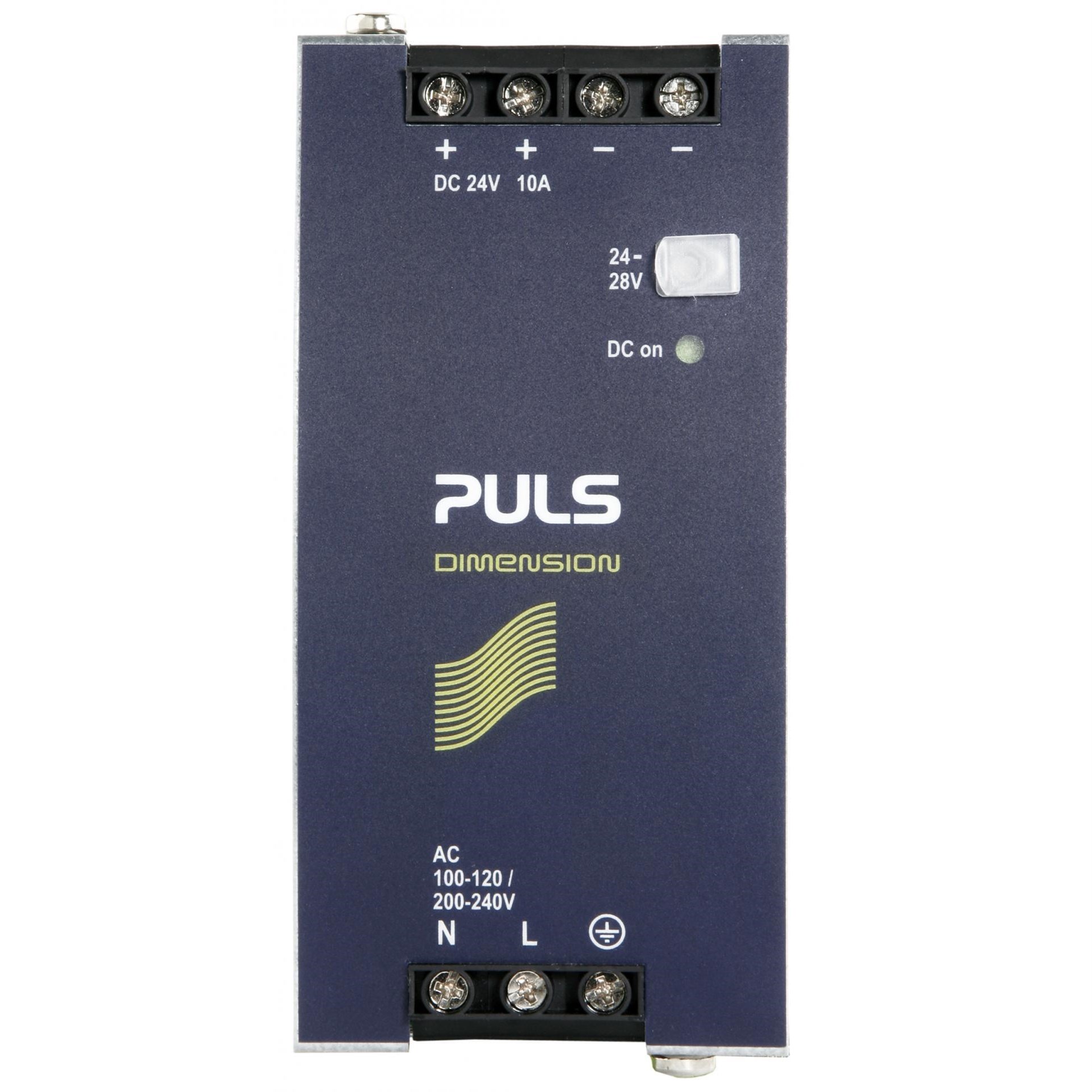

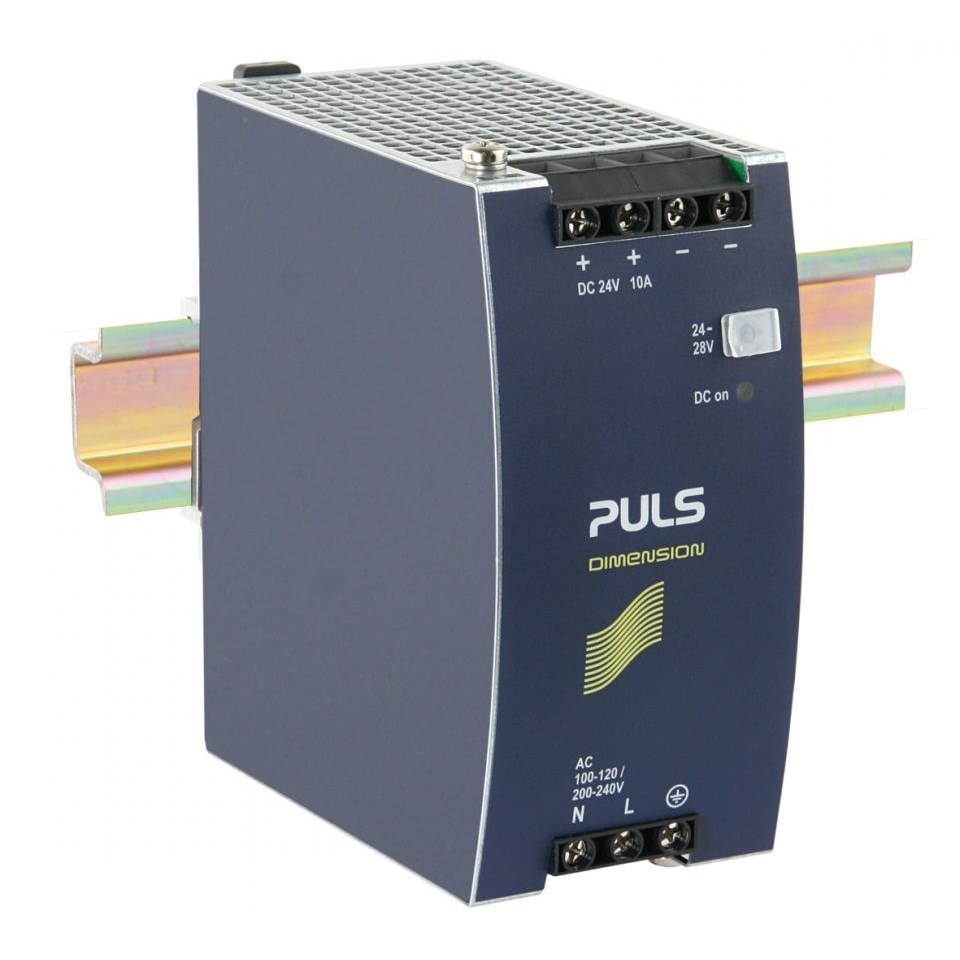

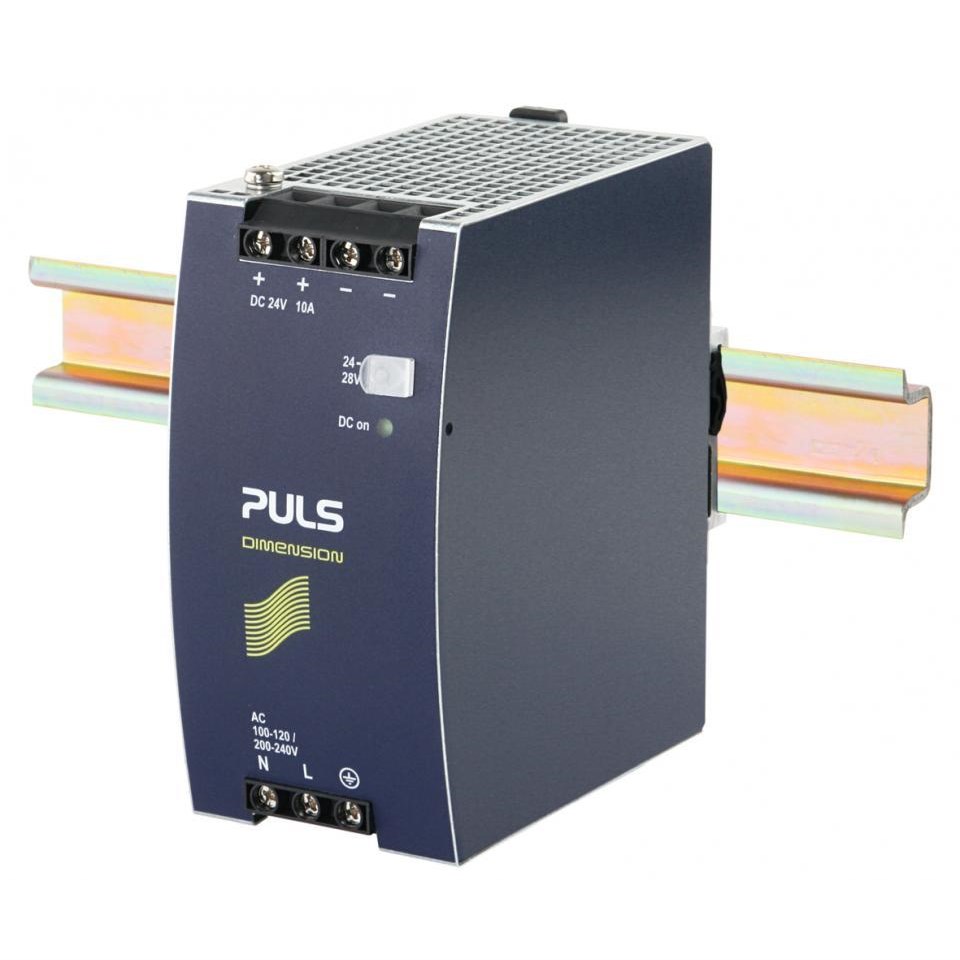

Puls CS10.241 Power Supply 1PH 100-120VAC 200-240VAC 24VDC 10A 240 Watt 22 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CS10.241

  • Single-phase, 10 A rated current
  • Wide input voltage range: 100-240 VAC
  • High efficiency at 91.6%
  • Compact DIN rail mount design
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CS-Series

Electrical

Input Voltage
100 - 120 / 200 - 240 V AC
Output Current - Nominal
10A
Output Current - Range
10A to 8.6A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
91.0 / 91.6%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.7kg
Width
60mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, Class 1 Div 2, Marine (DNV), Marine (ABS), VDMA 24364, ISA-71.04 G3, CE, REACH, WEEE
Operating Temperature
-25°C to 70°C
IP Rating
IP20
