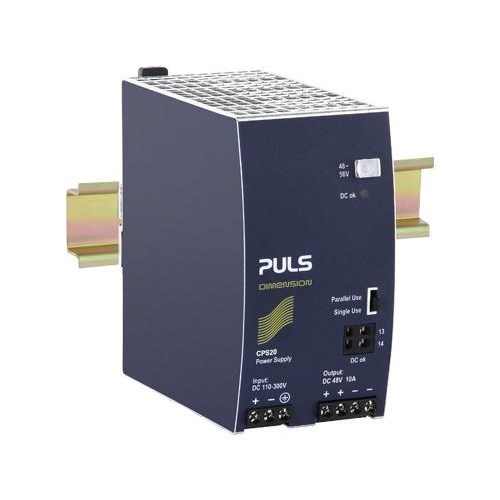

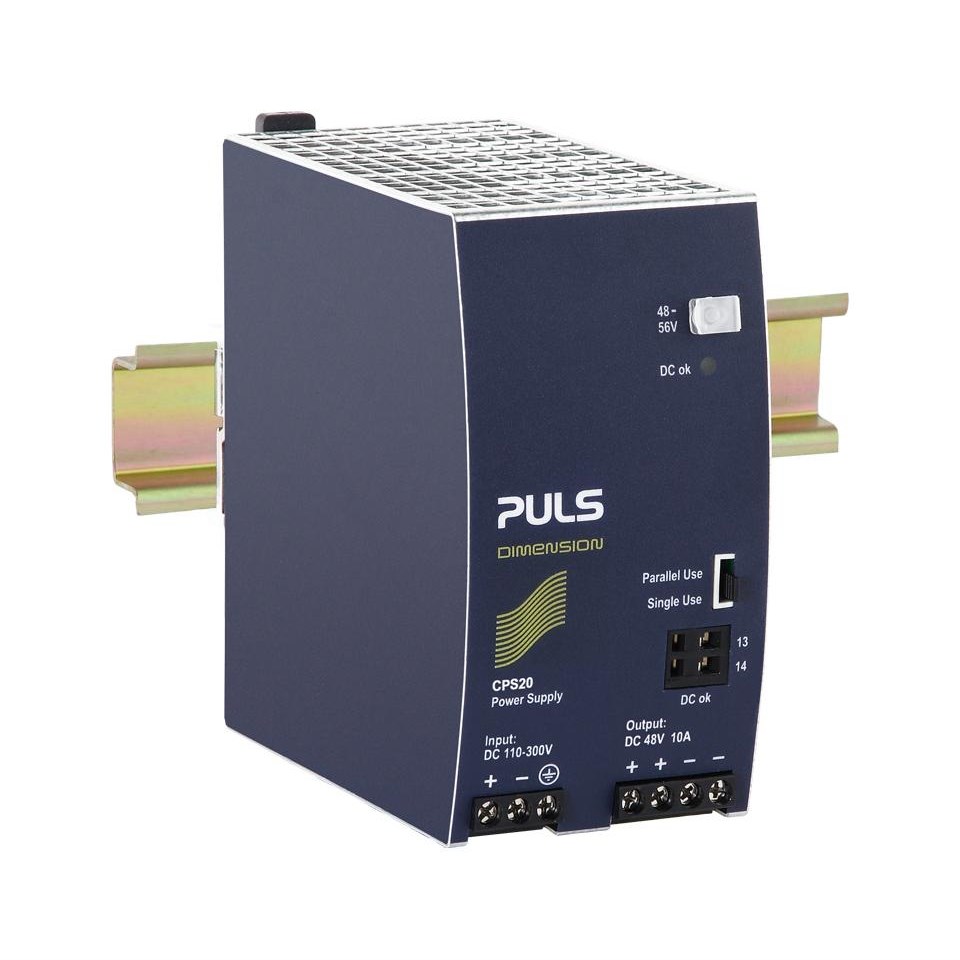

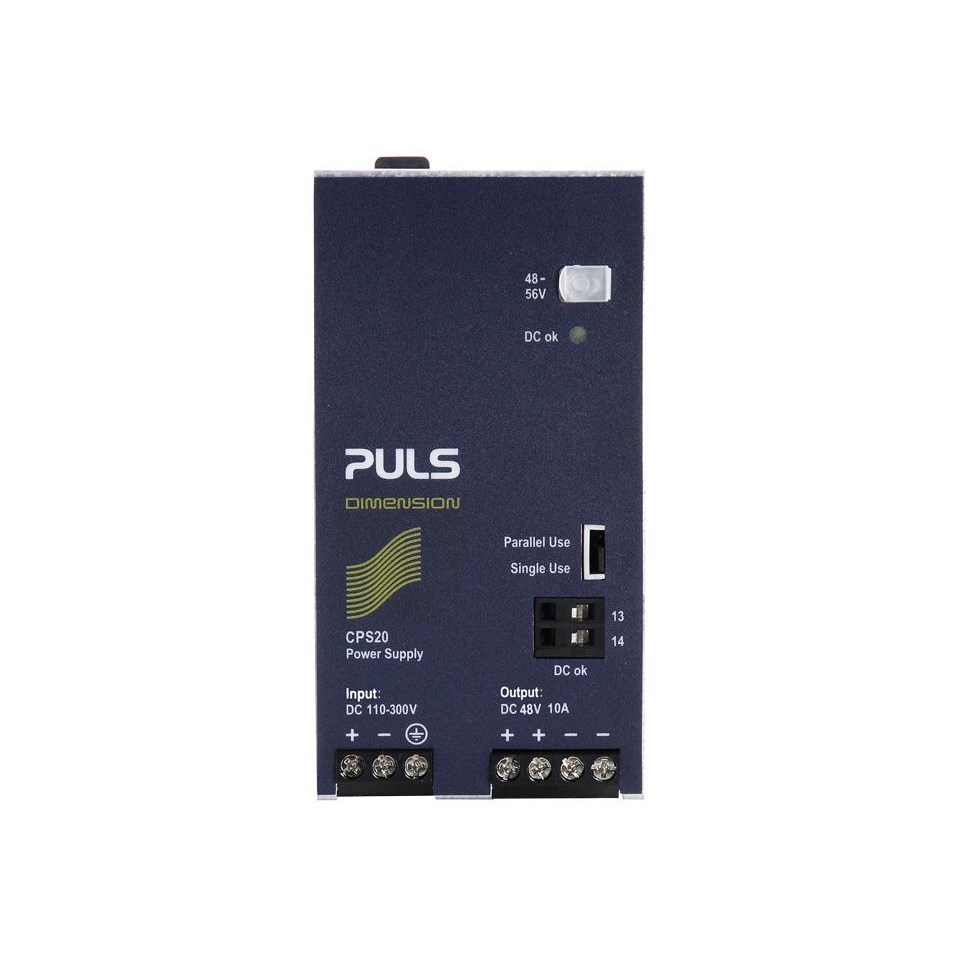

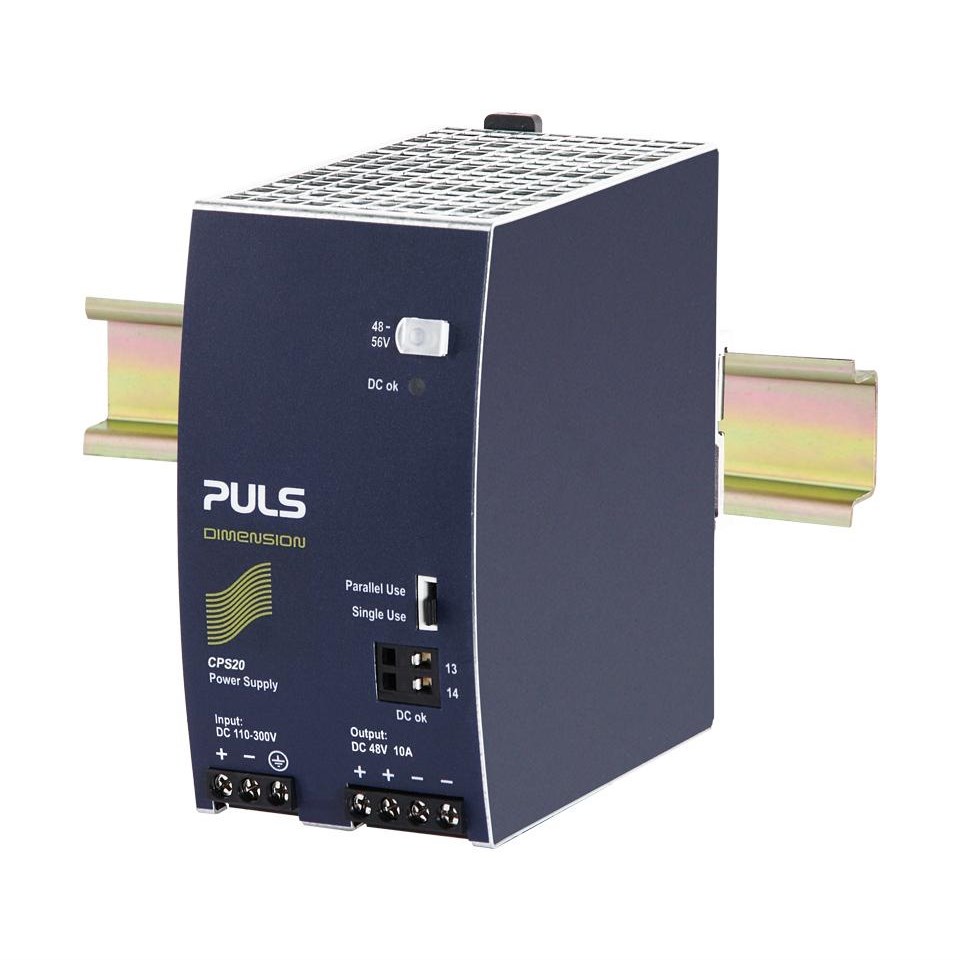

Puls CPS20.481-D1 DC/DC Converter 110-300VDC 10A 480 Watt

Product Code: CPS20.481-D1

  • High efficiency at 94.6%
  • Wide voltage range: 110-300 VDC
  • Compact size: 65x124x127 mm
  • Robust IP20 protection rating
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CPS

Electrical

Input Voltage
110 V - 300 V DC (± 20 %)
Output Current - Range
10A to 8.6A
Output Power
480W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 56V
Efficiency
0.946
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
127mm
Height
65mm
Weight
0.94kg
Width
124mm

Environmental

Approvals / Conformity
EU Declaration of Conformity, Exemption Letter, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, ATEX EN 60079, IECEx IEC 60079, CCC Certificate RoHS, REACH
Operating Temperature
-25°C to 70°C
