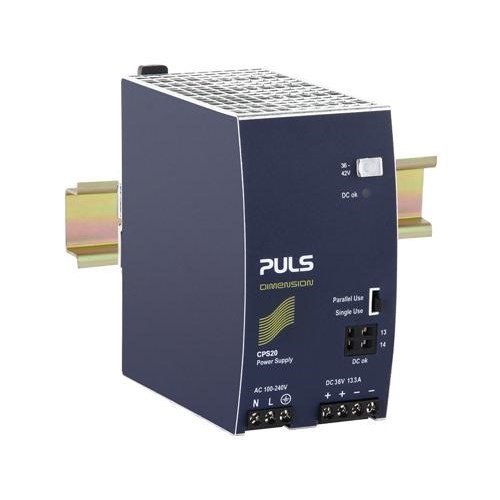

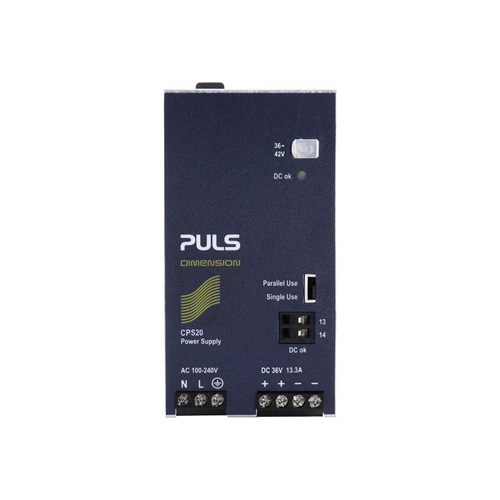

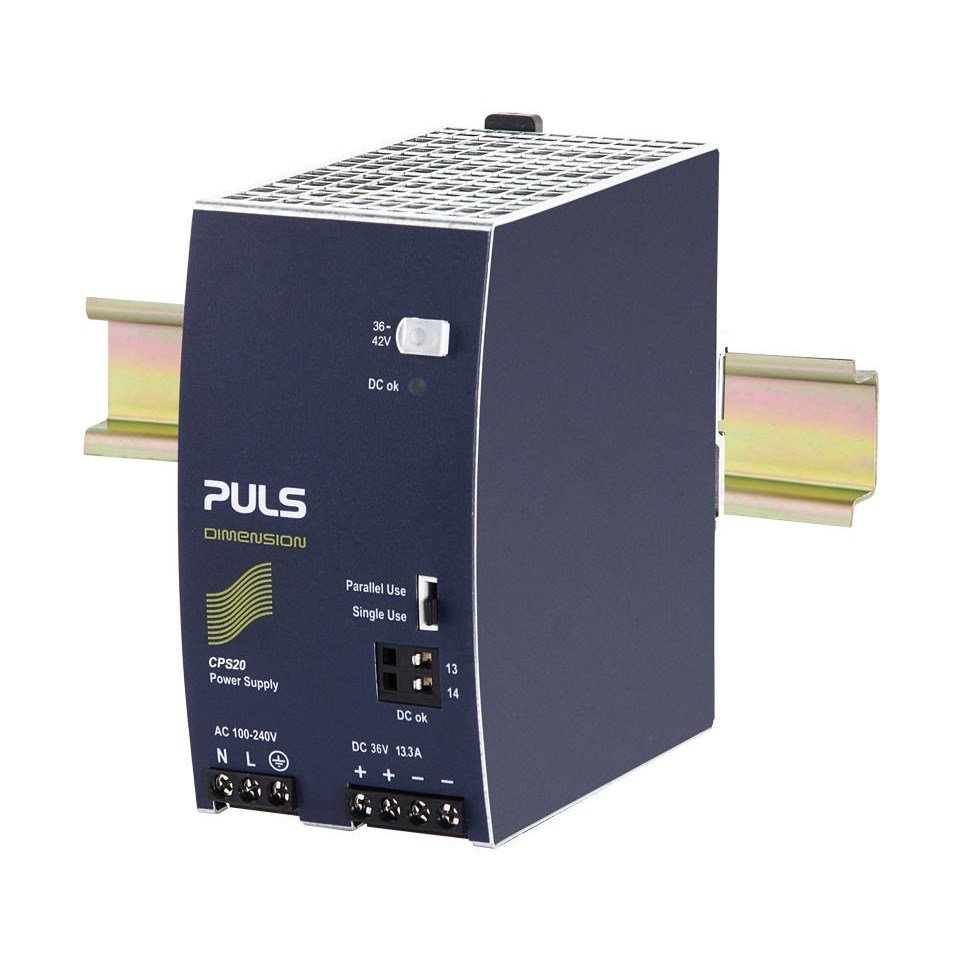

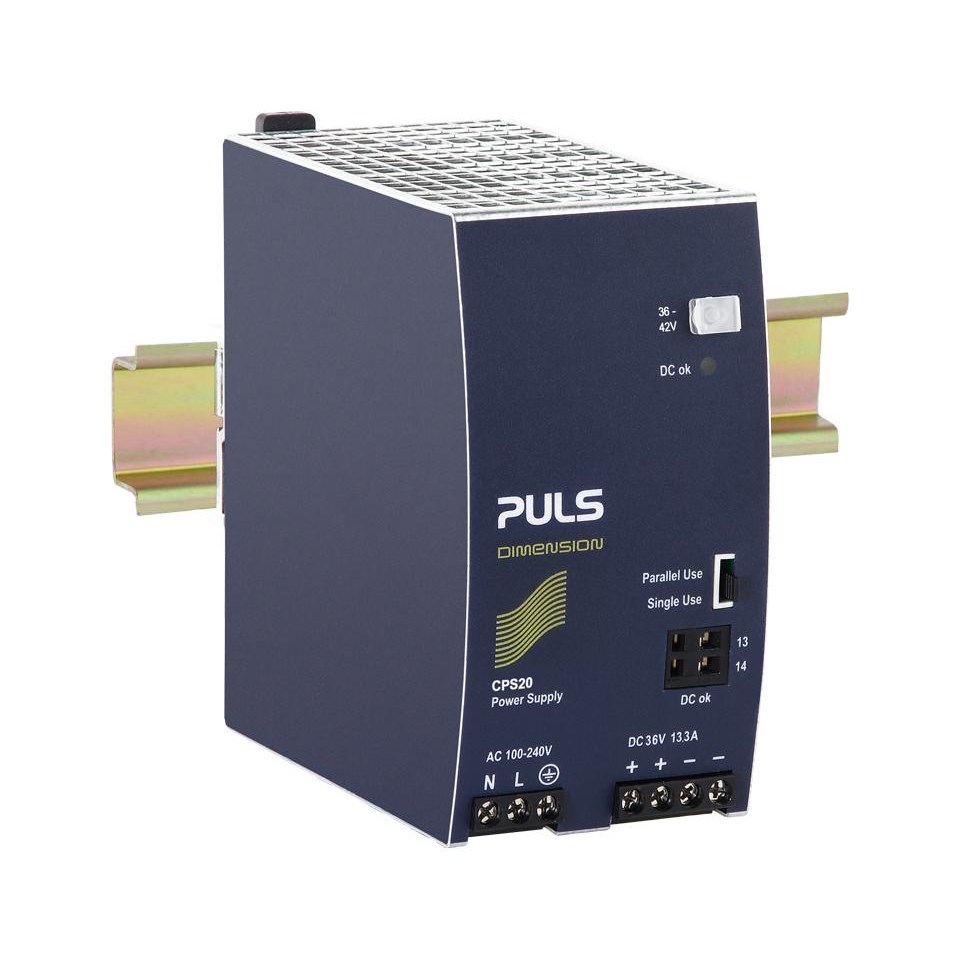

Puls CPS20.361 Power Supply 1PH 100-240VAC 36VDC 13.3A 480 Watt 29 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CPS20.361

  • Single-phase, 480 W power supply
  • Wide-range input: 100-240 VAC, 36 VDC
  • High efficiency at 94.3%
  • DIN Rail mounting with IP20 protection
  • Active harmonic correction and inrush limit
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %)
Output Current - Nominal
11.4A at 42V 13.3A at 36V
Output Current - Range
13.3A to 11.4A
Output Power
480W
Output Voltage - Nominal
36V DC
Output Voltage - Range
36V to 42V
Efficiency
94.3% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1kg
Width
65mm

Environmental

Operating Temperature
-25°C to 70°C
