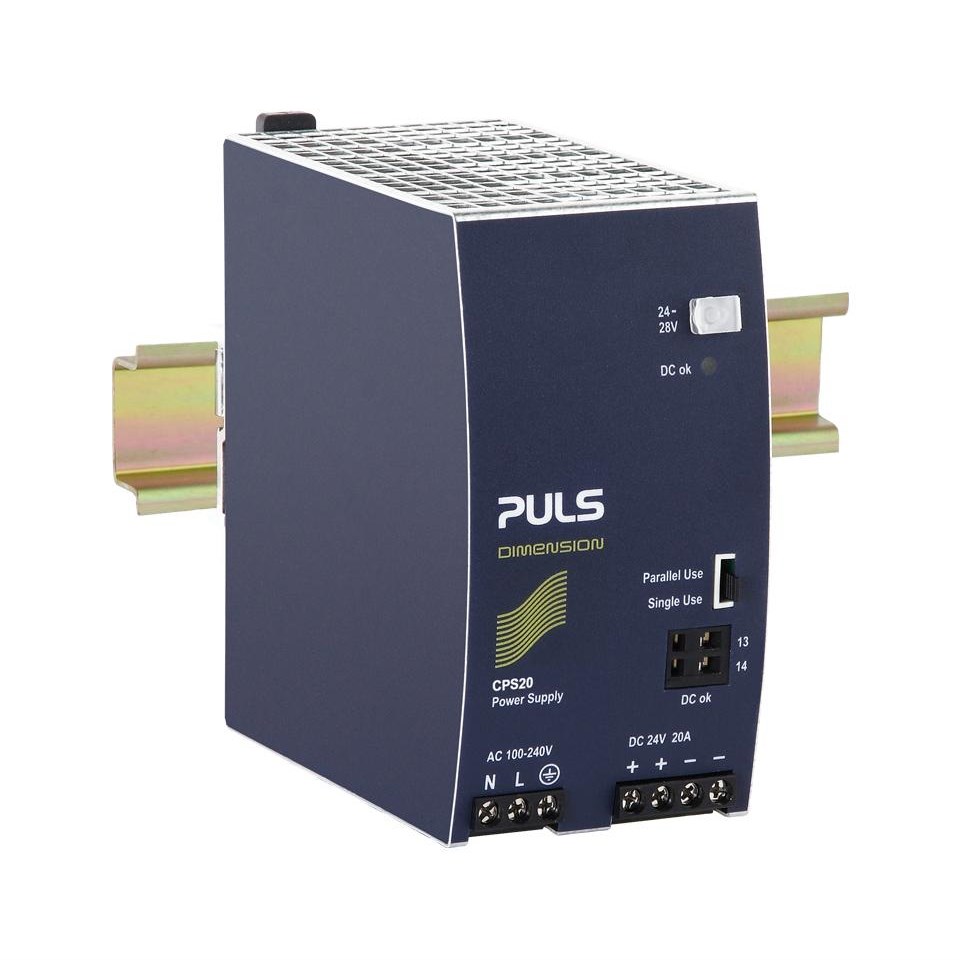

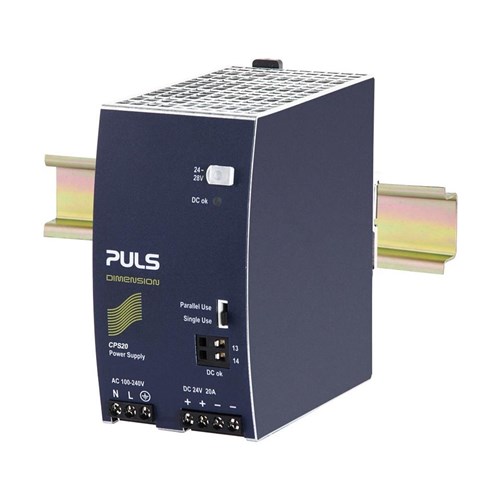

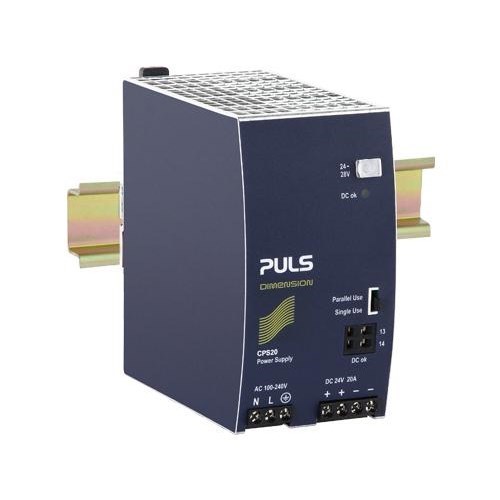

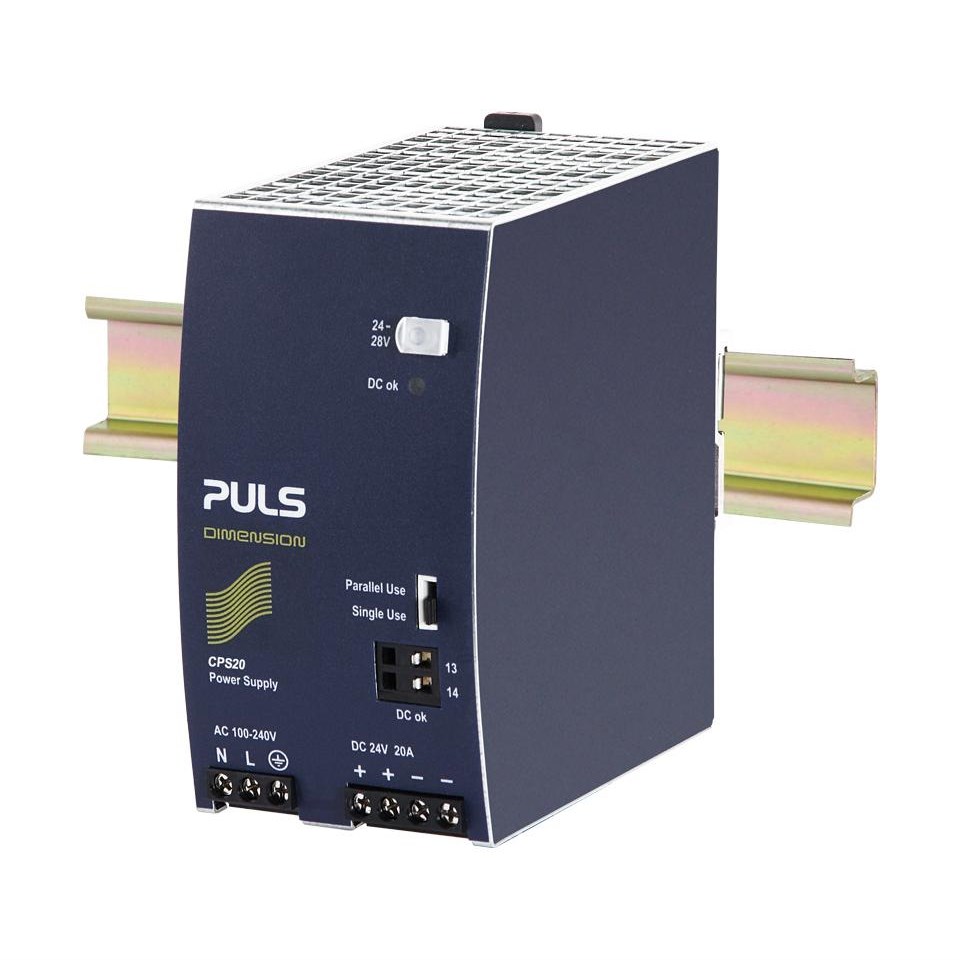

Puls CPS20.241 Power Supply 1PH 100-240VAC 24VDC 20A 480 Watt 30.6 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CPS20.241

  • Single-phase, 20 A rated current
  • Wide-range input: 100-240 VAC, 24 VDC
  • High efficiency of 94%
  • Active harmonic correction
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
C-Series

Electrical

Input Voltage
100-240V AC
Output Current - Nominal
20A
Output Current - Range
20A to 17.1A
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
92.7 / 94.0%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1kg
Width
65mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, ATEX, IECEx, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, IEC 61558-2-16, ISA-71.04 G3, Labs, CE, REACH, WEEE, CCC
Operating Temperature
-25°C to 70°C
IP Rating
IP20
