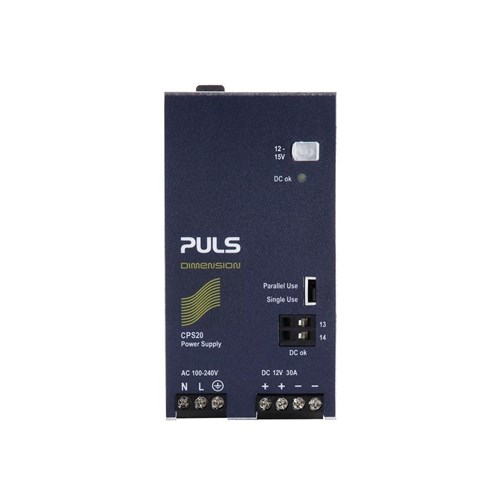

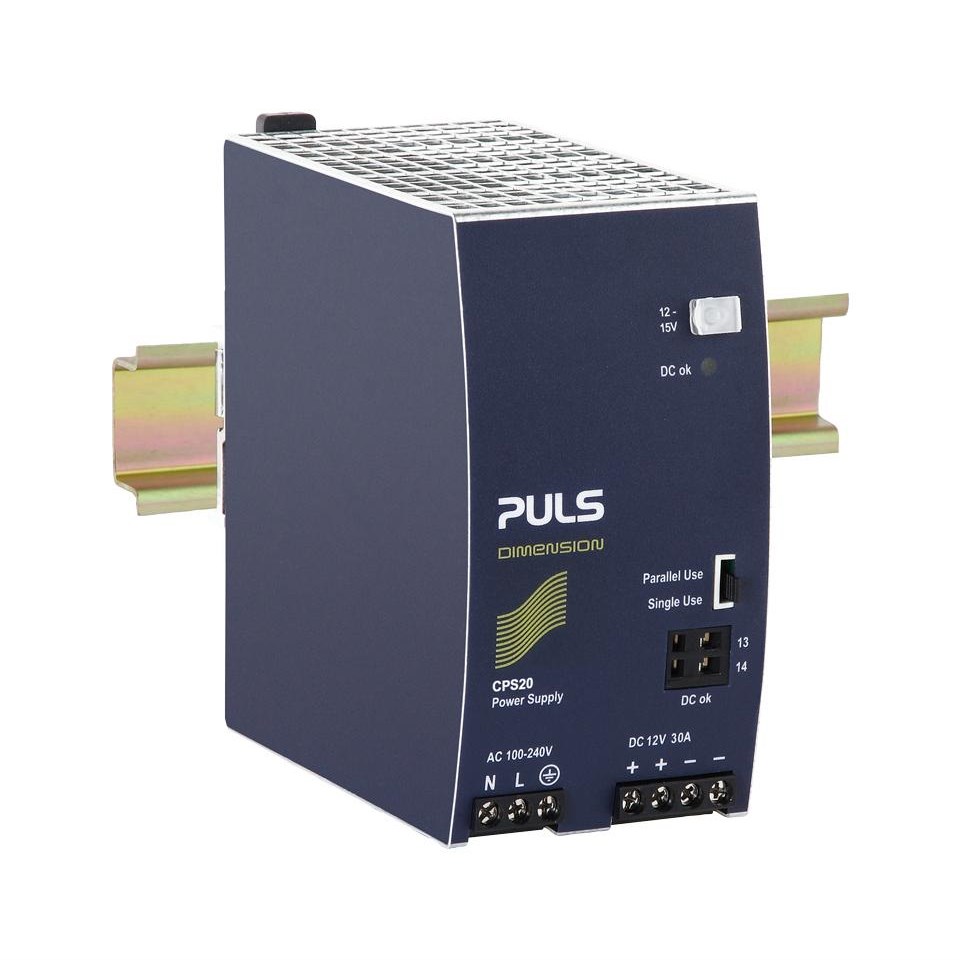

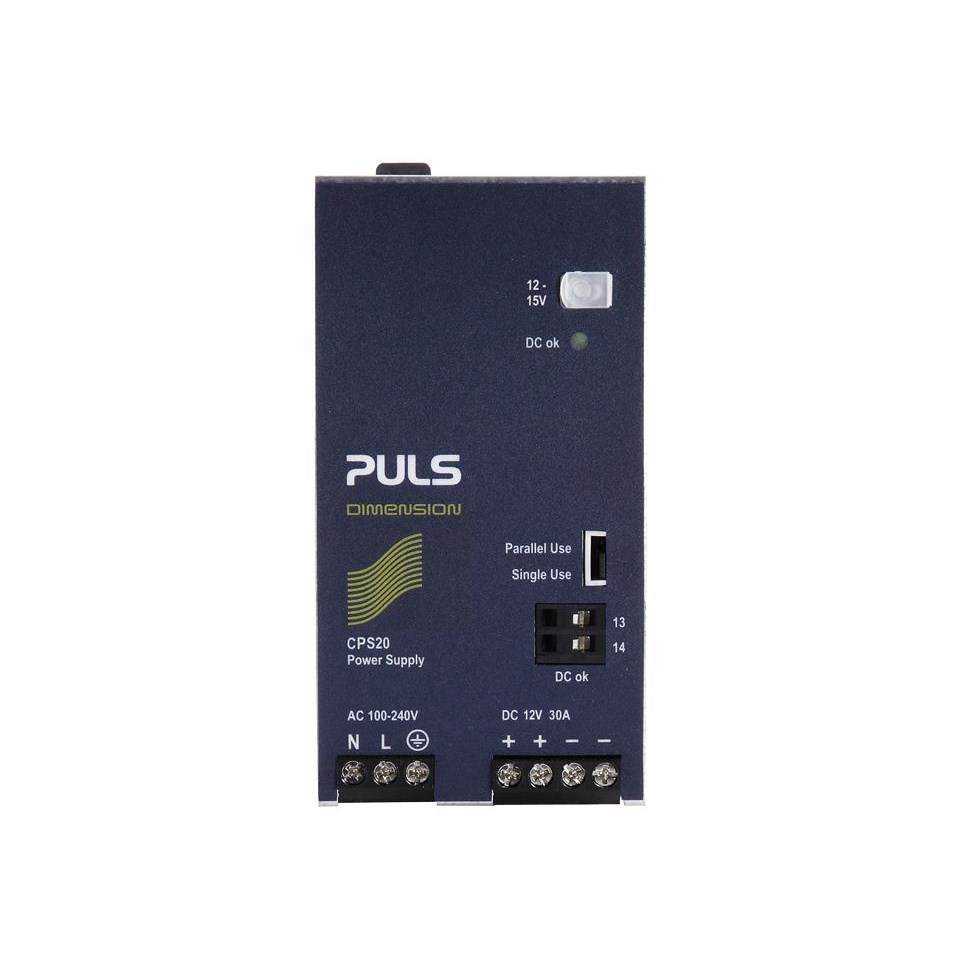

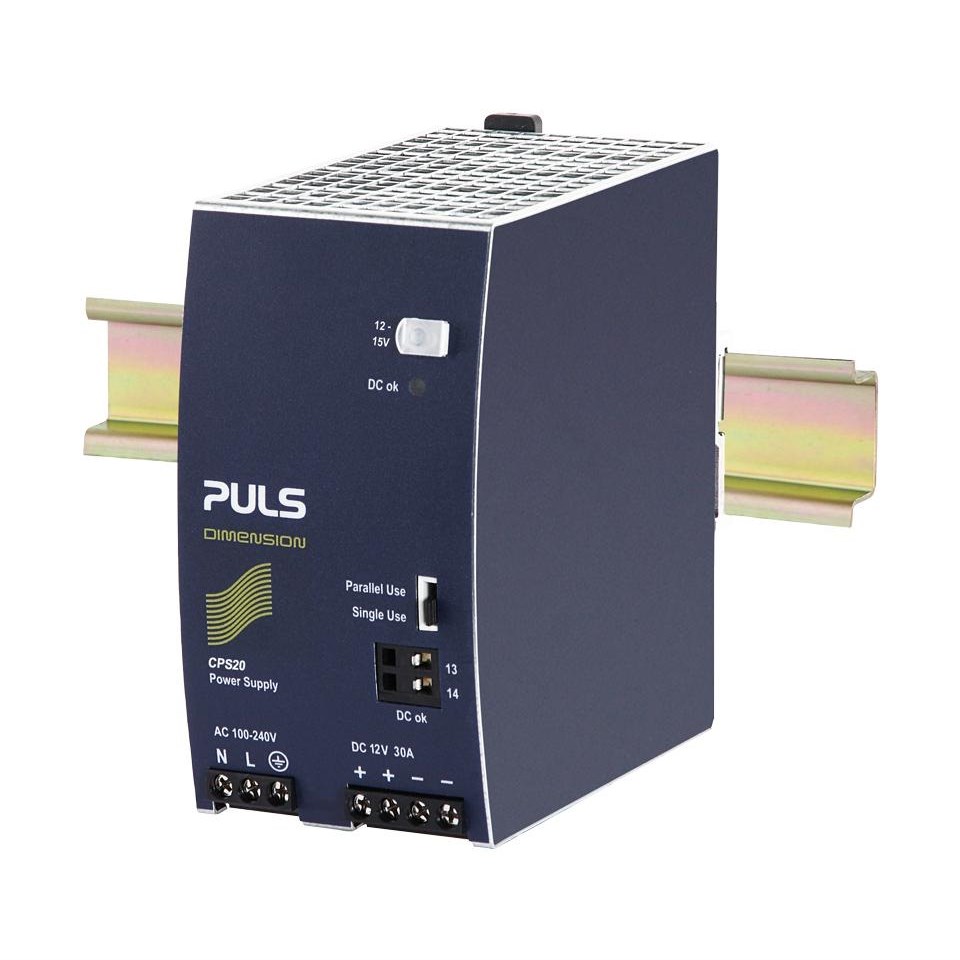

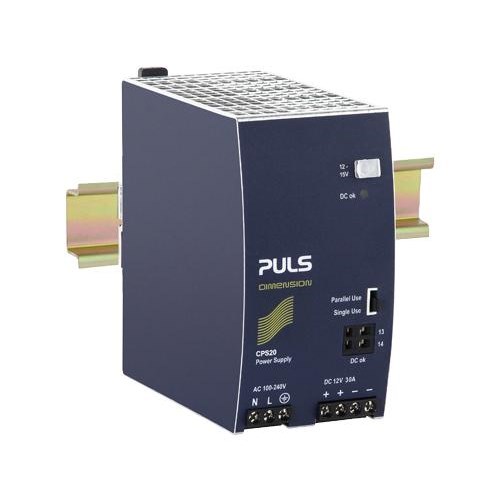

Puls CPS20.121 Power Supply 1PH 100-240VAC 12VDC 30A 405 Watt 28.8 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CPS20.121

  • Single-phase, 30 A rated current
  • Wide input voltage: 100-240 VAC, 12 VDC
  • High efficiency at 92.6%
  • Screw terminal connection, DIN rail mount
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %)
Output Current - Nominal
27A at 15V 30A at 12V
Output Current - Range
30A to 27A
Output Power
405W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
92.6% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
1kg
Width
65mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
