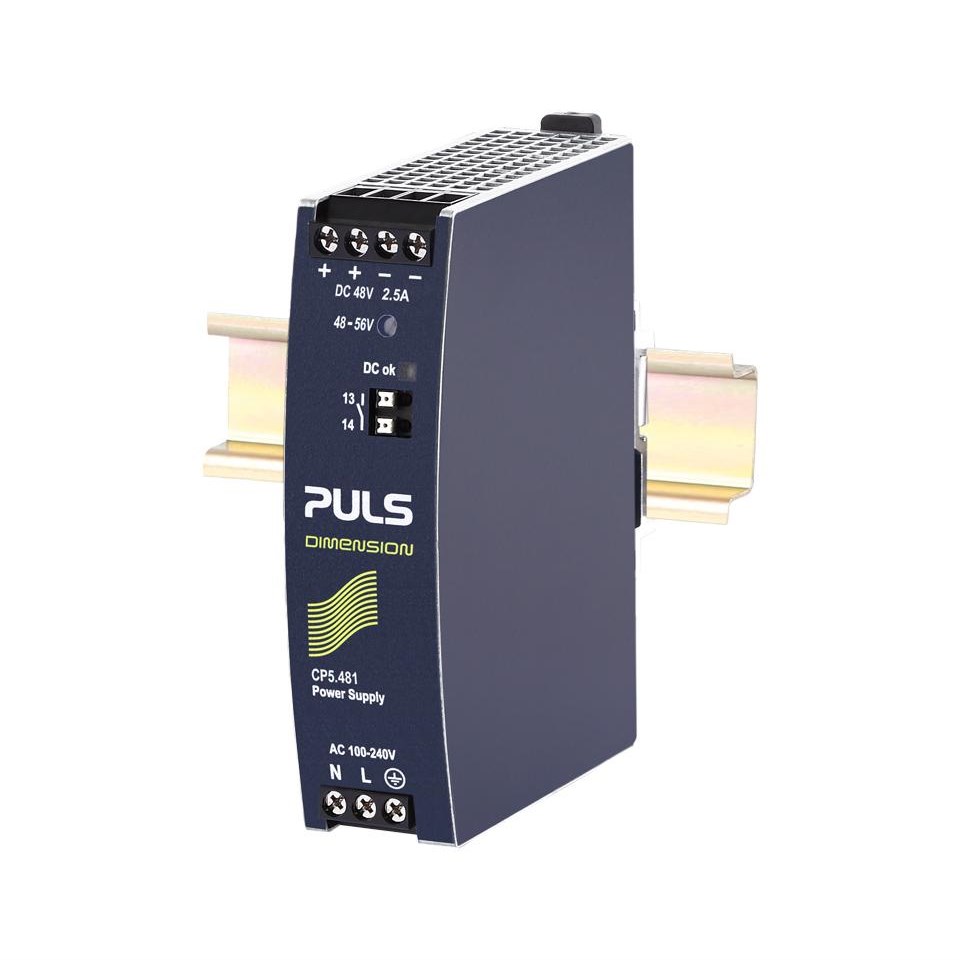

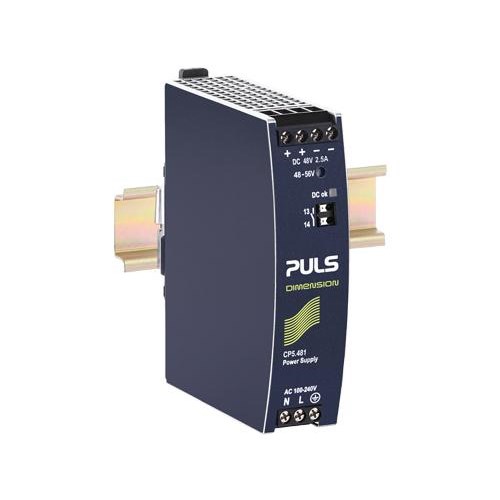

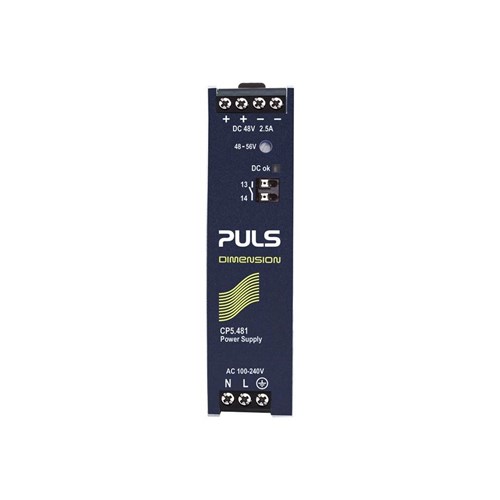

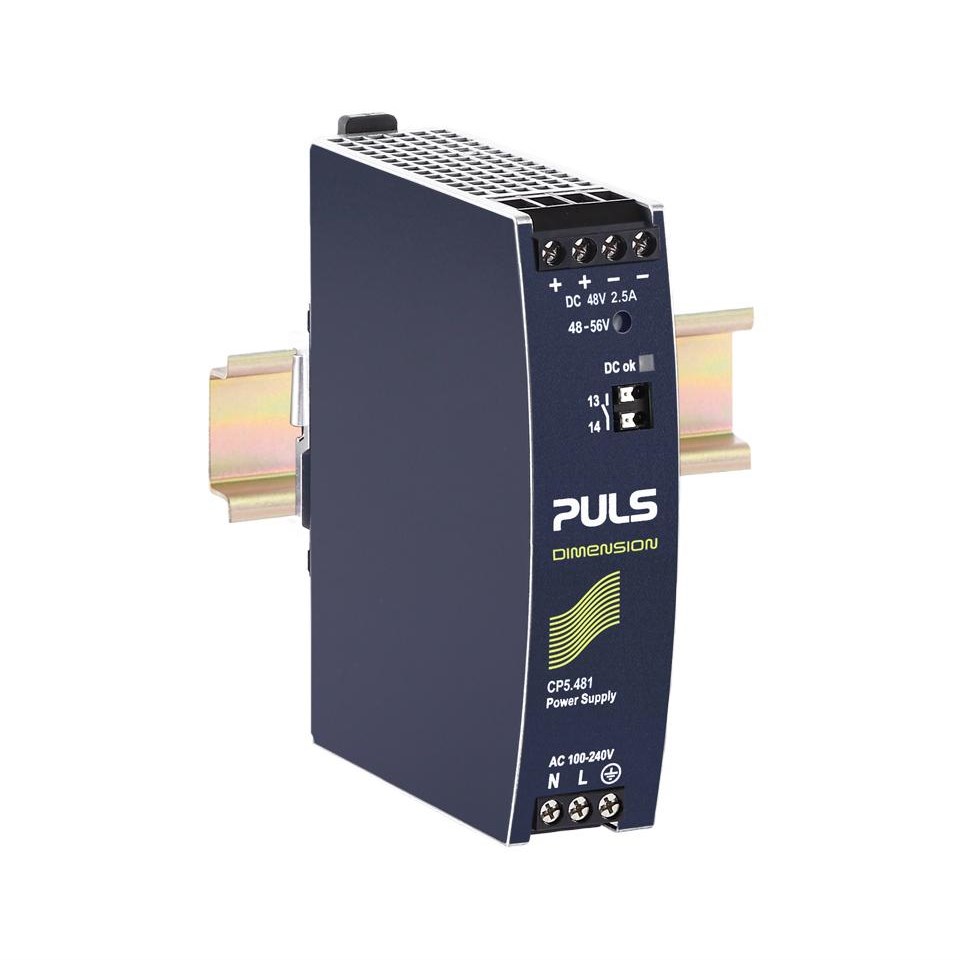

Puls CP5.481 Power Supply 1PH 110-150VDC 48VDC 2.5A 120 Watt 8.4 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP5.481

  • Single-phase power supply, 120W output
  • Wide voltage range: 110-150 VDC, 48 VDC
  • High efficiency at 93.5%
  • Compact size: 32mm W x 124mm H x 102mm D
  • DIN rail mounting with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 150 V DC (± 20 %)
Output Current - Nominal
2.1A at 56V 2.5A at 48V
Output Current - Range
2.5A to 2.1A
Output Power
120W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 56V
Efficiency
93.5% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
