Products

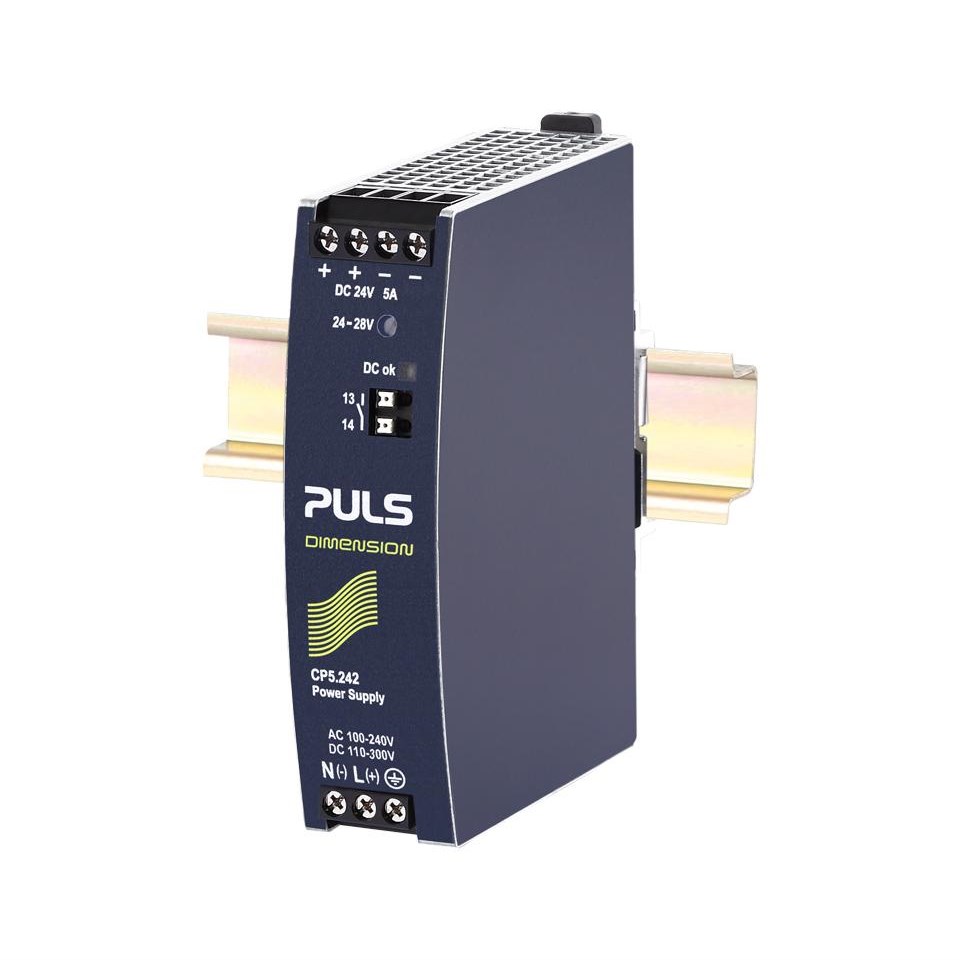

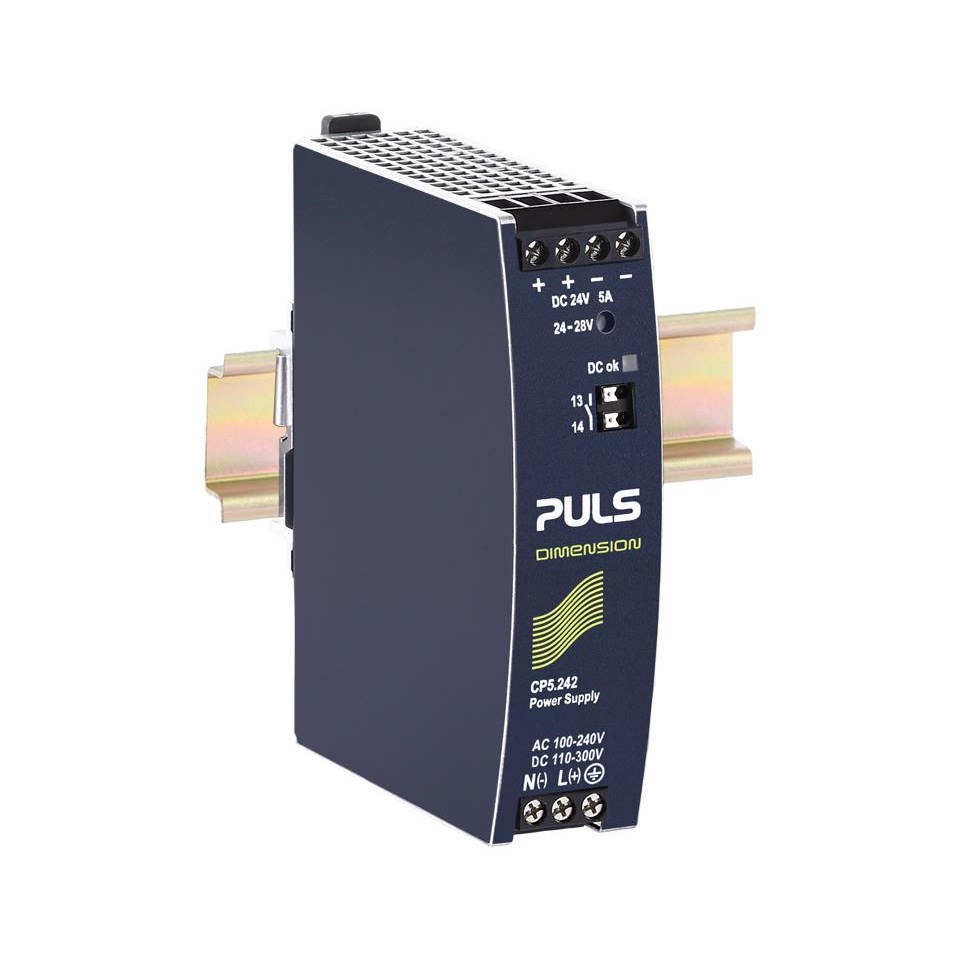

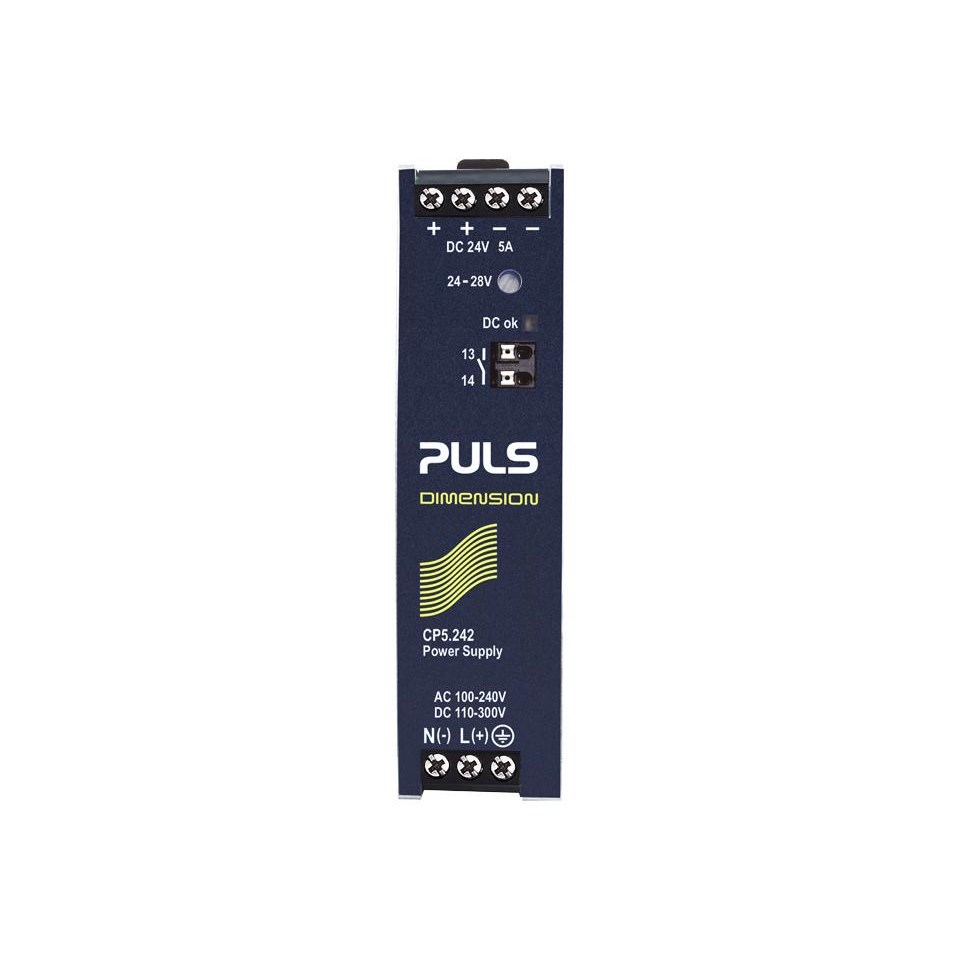

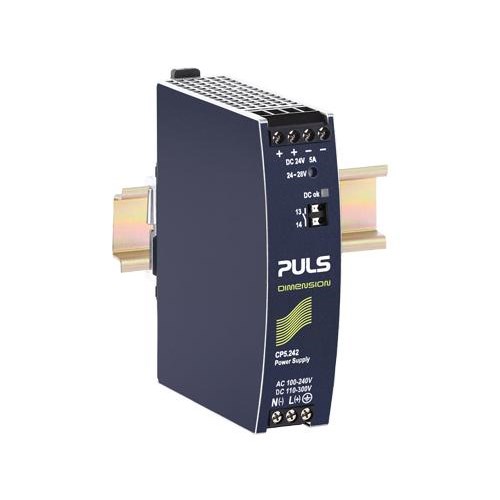

Puls CP5.242 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt 7.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP5.242

  • Compact design: 32mm wide, DIN rail mount
  • High efficiency at 94.3%
  • Wide input voltage range: 110-300 VDC
  • Active harmonic correction included
  • IP20 protection with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 300 V DC (± 20 %)
Output Current - Nominal
4.3A at 28V 5A at 24V
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
94.3% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Operating Temperature
-25°C to 70°C
