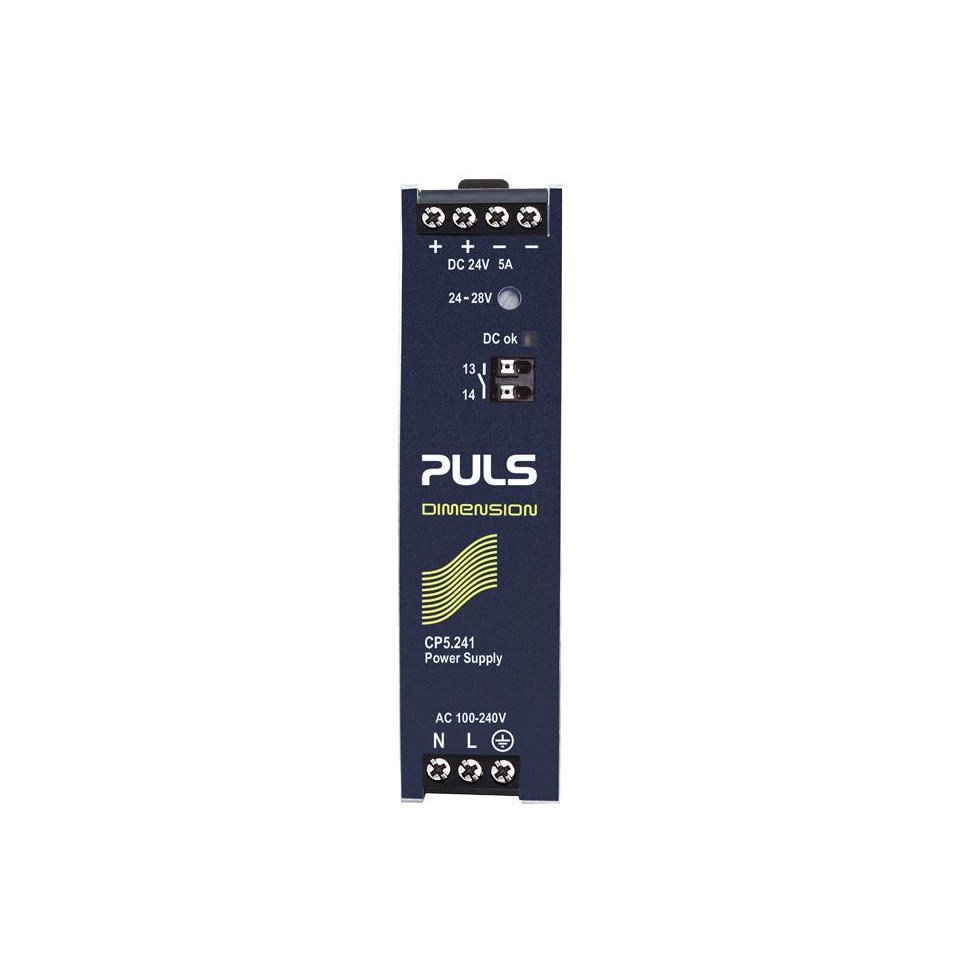

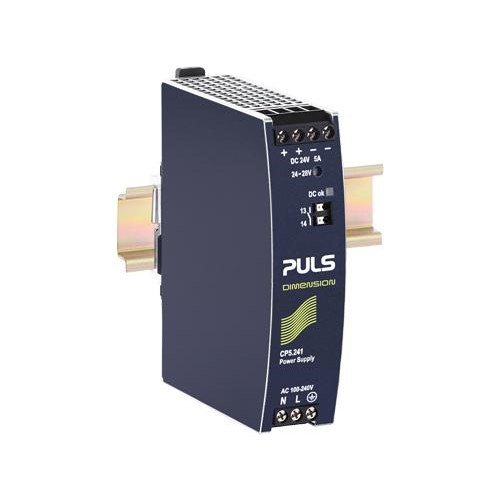

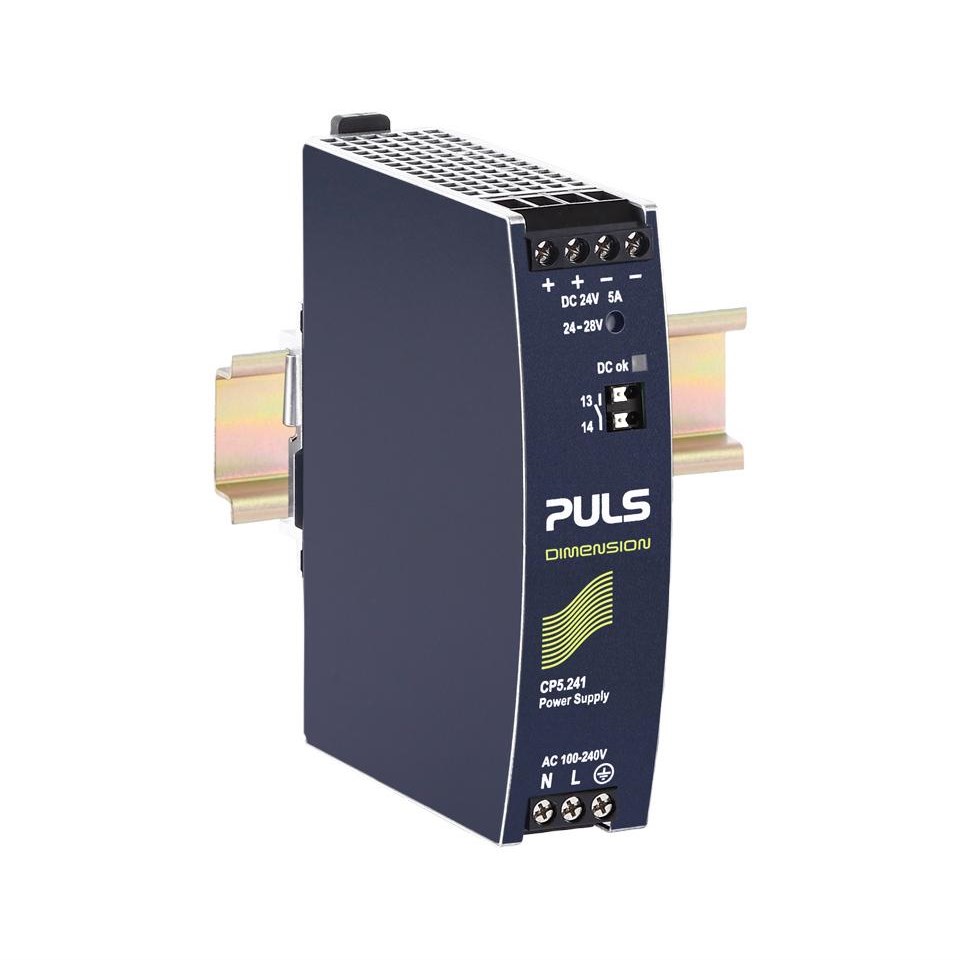

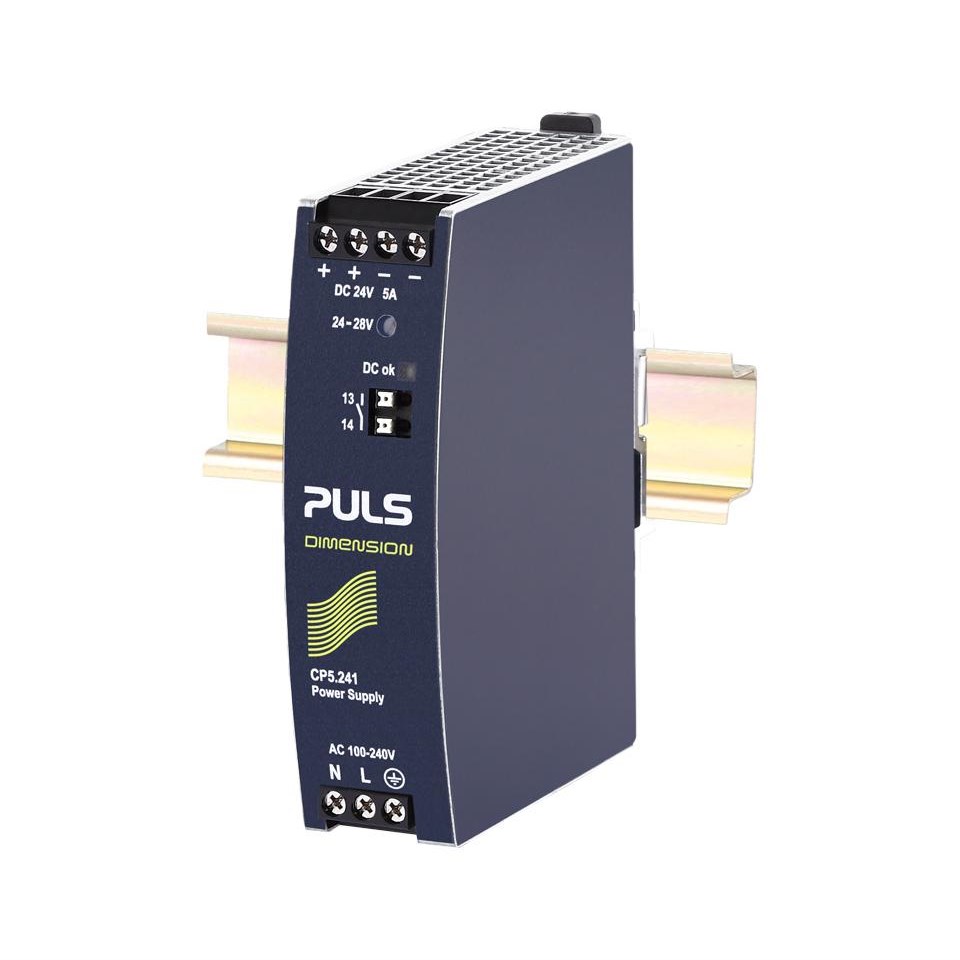

Puls CP5.241 Power Supply 1PH 110-150VDC 24VDC 5A 120 Watt 7.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP5.241

  • Single-phase, 5 A rated current
  • Compact size: 32x124x102 mm
  • High efficiency at 94.3%
  • Wide-range input with active harmonic correction
  • Suitable for DIN Rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150V DC
Output Current - Nominal
5A
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
93.6 / 94.3%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Approvals / Conformity
IEC 61010-2-201, UL 61010-2-201, IEC 62368, Class I Div 2, ATEX, IECEx, IEC 61558-2-16, VDMA 24364, SEMI F47, CE, REACH, WEEE, KC, CCC
Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
