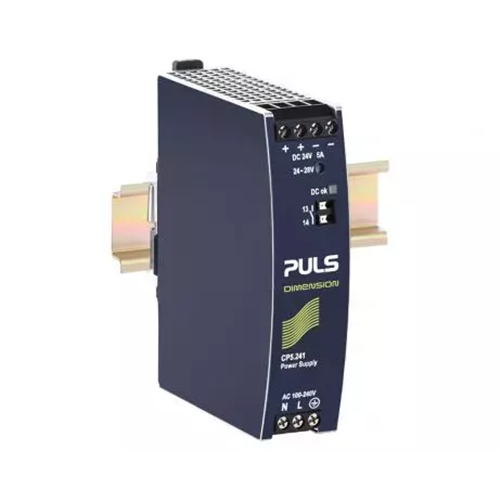

Puls CP5.241-IEC Power Supply 100-240VAC 24-28VDC 4A 120 Watt 7.3 Watt DIN Rail Mount Screw Terminal

Product Code: CP5.241-IEC

  • Compact size: 32mm width, ideal for tight spaces.
  • High efficiency at 94.3%, reducing energy waste.
  • Wide voltage range: 100-240VAC, 24-28VDC.
  • Active inrush current limitation for safety.
  • DIN rail mounting for easy installation.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 150 V DC (± 20 %)
Output Current - Nominal
4.3A at 28V 5A at 24V
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.943
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Operating Temperature
-25°C to 70°C
