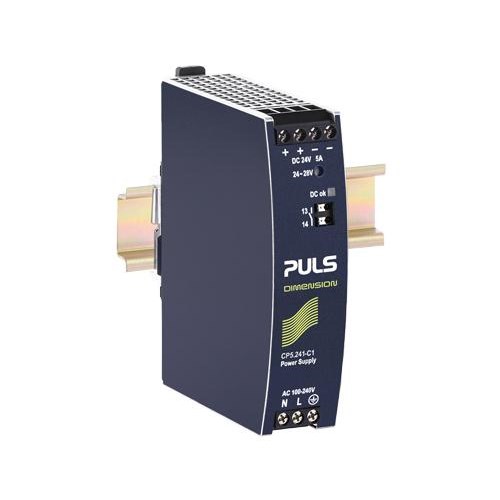

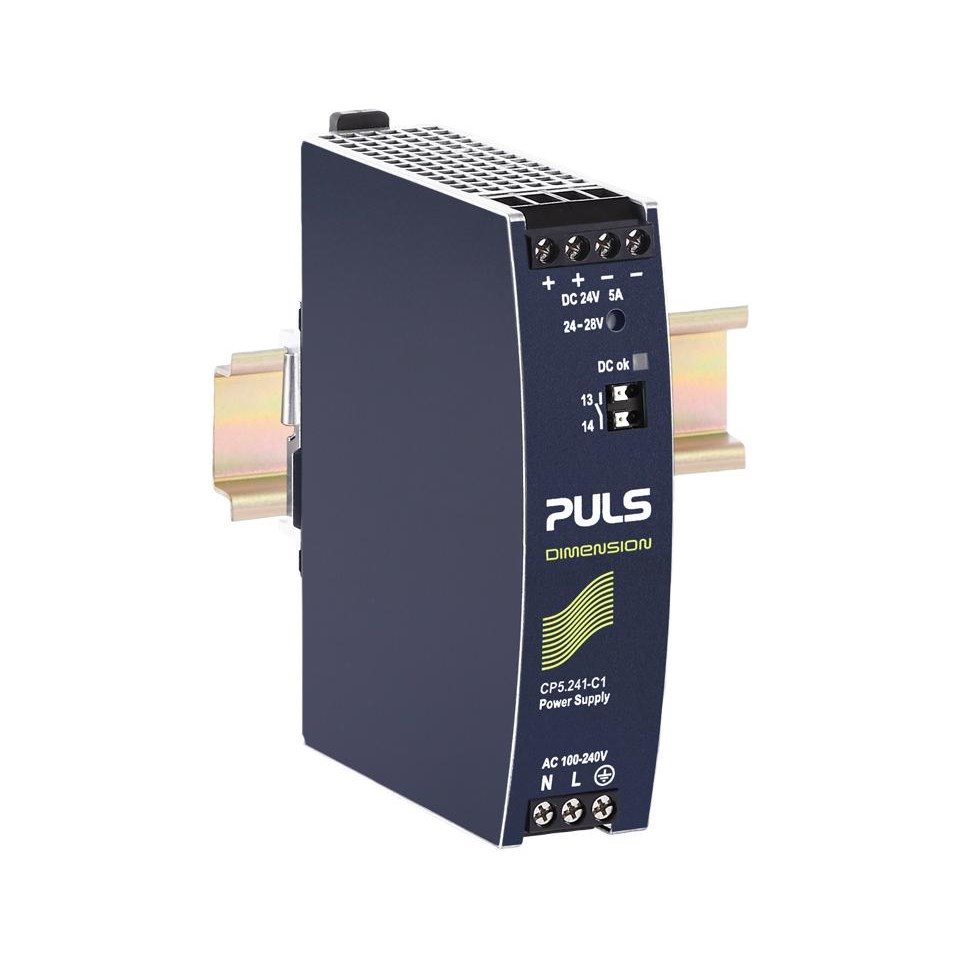

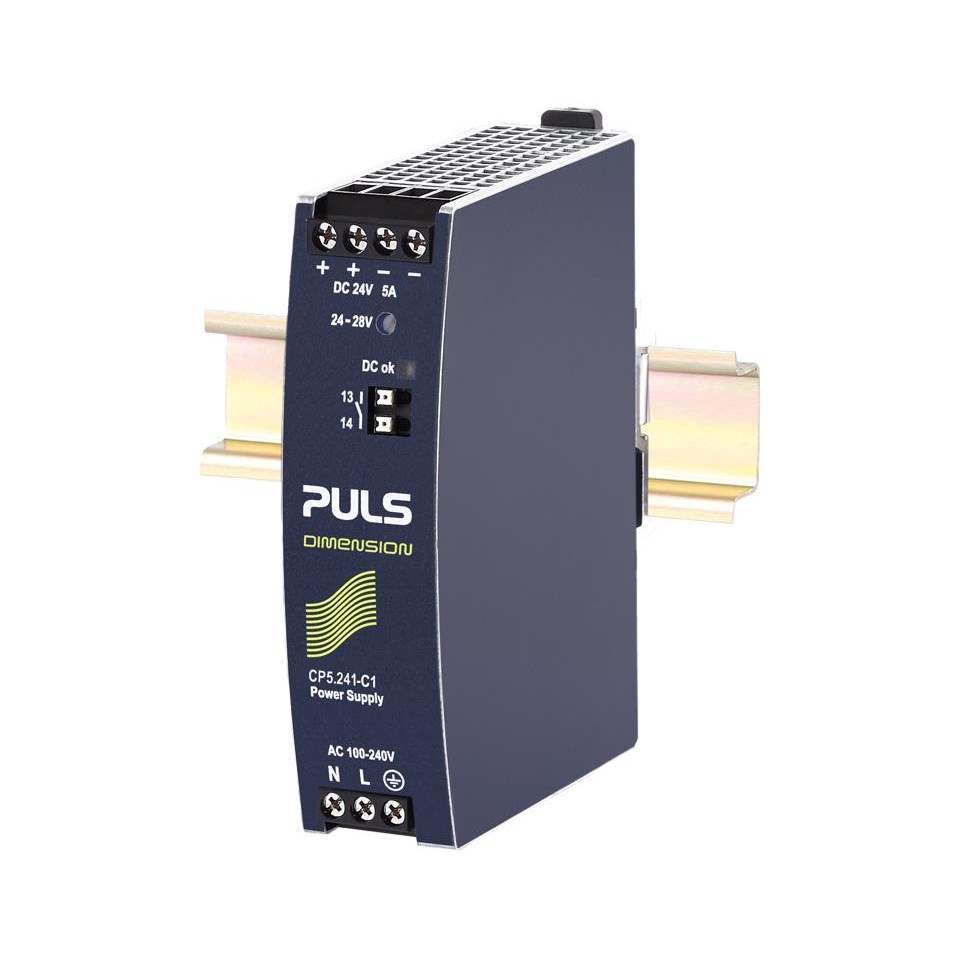

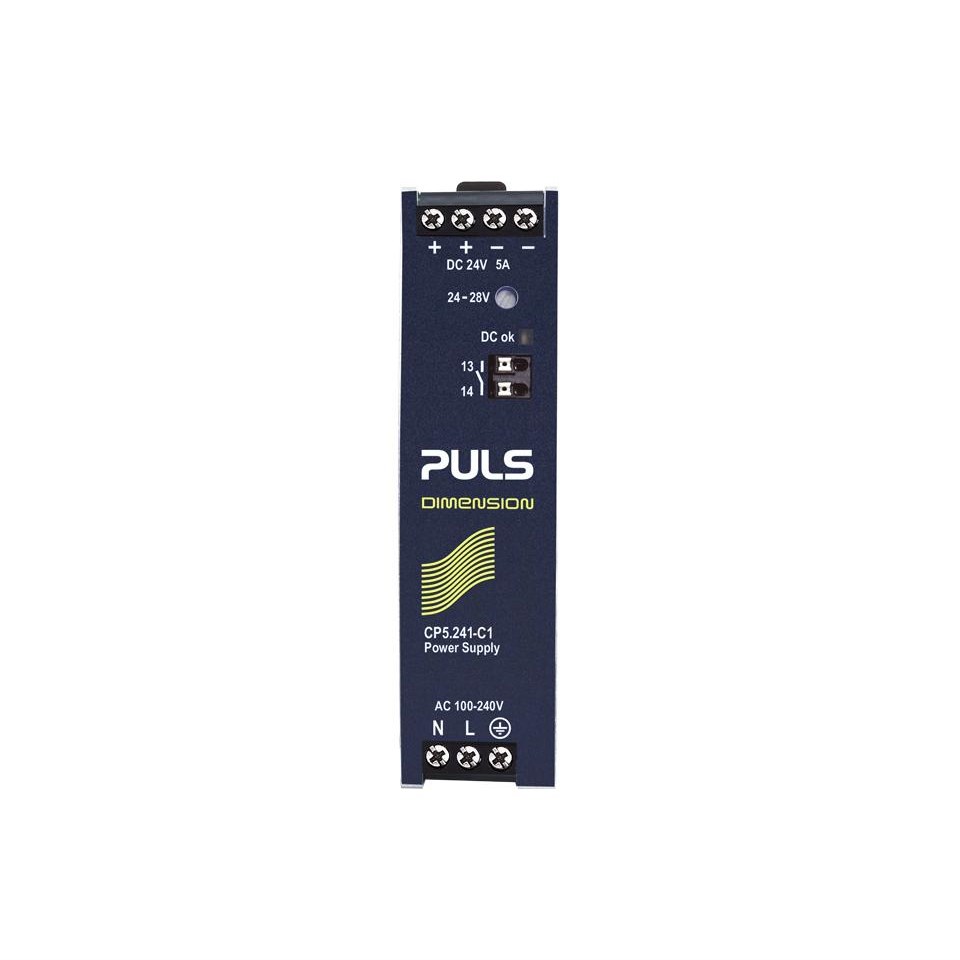

Puls CP5.241-C1 Power Supply 1PH 110-150VDC 24VDC 5A 120 Watt 7.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP5.241-C1

  • Single-phase, 5 A rated current
  • Wide-range input type for flexibility
  • High efficiency at 94.3%
  • Active inrush current limitation
  • Screw terminal connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
DIN rail power supplies
Brand
PULS
Series
CP-Series

Electrical

Input Voltage AC
100-240V
Input Voltage DC
110-150V
Output Current - Nominal
5A
Output Current - Range
5.0 – 4.3A
Output Power
120 W
Output Voltage - Nominal
24V
Output Voltage - Range
24-28 Vdc
Efficiency
93.6 / 94.3%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style
DIN rail

Dimensions

Depth
102mm
Height
124mm
Weight
440g
Width
32mm

Environmental

Approvals / Conformity
IEC 61010-2-201,UL 61010-2-201,IEC 62368,Class I Div 2,ATEX,IECEx,IEC 61558-2-16,VDMA 24364,SEMI F47,CE,REACH,WEEE,KC,CCC
Operating Temperature
-25 °C to 70 °C

Documents

IPD Product Catalogue V17
