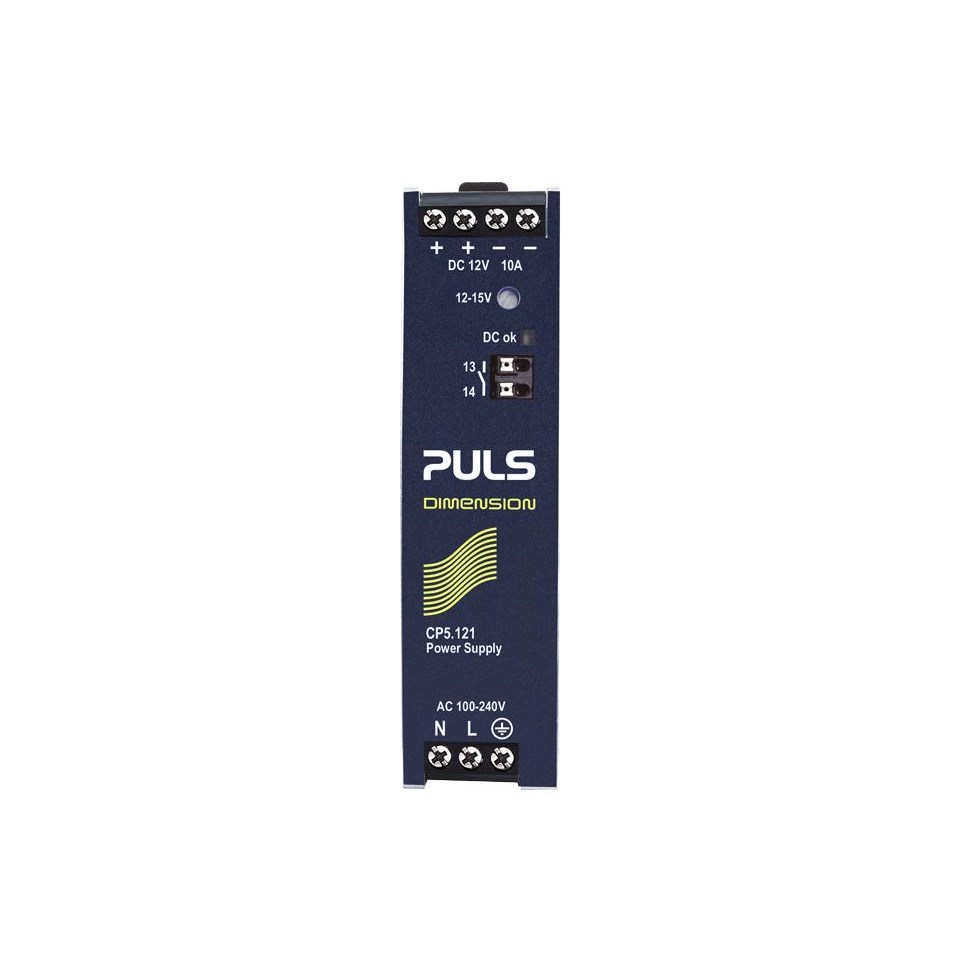

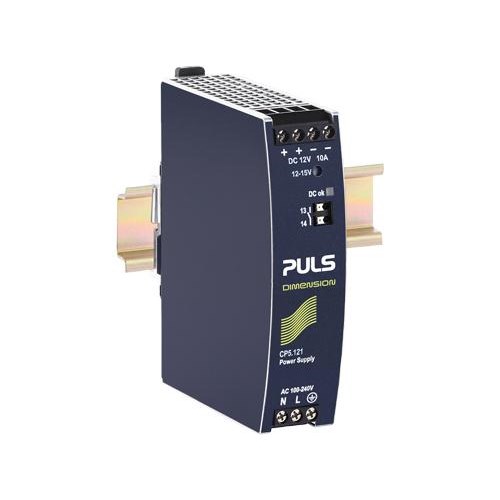

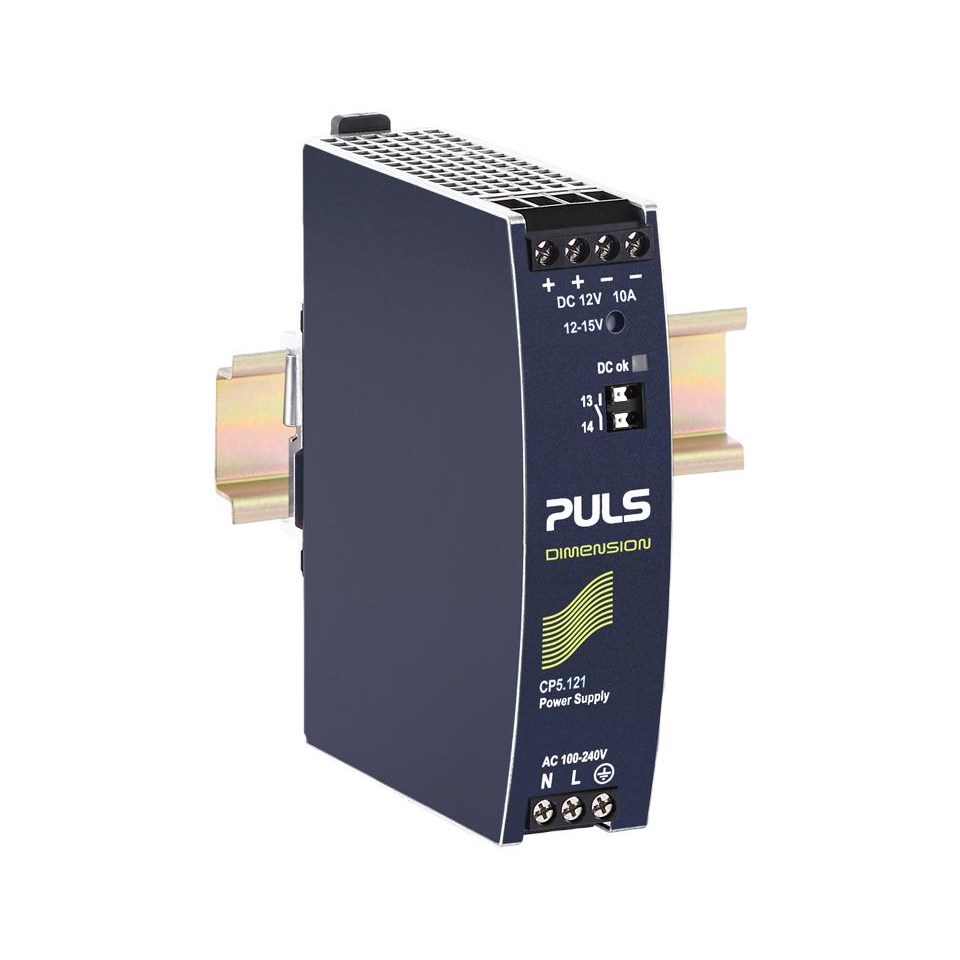

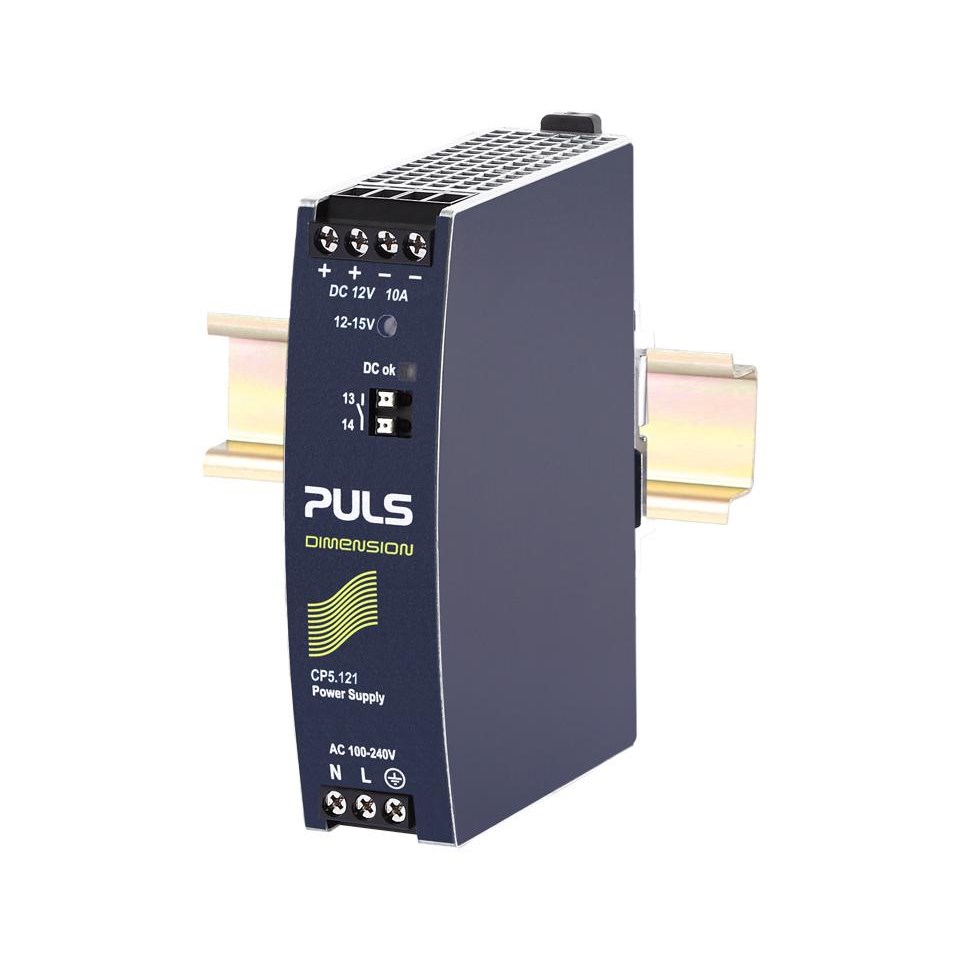

Puls CP5.121 Power Supply 1PH 110-150VDC 12VDC 10A 120 Watt 7.7 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP5.121

  • Single-phase, 10A rated current
  • Compact size: 32mm width, 124mm height
  • High efficiency at 94%
  • Wide-range input with active harmonic correction
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
DIN rail power supplies
Brand
PULS
Series
CP-Series

Electrical

Input Voltage AC
100-240V
Input Voltage DC
110-150V
Output Current - Nominal
10A
Output Current - Range
10.0 – 8.0A
Output Power
120 W
Output Voltage - Nominal
12V
Output Voltage - Range
12 - 15Vdc
Efficiency
93.2 / 94.0%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style
DIN rail

Dimensions

Depth
102mm
Height
124mm
Weight
440g
Width
32mm

Environmental

Approvals / Conformity
IEC 61010-2-201,UL 61010-2-201,IEC 62368,Class I Div 2,ATEX,IECEx,IEC 61558-2-16,VDMA 24364,CE,REACH,WEEE,KC,CCC,UKCA
Operating Temperature
-25 °C to 70 °C
