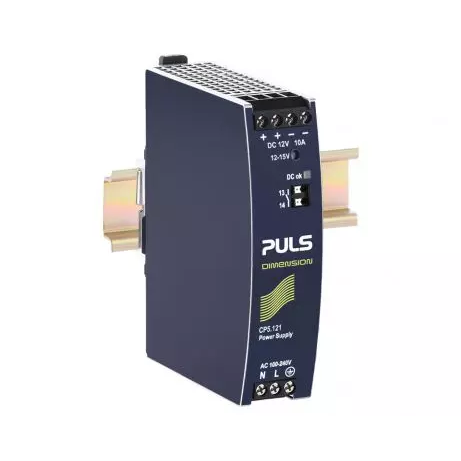

Puls CP5.121-IEC Power Supply 100-240VAC 12-15VDC 4A 120 Watt 7.7 Watt DIN Rail Mount Screw Terminal

Product Code: CP5.121-IEC

  • Compact size: 32mm width, DIN rail mount
  • High efficiency at 94%
  • Wide voltage range: 100-240 VAC, 12-15 VDC
  • Rated power of 120W with active harmonic correction
  • Suitable for Class I Div. 2 environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 150 V DC (± 20 %)
Output Current - Nominal
8A at 15V 10A at 12V
Output Current - Range
10A to 8A
Output Power
120W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
0.94
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.44kg
Width
32mm

Environmental

Operating Temperature
-25°C to 70°C
