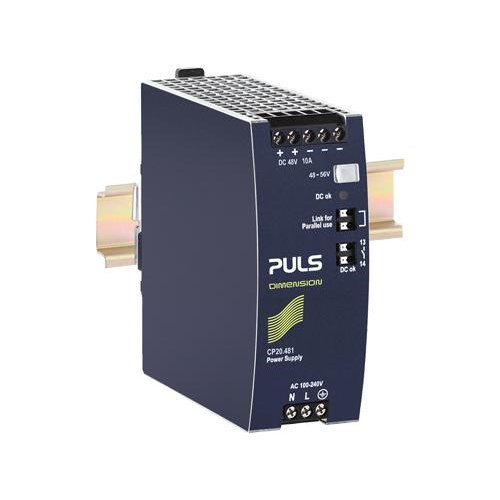

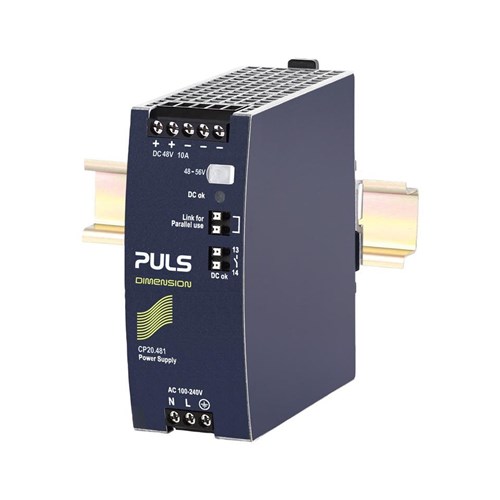

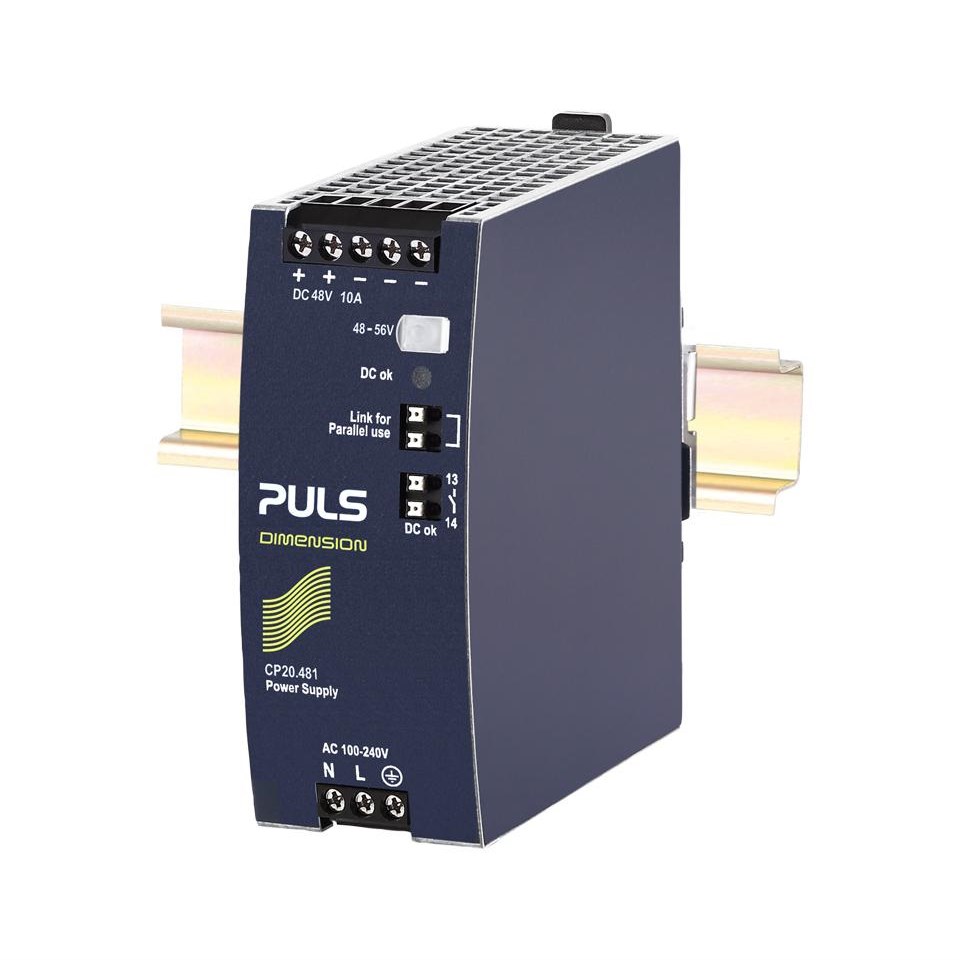

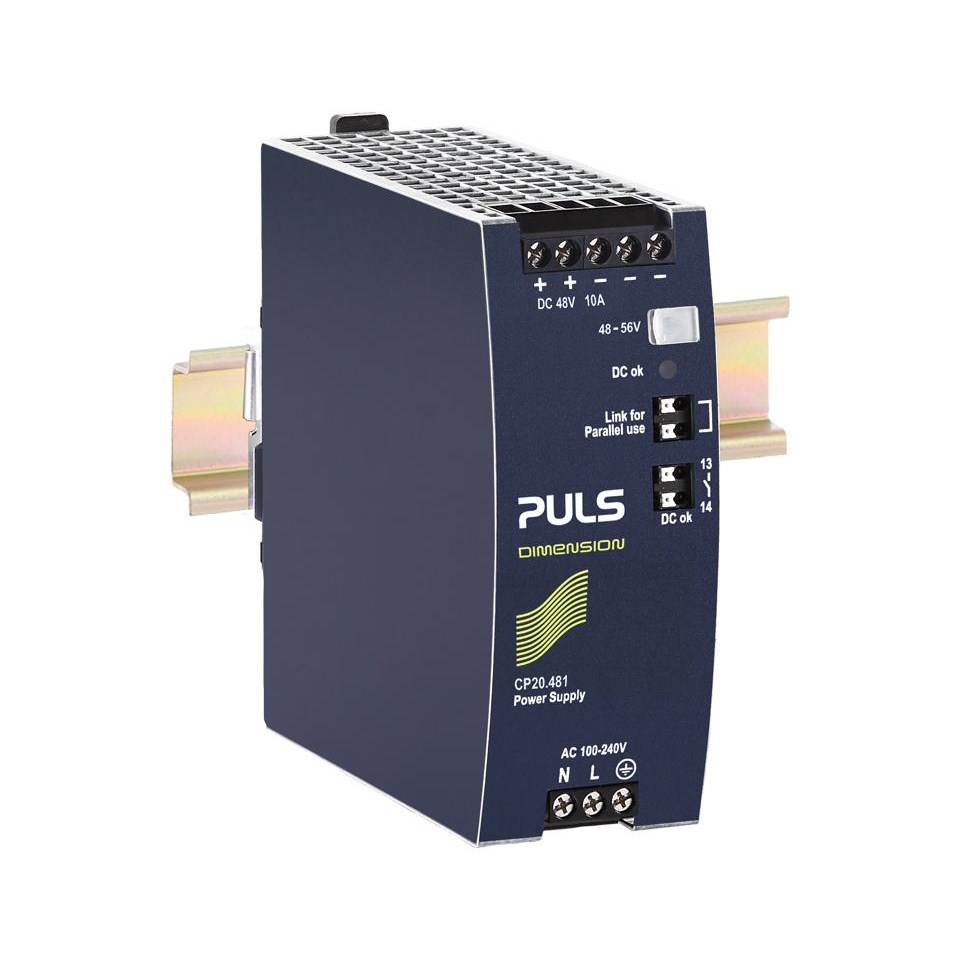

Puls CP20.481 Power Supply 1PH 110-150VDC 48VDC 10A 480 Watt 18.4 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP20.481

  • Single-phase, 10 A rated current
  • Wide input voltage: 110-150 VDC, 48 VDC
  • High efficiency at 96.3%
  • Compact size: 48 x 124 x 127 mm
  • DIN Rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150 V DC
Output Current - Nominal
10A
Output Current - Range
10A to 8.6A
Output Power
480W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 56V DC
Efficiency
95.0 / 96.3%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.832kg
Width
48mm

Environmental

Approvals / Conformity
IEC 62368, IEC 61010, UL 61010, Class I Div 2, ATEX, IECEx, IEC 60068-2-60, ISA-71.04-1985, VDMA 24364, CE, REACH, WEEE, KC, CCC, RoHS-China
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
