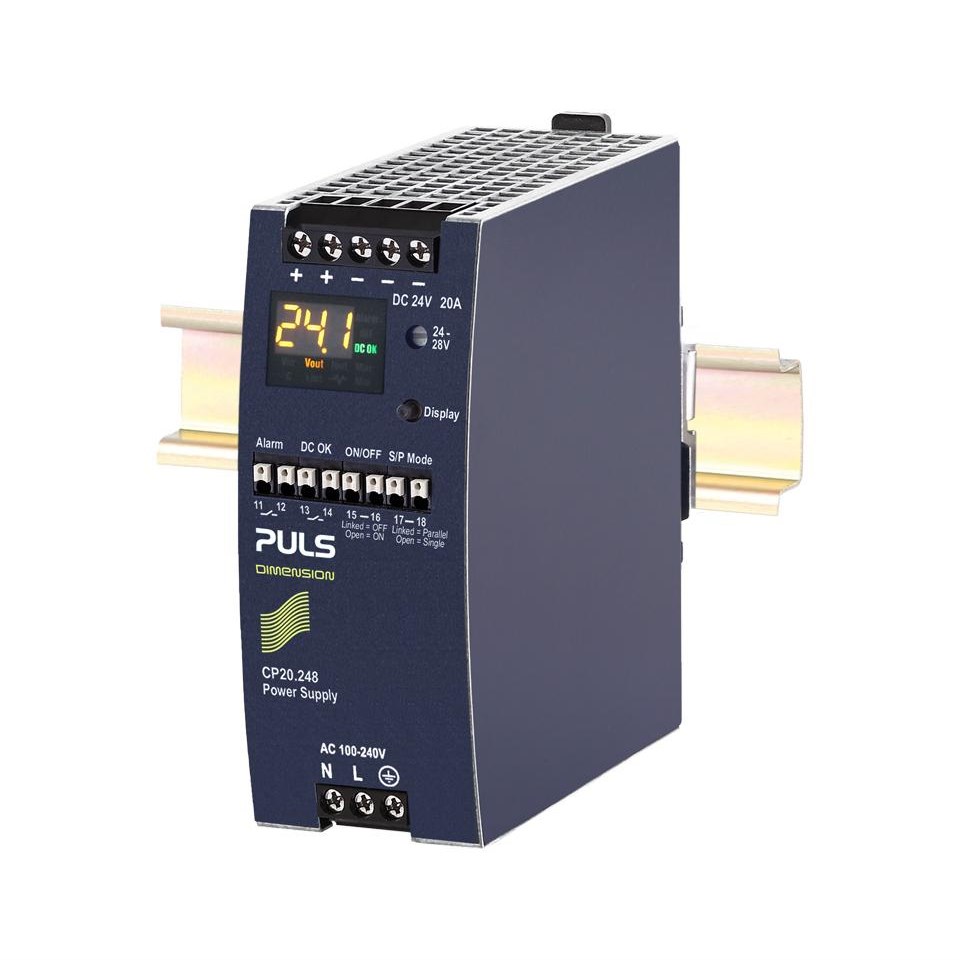

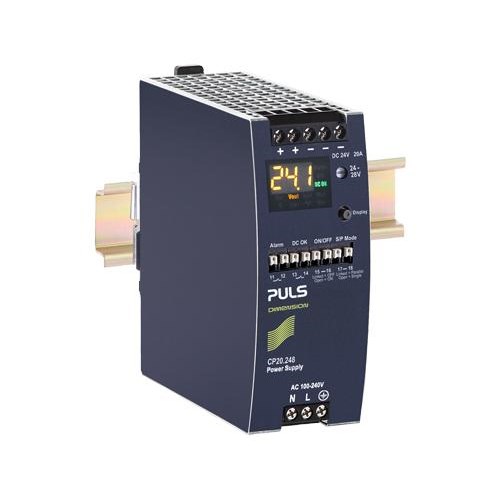

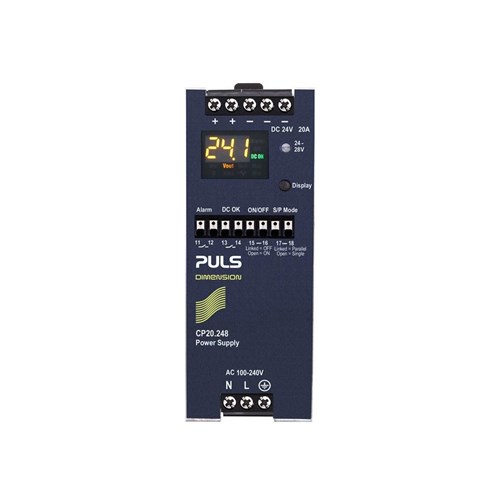

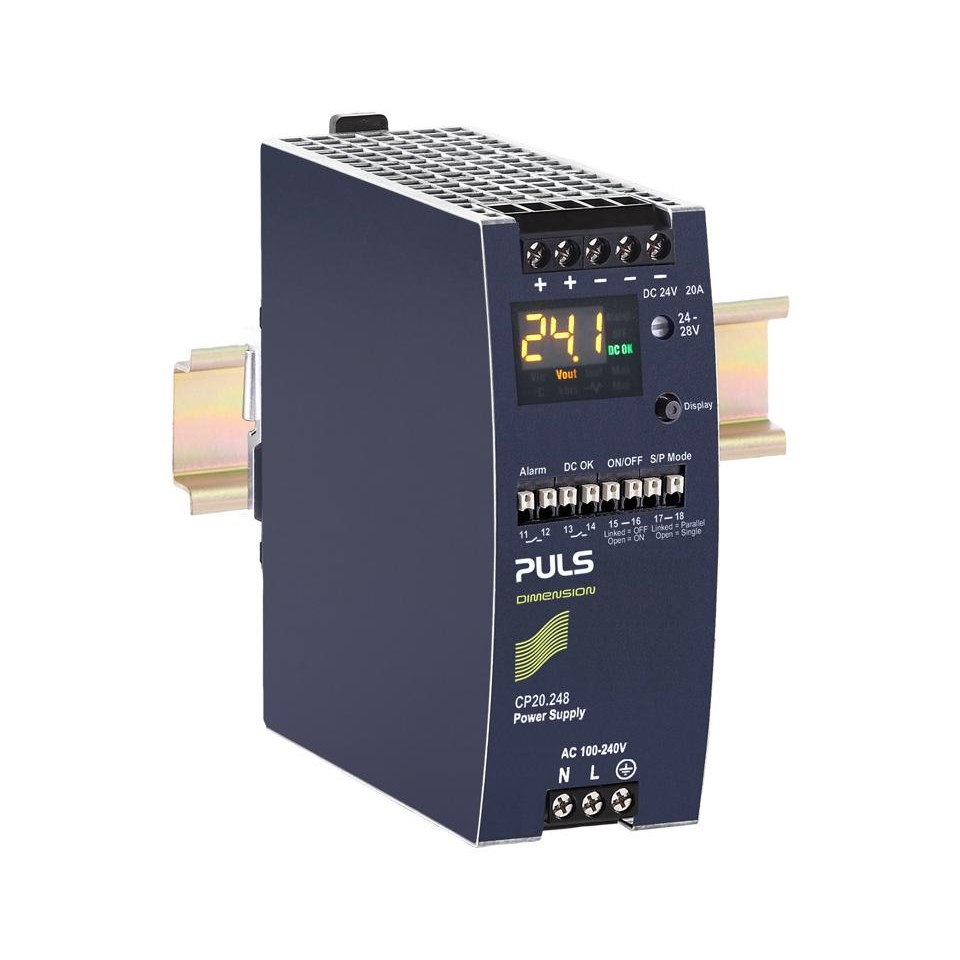

Puls CP20.248 Power Supply 1PH 110-150VDC 24VDC 20A 480 Watt 29.6 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP20.248

  • Single-phase, 480 W power supply
  • High efficiency at 95.6%
  • Wide input voltage range: 110-150 VDC, 24 VDC
  • Active inrush current limitation
  • IP20 protection with DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 300 V DC (± 20 %)
Output Current - Nominal
17.1A at 28V 20A at 24V
Output Current - Range
20A to 17.1A
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
95.6% (typical)
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.835kg
Width
48mm

Environmental

Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
