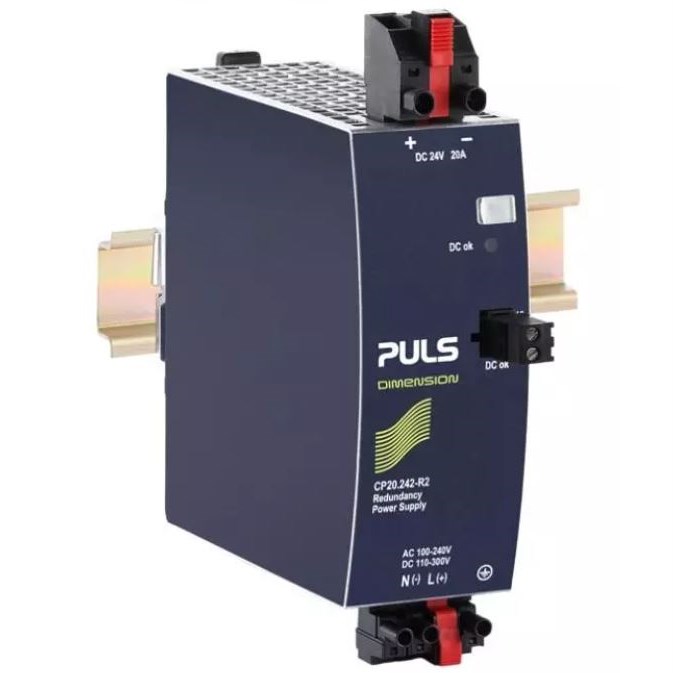

Puls CP20.242-R2 Power Supply 110-300VDC 20A 31.7 Watt 24.2 Watt

Product Code: CP20.242-R2

  • Rated current of 20 A for robust performance
  • Wide voltage range: 110-300 VDC
  • High efficiency at 95.2%
  • Active harmonic correction included
  • DIN rail mountable with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension CP

Electrical

Input Voltage
100-240 V AC / 110-300 V DC
Output Current - Nominal
20 A Up to +60°C ambient 15 A At +70°C ambient Derate linearly between +60°C and +70°C
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
93.8 / 95.2% At 120 / 230Vac
Terminal Type
Quick-connect springclamp terminal

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.85kg
Width
48mm

Environmental

Operating Temperature
-40°C to 70°C
