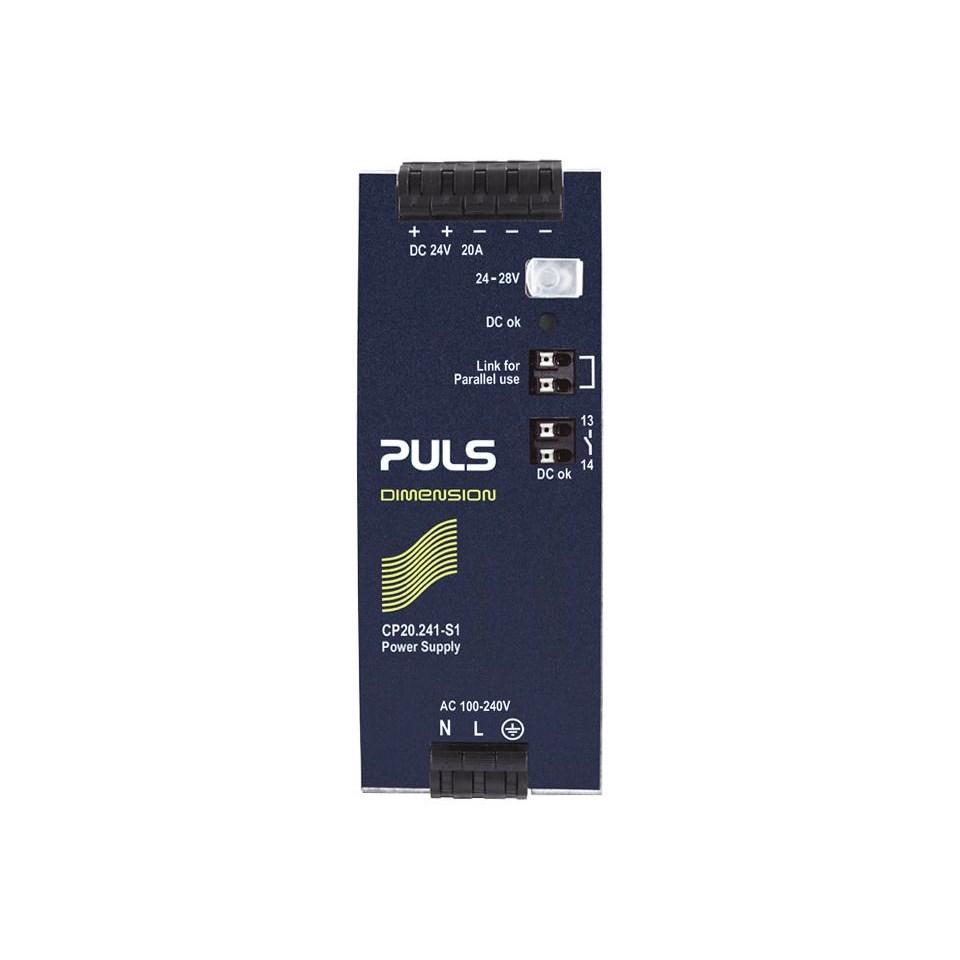

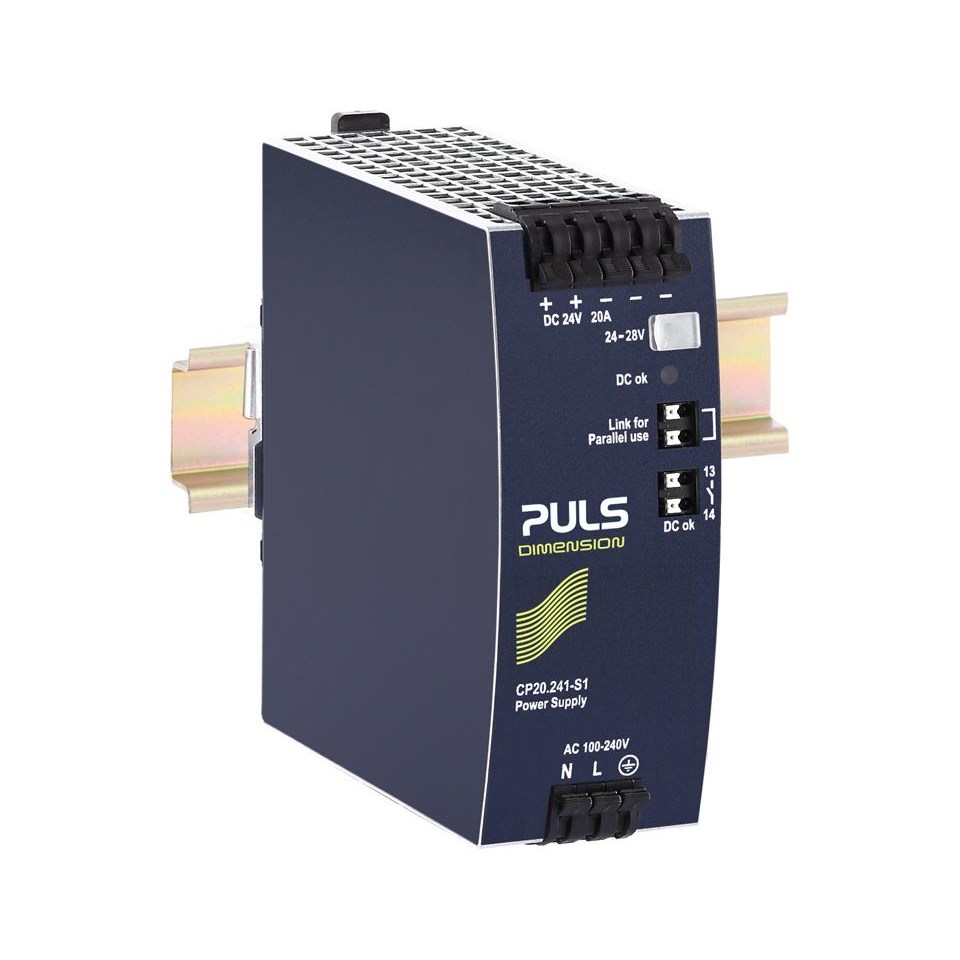

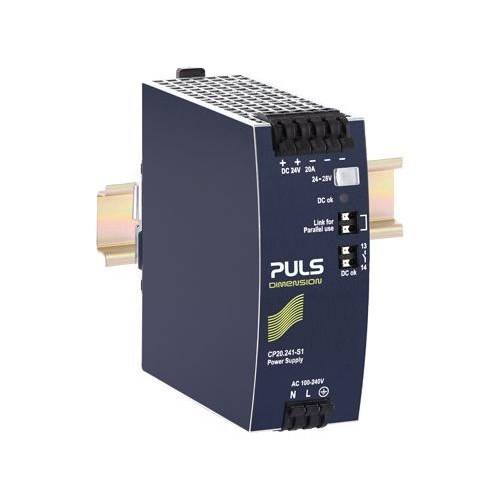

Puls CP20.241-S1 Power Supply 1PH 110-150VDC 24VDC 20A 480 Watt 22.1 Watt DIN Rail Mount Spring Clamp IP20

Product Code: CP20.241-S1

  • Compact DIN rail mounting, 48mm width
  • High efficiency at 95.6%
  • Wide-range input: 110-150 VDC, 24 VDC
  • Active inrush current limitation
  • Rated power of 480 W with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
DIN rail power supplies
Brand
PULS
Series
CP-Series

Electrical

Input Voltage AC
100-240V
Input Voltage DC
110-150V
Output Current - Nominal
20A
Output Current - Range
20 - 17.1 A
Output Power
480 W
Output Voltage - Nominal
24 V
Output Voltage - Range
24-28 Vdc
Efficiency
94.2 / 95.6 %
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style
DIN rail

Dimensions

Depth
127 mm
Height
124 mm
Weight
830 g
Width
48 mm

Environmental

Approvals / Conformity
IEC 62368,IEC 61010,UL 61010,Class I Div 2,ATEX,IECEx,Semi F47,IEC 60068-2-60,ISA-71.04-1985,VDMA 24364,CE,REACH,WEEE,KC,CCC,RoHS-China
Operating Temperature
-25 °C to 70 °C
IP Rating
IP20
