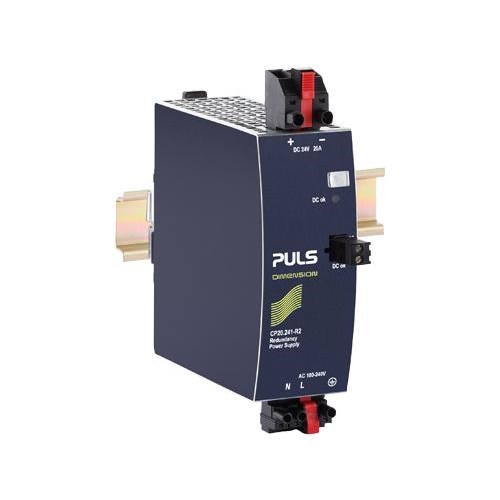

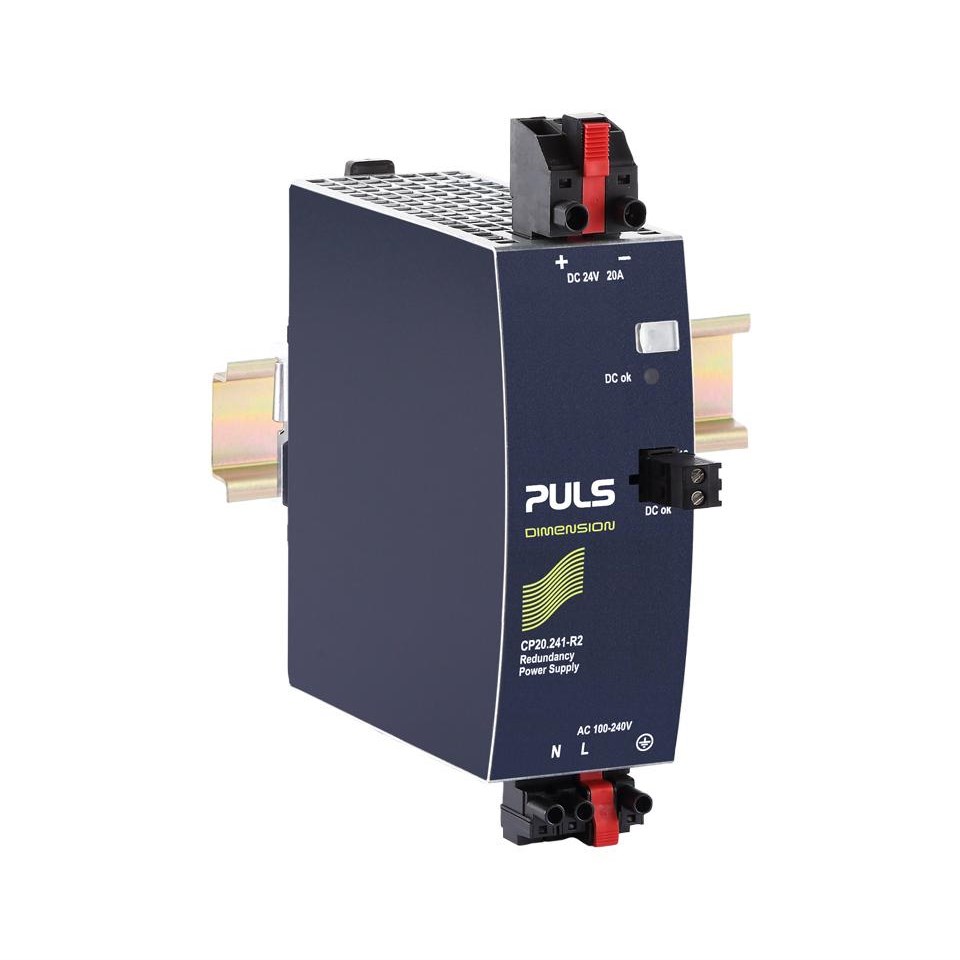

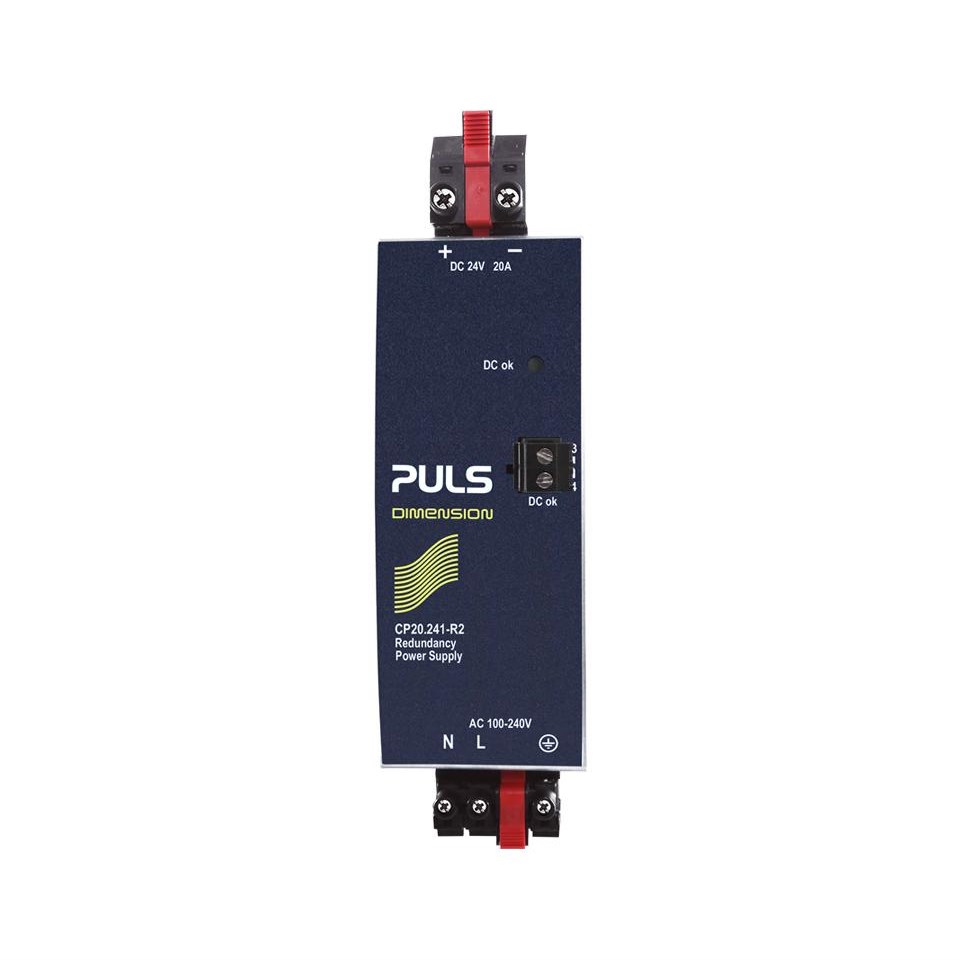

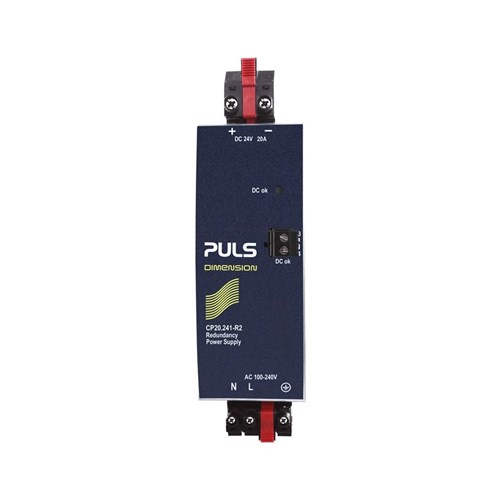

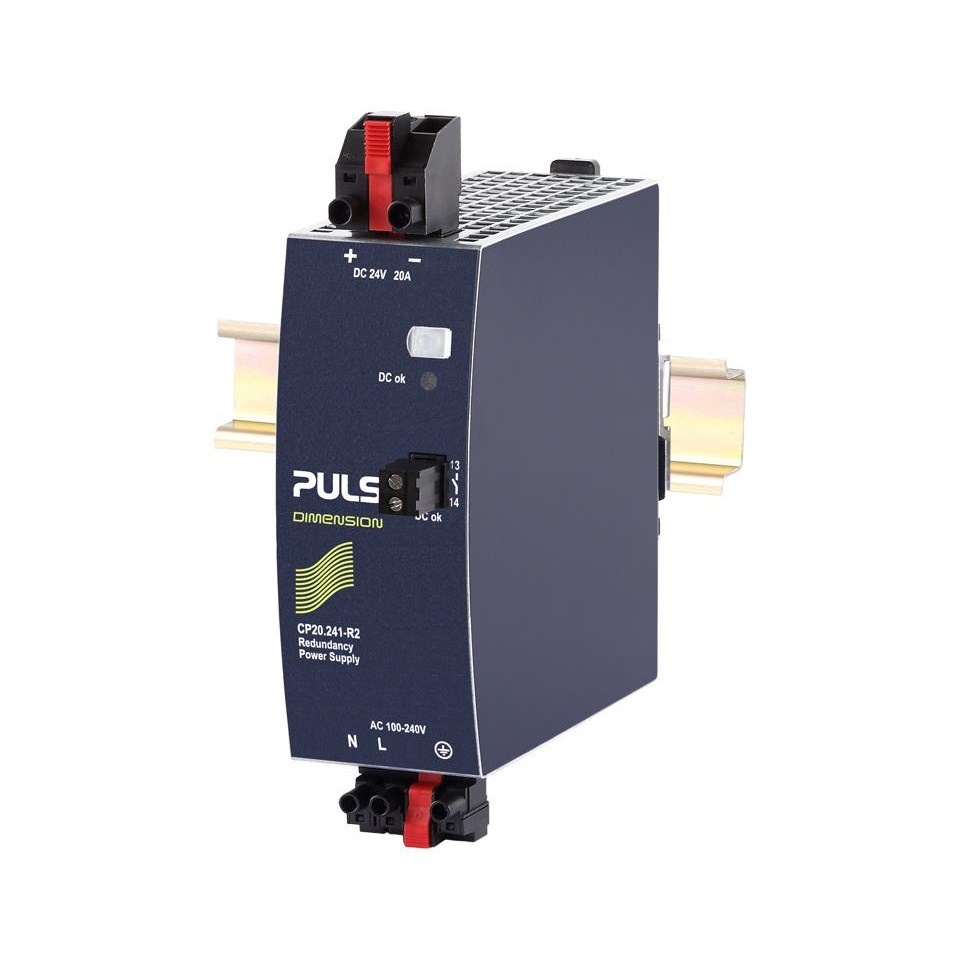

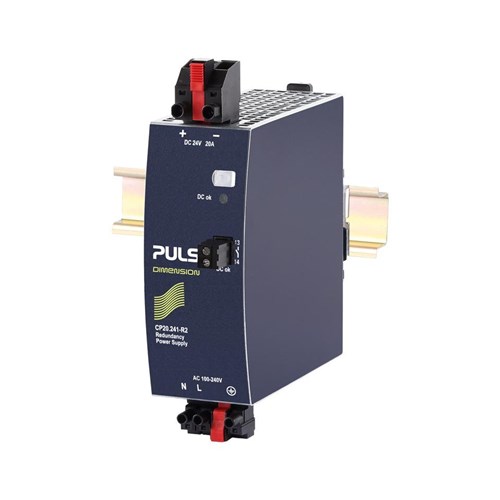

Puls CP20.241-R2 Power Supply 110-150VDC 20A 480 Watt 24.2 Watt DIN Rail Mount Plug IP20

Product Code: CP20.241-R2

  • Rated current of 20 A, voltage 110-150 VDC
  • Compact size: 48x124x127 mm, weight 850 g
  • High efficiency at 95.2%, active inrush limit
  • Wide-range input with active harmonic correction
  • DIN rail mount with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply With Integrated Decoupling Function
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
110V to 150V
Output Current - Nominal
20A
Output Power
480W
Output Voltage - Nominal
24V
Efficiency
93.8 / 95.2%
Terminal Type
Spring clamps

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.83kg
Width
48mm

Environmental

Approvals / Conformity
IEC 61010-2-201, UL 61010-2-201, IEC 62368, EN 60079 (ATEX), IEC 60079 (IECEx), Class I Div 2, Semi F47, IEC 60068-2-60, ISA-71.04 G3, Labs, CE, WEEE, REACH, KC, CCC
Operating Temperature
-40°C to 70°C
IP Rating
IP20
