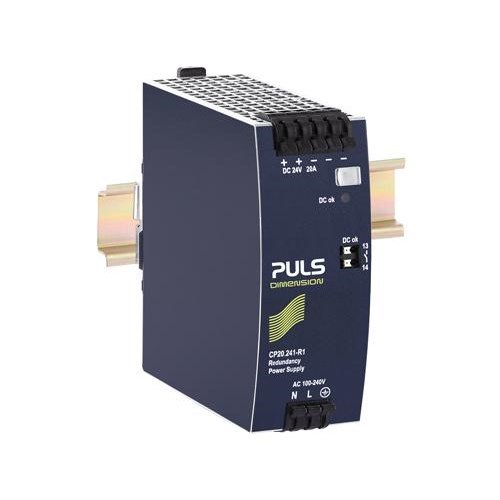

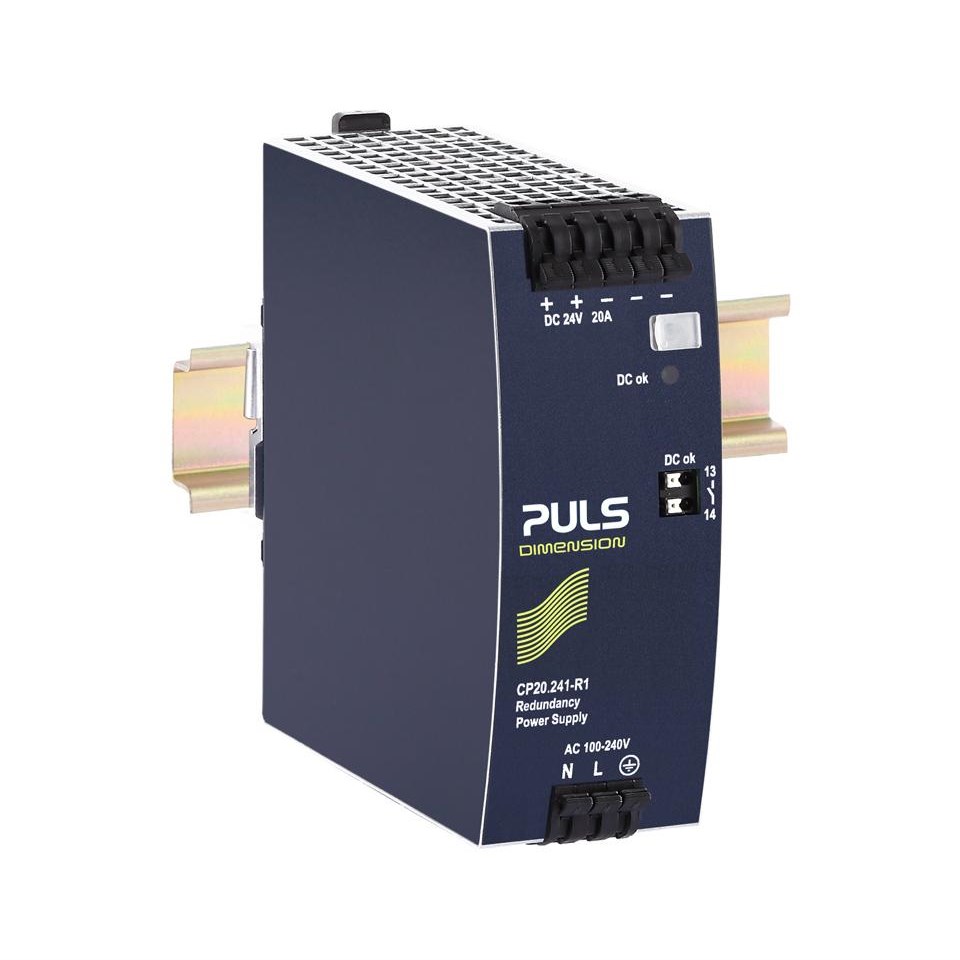

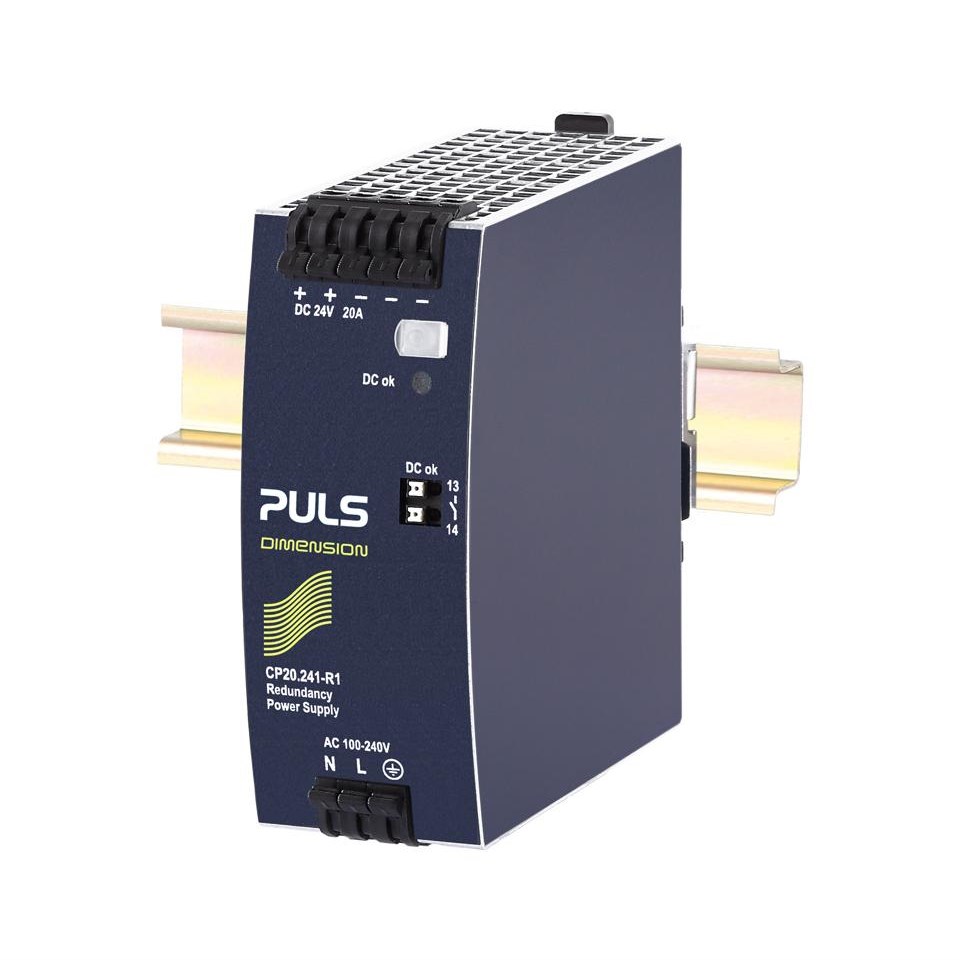

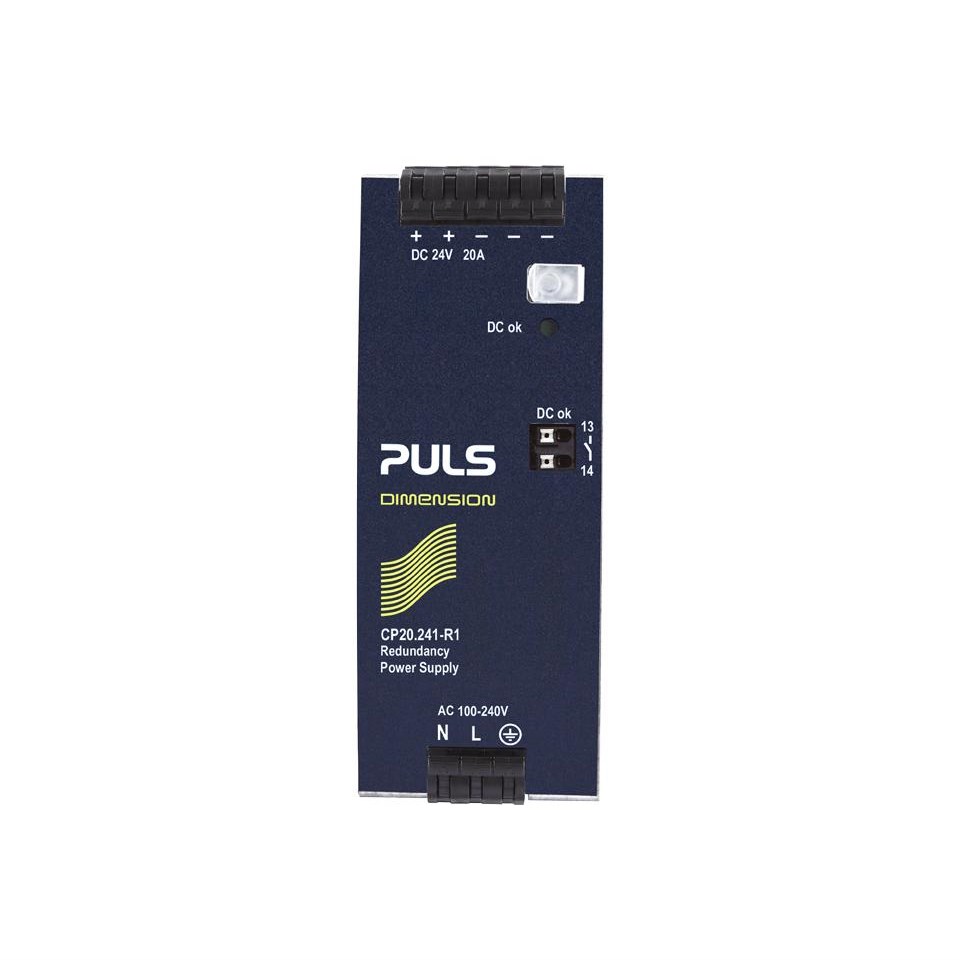

Product Code: CP20.241-R1

Rated current of 20 A, suitable for robust applications.
Compact design with 48 mm width for space-saving installation.
Complies with ATEX, UL, IECEx standards for safety assurance.
High efficiency at 95.2% reduces energy loss.
Active harmonic correction improves power quality.

Specifications

General

Product Type

Power Supply With Integrated Decoupling Function

Brand

Puls

Series

CP-Series

Electrical

Input Voltage 110V to 150V	Output Current - Nominal 20A	Output Power 480W
Output Voltage - Nominal 24V	Efficiency 93.8 / 95.2%	Terminal Type Spring clamps

Mechanical

Housing Material

Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth 117mm	Height 124mm	Weight 0.83kg
Width 48mm

Environmental

Approvals / Conformity

IEC 61010-2-201, UL 61010-2-201, IEC 62368, EN 60079 (ATEX), IEC 60079 (IECEx), Class I Div 2, Semi F47, IEC 60068-2-60, ISA-71.04 G3, Labs, CE, WEEE, REACH, KC, CCC

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Puls CP20.241-R1 Power Supply 110-150VDC 20A 480 Watt 24.2 Watt DIN Rail Mount Spring Clamp IP20
