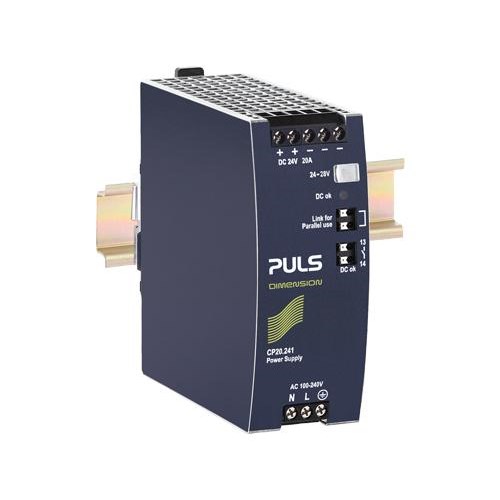

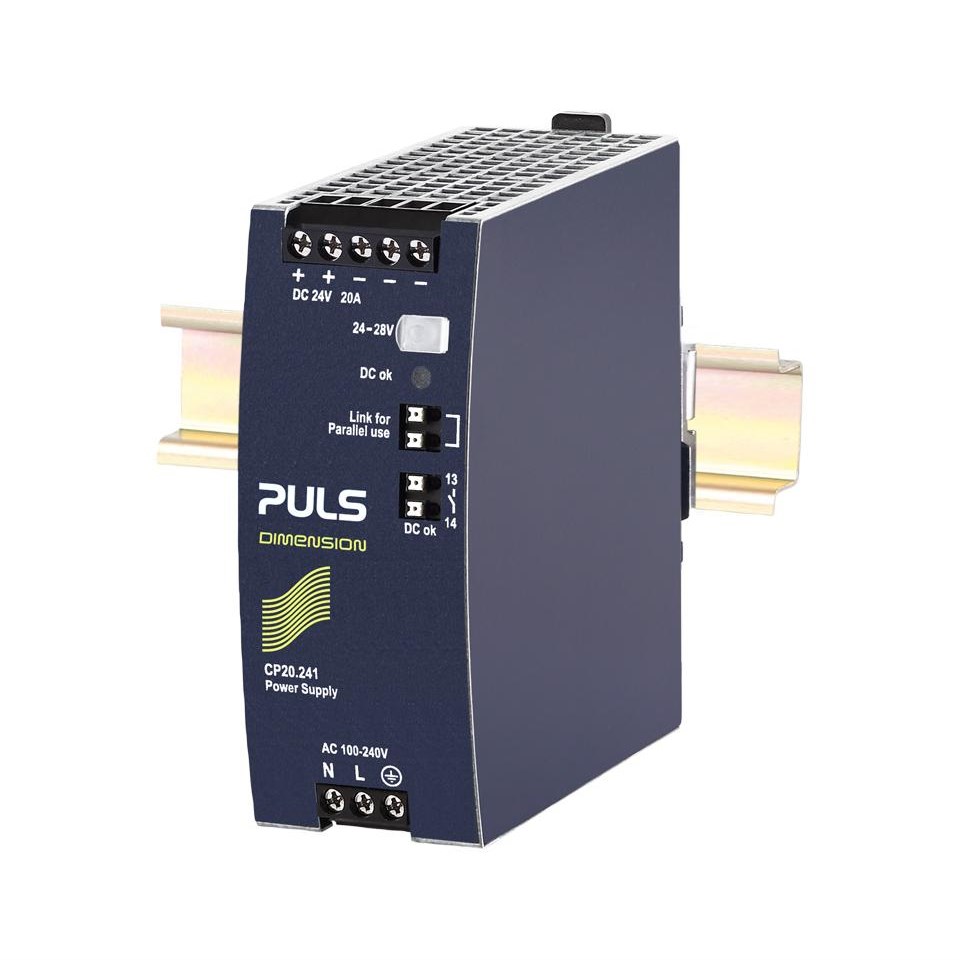

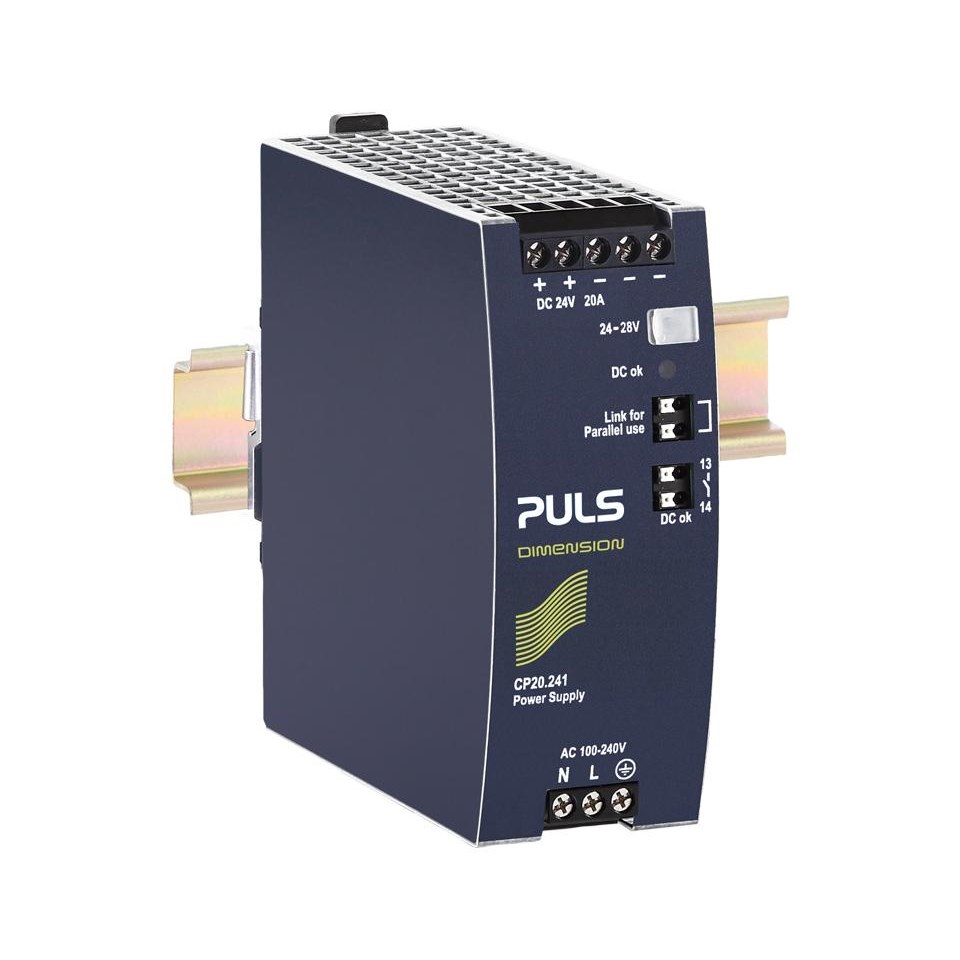

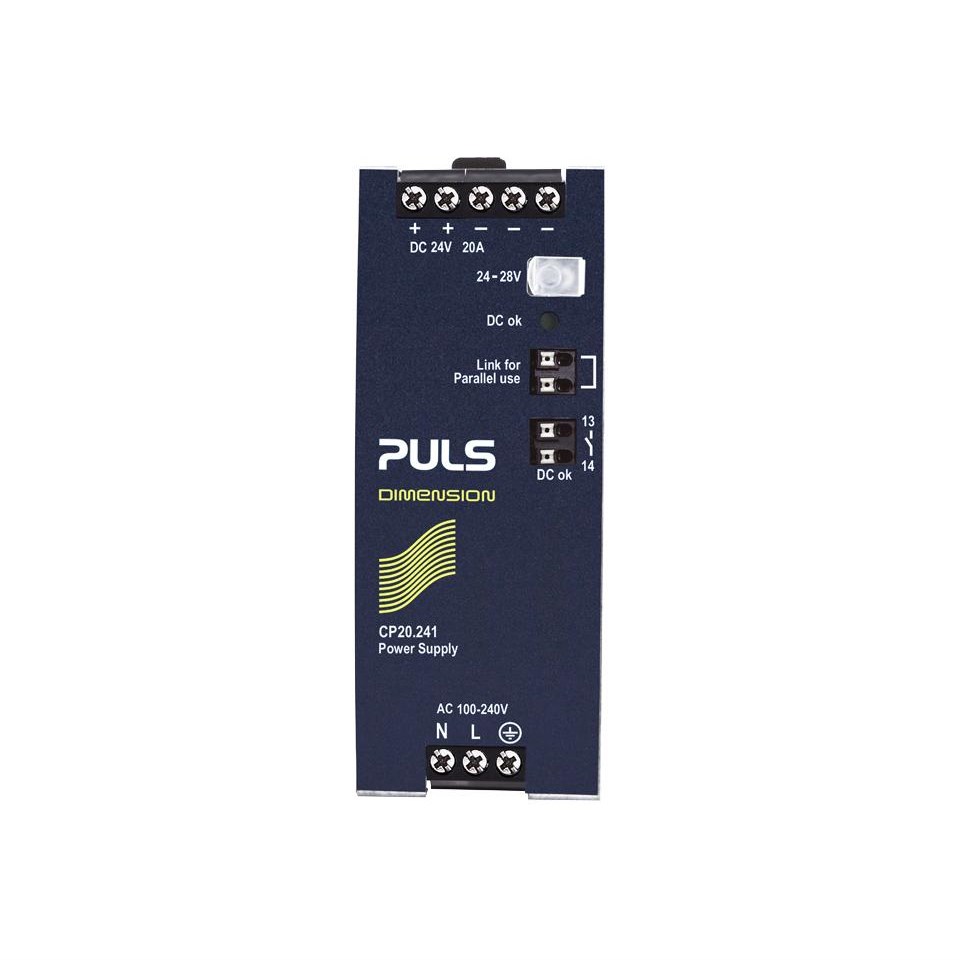

Puls CP20.241 Power Supply 1PH 110-150VDC 24VDC 20A 480 Watt 22.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP20.241

  • Single-phase, 20 A rated current
  • Compact size: 48x124x127 mm
  • High efficiency at 95.6%
  • Active inrush current limitation
  • Wide-range input for versatility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150V DC
Output Current - Nominal
20A
Output Current - Range
20A to 17.1A
Output Power
480W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V DC
Efficiency
94.2 / 95.6%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
127mm
Height
124mm
Weight
0.83kg
Width
48mm

Environmental

Approvals / Conformity
IEC 62368, IEC 61010, UL 61010, Class I Div 2, ATEX, IECEx, IEC 61558-2-16, Semi F47, IEC 60068-2-60, ISA-71.04-1985, VDMA 24364, CE, REACH, WEEE, KC, CCC, RoHS-China
Operating Temperature
-25°C to 70°C
IP Rating
IP20
