Products

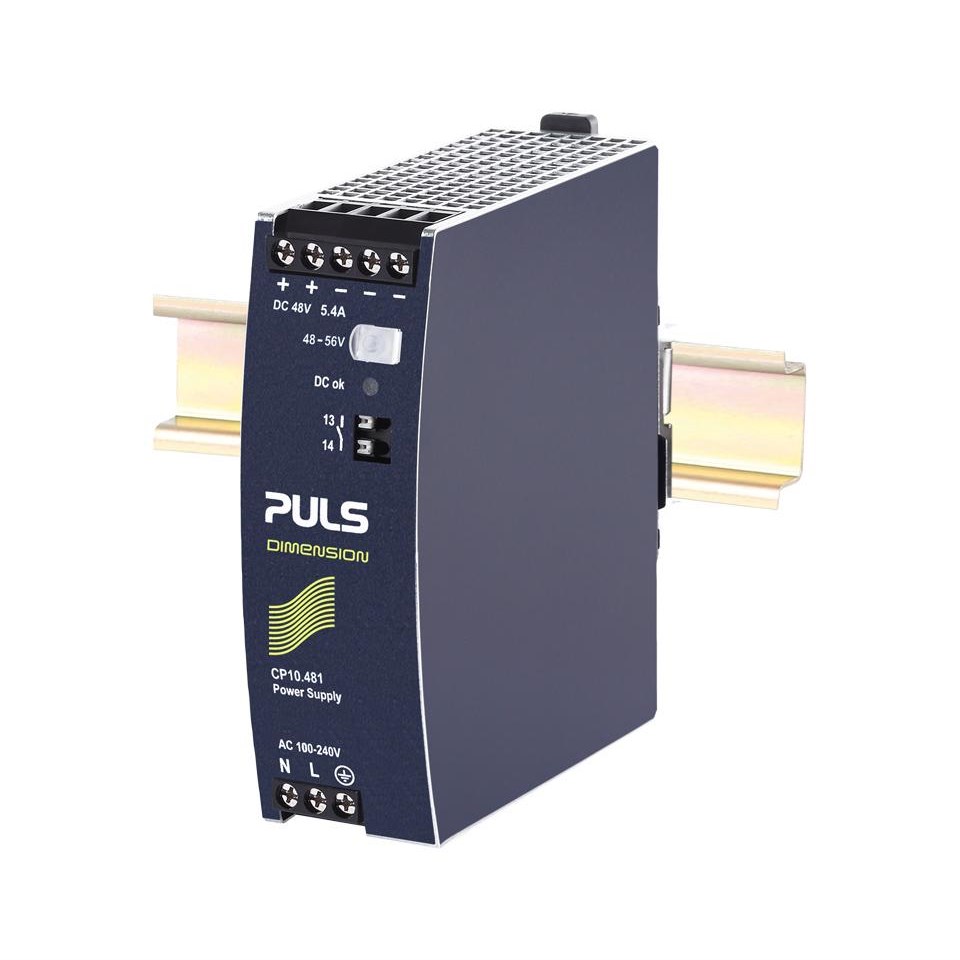

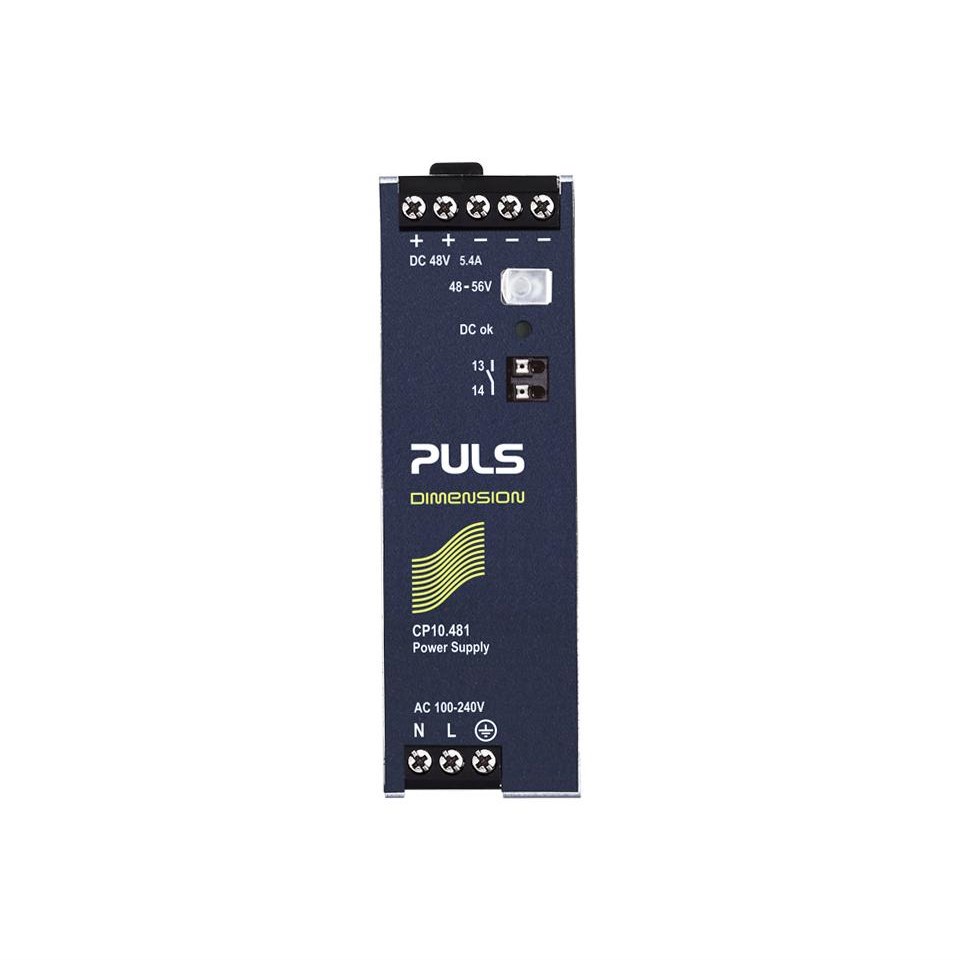

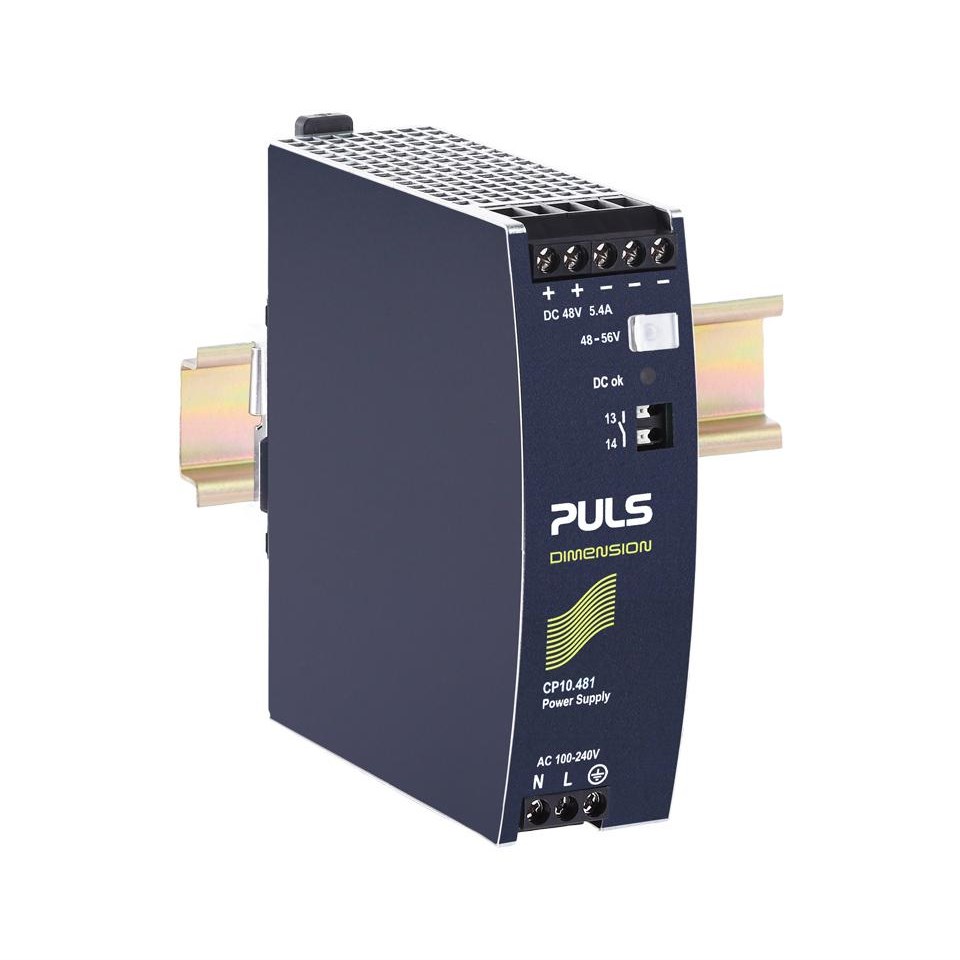

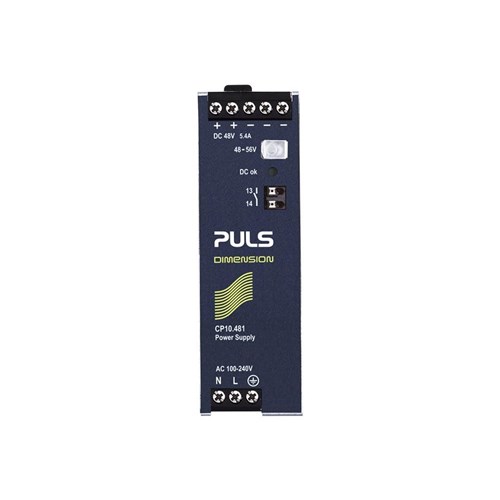

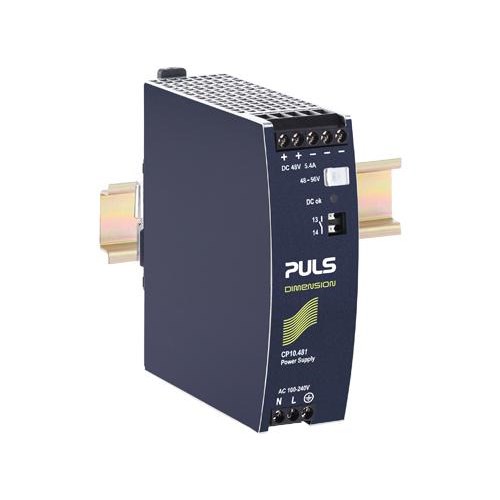

Puls CP10.481 Power Supply 1PH 110-150VDC 48VDC 5.4A 260 Watt 12.3 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP10.481

  • High efficiency at 95.5%
  • Wide-range input type
  • Compact size: 39x124x117 mm
  • Screw terminal connections
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150V DC
Output Current - Nominal
5.4A
Output Current - Range
5.4A to 4.6A
Output Power
260W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 56V
Efficiency
93.8 / 95.5%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, ATEX, IECEx, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, ISA-71.04 G32, Labs, CE, REACH, WEEE, KC, CCC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents
